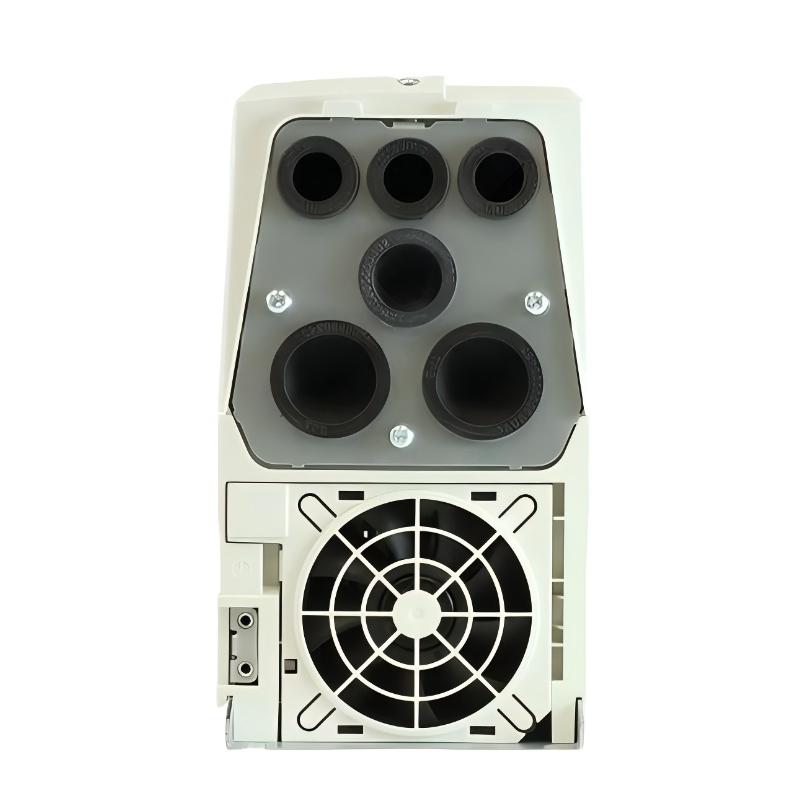

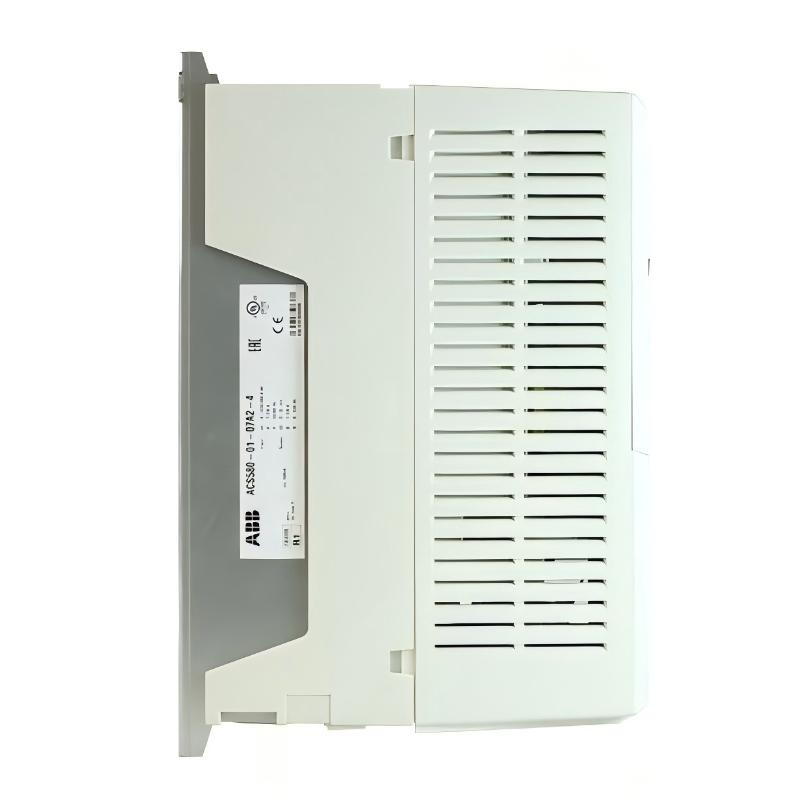

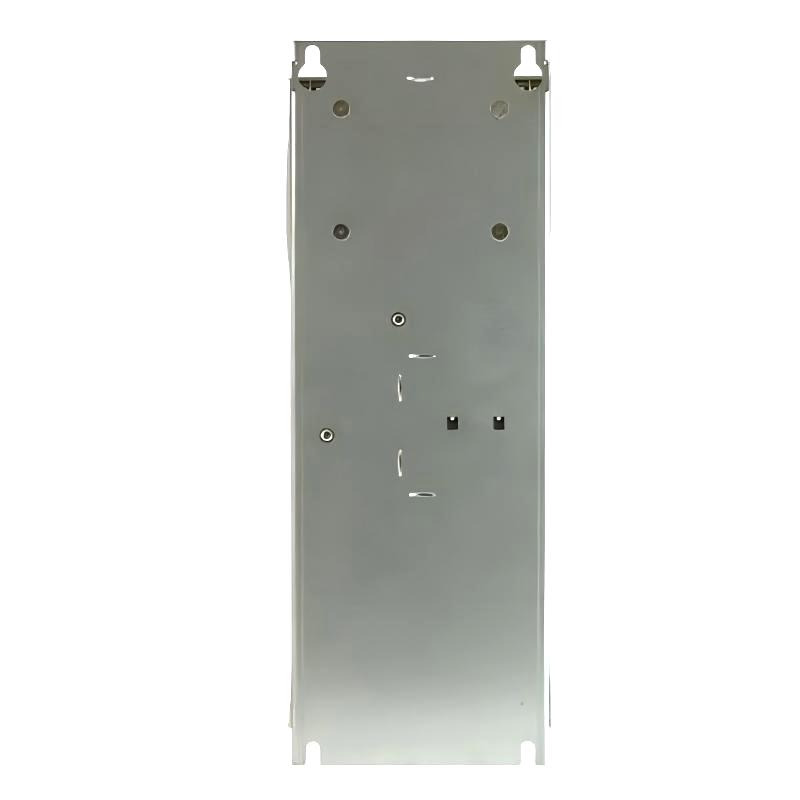

1. What type of motor is the ABB ACS580-01-12A7-4 designed to control?

The ABB ACS580-01-12A7-4 is designed for controlling three-phase AC motors in general industrial applications. It can be used where variable motor speed, controlled acceleration and deceleration, or improved process control is required. Typical applications include pumps, fans, conveyors, compressors, mixers, material handling equipment and various production machines. The drive adjusts the motor’s operating frequency and voltage according to the required speed and load conditions. This allows the motor to operate more flexibly than a conventional direct-on-line starter. When correctly configured with the motor’s rated voltage, current, frequency and other nameplate data, the drive can provide stable motor operation over a wide range of industrial working conditions.

2. What is the input voltage range of the ACS580-01-12A7-4?

The ACS580-01-12A7-4 is designed for a three-phase AC input supply in the 380–480 V range, making it suitable for standard industrial power systems based around a 400 V nominal supply. Before installation, the actual site voltage should be checked to ensure it falls within the specified operating range. The incoming power circuit should be correctly protected with suitable switching and protection equipment, while the grounding system should be installed according to applicable electrical requirements. Cable selection should take into account the drive rating, installation method, ambient conditions and local regulations. Applying an incorrect supply voltage or incorrectly connecting the incoming phases can cause drive faults or damage, so the power supply should always be verified before commissioning.

3. What is the rated motor power of the ABB ACS580-01-12A7-4?

The ACS580-01-12A7-4 has a typical rated power of 5.5 kW under a 400 V supply. However, selecting a drive for a motor should not be based only on the motor’s nominal power. The motor’s rated current is also an important factor because the actual current required by the motor depends on its load and operating conditions. For applications involving high starting torque, frequent acceleration, rapid deceleration or continuous overload, the heavy-duty rating should be considered carefully. The motor nameplate data should be entered correctly during commissioning so the drive can provide appropriate control and protection. If the motor is frequently operating close to its maximum load, the actual current and thermal conditions should be monitored to ensure the selected drive has sufficient capacity.

4. How should the ACS580-01-12A7-4 be commissioned for a new motor?

Commissioning should begin with a complete inspection of the electrical installation and mechanical system. Verify the incoming three-phase power, protective grounding, motor cable connections and motor terminal configuration before energizing the drive. The motor nameplate information should then be entered accurately, including rated voltage, rated current, rated frequency and rated speed where required by the control configuration. The correct start command source and speed reference source should also be selected. After the basic parameters have been configured, the motor should first be operated at a low speed while checking its rotation direction, output current, acceleration behavior and mechanical response. If the motor rotates in the wrong direction, the appropriate procedure should be followed to correct the rotation. Once basic operation has been confirmed, the speed range and acceleration/deceleration behavior can be optimized for the actual machine.

5. What should be checked when the ACS580-01-12A7-4 has an overcurrent fault?

An overcurrent fault should be investigated according to when and how it occurs. If the fault appears immediately after the start command, check the motor wiring, terminal connections, insulation condition and motor windings for possible short circuits or incorrect connections. If the fault occurs during acceleration, the acceleration ramp may be too aggressive for the motor and mechanical load, particularly when the machine has a high inertia or requires substantial starting torque. In this situation, the acceleration settings and load characteristics should be reviewed. If the fault occurs during normal operation, inspect the mechanical system for excessive load, blocked components, bearing problems or sudden changes in process resistance. It is also important to verify that the motor rated current and other motor parameters have been correctly entered into the drive. The fault history and operating values can provide additional information for identifying the cause.

6. Why does the motor sometimes fail to reach the commanded speed?

A motor that does not reach its commanded speed can be affected by incorrect parameters, an incorrect speed reference, excessive mechanical load or current and torque limitations. First, verify the minimum and maximum frequency settings and confirm that the selected speed reference source is correct. If an analog signal is being used, check the input signal level, scaling and associated parameters. If a PLC or automation controller is providing the speed command, verify that the transmitted reference value is correct. The actual output frequency and motor current should also be monitored while the motor is running. If the motor current remains high while the actual speed stays below the target, the mechanical load may be too large. Checking the complete control chain from the PLC or external reference to the drive and then to the motor is usually the most effective way to identify the problem.

7. Can the ACS580-01-12A7-4 be used for pump and fan energy-saving applications?

Yes. The ACS580-01-12A7-4 can be used in variable-speed pump and fan applications where process demand changes during operation. Instead of running the motor continuously at full speed and controlling the process through mechanical throttling or other restrictions, the drive can adjust motor speed according to the required flow, pressure or air volume. This can reduce unnecessary motor power consumption when full output is not required. For effective energy management, the drive should be configured according to the actual load profile and process requirements. Minimum and maximum speed limits, acceleration and deceleration settings, motor data and external process control signals should all be reviewed during commissioning. The greatest benefit is normally achieved when the motor operates for long periods at reduced speed rather than continuously operating at maximum speed.

8. How can the ACS580-01-12A7-4 be integrated with a PLC or industrial control system?

The ACS580-01-12A7-4 can be incorporated into an industrial automation system for start/stop commands, speed control, status monitoring and fault management. A basic installation can use digital inputs for operating commands and analog signals for speed references, while more advanced control architectures can use communication-based control to exchange commands and operating data with a PLC. Depending on the selected control arrangement, the automation system can monitor information such as output frequency, motor current, operating status, warnings and fault conditions. During integration, the control source, reference source, signal scaling and communication parameters must be configured consistently. The PLC program should also include appropriate interlocks and fault-handling logic. For critical machinery, the control system should distinguish between a normal drive fault, an emergency stop condition and a process-related shutdown so that the motor and connected equipment can be stopped in an appropriate and controlled manner.
