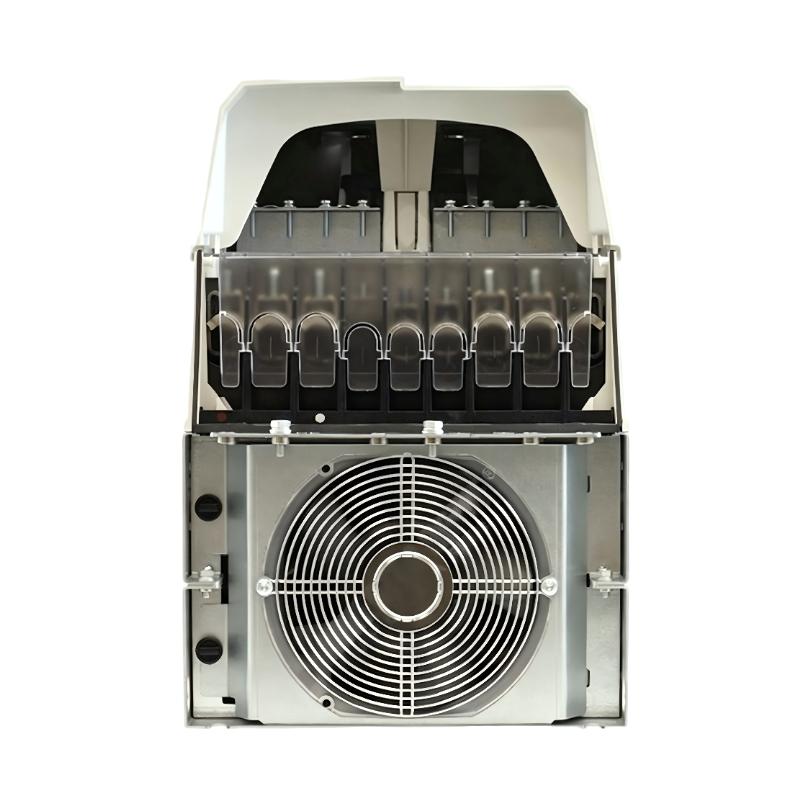

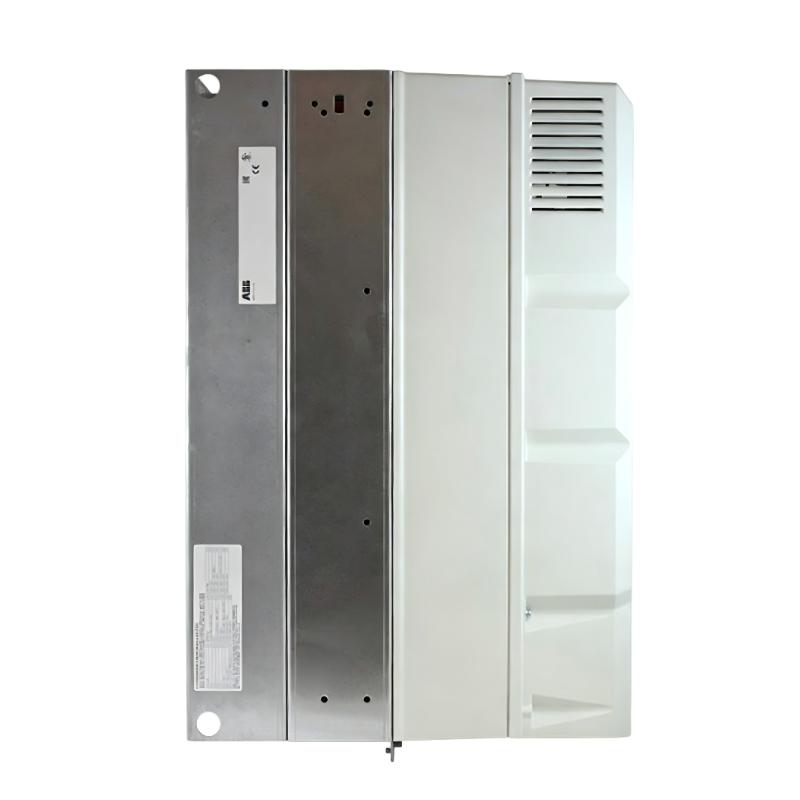

1. What applications is the ABB ACS580-01-145A-4 suitable for?

The ABB ACS580-01-145A-4 is a high-power general-purpose variable frequency drive designed for industrial motor speed control. With a rated power of 75 kW and rated output current of 145 A, it is suitable for large three-phase AC motor applications where reliable speed regulation, controlled starting and stopping, and process-oriented motor control are required. Typical applications include pumps, fans, conveyors, compressors, mixers, centrifuges, extruders, material handling equipment and other industrial machinery. The drive can adjust motor speed according to process requirements instead of keeping the motor at a fixed mains frequency. This can reduce mechanical stress during starting and stopping and provide more flexible control of production equipment. In variable-torque applications such as pumps and fans, appropriate speed control can also help reduce unnecessary energy consumption during periods of reduced demand.

2. What are the rated power and rated current of the ACS580-01-145A-4?

The ACS580-01-145A-4 has a rated power of 75 kW and a rated output current of 145 A. It is intended for three-phase 380–480 V AC industrial power systems. When selecting a motor for this drive, both motor power and rated current should be considered rather than matching only the nominal kW rating. The current required by a motor can vary considerably depending on the mechanical load, starting conditions, acceleration requirements and operating duty. For applications involving high starting torque, frequent acceleration and deceleration, or sustained heavy loading, the actual load profile should be reviewed carefully to confirm that the drive has adequate current capacity. Accurate motor nameplate data should also be entered during commissioning because the motor voltage, current, frequency and speed information directly affect the drive’s control performance and motor protection functions.

3. What are the input power requirements for the ACS580-01-145A-4?

The ACS580-01-145A-4 is designed for a three-phase AC input voltage of 380–480 V and an input frequency range of 47.5–63 Hz, making it suitable for common 400 V industrial power systems. Before installation, the actual site supply should be checked to ensure that the voltage and frequency are within the drive’s specified operating range. The incoming power circuit should be equipped with appropriately selected protective devices, switching equipment and cables. Because this model has a rated output current of 145 A, the input-side protection and cable sizing require considerably more attention than those for a small-power drive. Selection should take into account the installation method, ambient temperature, cable length, electrical regulations and actual operating conditions. Protective grounding must also be correctly installed. Before energizing the drive, all incoming power connections, grounding points and terminal connections should be inspected to minimize the risk of wiring-related faults.

4. How should the motor parameters be configured on the ACS580-01-145A-4?

During initial commissioning, the motor nameplate information should be entered accurately into the ACS580-01-145A-4. Depending on the application and control mode, this normally includes the motor’s rated voltage, rated current, rated frequency and rated speed, together with other required motor control information. Correct motor data is essential because the drive uses these values to establish suitable motor control and protection characteristics. If the rated current is entered incorrectly, the drive may not provide appropriate protection or may generate unnecessary warnings and faults under actual operating conditions. After the basic parameters have been configured, the motor should initially be operated at low speed while checking rotation direction, output current, operating frequency and mechanical response. Once low-speed operation has been confirmed, the speed range, acceleration time, deceleration time and other application-specific settings can be optimized according to the actual machine and process requirements.

5. What should be checked if the ACS580-01-145A-4 develops an overcurrent fault?

When an overcurrent fault occurs, the first step is to determine exactly when the fault appears. If the drive trips immediately after a start command, the motor cable, motor terminals and motor windings should be checked for short circuits, grounding problems, insulation faults or incorrect connections. If the fault occurs primarily during acceleration, the acceleration time may be too short for the inertia or starting torque requirements of the machine. In this situation, the acceleration settings and mechanical load should be reviewed. If the drive operates normally for a period and then develops an overcurrent condition, the mechanical system should be inspected for blocked components, bearing problems, excessive friction, transmission problems or a sudden increase in process load. The motor rated current and other motor parameters should also be verified. Reviewing the drive fault history together with output current, output frequency and actual machine conditions can help distinguish between electrical, mechanical and parameter-related causes.

6. Why might the motor connected to the ACS580-01-145A-4 fail to reach the commanded speed?

If the motor cannot reach the commanded speed, the speed reference and control parameters should be checked first. For systems using an analog speed reference, verify the input signal range, scaling and corresponding parameter settings. If the speed command comes from a PLC or another automation controller, confirm that the reference value, control word and communication data are being transmitted correctly. The minimum and maximum frequency limits should also be checked to ensure that the drive is not intentionally restricting the requested speed. If the actual output frequency reaches the commanded value while motor speed remains lower than expected, the mechanical load should be investigated. Excessive load can cause the motor to draw high current while being unable to maintain the required speed. Monitoring actual output frequency, motor current, speed feedback and load conditions at the same time can help determine whether the problem originates from the control signal, drive parameters, motor characteristics or the mechanical system.

7. Can the ABB ACS580-01-145A-4 be integrated with a PLC or industrial automation system?

Yes. The ACS580-01-145A-4 can be integrated into PLC, DCS and other industrial automation systems for motor start/stop control, speed reference, operating status monitoring, alarm handling and fault management. In a basic control arrangement, digital inputs can be used for start and stop commands while analog signals can provide speed references. For more advanced automation systems, communication interfaces and supported industrial protocols can be used to exchange control and status information between the drive and the PLC. The PLC can send operating commands and speed references while receiving information such as actual output frequency, motor current, drive status, warnings and fault conditions. During integration, the control source, reference source, communication parameters, data mapping and signal scaling must be configured consistently. For critical machinery, the PLC program should also include suitable interlocks, alarms and fault-handling logic so that abnormal drive or process conditions can be detected and handled safely.

8. How can the ACS580-01-145A-4 be used for energy-saving control of pumps and fans?

The ACS580-01-145A-4 can control pump and fan motor speed according to actual process demand, allowing the equipment to operate at an appropriate speed instead of continuously running at maximum speed. In conventional systems, a motor may operate at a relatively high speed while valves, dampers or other mechanical restrictions are used to reduce flow or air volume. With variable frequency control, the motor speed itself can be adjusted to better match the required process output. For example, a pump can operate at a lower speed when the required flow is reduced, while a fan can reduce speed when less air volume is needed. The actual energy-saving performance depends on the load characteristics, operating schedule, required process output and control strategy. For automated systems, pressure, flow, temperature or other process feedback can be connected to the control system, allowing the speed reference to be adjusted automatically. Proper optimization of operating limits, acceleration and deceleration settings, motor data and process control parameters can help balance energy efficiency with stable production performance.
