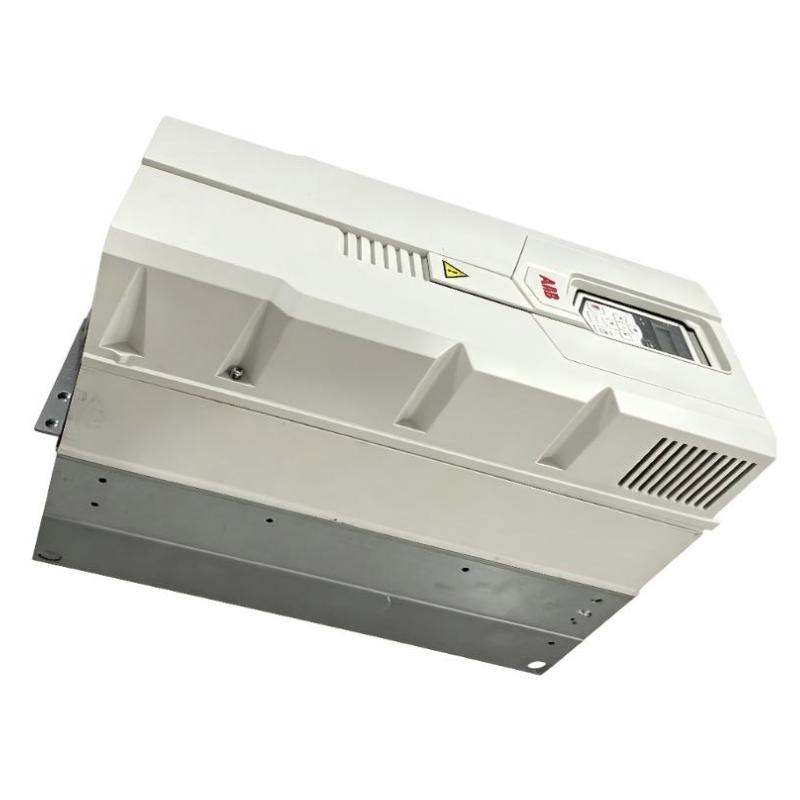

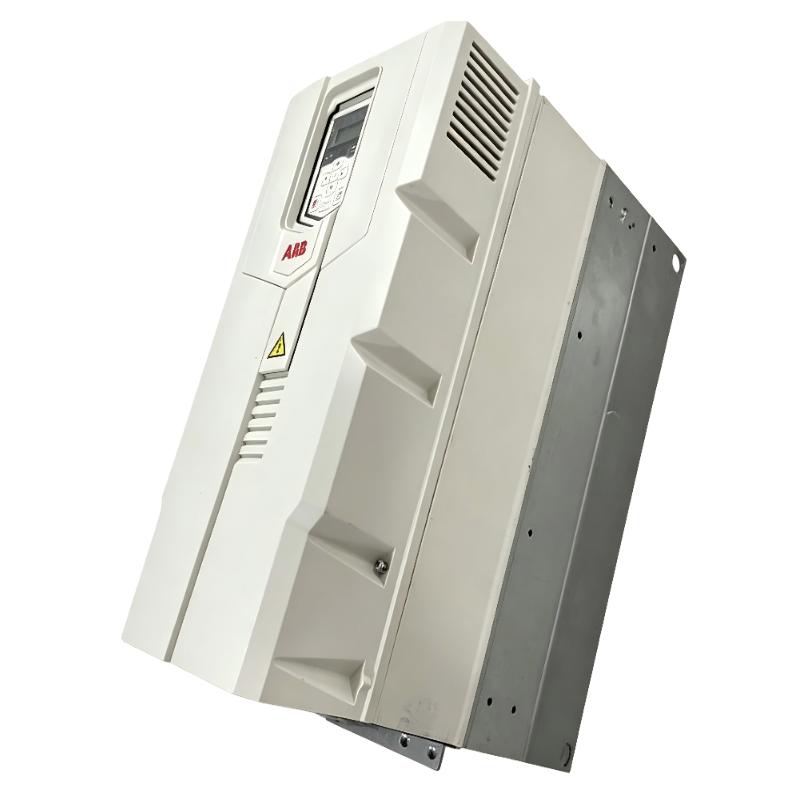

1. What applications is the ABB ACS580-01-145A-4 suitable for?

The ABB ACS580-01-145A-4 is a 75 kW general-purpose AC variable frequency drive designed for controlling three-phase AC motors in industrial applications. It is suitable for pumps, fans, conveyors, compressors, extruders, centrifuges, mixers, material handling systems and other machinery requiring adjustable motor speed and controlled operation. The drive can support both variable-torque and constant-torque applications, allowing the motor speed to be adjusted according to actual process requirements. Compared with direct-on-line motor starting, variable frequency control can reduce starting current and mechanical stress while providing smoother acceleration and deceleration. In applications with changing process demand, the drive can also help the motor operate closer to the required operating point rather than continuously running at a fixed speed.

2. What are the rated power and current of the ACS580-01-145A-4?

The ACS580-01-145A-4 has a rated power of 75 kW and a rated output current of 145 A. It is designed for three-phase 380–480 V AC industrial power systems. When selecting a motor for this drive, the motor’s rated current should be considered together with its rated power rather than matching the kW rating alone. Actual motor current can vary depending on the mechanical load, starting torque, acceleration requirements and operating duty. For equipment with high starting torque, frequent acceleration and deceleration, or prolonged heavy loading, the applicable heavy-duty rating should be evaluated carefully. The motor nameplate parameters should also be entered accurately during commissioning because incorrect voltage, current or frequency settings can affect motor control, protection and overall drive performance.

3. What are the input power requirements for the ACS580-01-145A-4?

The ACS580-01-145A-4 requires a three-phase AC input supply within the 380–480 V range, with a nominal input voltage of 400 V AC and an input frequency of 50/60 Hz. Before installation, the actual site power supply should be checked to ensure that the voltage, phase configuration and frequency are compatible with the drive. Because this model has a rated output current of 145 A, the incoming circuit requires appropriately sized protective devices, cables and grounding connections. Cable selection should consider the current rating, installation method, ambient temperature, cable length and applicable electrical regulations. Before energizing the drive, the incoming terminals, protective earth connection and motor connections should be inspected carefully. Correct power wiring is particularly important for a high-power drive because an incorrect connection can result in immediate faults or equipment damage.

4. How should the motor parameters be configured and commissioned on the ACS580-01-145A-4?

During initial commissioning, the motor nameplate information should be entered accurately into the ACS580-01-145A-4. Depending on the selected control mode and application, this normally includes the motor’s rated voltage, rated current, rated frequency and rated speed, together with other parameters required by the control configuration. Correct motor data allows the drive to establish suitable control characteristics and motor protection limits. After parameter configuration, the motor should first be tested at low speed rather than immediately operating at full load and maximum speed. The installer should verify the motor rotation direction, output current, operating frequency, acceleration behavior and mechanical response. If the rotation direction is incorrect, the appropriate shutdown and electrical safety procedures should be followed before correcting the motor connection. Once low-speed operation is confirmed, acceleration, deceleration, speed limits and other application-specific parameters can be optimized according to the actual load characteristics.

5. What should be checked if the ACS580-01-145A-4 develops an overcurrent fault?

When an overcurrent fault occurs, the first step is to identify when the fault appears. If the drive trips immediately after receiving a start command, inspect the motor cable, motor terminals and motor windings for short circuits, grounding problems, insulation faults or incorrect wiring. If the fault occurs mainly during acceleration, the acceleration time may be too short for the inertia or starting torque requirements of the connected machine. In this case, the acceleration settings and mechanical load should be reviewed. If the drive operates normally for some time before the fault occurs, inspect the mechanical system for blocked components, bearing problems, excessive friction, transmission issues or a sudden increase in process load. The motor rated current and other motor parameters should also be verified. Reviewing the drive fault history together with output current, output frequency and actual machine conditions can help determine whether the problem is electrical, mechanical or parameter-related.

6. Why might the motor connected to the ACS580-01-145A-4 fail to reach the commanded speed?

If the motor cannot reach the commanded speed, the speed reference and drive control settings should be checked first. For an analog speed reference, verify the input signal range, scaling and related parameters. If the speed command comes from a PLC or another automation controller, check the transmitted reference value, communication data and control commands. The drive’s minimum and maximum frequency limits should also be checked to make sure the requested speed is not being restricted by configuration. If the actual output frequency reaches the commanded value but the motor still runs below the expected speed, the mechanical load should be investigated. Excessive load can cause the motor current to increase while the motor is unable to maintain the required speed. Monitoring actual output frequency, motor current, speed feedback and load conditions at the same time can help determine whether the problem originates from the control signal, drive configuration, motor or mechanical system.

7. Can the ABB ACS580-01-145A-4 be integrated with a PLC or DCS control system?

Yes. The ACS580-01-145A-4 can be integrated into PLC, DCS and other industrial automation systems for motor start/stop control, speed reference, operating status monitoring, alarm handling and fault management. In a basic control system, digital inputs can be used for start and stop commands, while analog signals can provide a variable speed reference. More advanced systems can use supported communication methods to exchange control and monitoring data between the drive and the automation controller. A PLC or DCS can send operating commands and speed references while receiving information such as actual output frequency, motor current, operating status, warnings and fault conditions. During integration, the control source, speed reference source, communication settings, data mapping and signal scaling should be configured consistently. For critical production equipment, suitable interlocks and fault-handling logic should also be implemented so that abnormal drive conditions can be detected and handled without unnecessarily affecting the rest of the process.

8. How can the ACS580-01-145A-4 be used for energy-efficient control of pumps and fans?

The ACS580-01-145A-4 can adjust motor speed according to the actual process requirements of pumps and fans, making it suitable for applications where flow, pressure or air volume changes during operation. When full output is not required, the motor speed can be reduced instead of keeping the motor at a high speed and using valves, dampers or other mechanical restrictions to control the process. For pumps and fans that operate for long periods with varying demand, this approach can reduce unnecessary energy consumption during lower-load conditions. Actual energy savings depend on the load characteristics, operating schedule, required process output and control strategy. The minimum and maximum frequency, acceleration and deceleration settings should therefore be configured according to the equipment and process. When a PLC or process control system is available, pressure, flow, temperature or other feedback signals can be used to automatically adjust the drive speed reference, helping maintain the required process output while improving overall energy efficiency.
