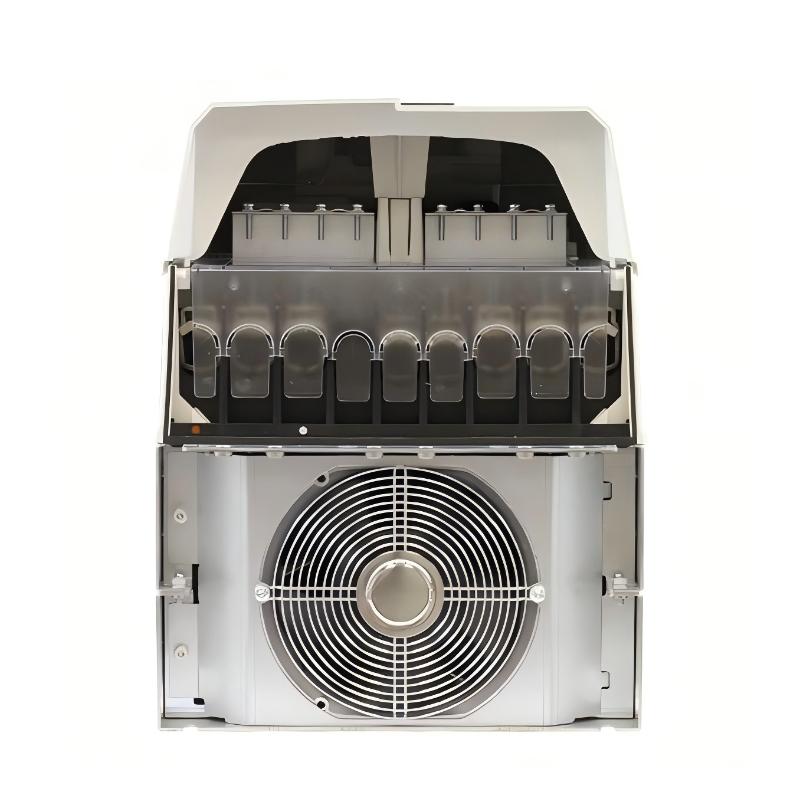

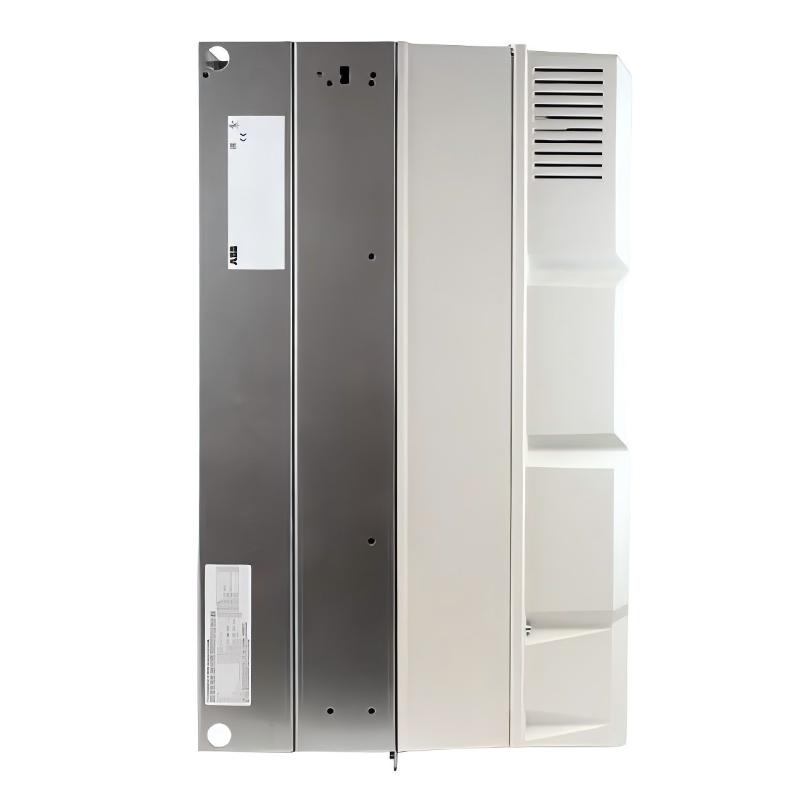

1. What applications is the ABB ACS580-01-169A-4 suitable for?

The ABB ACS580-01-169A-4 is a high-power general-purpose variable frequency drive designed for controlling three-phase AC motors in industrial environments. With a rated power of 90 kW and a rated output current of 169 A, it is suitable for medium and large industrial machines that require reliable motor speed regulation, controlled acceleration and deceleration, and improved process control. Typical applications include pumps, fans, conveyors, compressors, extruders, mixers, centrifuges and other production equipment. The drive supports both variable torque and constant torque applications, allowing users to adjust motor speed according to actual process requirements. By controlling output frequency and voltage, the drive can reduce mechanical stress during startup, improve operating stability and provide better energy management compared with traditional fixed-speed motor operation.

2. What are the rated power and output current of the ACS580-01-169A-4?

The ACS580-01-169A-4 has a rated power of 90 kW and a rated output current of 169 A. It is designed for three-phase 380–480 V AC industrial power systems. When selecting a suitable motor, both the motor rated power and rated current should be considered, because different applications may require different current capacities depending on the load characteristics. For machines with high starting torque, frequent acceleration and deceleration cycles, or continuous heavy-duty operation, the actual operating conditions should be carefully evaluated. The motor nameplate parameters must be entered correctly during commissioning, including voltage, current, frequency and speed information. Accurate parameter configuration allows the drive to provide optimized motor control performance, better protection and stable operation under different load conditions.

3. What are the input power requirements for the ABB ACS580-01-169A-4?

The ACS580-01-169A-4 requires a three-phase AC power supply within the 380–480 V range, with a nominal input voltage of 400 V AC and an input frequency of 50/60 Hz. Before installation, the site power supply should be checked to confirm that the voltage, phase configuration and frequency are compatible with the drive specifications. Due to the high rated current of this model, the incoming power circuit requires properly selected circuit breakers, fuses, cables and grounding protection. Cable selection should consider rated current, installation method, ambient temperature, cable length and applicable electrical standards. After wiring is completed, all input terminals, grounding connections and motor cables should be carefully inspected. Correct electrical installation is essential to prevent startup faults, abnormal operation or damage caused by incorrect connections.

4. How should the ABB ACS580-01-169A-4 be commissioned for a new motor installation?

During initial commissioning, the ACS580-01-169A-4 should first be checked for correct electrical connections between the power supply, motor and grounding system. The motor nameplate information should then be entered accurately, including rated voltage, rated current, rated frequency and rated speed. The correct control source and speed reference source should also be configured according to the automation system requirements. After parameter setup, the motor should be tested at low speed before running at full operating conditions. During the test, technicians should check motor rotation direction, output current, acceleration performance and mechanical response. If the rotation direction is incorrect, the system should be safely stopped before making any wiring adjustments. Once basic operation is confirmed, acceleration time, deceleration time, frequency limits and application-specific parameters can be optimized according to the actual machine requirements.

5. How can an overcurrent fault on the ACS580-01-169A-4 be diagnosed?

When the ACS580-01-169A-4 generates an overcurrent fault, the first step is to identify the operating condition when the fault occurs. If the fault happens immediately after startup, the motor cable, motor terminals and motor windings should be inspected for short circuits, grounding faults, insulation problems or incorrect wiring. If the fault occurs during acceleration, the acceleration time may be too short for the mechanical inertia or starting torque requirements of the equipment. In this case, acceleration settings should be reviewed and adjusted if necessary. If the fault appears after normal operation, the mechanical system should be checked for excessive load, blocked components, bearing problems, transmission issues or sudden process changes. The motor parameter settings should also be verified to ensure they match the actual motor specifications. Reviewing fault history, output current, operating frequency and machine conditions together can help locate the actual cause more efficiently.

6. Why does the motor connected to the ACS580-01-169A-4 fail to reach the set speed?

If the motor cannot reach the commanded speed, the speed reference signal and drive configuration should be checked first. For analog speed control systems, verify the input signal level, scaling settings and related parameters. If the speed command is provided by a PLC, DCS or another automation controller, confirm that the communication data and reference values are correctly transmitted. The configured minimum and maximum frequency limits should also be checked to ensure that the speed is not restricted by parameter settings. If the drive output frequency reaches the requested value but the motor speed remains low, the mechanical load should be investigated. Excessive load, mechanical resistance or incorrect motor selection can prevent the motor from reaching the target speed. Monitoring output frequency, motor current, speed feedback and load conditions together can help determine whether the issue is related to control signals, drive settings, motor performance or mechanical equipment.

7. Can the ABB ACS580-01-169A-4 be integrated with PLC or DCS systems?

Yes. The ACS580-01-169A-4 can be integrated into PLC, DCS and other industrial automation systems for start/stop control, speed adjustment, operating monitoring, alarm handling and fault management. In simple applications, digital inputs can be used for start and stop commands while analog signals can provide speed references. For advanced automation systems, communication functions can be used to exchange control commands and operating data between the drive and the controller. The PLC or DCS can send operating commands and speed references while receiving information such as output frequency, motor current, operating status, warnings and fault conditions. During system integration, the control source, reference source, communication settings, data mapping and signal scaling must be configured correctly. For critical industrial equipment, additional interlocks and fault-handling logic should be implemented to improve system reliability and operational safety.

8. How can the ACS580-01-169A-4 improve energy efficiency in pump and fan applications?

The ACS580-01-169A-4 can improve energy efficiency in pump and fan systems by adjusting motor speed according to actual process requirements. Traditional systems often keep motors running at full speed and use mechanical valves or dampers to reduce flow or air volume. With variable frequency control, the motor speed itself can be reduced when lower output is required, allowing the equipment to operate closer to the actual demand. This approach is especially beneficial for systems that run for long periods with changing load conditions. The achievable energy savings depend on the application characteristics, operating hours, process requirements and control strategy. Proper configuration of speed limits, acceleration and deceleration settings, and motor parameters is important for achieving stable and efficient operation. When combined with PLC, DCS or process feedback systems, the drive can automatically adjust motor speed based on signals such as pressure, flow or temperature, helping maintain production requirements while reducing unnecessary energy consumption.
