1. What applications is the ABB ACS580-01-169A-4 suitable for?

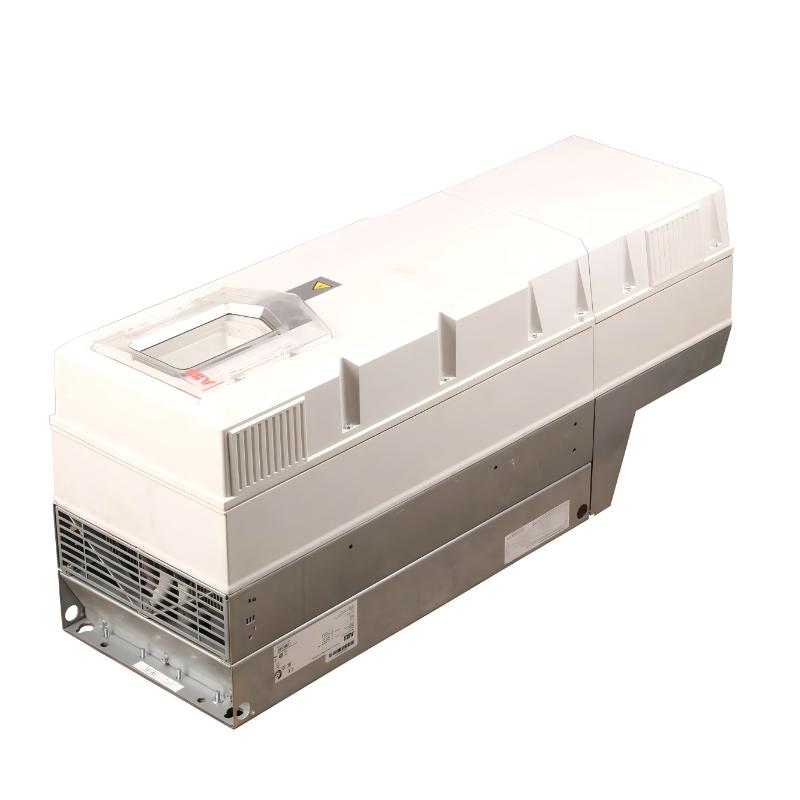

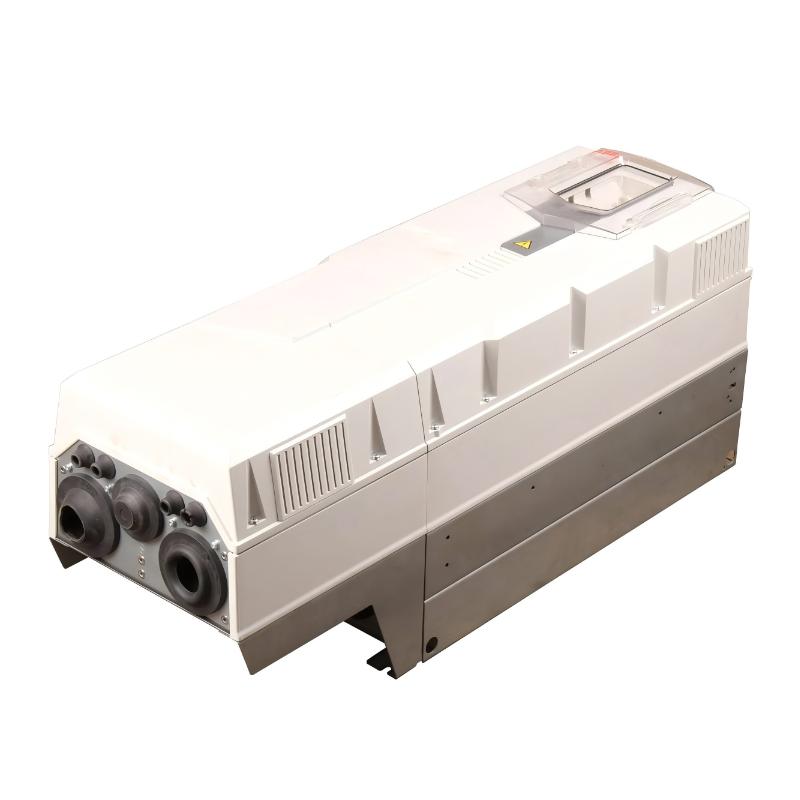

The ABB ACS580-01-169A-4 is a high-power general-purpose variable frequency drive designed for controlling three-phase AC motors in industrial applications. With a rated power of 90 kW and a rated output current of 169 A, it is suitable for medium and large industrial equipment requiring stable motor speed control, smooth acceleration and deceleration, and reliable operation under different load conditions. Typical applications include pumps, fans, conveyors, compressors, extruders, mixers, centrifuges and other production machinery. The drive supports both variable torque and constant torque applications, allowing the motor speed to be adjusted according to process requirements. By changing the output frequency and voltage, the drive can reduce mechanical stress during motor startup and improve the overall efficiency and flexibility of industrial systems.

2. What are the rated power and current specifications of the ACS580-01-169A-4?

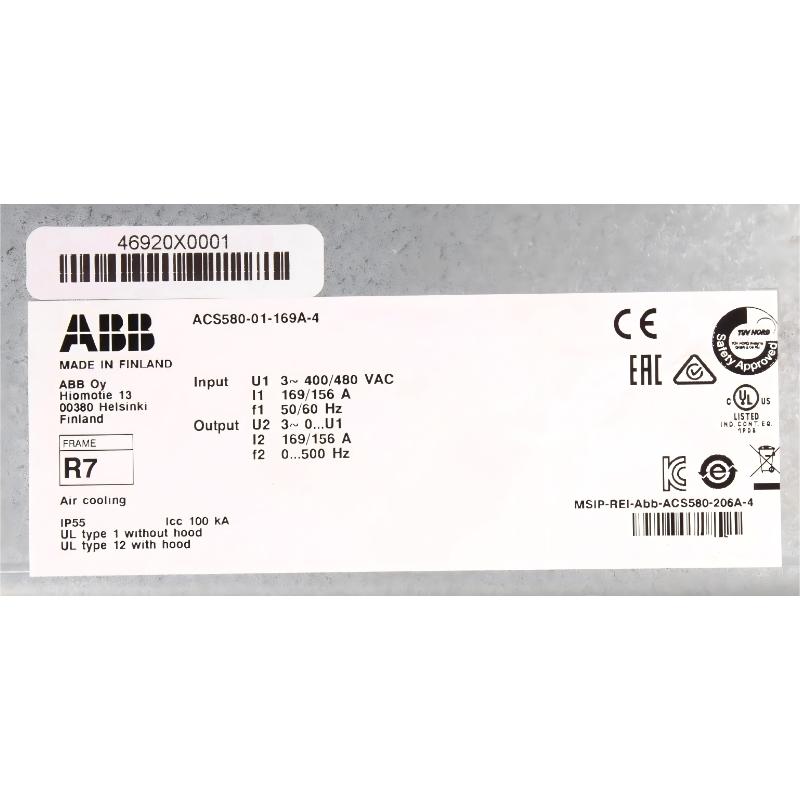

The ACS580-01-169A-4 has a rated power of 90 kW and a rated output current of 169 A. It is designed for three-phase 380–480 V AC industrial power systems. When selecting a motor for this drive, both the motor rated power and rated current should be considered to ensure proper matching. Different applications may require different current capabilities depending on the load characteristics, starting torque requirements and operating cycles. For equipment with frequent acceleration and deceleration, high inertia loads or continuous heavy-duty operation, the actual operating conditions should be carefully evaluated before selection. During commissioning, accurate motor nameplate data should be entered into the drive, including motor voltage, current, frequency and speed parameters. Correct parameter configuration helps achieve better motor control performance and improves system reliability.

3. What are the input power requirements for the ABB ACS580-01-169A-4?

The ACS580-01-169A-4 requires a three-phase AC input supply within the 380–480 V range, with a nominal input voltage of 400 V AC and an input frequency of 50/60 Hz. Before installation, the site power supply should be checked to confirm that voltage, phase sequence and frequency meet the drive requirements. Because this model has a high output current rating, the incoming power circuit must use appropriately selected protection devices, cables and grounding connections. Cable sizing should consider current capacity, installation environment, ambient temperature, cable length and applicable electrical standards. After installation, all power terminals, grounding points and motor connections should be inspected carefully. Proper electrical installation is essential for preventing abnormal operation and ensuring long-term reliability.

4. How should the ACS580-01-169A-4 be commissioned with a new motor?

During initial commissioning, the ACS580-01-169A-4 should first be checked to ensure that the power supply, motor wiring and grounding connections are correctly installed. The motor nameplate information should then be entered accurately, including rated voltage, rated current, rated frequency and rated speed. The correct control source and speed reference source should also be configured according to the system design. After completing the parameter setup, the motor should be tested at low speed before operating under full load conditions. During the test run, technicians should check the motor rotation direction, output current, acceleration performance and mechanical response. Once stable operation is confirmed, the acceleration time, deceleration time, frequency limits and other application parameters can be optimized according to the actual machine requirements.

5. How should an overcurrent fault on the ACS580-01-169A-4 be diagnosed?

When an overcurrent fault occurs, the first step is to determine the operating condition when the fault appears. If the fault occurs immediately during startup, the motor cable, motor terminals and motor windings should be inspected for short circuits, grounding problems, insulation failures or incorrect wiring. If the fault occurs during acceleration, the acceleration time may be too short for the mechanical inertia or starting torque requirements of the equipment. In this case, the acceleration settings should be reviewed and adjusted if necessary. If the fault occurs after normal operation, the mechanical system should be checked for excessive load, blocked components, bearing problems, transmission issues or sudden increases in process load. The motor parameter settings should also be verified. Reviewing fault history together with output current, frequency and machine conditions can help identify the actual cause more effectively.

6. Why does the motor fail to reach the target speed when controlled by the ACS580-01-169A-4?

If the motor cannot reach the commanded speed, the speed reference signal and drive parameters should be checked first. For systems using analog speed control, verify the input signal range, scaling settings and related parameters. If the speed command is provided by a PLC, DCS or another automation controller, confirm that communication data and reference values are transmitted correctly. The maximum and minimum frequency settings should also be checked to ensure that the speed is not limited by configuration. If the drive output frequency reaches the required value but the motor speed remains low, the mechanical load should be inspected. Excessive load, mechanical resistance or incorrect motor selection can prevent the motor from reaching the expected speed. Monitoring output frequency, motor current, speed feedback and load conditions together can help determine whether the issue comes from the control system, drive settings, motor or mechanical equipment.

7. Can the ABB ACS580-01-169A-4 be integrated with PLC or DCS systems?

Yes. The ACS580-01-169A-4 can be integrated into PLC, DCS and other industrial automation systems for motor start/stop control, speed regulation, operation monitoring and fault management. In basic applications, digital inputs can be used for start and stop commands, while analog inputs can provide speed references. In advanced automation systems, communication functions can be used for exchanging control commands and operational data between the drive and the controller. The PLC or DCS can send start commands and speed references while receiving information such as output frequency, motor current, operating status, alarms and fault messages. During integration, the control source, reference source, communication parameters and data mapping must be configured correctly. For important industrial equipment, proper interlocks and fault-handling strategies should be implemented to improve system safety and reliability.

8. How can the ACS580-01-169A-4 improve energy efficiency in pump and fan applications?

The ACS580-01-169A-4 can improve energy efficiency in pump and fan systems by adjusting motor speed according to actual process demand. Traditional systems often operate motors at full speed and use mechanical valves or dampers to control flow, which can result in unnecessary energy consumption. With variable frequency control, the motor speed can be reduced when lower output is required, allowing the equipment to operate closer to the actual process demand. This method is especially effective for systems with long operating hours and changing load requirements. The actual energy-saving performance depends on the load characteristics, operating schedule and control strategy. By combining the drive with PLC, DCS or process feedback systems, parameters such as pressure, flow or temperature can be used to automatically adjust motor speed, helping maintain stable production while reducing unnecessary power consumption.
