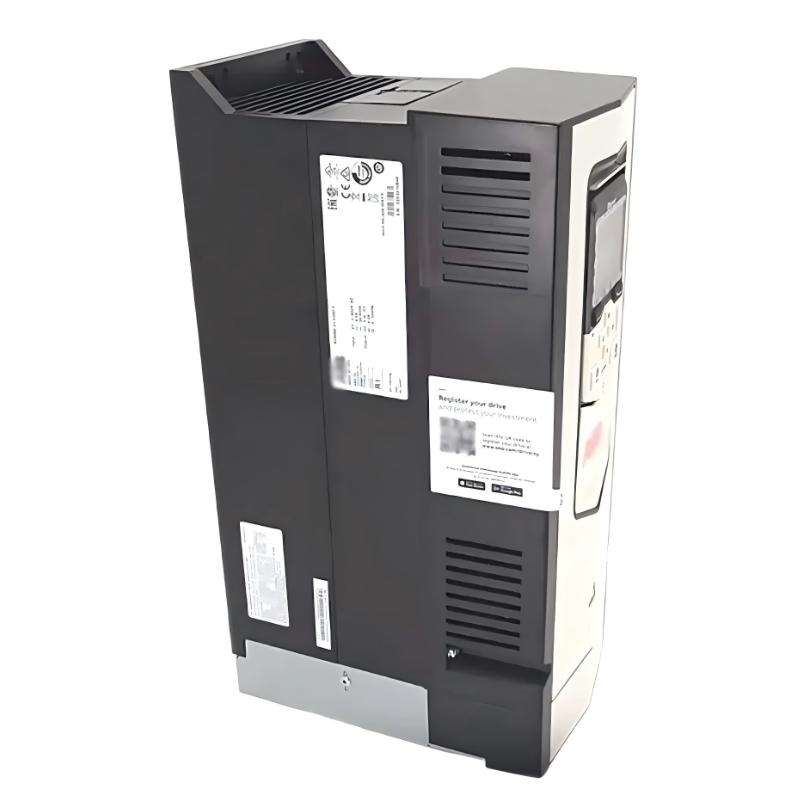

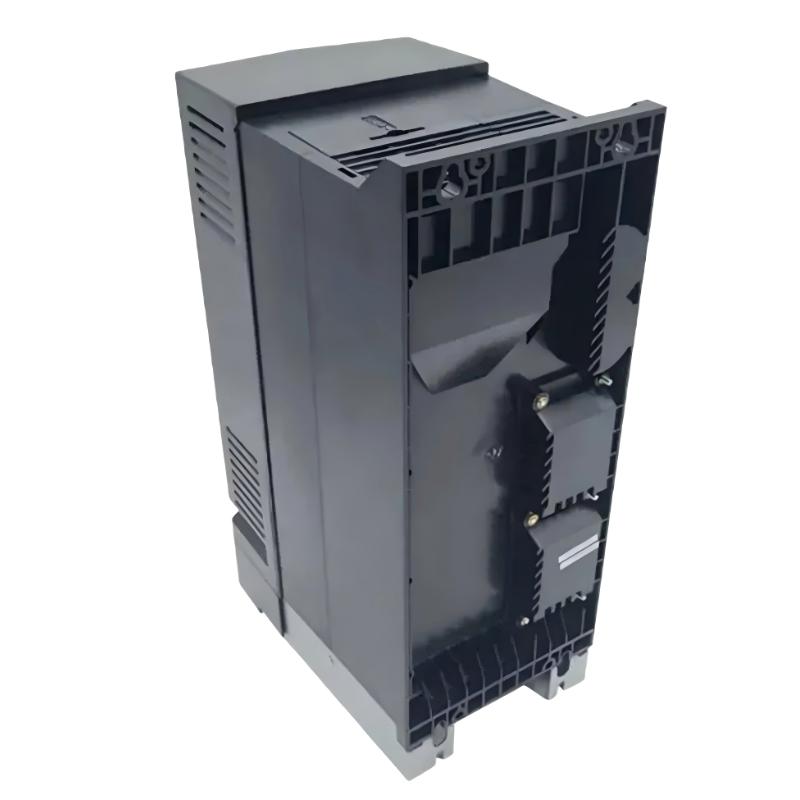

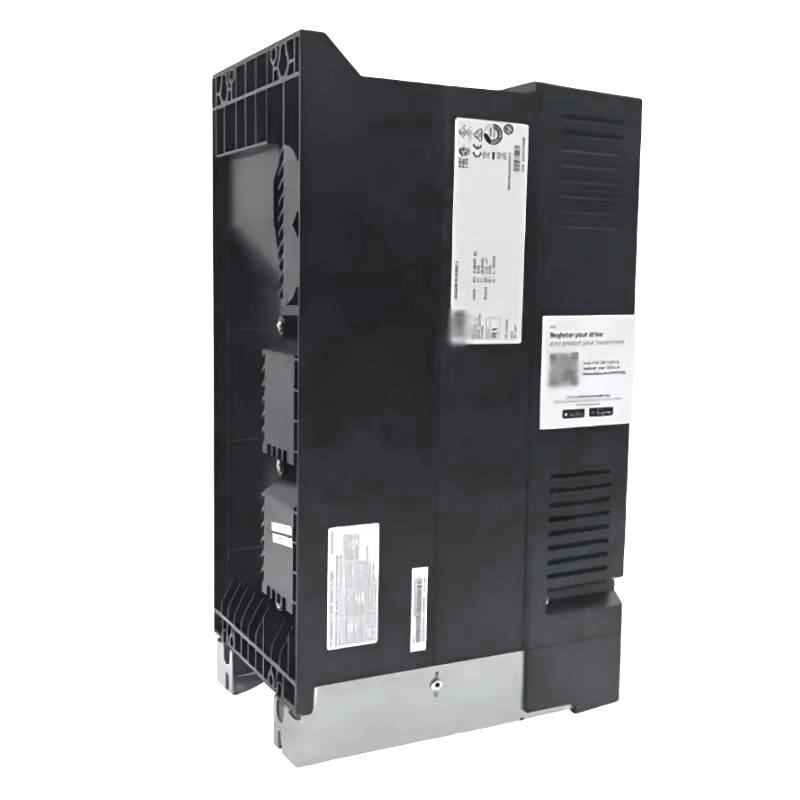

1. What applications is the ACS880-01-12A6-3 Variable Frequency Drive best suited for?

The ACS880-01-12A6-3 is designed for demanding industrial motor control applications requiring high performance, excellent reliability, and accurate speed regulation. It is widely used in pumps, fans, compressors, conveyors, mixers, cranes, packaging equipment, material handling systems, and process automation. Thanks to ABB’s Direct Torque Control (DTC) technology, the drive provides rapid torque response without requiring an encoder in many applications. This allows equipment to operate smoothly under changing loads while improving production efficiency, reducing mechanical wear, and lowering overall energy consumption.

2. How should the drive be commissioned before normal operation?

Before energizing the drive, verify that the input power supply matches the specified voltage range and confirm that all power, motor, and grounding connections are correctly installed. Enter the complete motor nameplate information, including rated voltage, rated current, frequency, speed, and power, into the drive parameters. Performing a Motor Identification Run (ID Run) is strongly recommended because it creates an accurate motor model that significantly improves torque accuracy, startup characteristics, speed stability, and overall efficiency. After commissioning, conduct a no-load test followed by a gradual load test to verify proper operation.

3. Why does the drive trip with an overcurrent fault during acceleration?

An overcurrent trip during acceleration is commonly caused by acceleration times that are too short, excessive mechanical load, locked or jammed equipment, incorrect motor parameters, or damaged motor cables. In some installations, poor motor insulation or output short circuits may also trigger protection. Users should inspect the mechanical system for abnormal resistance, verify motor insulation resistance, review acceleration settings, and ensure the motor data entered into the drive matches the motor nameplate. Extending the acceleration ramp and reducing sudden load changes often resolves this issue while improving overall system reliability.

4. How can long-term reliability and service life be maximized?

Reliable long-term operation depends on regular preventive maintenance. The cooling fan and heat sink should be inspected periodically and cleaned to prevent dust accumulation that could reduce cooling efficiency. Electrical terminals should be checked for proper tightening, and cabinet ventilation should remain unobstructed. Environmental conditions such as excessive humidity, vibration, or corrosive gases should be minimized whenever possible. Monitoring operating current, temperature, and fault history through the drive diagnostics can also help identify developing issues before they become serious failures, reducing unplanned downtime and maintenance costs.

5. What should be done if the motor speed is unstable during operation?

Unstable motor speed may result from incorrect parameter settings, improper motor identification, fluctuating load conditions, inadequate supply voltage, or electrical interference. First, verify that all motor parameters match the motor nameplate and repeat the Motor ID Run if necessary. Next, check whether the driven equipment experiences sudden load variations or mechanical binding. Inspect the incoming power quality and ensure proper grounding throughout the installation. Fine-tuning speed controller parameters may also improve performance in demanding applications that require precise speed regulation.

6. How can communication with a PLC be configured successfully?

The ACS880-01-12A6-3 supports integration with modern PLC systems through optional communication modules supporting widely used industrial fieldbus protocols. Configuration requires selecting the correct communication module, assigning a unique network address, setting communication speed, and mapping process data correctly between the PLC and the drive. Once communication is established, the PLC can remotely control start/stop commands, speed references, operating modes, fault resets, and process monitoring. Proper cable shielding, grounding, and separation of communication cables from power wiring are essential for maintaining reliable communication under industrial conditions.

7. What causes overheating alarms, and how can they be prevented?

Overheating alarms generally indicate insufficient cooling or excessive operating conditions. Common causes include blocked ventilation openings, failed cooling fans, high ambient temperatures, overloaded motors, or prolonged operation above rated current. Users should regularly inspect the cooling system, remove accumulated dust, verify fan operation, and ensure adequate airflow around the drive. Monitoring the actual output current and reducing unnecessary overload conditions can significantly decrease thermal stress. Maintaining a clean electrical cabinet with proper ventilation is one of the most effective methods for preventing repeated overheating alarms.

8. What installation practices help reduce electromagnetic interference (EMI)?

To achieve reliable operation in industrial environments, shielded motor cables should be used and grounded correctly according to installation guidelines. Power cables and control cables should be routed separately to minimize induced electrical noise. For applications with long motor cable lengths, output reactors or dv/dt filters can reduce voltage reflections and protect both the motor insulation and the drive output stage. Establishing a low-impedance grounding system throughout the installation improves electromagnetic compatibility, enhances communication stability, reduces nuisance faults, and helps ensure consistent performance of the entire automation system over its service life.
