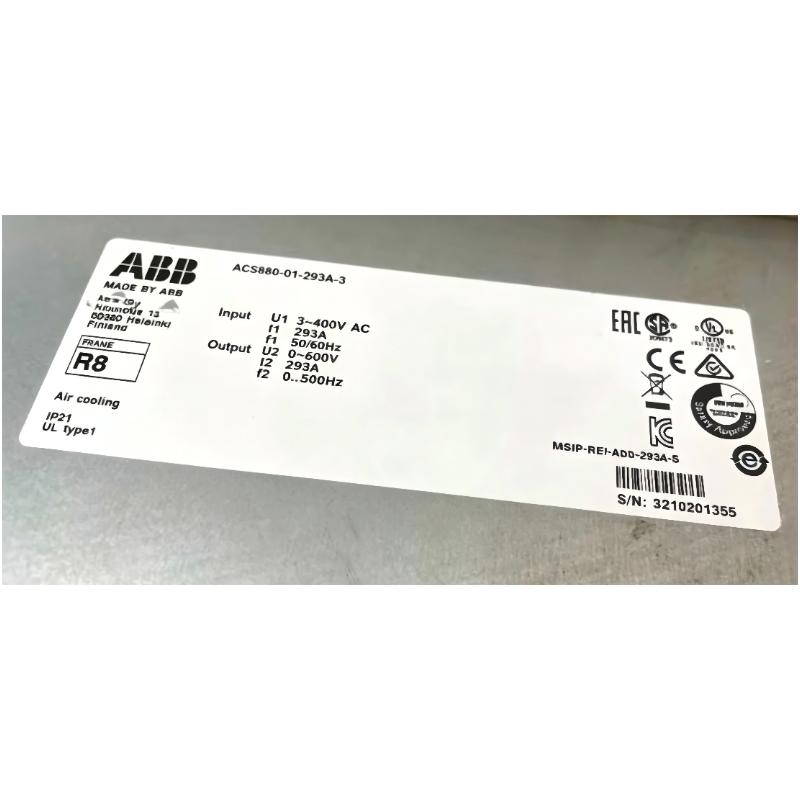

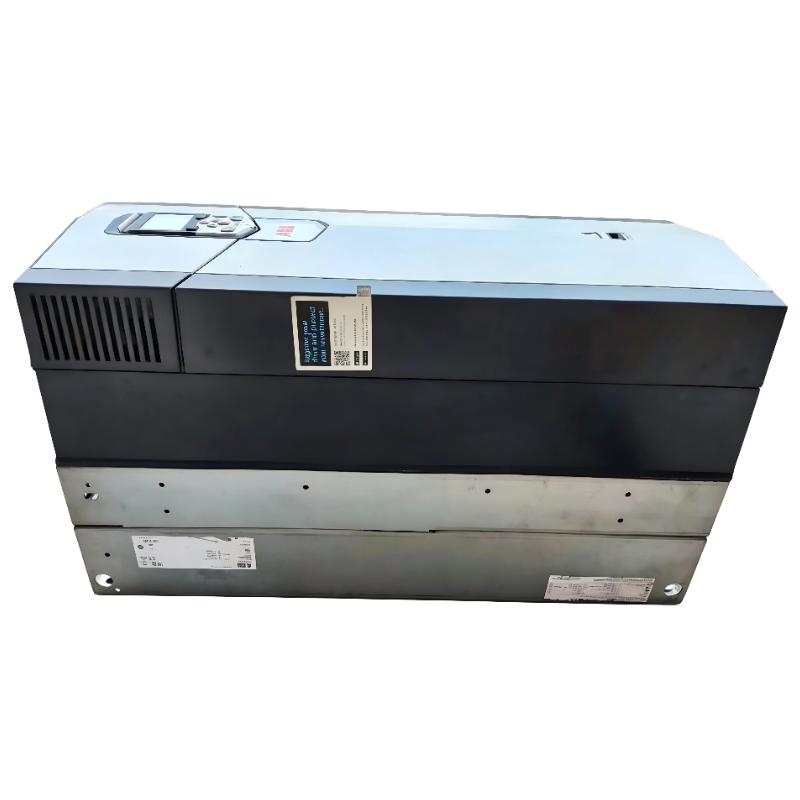

Q1. What types of motors can this variable frequency drive control?

The drive is designed to provide reliable control for a wide range of industrial motor technologies, including standard three-phase induction motors, permanent magnet synchronous motors (PMSM), and synchronous reluctance motors (SynRM). By utilizing ABB’s advanced Direct Torque Control (DTC) technology, the drive delivers accurate speed and torque regulation without requiring an encoder in most applications. This enables excellent low-speed performance, rapid dynamic response, and high starting torque. It is suitable for pumps, fans, compressors, conveyors, mixers, extruders, cranes, hoists, and many other industrial processes where precise motor control and high operational efficiency are required.

Q2. What advantages does Direct Torque Control (DTC) offer compared to traditional V/Hz control?

Direct Torque Control is one of ABB’s core motor control technologies and provides significantly faster response than conventional V/Hz control. Instead of regulating voltage and frequency indirectly, DTC calculates and controls motor torque and magnetic flux in real time. This results in exceptional speed accuracy, stable torque output at very low speeds, improved process control, and reduced mechanical stress during acceleration and deceleration. DTC also minimizes overshoot during load changes, enhances energy efficiency, and provides smooth operation even in demanding industrial environments where rapid load variations frequently occur.

Q3. Which industrial communication protocols are supported by this drive?

The ACS880 series is designed for seamless integration into modern industrial automation systems. In addition to the standard communication interface with Modbus RTU support, optional communication modules allow the drive to communicate through PROFINET, PROFIBUS DP, EtherNet/IP, EtherCAT, CANopen, DeviceNet, and several other industrial Ethernet or fieldbus networks. These communication capabilities enable easy integration with PLCs, DCS systems, HMIs, SCADA platforms, and remote monitoring systems. Users can remotely configure parameters, monitor operating status, collect diagnostic data, perform predictive maintenance, and manage multiple drives from a centralized control system.

Q4. What are the most common causes of overcurrent faults, and how can they be resolved?

Overcurrent faults are typically caused by motor short circuits, damaged output cables, sudden mechanical load increases, excessively short acceleration or deceleration times, incorrect motor parameter settings, or mechanical equipment becoming jammed. Troubleshooting should begin by inspecting the motor windings and power cables for insulation damage or grounding faults. Next, verify that all motor nameplate parameters have been correctly entered into the drive. Mechanical equipment should also be inspected to ensure that bearings, gears, pumps, or conveyor systems rotate freely without obstruction. If necessary, increase the acceleration and deceleration times to reduce current peaks during startup and stopping. Regular preventive maintenance can significantly reduce the occurrence of overcurrent conditions.

Q5. How can long-term operational reliability be improved?

Maintaining reliable operation requires both routine maintenance and proper operating conditions. Cooling fans and ventilation passages should be inspected and cleaned regularly to prevent dust accumulation that may reduce cooling efficiency. Electrical terminals should be checked periodically to ensure they remain securely tightened, as loose connections may cause overheating and unexpected shutdowns. The incoming power supply should remain within the specified voltage range to avoid unnecessary stress on internal components. It is also recommended to back up all drive parameters after commissioning so they can be quickly restored following maintenance or hardware replacement. Regular firmware updates, scheduled inspections, and monitoring of fault history can further improve long-term system reliability while minimizing unplanned downtime.

Q6. What is the purpose of the Safe Torque Off (STO) function?

Safe Torque Off (STO) is an integrated functional safety feature that immediately prevents the drive from generating torque without disconnecting the main power supply. When the STO circuit is activated, power to the motor’s torque-producing elements is safely disabled, ensuring that the motor cannot restart unexpectedly while maintenance or inspection is being performed. Because the drive electronics remain energized, system diagnostics and communication can continue without requiring a complete power shutdown. STO simplifies machine safety design, reduces maintenance time, and helps industrial equipment comply with internationally recognized functional safety standards for machinery and automation systems.

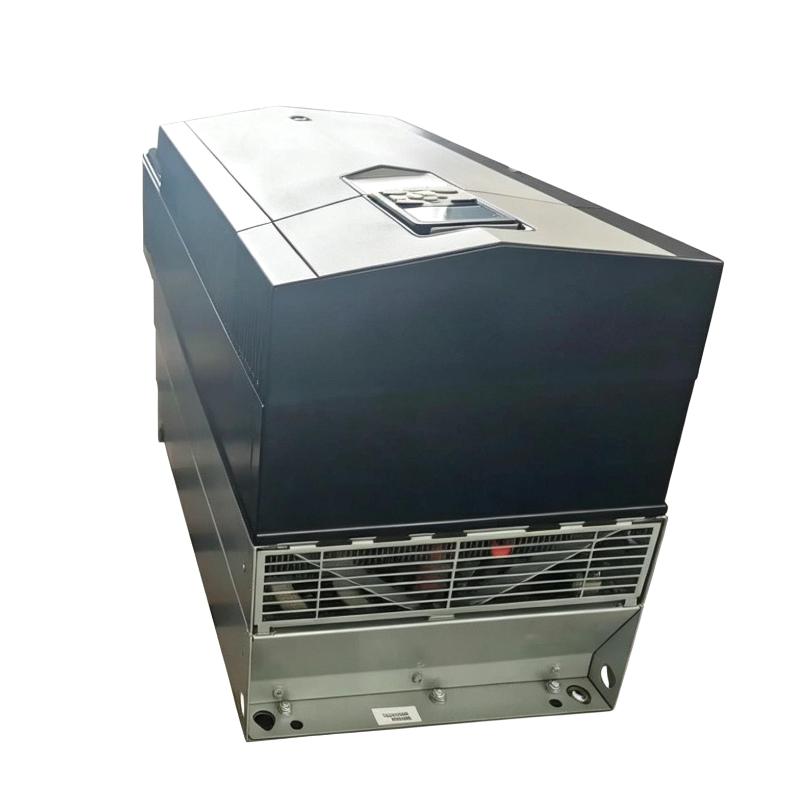

Q7. What should be checked if the drive reports an overtemperature alarm?

An overtemperature alarm usually indicates insufficient heat dissipation or excessive operating conditions. The first step is to verify that the ambient temperature remains within the specified operating range. Next, inspect the cooling fans to ensure they are operating correctly and that ventilation openings are not blocked by dust or debris. Heat sinks should be cleaned periodically to maintain efficient thermal performance. It is also important to evaluate whether the drive has been operating continuously under heavy load or in an enclosed cabinet with inadequate airflow. If necessary, improve cabinet ventilation, install additional cooling equipment, or reduce the operating load. Replacing aging cooling fans before they fail can also prevent unexpected thermal shutdowns.

Q8. How can parameters be backed up and restored after maintenance or replacement?

The drive supports parameter backup and restoration through the control panel, engineering software, or compatible storage devices. After the initial commissioning is completed, creating a complete backup of all configuration parameters is strongly recommended. This backup allows maintenance personnel to quickly restore the drive to its original operating condition after replacing a control unit or performing major service work. Following parameter restoration, engineers should verify motor rotation direction, communication settings, protection functions, control logic, and application-specific parameters before returning the equipment to production. Performing a controlled test run after restoration helps ensure that the drive operates safely and consistently under actual process conditions.
