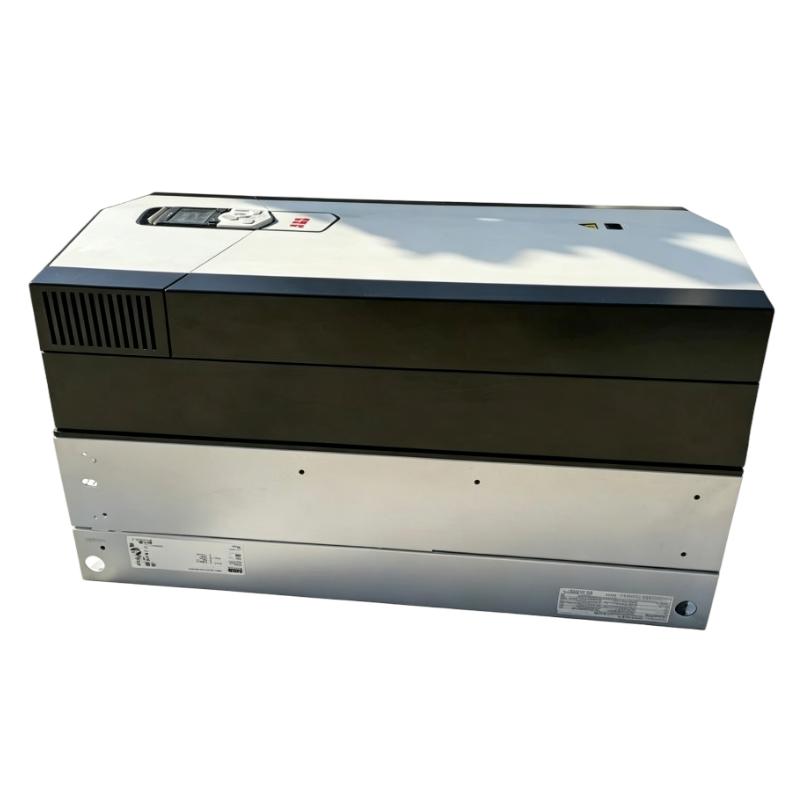

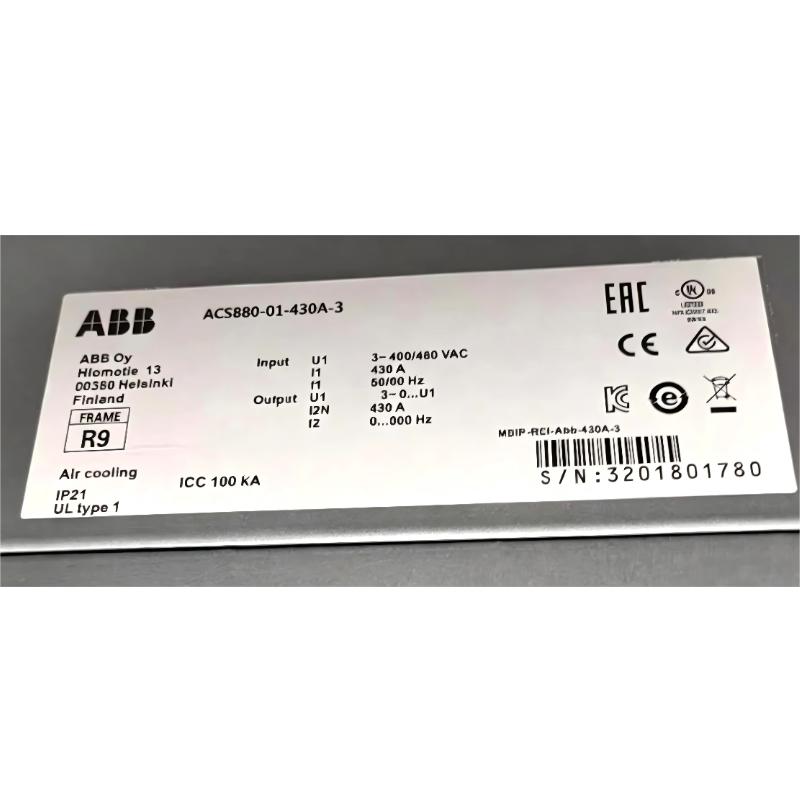

Q1. What applications is the ACS880-01-430A-3 Variable Frequency Drive designed for?

The ACS880-01-430A-3 is designed for demanding industrial applications that require high-power motor control, excellent torque performance, and long-term operational reliability. It is widely used in pumps, fans, compressors, conveyors, crushers, mixers, extruders, cranes, hoists, HVAC systems, and heavy manufacturing equipment. With ABB’s Direct Torque Control (DTC) technology, the drive delivers accurate speed regulation and rapid torque response, making it suitable for both variable torque and constant torque applications. Its flexible configuration also allows it to adapt to a broad range of industrial processes while helping reduce energy consumption and maintenance costs.

Q2. What are the advantages of ABB’s Direct Torque Control (DTC) technology?

Direct Torque Control is one of ABB’s most advanced motor control technologies and provides significantly faster dynamic response than conventional V/Hz control methods. By directly controlling motor torque and magnetic flux instead of relying solely on voltage and frequency adjustments, DTC offers outstanding speed accuracy, excellent low-speed torque, and immediate response to sudden load changes. This results in smoother machine operation, reduced mechanical stress, improved production quality, and increased process efficiency. DTC also minimizes the need for additional feedback devices in many applications while maintaining stable performance across the entire speed range.

Q3. Which communication protocols can be integrated with this drive?

The drive supports a wide range of industrial communication protocols to simplify integration into modern automation systems. In addition to the standard Modbus RTU interface, optional communication adapters allow connectivity through PROFINET, PROFIBUS DP, EtherNet/IP, EtherCAT, CANopen, DeviceNet, and several other industrial Ethernet and fieldbus networks. These communication options enable seamless data exchange with PLCs, DCS platforms, SCADA systems, and industrial HMIs. Users can remotely monitor operating conditions, modify parameters, retrieve diagnostic information, record historical operating data, and implement predictive maintenance strategies through centralized control systems.

Q4. What are the common causes of overcurrent faults and how should they be diagnosed?

Overcurrent faults may occur due to motor winding failures, short circuits in output cables, excessive mechanical loading, seized bearings, improperly configured motor parameters, or acceleration and deceleration times that are too short. A systematic troubleshooting procedure should begin with checking the insulation resistance of both the motor and power cables. Next, verify that all motor nameplate data has been entered correctly into the drive and inspect the driven equipment for mechanical binding or abnormal resistance. Increasing acceleration and deceleration times can help reduce current spikes during startup and stopping. Reviewing the fault history and monitoring current trends can also help identify recurring operating conditions that contribute to overcurrent events.

Q5. How can long-term reliability and service life be maximized?

Reliable long-term operation depends on regular preventive maintenance and proper installation conditions. Cooling fans and air passages should be inspected and cleaned periodically to prevent dust buildup that may reduce cooling efficiency. Electrical terminals should be tightened during scheduled maintenance to eliminate overheating caused by loose connections. The installation environment should maintain stable ambient temperatures and adequate ventilation to ensure efficient heat dissipation. It is also recommended to periodically review the drive’s fault history, update firmware when appropriate, and back up all configuration parameters after commissioning. These maintenance practices help reduce unexpected downtime while extending the service life of both the drive and connected equipment.

Q6. How does the Safe Torque Off (STO) function improve operational safety?

Safe Torque Off (STO) is an integrated functional safety feature that immediately disables the motor’s ability to generate torque without disconnecting the main AC power supply. When the STO circuit is activated, the drive safely prevents unintended motor rotation while maintaining power to the control electronics, allowing diagnostics and communication functions to remain available. This significantly improves maintenance efficiency because technicians can perform inspections or servicing without completely shutting down the entire electrical system. STO also helps machine builders comply with internationally recognized machinery safety standards while reducing the complexity of external safety circuits.

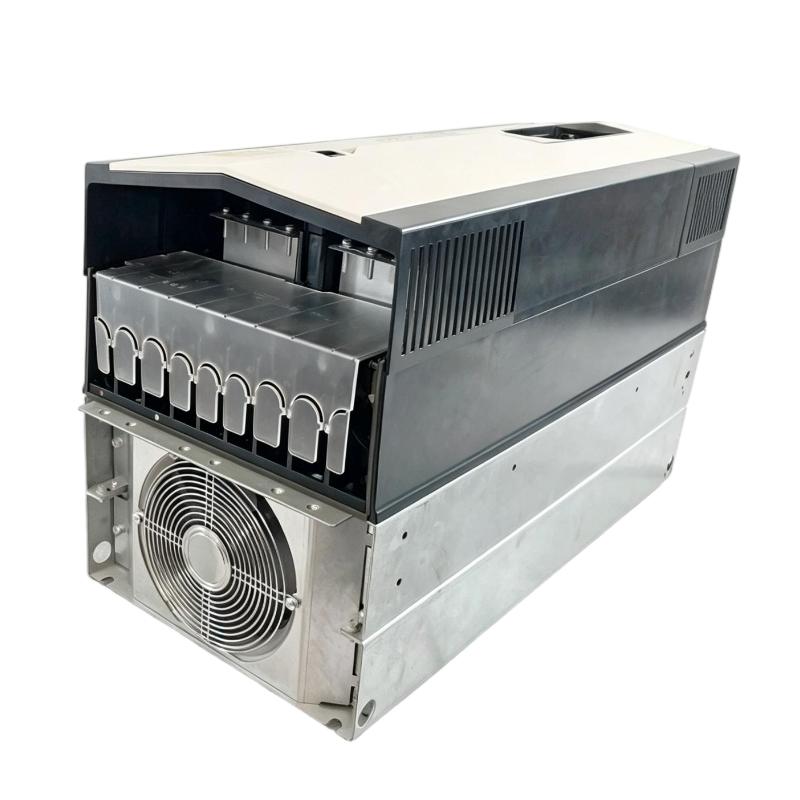

Q7. What should be checked if the drive reports an overtemperature warning or fault?

An overtemperature condition usually indicates insufficient cooling or excessive operating stress. Operators should first verify that the ambient temperature remains within the specified operating range and ensure that cabinet ventilation is not restricted. Cooling fans should be inspected for proper operation, and heat sinks should be cleaned regularly to remove dust and debris that can reduce heat dissipation. The driven equipment should also be evaluated to determine whether the motor is operating continuously above its rated load. If necessary, improve cabinet airflow, install additional cooling equipment, reduce operating loads, or replace aging cooling fans before they fail completely. Routine thermal inspections can effectively prevent unexpected shutdowns.

Q8. How can drive parameters be backed up and restored efficiently after maintenance?

The ACS880 series provides multiple methods for parameter backup and restoration, including the control panel, ABB commissioning software, and compatible storage devices. After commissioning, users should create a complete backup of all application parameters, communication settings, protection functions, and motor configuration data. This allows rapid restoration following controller replacement, firmware upgrades, or maintenance activities, significantly reducing production downtime. After restoring parameters, engineers should carefully verify motor rotation direction, fieldbus communication, digital and analog I/O functions, safety settings, and application logic before placing the drive back into service. A controlled test run under normal operating conditions is recommended to confirm that all functions perform as expected and that the drive operates safely and reliably.
