Q1. What types of industrial applications is this drive suitable for?

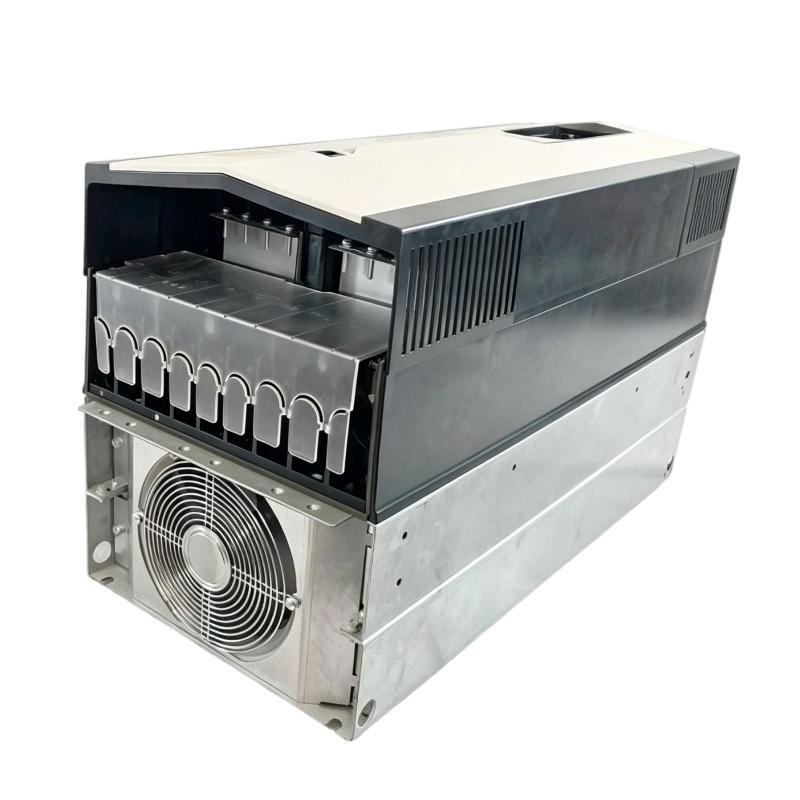

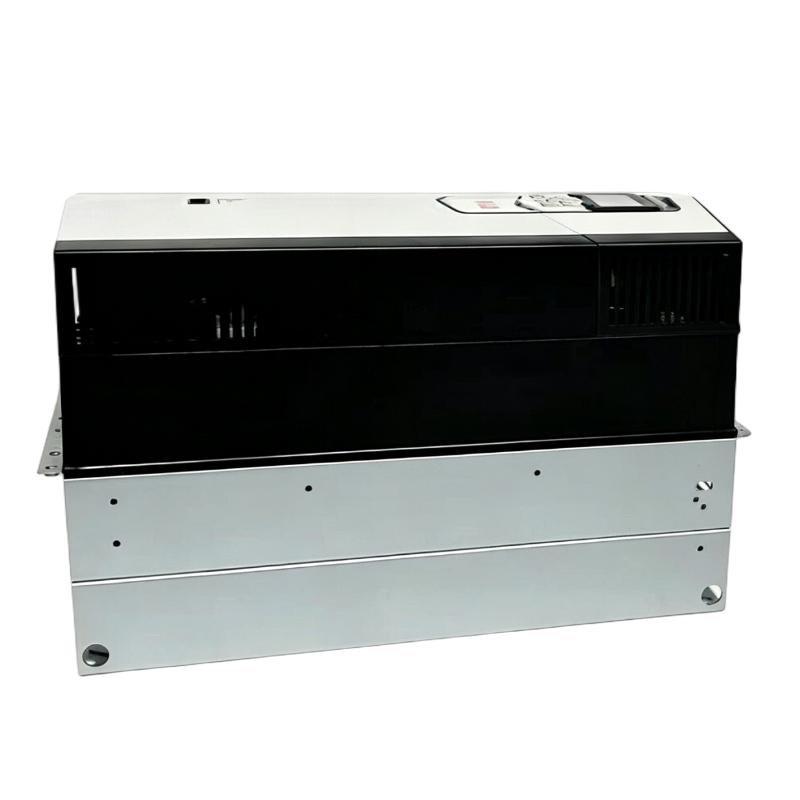

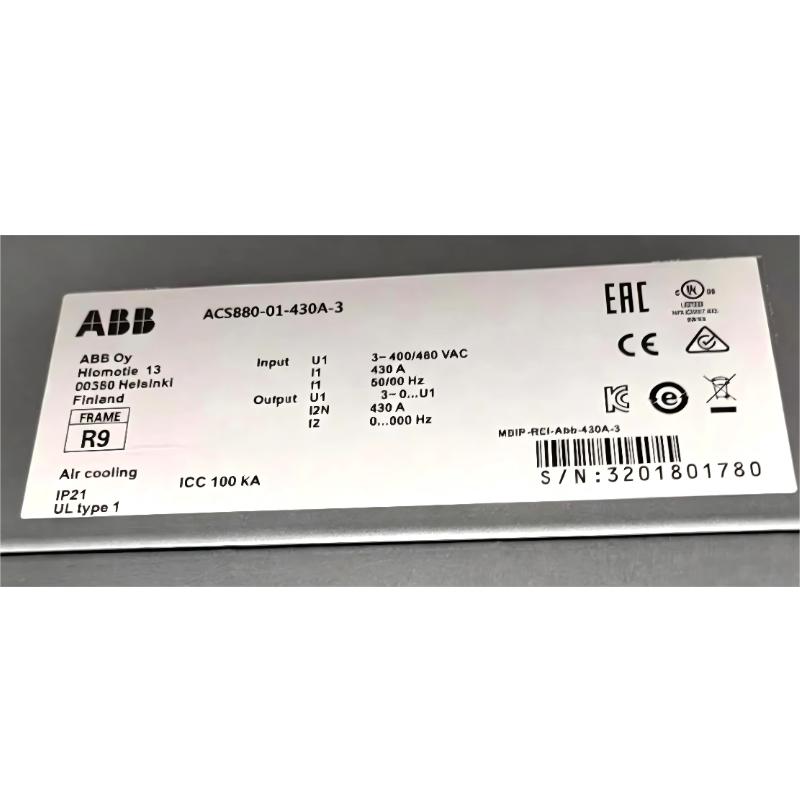

The ACS880-01-430A-3 is engineered for demanding industrial environments where reliable motor control, high efficiency, and continuous operation are essential. It is commonly used in pumps, fans, compressors, conveyors, mixers, extruders, cranes, hoists, mining equipment, paper machines, HVAC systems, and various manufacturing processes. Its advanced motor control technology enables smooth operation under both constant torque and variable torque loads, making it suitable for industries such as oil and gas, water treatment, chemical processing, food and beverage, metal processing, and general manufacturing. The drive is designed to improve process stability while reducing energy consumption and maintenance requirements.

Q2. What are the benefits of ABB Direct Torque Control (DTC) technology?

ABB’s Direct Torque Control (DTC) technology provides extremely fast and accurate control of motor torque and magnetic flux without relying on conventional PWM modulation techniques. As a result, the drive delivers outstanding dynamic performance, excellent low-speed torque, rapid acceleration, and highly accurate speed regulation. During sudden load changes, DTC reacts almost instantly to maintain stable motor operation and minimize speed fluctuations. In many applications, high-performance control can be achieved without using an encoder, reducing installation complexity and overall system cost while improving machine productivity and operational efficiency.

Q3. Which communication protocols are supported by this drive?

The drive is designed for seamless integration into modern industrial automation systems. It includes standard Modbus RTU communication and supports optional communication adapters for PROFINET, PROFIBUS DP, EtherNet/IP, EtherCAT, CANopen, DeviceNet, and several other industrial Ethernet and fieldbus networks. These communication options allow the drive to exchange real-time data with PLCs, DCS systems, SCADA platforms, HMIs, and industrial IoT solutions. Operators can remotely configure parameters, monitor operating conditions, collect diagnostic information, receive alarm notifications, and implement predictive maintenance strategies to improve plant availability and reduce maintenance costs.

Q4. What are the most common causes of overcurrent faults, and how should they be diagnosed?

Overcurrent faults are typically caused by motor winding failures, damaged output cables, short circuits, excessive mechanical loading, seized bearings, incorrect motor parameter settings, or acceleration and deceleration times that are too short. Troubleshooting should begin by checking the insulation resistance of both the motor and output cables to eliminate electrical faults. Next, inspect the mechanical equipment for excessive friction or blocked movement, and verify that all motor nameplate data has been entered correctly into the drive. If current spikes occur during startup or stopping, increasing the acceleration and deceleration times can often resolve the problem. Reviewing the fault history and monitoring current trends also helps identify recurring operating conditions that may contribute to future overcurrent events.

Q5. How can long-term operational reliability be improved?

Long-term reliability depends on proper installation and routine preventive maintenance. Cooling fans, ventilation ducts, and heat sinks should be cleaned regularly to prevent dust accumulation that could reduce cooling efficiency. Electrical terminals should be inspected periodically to ensure they remain securely tightened and free from overheating. Stable input voltage and adequate cabinet ventilation are also essential for reliable operation. After commissioning, all drive parameters should be backed up so they can be restored quickly following maintenance or hardware replacement. Regular inspection of fault logs, firmware updates when applicable, and scheduled preventive maintenance significantly reduce unexpected downtime while extending the service life of both the drive and connected equipment.

Q6. What is the purpose of the Safe Torque Off (STO) function?

Safe Torque Off (STO) is an integrated functional safety feature that immediately disables the drive’s ability to generate motor torque without disconnecting the incoming power supply. When the STO circuit is activated, the motor is prevented from producing mechanical motion, protecting maintenance personnel from unexpected machine startup. Because the control electronics remain energized, diagnostic functions, parameter access, and communication with higher-level automation systems continue to operate normally. This reduces maintenance time, simplifies machine safety design, and assists equipment manufacturers in complying with internationally recognized functional safety standards.

Q7. What should be checked if the drive reports an overtemperature alarm?

An overtemperature alarm generally indicates insufficient cooling or excessive operating conditions. The first step is to verify that the ambient temperature remains within the specified operating limits and that the drive has adequate installation clearance for proper airflow. Cooling fans should be inspected to ensure they are functioning correctly, while heat sinks and ventilation passages should be cleaned to remove accumulated dust and debris. It is also important to evaluate whether the motor or driven equipment has been operating continuously under excessive load. Improving cabinet ventilation, reducing operating loads when necessary, and replacing aging cooling fans during scheduled maintenance can effectively prevent repeated thermal alarms and improve overall system reliability.

Q8. How can drive parameters be backed up and restored efficiently after maintenance?

The ACS880 series supports comprehensive parameter backup and restoration using the control panel, ABB Drive Composer software, or compatible storage devices. After commissioning is completed, it is highly recommended to create a complete backup of all configuration settings, including motor parameters, communication configurations, protection settings, application programs, and I/O assignments. If the control unit is replaced or maintenance is performed, these parameters can be restored quickly, minimizing commissioning time and production downtime. After restoration, engineers should verify motor rotation direction, communication status, safety functions, digital and analog I/O operation, and application-specific settings before performing both no-load and full-load test runs to ensure safe, stable, and reliable operation under actual production conditions.
