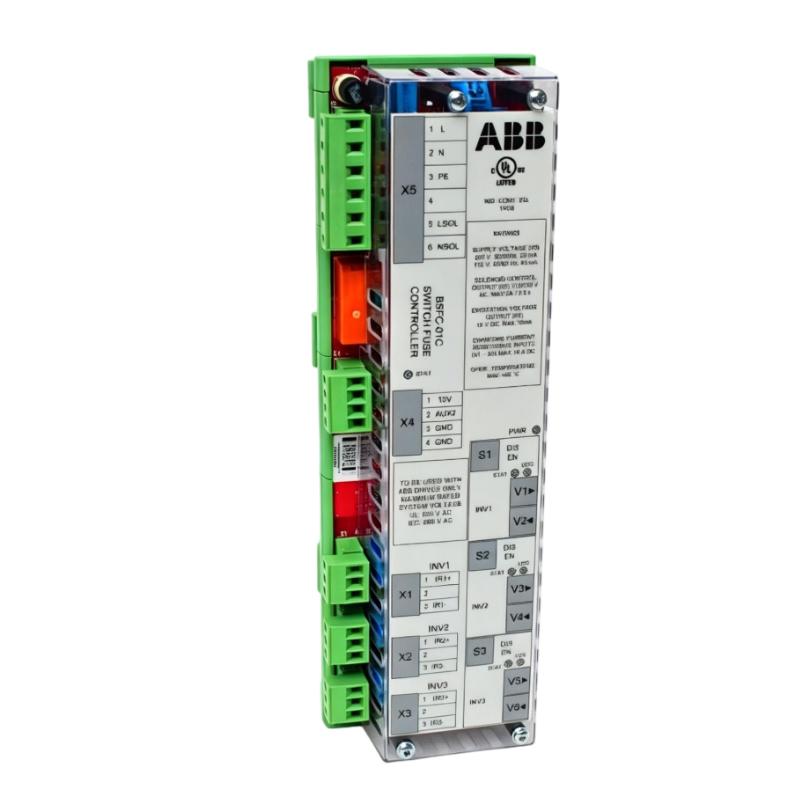

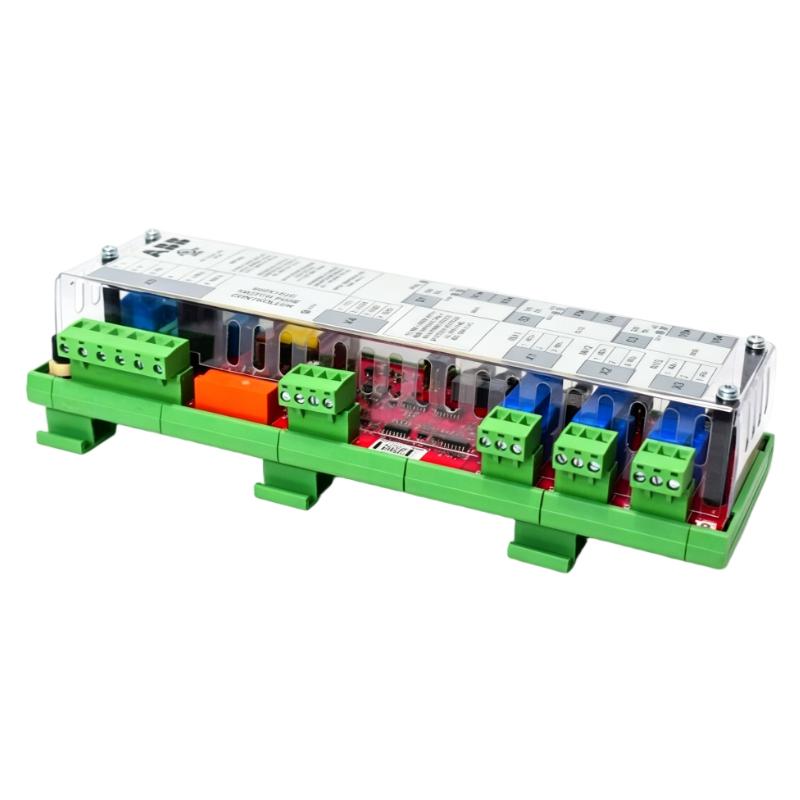

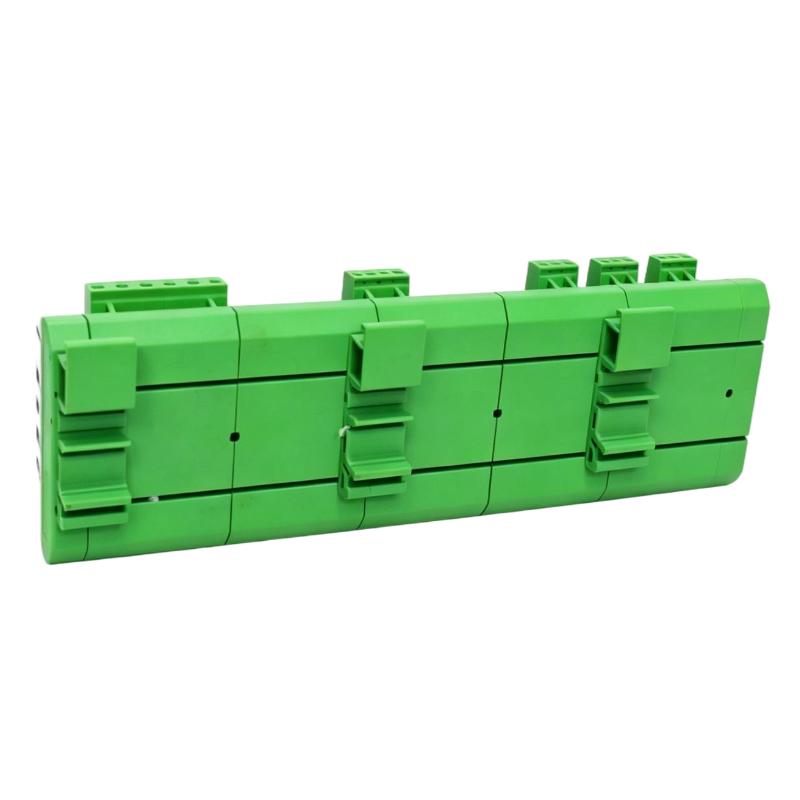

Q1. What is the primary function of the BSFC-01C Charging Control Board?

The BSFC-01C Charging Control Board is responsible for managing the DC bus pre-charge process inside ABB industrial drive systems. During power-up, it controls the charging sequence of the DC link capacitors to prevent excessive inrush current from flowing into the power circuit. By carefully regulating the charging process, the board protects capacitors, rectifier modules, contactors, and other critical power components from electrical stress. Proper pre-charge control also contributes to improved system reliability, reduced component wear, and safer startup of high-power variable frequency drives.

Q2. Why is the pre-charge process important in an industrial drive?

The DC bus capacitors inside a high-power variable frequency drive require controlled charging before the main power circuit is fully connected. Without a pre-charge circuit, a large instantaneous current could flow into the capacitors, potentially damaging power semiconductors, contactors, fuses, and bus components. The charging control board manages this process by limiting inrush current and ensuring that the DC bus voltage reaches a safe operating level before normal operation begins. This controlled startup significantly extends component life and improves overall drive reliability.

Q3. What symptoms may indicate a malfunctioning charging control board?

A defective charging control board may cause the drive to fail during startup or generate charging-related fault alarms. Common symptoms include repeated startup failures, DC bus undervoltage alarms, pre-charge timeout faults, contactor switching abnormalities, failure of the main contactor to close, or unexpected drive shutdown immediately after power is applied. In some situations, the drive may remain in a charging state without entering normal operating mode. Reviewing the drive’s diagnostic logs together with electrical measurements is the most effective method for confirming whether the charging control board is operating correctly.

Q4. How should the charging control board be inspected during maintenance?

Before performing any maintenance, all input power must be disconnected and sufficient time allowed for the DC bus capacitors to discharge completely. Technicians should visually inspect the PCB for signs of overheating, damaged electronic components, loose connectors, corrosion, or cracked solder joints. Wiring terminals should also be checked to ensure secure electrical connections. If available, diagnostic software can be used to verify charging sequence signals and monitor the operating status of the board. Preventive inspections performed during scheduled maintenance can identify potential issues before they lead to unexpected downtime.

Q5. Can this board be replaced without changing other drive parameters?

In most cases, the charging control board can be replaced without modifying the application parameters stored in the drive control unit because it mainly performs hardware-level charging management. However, after replacement, technicians should inspect all cable connections, verify that the board is installed correctly, and perform a complete startup test. It is also recommended to review diagnostic information, confirm normal operation of the pre-charge circuit, and ensure that the DC bus reaches its expected voltage before placing the drive back into continuous operation.

Q6. What factors can reduce the service life of the charging control board?

Several environmental and electrical conditions can shorten the lifespan of the charging control board. Excessive cabinet temperatures, inadequate ventilation, high humidity, conductive dust, vibration, unstable power supplies, repeated power cycling, and electrical surges all increase stress on electronic components. Long-term operation under these conditions may accelerate component aging and reduce system reliability. Maintaining a clean control cabinet, ensuring adequate cooling, and providing stable input power can significantly extend the service life of both the charging control board and the entire drive system.

Q7. How can charging-related faults be prevented during normal operation?

Regular preventive maintenance is the most effective way to reduce charging-related failures. Operators should periodically inspect cabinet ventilation, verify that cooling fans are functioning properly, check the condition of contactors and wiring connections, and monitor the health of the DC bus capacitors. Reviewing the drive’s fault history and responding promptly to intermittent charging alarms can help identify developing problems before they result in unexpected shutdowns. Maintaining stable power quality and avoiding frequent power interruptions also contributes to reliable charging system performance.

Q8. Is the BSFC-01C compatible with all ABB drives?

The BSFC-01C Charging Control Board is designed for specific ABB industrial drive platforms and should only be installed in compatible systems specified by ABB. Although different drive models may appear physically similar, variations in hardware configuration, firmware, connector layout, and control architecture can affect compatibility. Before replacement, users should always verify the model number, ordering number, hardware revision, and applicable drive series to ensure proper installation. Using the correct board helps maintain normal charging operation, reliable system protection, and long-term operational stability.
