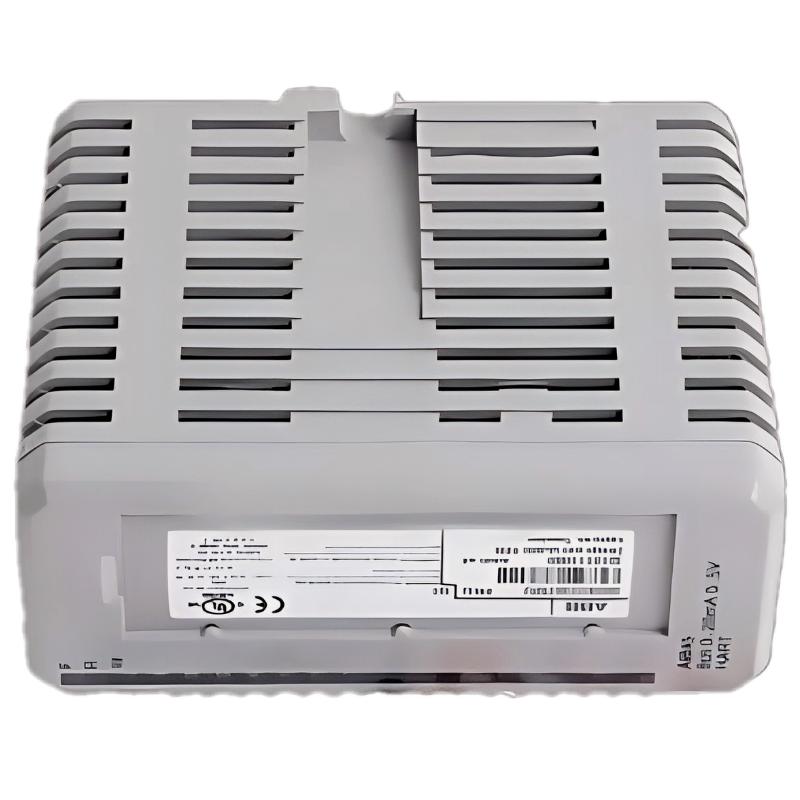

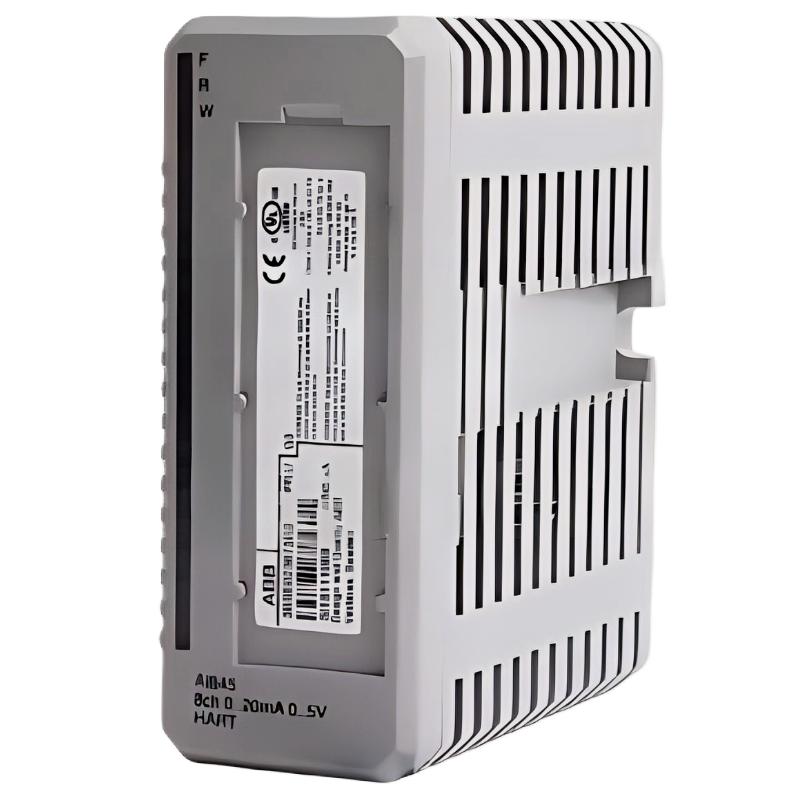

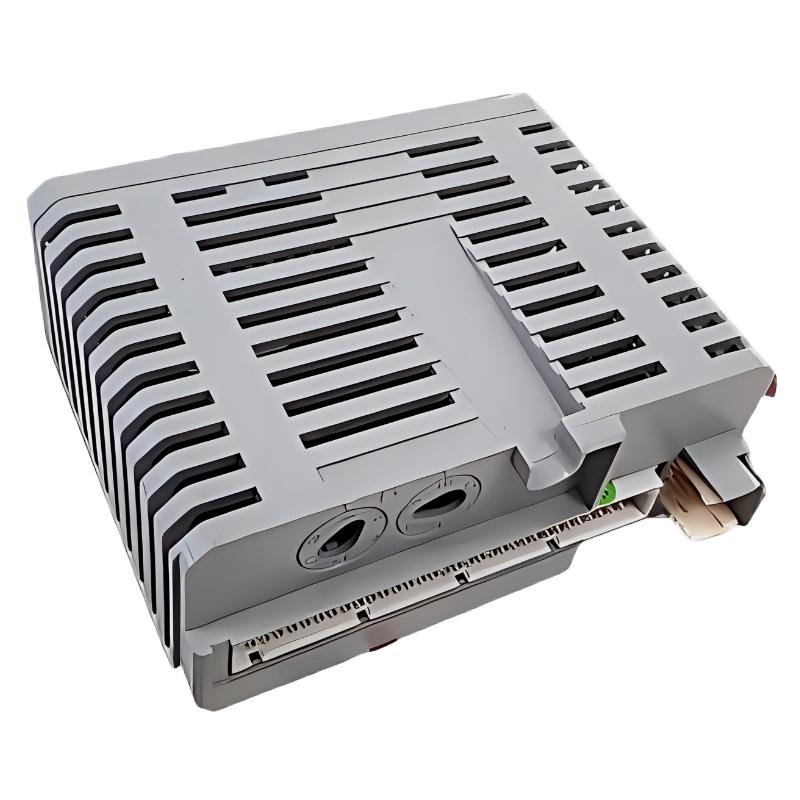

ABB AI845-eA 3BSE023675R2 Analog Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Model | AI845-eA |
| Order Number | 3BSE023675R2 |
| Product Type | Analog Input Module |
| System Compatibility | ABB S800 I/O System |
| Number of Channels | 8 channels |
| Input Signal Types | 4–20 mA (HART compatible) |
| HART Support | Yes (HART communication on all channels) |
| Resolution | 16-bit |
| Input Impedance | Approx. 250 Ω |
| Accuracy | High precision (typ. ±0.05% full scale) |
| Channel Isolation | Galvanically isolated channels |
| Sampling Time | Configurable, fast cyclic acquisition |
| Signal Diagnostics | Wire break detection, range monitoring, HART diagnostics |
| Communication | HART pass-through to control system |
| Power Supply | 24 V DC (via system backplane) |
| Power Consumption | Low power design |
| Mounting Method | DIN rail mounting |
| Operating Temperature | 0 to +55°C |
| Storage Temperature | -40 to +70°C |
| Humidity | 5%–95% (non-condensing) |
| Protection Class | IP20 |
| Dimensions (W × H × D) | 45 × 102 × 119 mm |
| Weight | 0.23 kg |
FAQ
1. What is the main function of the AI845-eA module?
The AI845-eA is an advanced analog input module designed to acquire high-precision current signals from field devices. It converts analog measurements into digital values for control systems while also enabling HART communication, making it suitable for smart field instrumentation integration.
2. Does the AI845-eA support HART communication?
Yes, the module fully supports HART protocol on all channels. This allows it to communicate with smart transmitters, enabling remote configuration, diagnostics, and advanced device information retrieval directly from the control system.
3. What types of signals can the module handle?
The AI845-eA is designed primarily for 4–20 mA current signals. It is optimized for industrial process transmitters and supports both standard analog measurement and HART-enabled smart devices.
4. How does HART integration benefit the system?
HART integration allows digital communication over the same wiring used for analog signals. This enables advanced diagnostics, remote calibration, and real-time device status monitoring without additional wiring or hardware.
5. What diagnostic features are included?
The module includes wire break detection, signal range monitoring, and HART-based device diagnostics. These features help identify faults early, improve maintenance efficiency, and reduce system downtime.
6. How accurate is the signal measurement?
The AI845-eA provides high measurement accuracy, typically around ±0.05% of full scale. This makes it suitable for applications requiring precise process monitoring and control, such as chemical processing and energy systems.
7. How is the module integrated into a control system?
It is integrated via the ABB S800 I/O backplane system. The module communicates directly with the controller, ensuring fast data transfer, seamless configuration, and centralized diagnostics.
8. What industries commonly use this module?
The AI845-eA is widely used in process industries such as oil and gas, chemical plants, power generation, and water treatment. Its support for HART-enabled devices makes it particularly suitable for modern smart instrumentation systems.
ABB AI845-eA 3BSE023675R2 Analog Input Module is in stock. Please contact us for a quick quote and competitive pricing.
