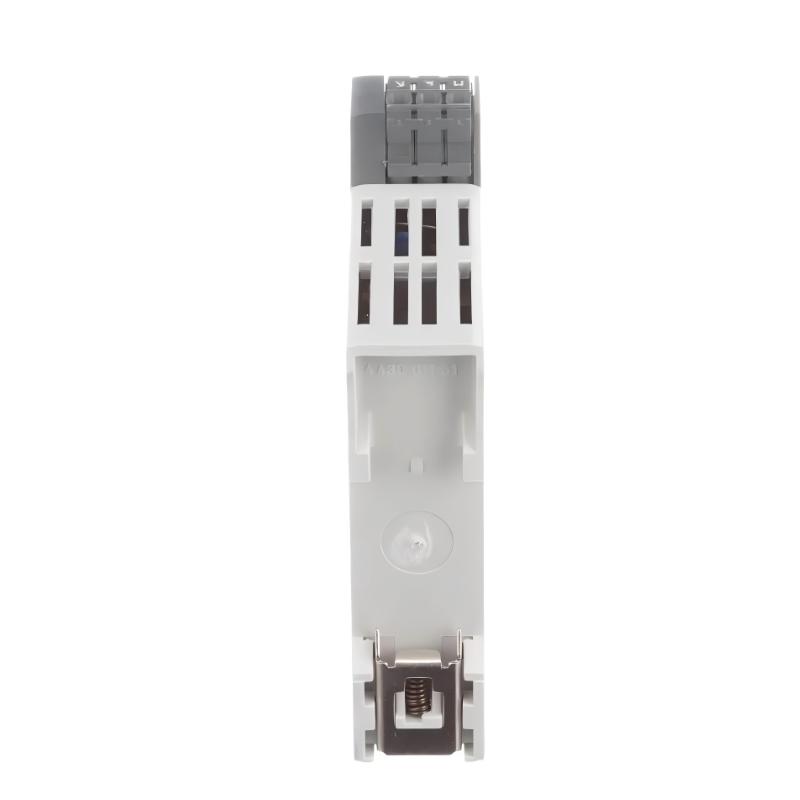

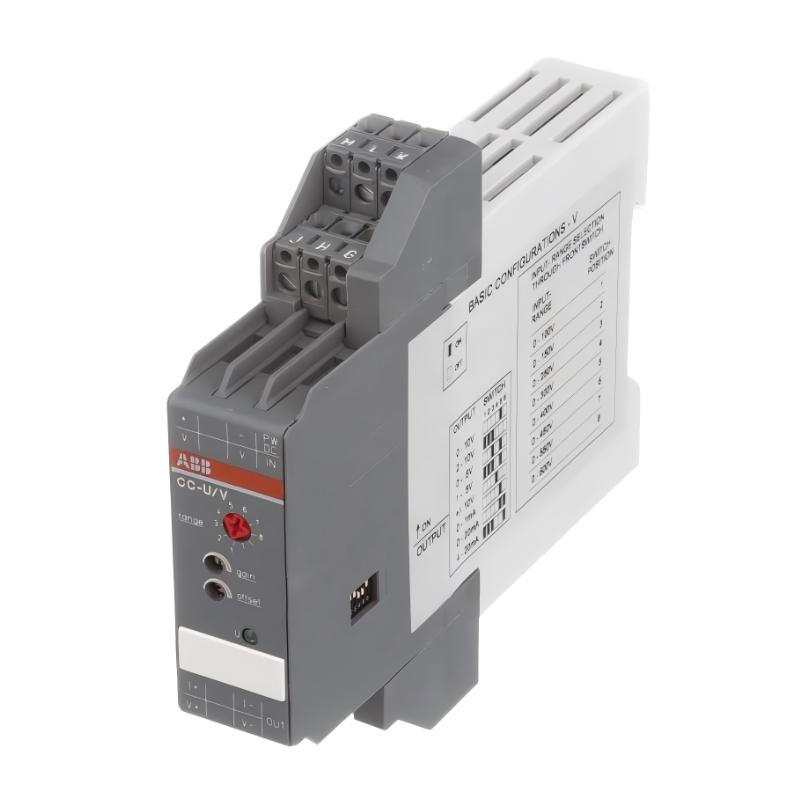

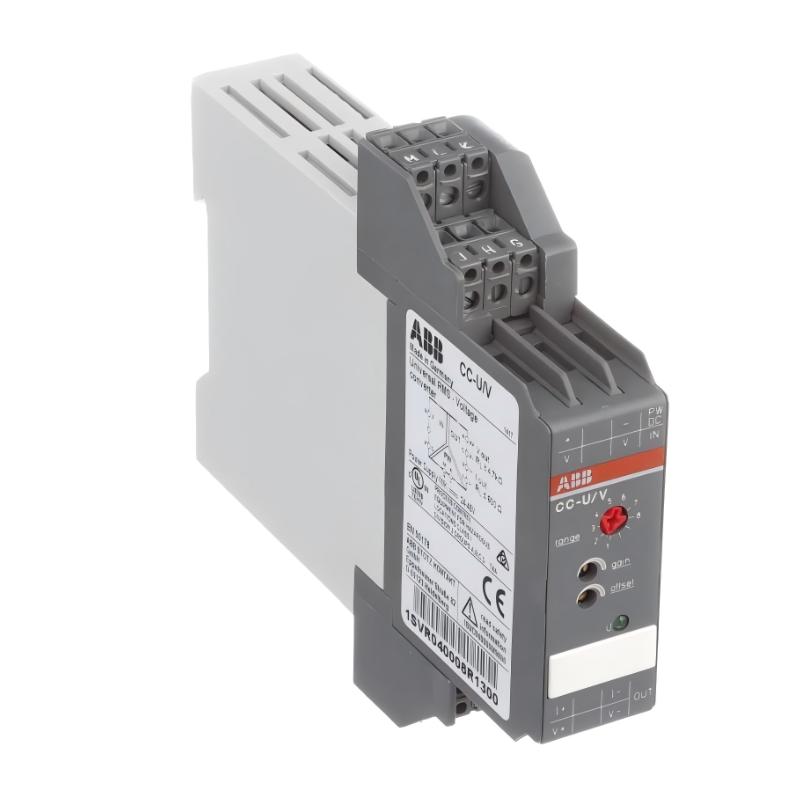

ABB CC-U/V 1SVR040008R1300 Universal Signal Converter
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Model | CC-U/V |
| Ordering Number | 1SVR040008R1300 |
| Product Type | Universal Signal Converter |
| Product Function | Universal Voltage Measuring Converter |
| Application | Industrial voltage measurement and analog signal conversion |
| Input Signal | Voltage RMS values |
| Input Voltage Range | 0–100 V, 0–150 V, 0–250 V, 0–300 V, 0–400 V, 0–450 V, 0–550 V, 0–600 V |
| Input Frequency Range | 0–600 Hz |
| Input Waveform | DC, DC with superimposed AC, sinusoidal, triangular, phase-angle controlled and other waveforms |
| Rated Control Supply Voltage | 24–48 V DC / 24 V AC |
| Output Signal | Configurable analog voltage and current signals |
| Output Range | Up to ±11 V / ±55 mA, depending on configuration |
| Electrical Isolation | 3-way electrical isolation between input, output and supply |
| Output Configuration | 41 selectable output signal ranges, including standard and non-standard ranges |
| Input Range Selection | Front-face rotary switch |
| Gain Adjustment | Front-face adjustment control |
| Offset Adjustment | Front-face adjustment control |
| Output Protection | Short-circuit proof signal outputs |
| Connection Type | Plug-in connecting terminals |
| Status Indication | Green LED for supply voltage |
| Mounting | DIN rail mounting |
| Protection Rating | IP20 |
| Operating Temperature | -20 to +60 °C |
| Dimensions | 120 × 22.5 × 105 mm |
| Weight | 0.128 kg |
FAQ
1. What is the ABB CC-U/V 1SVR040008R1300 Universal Signal Converter?
The ABB CC-U/V 1SVR040008R1300 is a universal voltage measuring converter designed to measure RMS voltage signals and convert them into configurable analog output signals. It is part of the ABB CC-U range and is intended for industrial automation, electrical measurement, monitoring, and control applications where voltage signals need to be isolated and converted into a usable analog signal for control equipment.
2. What voltage signals can the CC-U/V 1SVR040008R1300 measure?
The converter supports multiple selectable input voltage ranges from 0 to 600 V. The available ranges include 0–100 V, 0–150 V, 0–250 V, 0–300 V, 0–400 V, 0–450 V, 0–550 V, and 0–600 V. The required input range can be selected using the rotary switch on the front of the device, allowing the same converter to accommodate different voltage measurement requirements.
3. What type of voltage waveform can the ABB CC-U/V measure?
The CC-U/V is designed for RMS measurement of different voltage waveform types. It can handle DC, DC with superimposed AC components, pure sinusoidal signals, triangular waveforms, and phase-angle-controlled waveforms. This makes it suitable for applications where the measured voltage is not necessarily a conventional sinusoidal AC waveform.
4. What is the purpose of the 3-way electrical isolation in the CC-U/V?
The 3-way electrical isolation separates the input circuit, output circuit, and power supply circuit. This helps prevent unwanted electrical interaction between different sections of the control system and can reduce the effect of potential differences, electrical interference, and ground-loop conditions. It is particularly useful when integrating voltage measurement signals into industrial control and monitoring systems.
5. How are the input and output ranges configured on the 1SVR040008R1300?
The input voltage range is selected through the front-mounted rotary switch. The output configuration is set using the accessible DIP switches, providing multiple voltage and current output options. Gain and offset can also be adjusted through the front operating controls, allowing the converter to be matched more precisely to the requirements of the connected control or monitoring device.
6. What power supply does the ABB CC-U/V 1SVR040008R1300 require?
The 1SVR040008R1300 version is designed for a rated control supply of 24–48 V DC and also supports 24 V AC. The supply status is indicated by a green LED on the front of the unit. The supply voltage should be checked before installation to ensure that it corresponds to the electrical requirements of the specific converter.
7. How should the CC-U/V be connected in an industrial control system?
The voltage measurement signal is connected to the converter input, while the selected analog output is connected to the PLC, controller, measuring instrument, or other receiving device. The power supply is connected separately to the designated supply terminals. Because the unit uses plug-in terminals and configurable switches, the wiring and DIP-switch settings should be checked carefully against the required input and output ranges before energizing the system.
8. What should be checked if the CC-U/V output signal is incorrect or unstable?
First check the control supply voltage and confirm that the green power LED is operating normally. Then verify that the selected input range matches the actual measured voltage and that the DIP switches correspond to the required output range. The input wiring, output wiring, terminal connections, signal polarity, gain adjustment, and offset adjustment should also be checked. If the measured input is correct but the output remains abnormal, the converter and the connected control equipment should be tested separately to identify whether the problem originates from the signal converter or another part of the control system.
ABB CC-U/V 1SVR040008R1300 Universal Signal Converter is in stock. Please contact us for a quick quote and competitive pricing.
