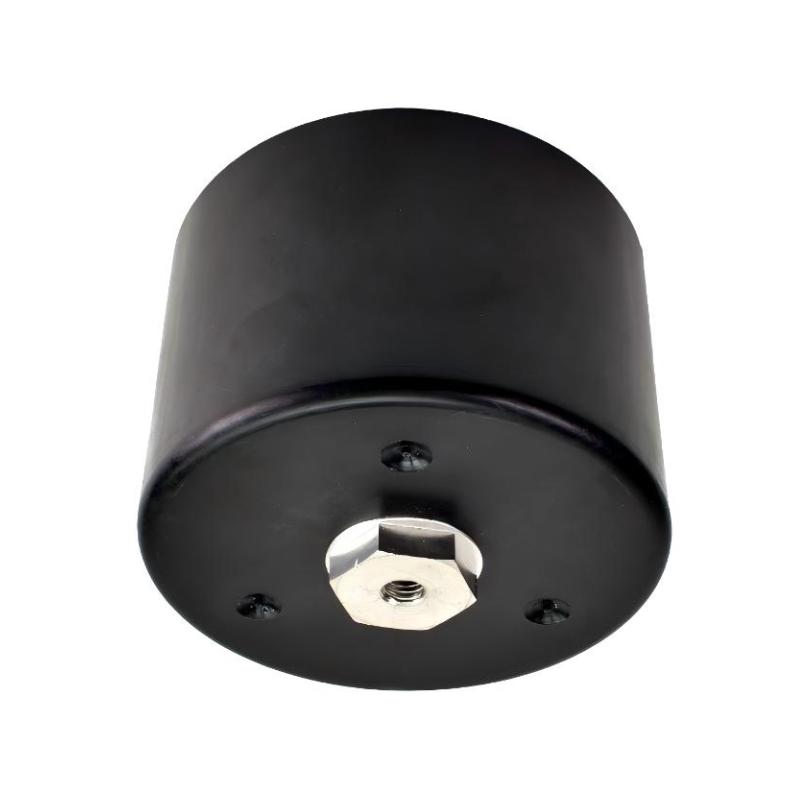

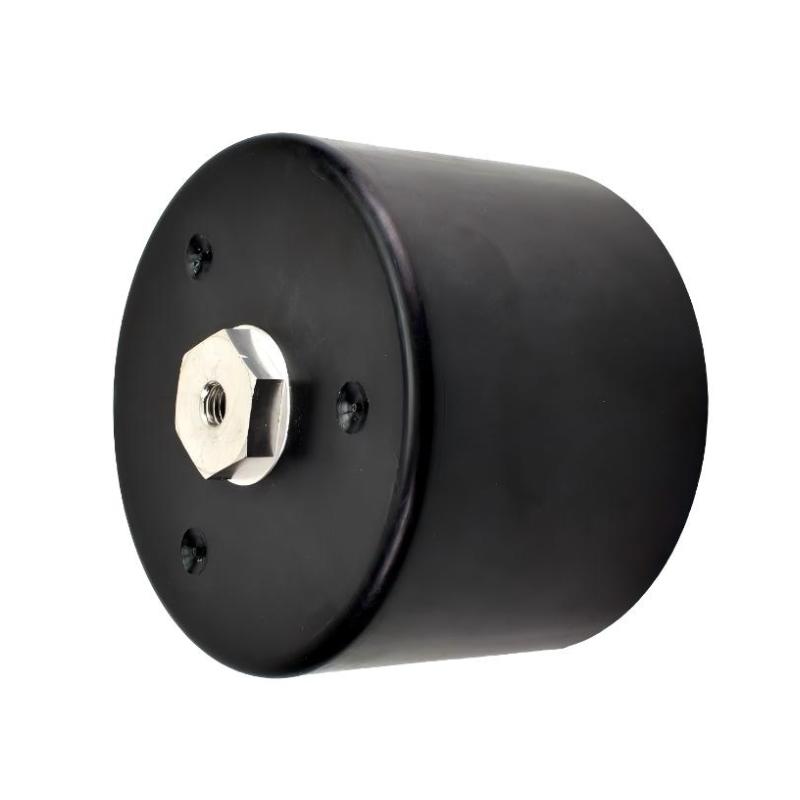

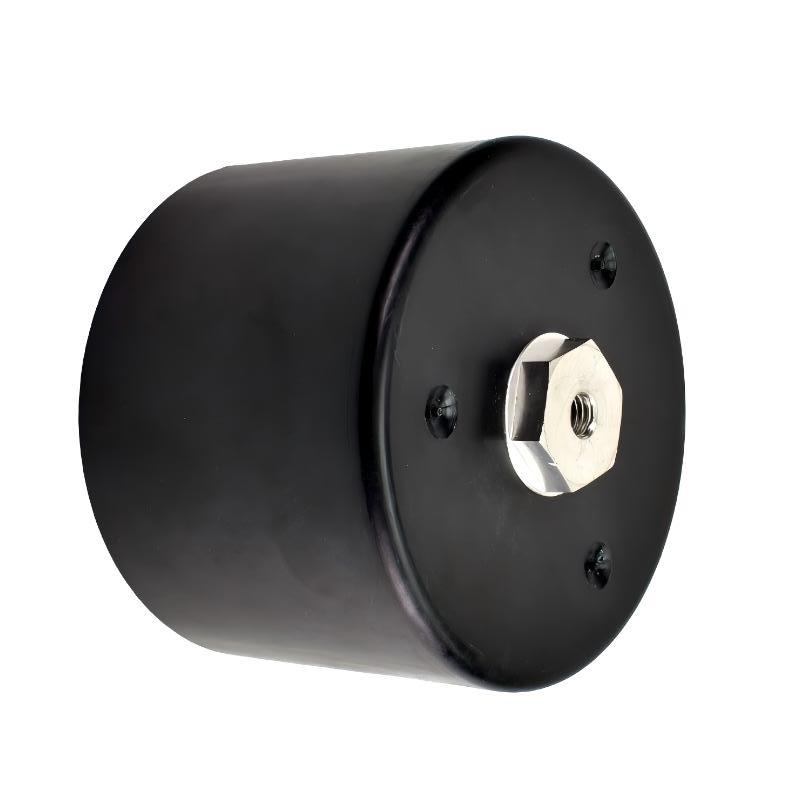

ABB FPX86-9326-B 1.0UF 3BHL000606P0001 Capacitor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Model | FPX86-9326-B 1.0UF |
| Ordering Number | 3BHL000606P0001 |
| Product Type | Clamping Capacitor |
| Capacitor Type | Film Capacitor |
| Capacitance | 1.0 µF |
| Rated Voltage | 4950 V |
| Application | ABB Drive and Power Electronics Systems |
| Main Function | Provides high-voltage capacitive clamping and transient voltage suppression within the associated power electronic circuit |
| Electrical Function | Absorbs and limits high-frequency voltage transients and switching-related overvoltage |
| Typical Application | Power converter, inverter, and high-power drive circuits |
| Installation | Internal electrical component |
| Connection Type | Clamping connection |
| Insulation Requirement | Suitable for high-voltage power electronic applications |
| Dimensions | 280 × 68 × 220 mm |
| Weight | 1.45 kg |
FAQ
1. What is the ABB FPX86-9326-B 1.0UF 3BHL000606P0001 capacitor?
The ABB FPX86-9326-B 1.0UF is a film capacitor identified by ordering number 3BHL000606P0001. It is a high-voltage clamping capacitor designed for use in ABB power electronic and drive-related equipment. Its capacitance is 1.0 µF and its specified voltage rating is 4950 V, making it suitable for applications where transient voltage control is required in high-power switching circuits.
2. What is the difference between FPX86-9326-B 1.0UF and 3BHL000606P0001?
FPX86-9326-B 1.0UF is the product model designation, while 3BHL000606P0001 is the ABB ordering number used to identify and procure the specific capacitor. When replacing the component, both identifiers should be checked against the original part to ensure that the correct electrical and mechanical replacement is selected.
3. What is the capacitance and voltage rating of the 3BHL000606P0001 capacitor?
The capacitor has a capacitance of 1.0 µF and a specified voltage rating of 4950 V. These electrical characteristics are important when selecting a replacement because capacitance and voltage rating directly affect the behavior of the clamping and transient-suppression circuit. A replacement should not be selected based only on physical appearance or dimensions.
4. What is the main function of the ABB FPX86-9326-B capacitor?
The capacitor is used as a clamping component in a high-voltage power electronic circuit. It helps manage fast voltage transients and switching-related overvoltage by providing a defined capacitive path within the circuit. This can help reduce electrical stress on associated power semiconductor and converter components during switching operation.
5. Where is the 3BHL000606P0001 typically used?
The 3BHL000606P0001 is associated with ABB drive and power electronic equipment and is intended for internal use within high-power electrical circuits. It can be found in applications involving power conversion, inverter circuits, and other systems where high-voltage switching generates transient electrical stresses that need to be controlled.
6. What symptoms may indicate a faulty FPX86-9326-B capacitor?
A damaged capacitor may show visible physical abnormalities such as cracking, deformation, discoloration, damaged connections, or signs of overheating. Electrical symptoms can include abnormal voltage behavior, increased switching-related faults, or repeated failures of associated power electronic components. Because similar symptoms can originate from other parts of a drive system, the capacitor should be tested as part of a complete circuit diagnosis.
7. What should be checked before replacing the 3BHL000606P0001 capacitor?
The replacement should be verified against the original model and ordering number, as well as its capacitance and voltage rating. The surrounding circuit should also be inspected for evidence of overvoltage, overheating, loose connections, or damaged semiconductor components. Before handling the capacitor, the equipment must be safely isolated and the stored electrical energy must be discharged using the appropriate service procedure.
8. Can another 1.0 µF capacitor be used instead of the ABB 3BHL000606P0001?
A capacitor with the same nominal capacitance should not automatically be considered a suitable replacement. The voltage rating, capacitor technology, transient-current capability, insulation characteristics, mechanical configuration, connection method, and application-specific electrical requirements must also match. For a high-voltage clamping circuit, using an unsuitable substitute can change circuit behavior and may increase stress on other power electronic components.
ABB FPX86-9326-B 1.0UF 3BHL000606P0001 Capacitor is in stock. Please contact us for a quick quote and competitive pricing.
