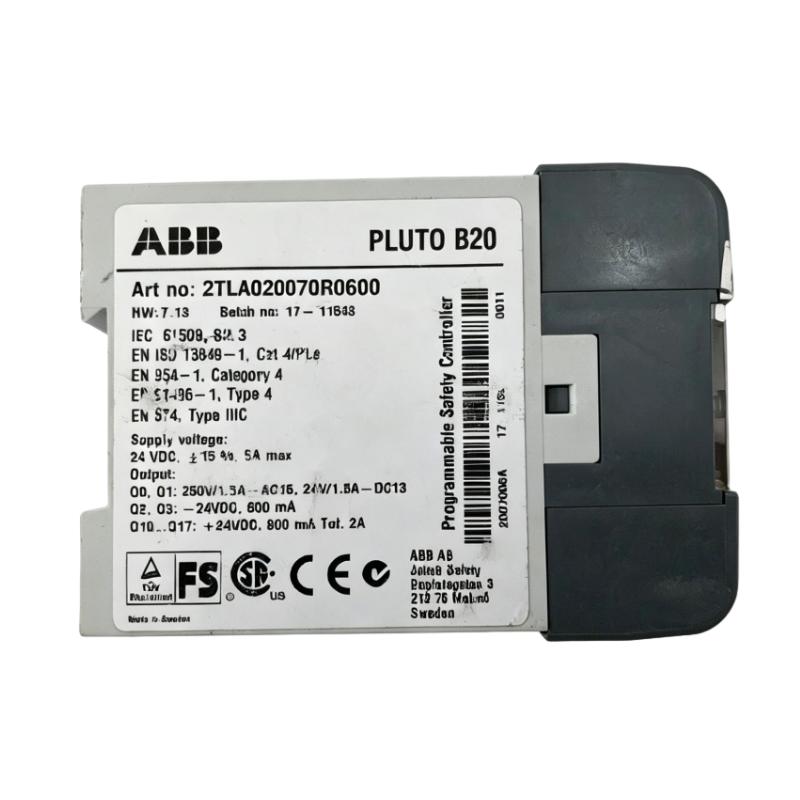

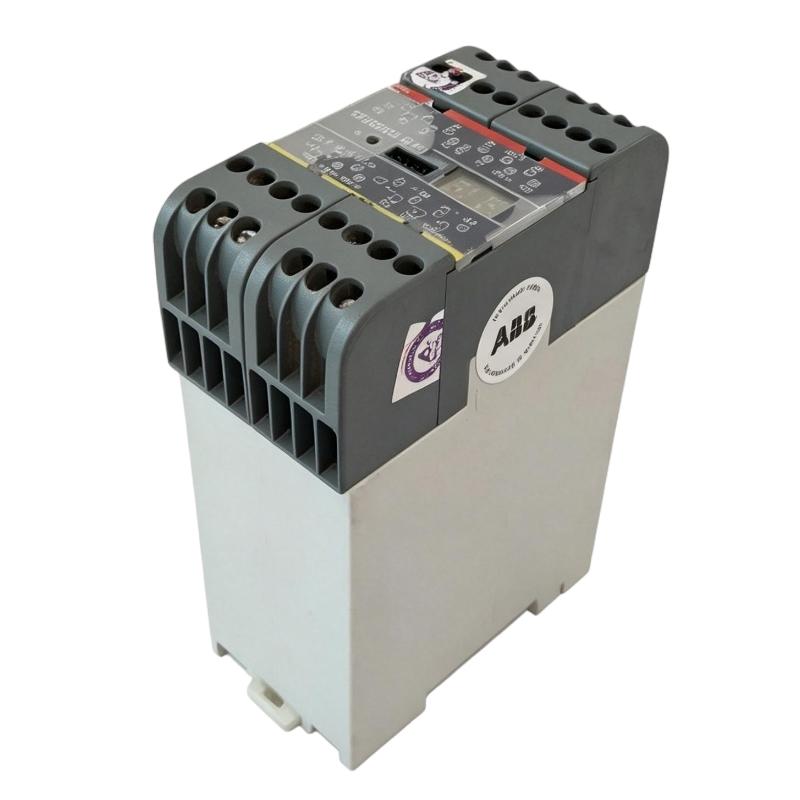

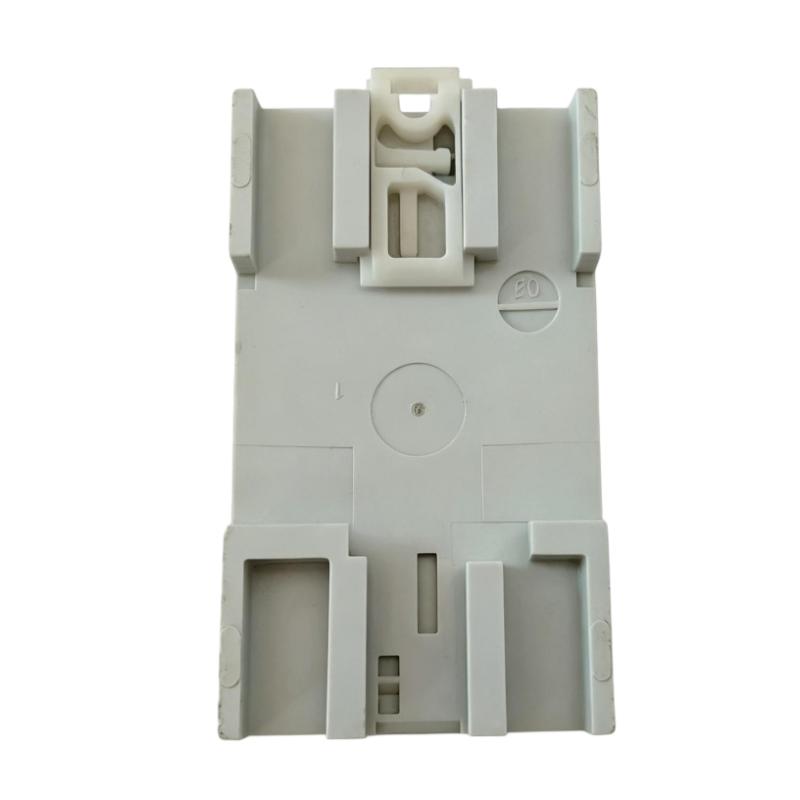

1. What is the ABB Pluto B20 2TLA020070R0600?
The ABB Pluto B20 is a programmable safety controller designed for machine safety applications. Ordering number 2TLA020070R0600 identifies the Pluto B20 version equipped with the Pluto Safety Bus. It combines safety inputs, configurable input/output channels, failsafe relay outputs, and failsafe transistor outputs in one compact controller, allowing safety devices such as emergency stops, safety switches, safety gates, and light curtains to be integrated into a programmable safety control system.

2. How many I/O points does the Pluto B20 provide?
The Pluto B20 provides a total of 20 I/O points. The configuration includes 8 failsafe inputs, 8 channels that can function as non-failsafe outputs or failsafe inputs, 2 individually failsafe relay outputs, and 2 individually failsafe transistor outputs. This arrangement allows the controller to handle both safety input monitoring and safety-related output control within the same system.

3. What is the purpose of the Pluto Safety Bus on the 2TLA020070R0600?
The Pluto Safety Bus allows multiple Pluto safety controllers and compatible safety devices to communicate within a distributed safety control system. It can reduce the amount of point-to-point wiring required when several safety controllers are installed on the same machine or production line. The safety bus also allows safety functions to be coordinated between different Pluto units according to the programmed safety application.

4. What types of safety devices can be connected to the Pluto B20?
The Pluto B20 can be used with a wide range of machine safety devices, including emergency-stop buttons, safety switches, safety interlock devices, safety gates, two-hand controls, light curtains, and other compatible safety sensors. The exact wiring arrangement depends on the device type and the required safety function. The input configuration and safety logic must be programmed according to the applicable machine safety requirements.

5. How is the ABB Pluto B20 programmed?
The Pluto B20 is programmed using ABB Pluto Manager software. The software is used to create and configure the safety control logic, define connected safety devices, configure inputs and outputs, and monitor the controller during commissioning and troubleshooting. The programmed application should be verified and validated according to the machine’s safety requirements before the equipment is placed into normal operation.

6. What is the difference between a failsafe input and a non-failsafe output on the Pluto B20?
A failsafe input is intended for monitoring safety-related devices and evaluating their status as part of the safety control logic. The configurable channels on the Pluto B20 can alternatively be used as non-failsafe outputs or as failsafe inputs, depending on the application configuration. Selecting the correct function is important because safety-related inputs and standard control outputs have different requirements within a machine safety system.

7. What should be checked if a Pluto B20 safety input does not operate correctly?
Start by checking the 24 V DC supply and the wiring between the safety device and the corresponding Pluto input. Verify that the safety device is functioning correctly and that the input configuration in Pluto Manager corresponds to the actual wiring. Connector condition, loose terminals, incorrect dual-channel wiring, and incorrect safety logic can also cause an input to remain in an unexpected state. Diagnostic information from the controller and the programmed application should be reviewed before replacing the hardware.

8. What should be checked when replacing an ABB Pluto B20 2TLA020070R0600?
Confirm the exact ordering number and controller version before replacement, particularly when the system contains several Pluto models or hardware revisions. The wiring, safety-bus connections, identifier settings, and programmed safety application should be checked before commissioning the replacement unit. After installation, the complete safety function should be tested, including connected emergency stops, interlocks, safety sensors, and safety outputs, to verify that the machine responds correctly to each defined safety condition.
