1. What is the main function of the ABB DCS800-S02-0260-05?

The ABB DCS800-S02-0260-05 is a high-power industrial DC converter designed for precise control of DC motors. It regulates motor armature voltage and current to control speed and torque while coordinating the field excitation system. Its double-bridge, four-quadrant configuration allows the connected DC motor to operate in forward and reverse directions and to transition between motoring and regenerative conditions. This makes the drive particularly suitable for machinery that requires controlled acceleration, deceleration, reversing, and regenerative braking. Typical applications include winding and unwinding machines, conveyors, cranes, hoists, rolling equipment, material-handling systems, and other industrial processes where stable DC motor control and dynamic response are required.

2. What are the current ratings of the DCS800-S02-0260-05?

The DCS800-S02-0260-05 belongs to the 260 A class of the DCS800-S02 range. Depending on the applicable operating and duty conditions, the associated DC output current ratings can reach approximately 212 A continuous current and 247 A peak current. The actual usable current depends on factors such as load cycle, ambient temperature, overload duration, motor characteristics, and the selected operating mode. When matching the drive with a DC motor, the motor’s armature current should be evaluated together with acceleration current, braking current, and overload requirements. For demanding applications with frequent high-current acceleration or regenerative braking, the complete duty cycle should be considered rather than relying only on the nominal motor power.

3. Does the DCS800-S02-0260-05 support four-quadrant operation?

Yes. The DCS800-S02-0260-05 uses a double-bridge four-quadrant topology. This allows the drive to control forward motoring, forward regeneration, reverse motoring, and reverse regeneration. Four-quadrant operation is especially useful for applications in which the motor must repeatedly accelerate and decelerate or reverse direction. During regenerative braking, the mechanical energy generated by the motor and connected load can be transferred through the converter toward the AC supply under suitable system conditions. This can be beneficial for high-inertia machines, lifting equipment, winders, and rolling applications. Proper current limits, speed ramps, field settings, and regenerative operating parameters must be configured to match the mechanical system.

4. What feedback devices can be connected to the DCS800-S02-0260-05?

The DCS800-S02-0260-05 supports armature feedback, tachometer feedback, and encoder feedback. The appropriate feedback method depends on the speed accuracy and dynamic performance required by the application. Armature feedback can be used for applications where moderate speed regulation is sufficient, while tachometer or encoder feedback provides more direct motor-speed information and is generally preferred when tighter speed regulation or faster dynamic response is required. During commissioning, the feedback device must be correctly connected and configured. Feedback polarity, scaling, signal quality, and direction should all be verified. Incorrect feedback configuration can result in unstable speed control, incorrect motor direction, inaccurate speed indication, or drive protection trips.

5. What field excitation is provided by the DCS800-S02-0260-05?

The DCS800-S02-0260-05 provides a regulated field excitation system with a field current rating of approximately 15 A for the specified configuration. The field circuit is important for separately excited DC motors because the field controls the magnetic flux required for normal torque production. The field current should be configured according to the connected motor’s rated field requirements. If the field current is too low, the motor may not produce the expected torque and may operate at an abnormal speed under certain conditions. An open field circuit or incorrect field connection can also cause protective functions to activate. Before applying full motor load, the field wiring, field current, field status, and related drive parameters should therefore be verified carefully.

6. How should an overcurrent fault on the DCS800-S02-0260-05 be diagnosed?

Overcurrent troubleshooting should begin with the mechanical load before focusing on the converter itself. Check whether the motor or driven machine is blocked, overloaded, or experiencing excessive friction. Then inspect the armature circuit for loose terminals, damaged cables, incorrect connections, short circuits, or motor winding problems. The drive parameters should also be checked, including motor rated current, current limits, acceleration and deceleration ramps, speed reference, and torque-related settings. If the fault occurs immediately during acceleration, the acceleration ramp may be too short for the connected inertia or load torque. If it occurs during deceleration, regenerative current and braking conditions should be examined. Repeated overcurrent faults despite a normal mechanical load may indicate problems with the motor, current measurement, feedback circuit, or power electronics. The drive should not be repeatedly reset without identifying the underlying cause.

7. Why might the motor speed fluctuate when controlled by the DCS800-S02-0260-05?

Motor speed instability can be caused by feedback problems, incorrect control tuning, an unstable speed reference, field-current variations, or changes in mechanical load. If an encoder or tachometer is used, inspect the feedback wiring, connectors, shielding, grounding, polarity, and signal quality. Electrical interference or an intermittent feedback connection can cause the speed controller to continuously adjust the armature output. If the feedback signal is stable, check the speed reference and the speed-control parameters. The mechanical system should also be inspected for changing load torque, gearbox backlash, coupling problems, belt slip, or other cyclic disturbances. Field excitation should be checked because an unstable field can also affect motor torque and speed. It is preferable to change and test one control parameter at a time so that the effect of each adjustment can be clearly identified.

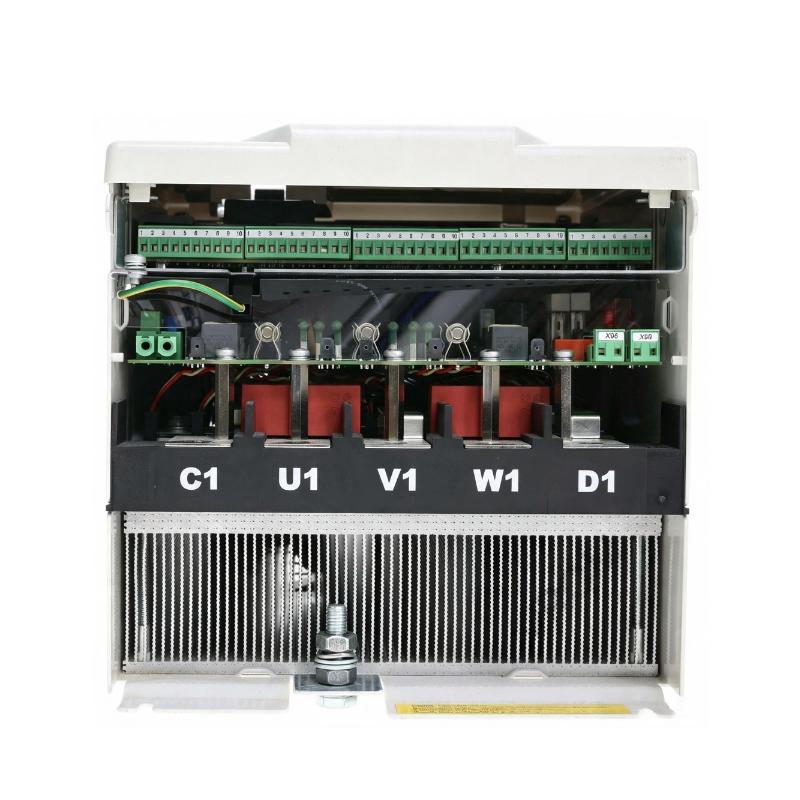

8. What should be checked when installing or replacing the DCS800-S02-0260-05?

Before installation or replacement, the complete drive system must be stopped and isolated in accordance with the applicable electrical safety procedures. The AC supply must be disconnected, and sufficient time must be allowed for the DC circuit and other energy-storage components to discharge. The absence of hazardous voltage should be verified before accessing the drive. Because the DCS800-S02-0260-05 uses an IP00 open-chassis construction, it should be installed inside an appropriate electrical cabinet or enclosure with adequate ventilation, cooling, clearance, and environmental protection. During installation, verify the three-phase AC input, motor armature connections, field circuit, feedback wiring, control connections, communication interfaces, and protective grounding. Before the first start, check the motor rated data, field parameters, current limits, feedback direction, speed limits, and acceleration/deceleration settings. Initial commissioning should be performed gradually, starting with controlled low-load operation and then checking acceleration, steady-state speed, reversing, braking, and regenerative operation before returning the machine to normal production.
