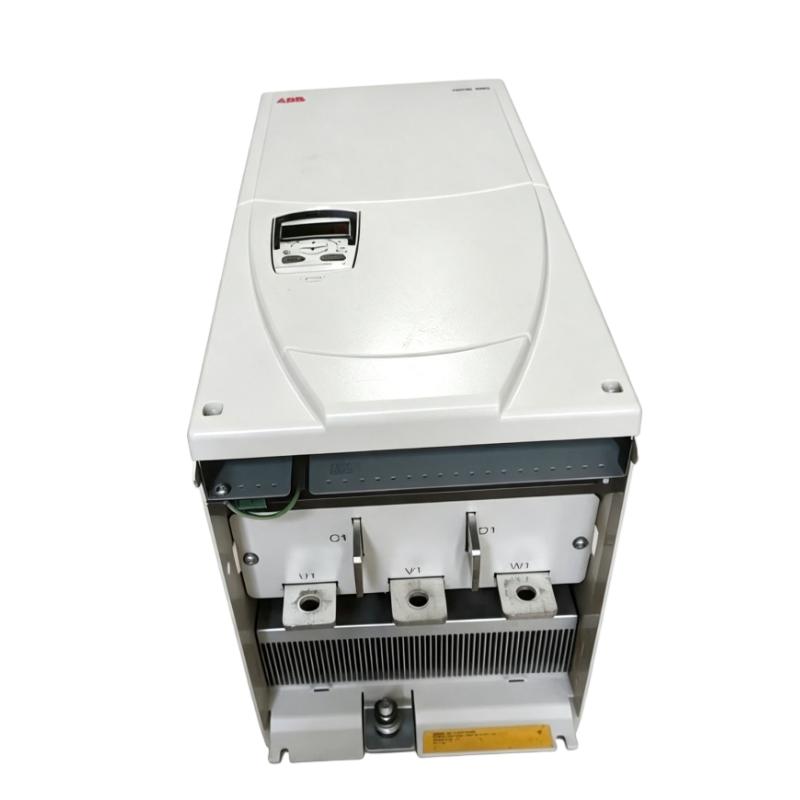

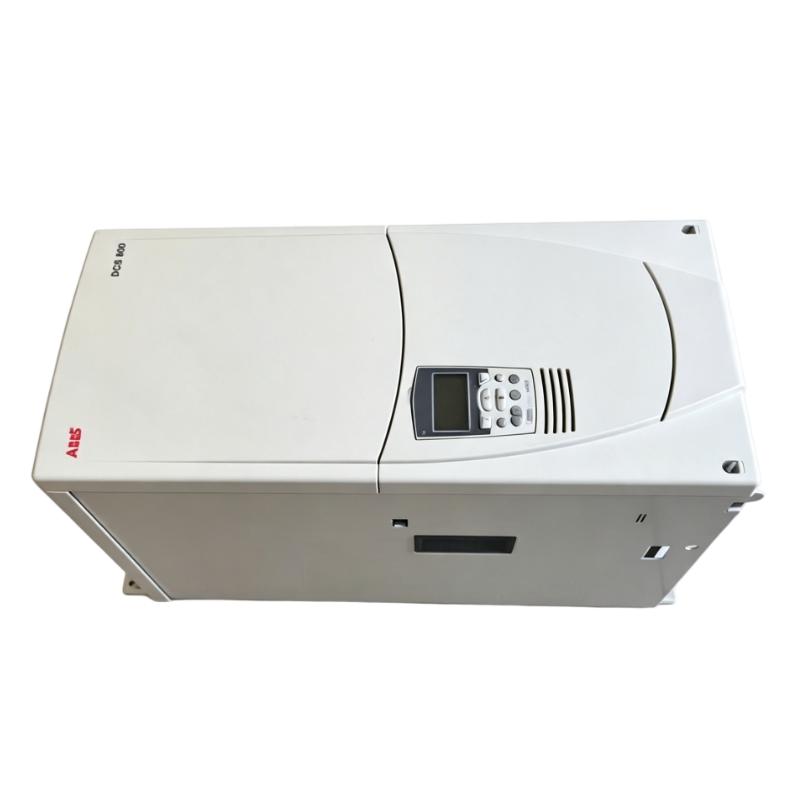

1. What is the main function of the ABB DCS800-S02-0820-05?

The ABB DCS800-S02-0820-05 is a high-current industrial DC motor controller designed for demanding applications requiring accurate control of DC motor speed, torque, direction, acceleration, and braking. It regulates the armature power supplied to the motor while coordinating the field excitation system to maintain stable motor operation. As a four-quadrant reversing converter, it can control forward and reverse motoring as well as regenerative operation. The high current rating makes this model suitable for large DC motors and heavy industrial machinery where substantial continuous and dynamic current is required. Typical applications include rolling mills, cranes, hoists, winding systems, conveyors, large material-handling equipment, and other high-power industrial processes.

2. What is the rated current of the DCS800-S02-0820-05?

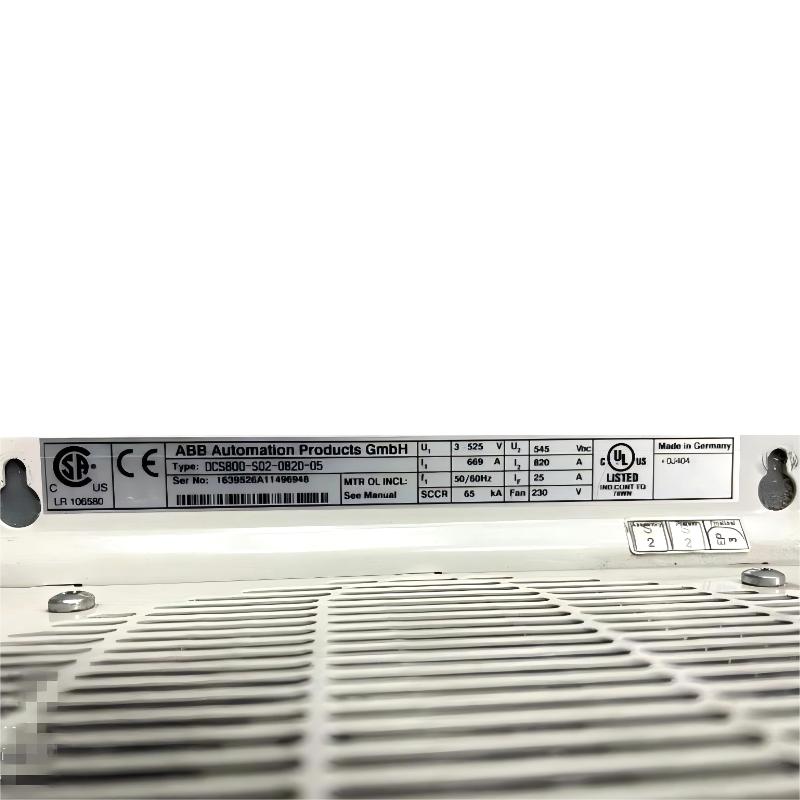

The DCS800-S02-0820-05 is an 820 A rated DC converter. ABB’s DCS800 technical documentation lists the 820 A model in the D4 frame class and specifies different permissible current levels depending on the operating duty. The documented current values include approximately 664 A for normal duty, 648 A for standard duty, and 598 A for heavy-duty operation under the applicable conditions. The correct operating current therefore depends on the motor load profile, overload duration, ambient conditions, and selected duty classification. When selecting the drive, the motor’s continuous armature current and short-term peak current should both be considered. A high-power application with frequent acceleration, braking, or overload conditions should be evaluated based on its complete operating cycle rather than only the motor’s nominal power.

3. Does the DCS800-S02-0820-05 support four-quadrant operation?

Yes. The DCS800-S02-0820-05 is a four-quadrant reversing DC converter. This configuration allows the drive to control forward motoring, forward regenerative braking, reverse motoring, and reverse regenerative braking. Four-quadrant control is particularly useful for applications where the motor must frequently change direction or decelerate large mechanical loads. During regenerative operation, mechanical energy generated by the motor can be transferred back toward the AC supply instead of being converted entirely into heat. This makes the drive suitable for high-inertia machinery, cranes, hoists, winders, rolling equipment, and other systems where controlled braking performance is important. The regenerative parameters, current limits, speed ramps, field settings, and incoming power system must be correctly configured for reliable operation.

4. What type of motor feedback can be used with the DCS800-S02-0820-05?

The DCS800-S02-0820-05 can be configured for different motor feedback arrangements, including armature feedback, tachometer feedback, and encoder feedback. The choice depends on the speed-control accuracy and dynamic response required by the application. Armature feedback can be suitable for less demanding speed-control applications, while tachometer or encoder feedback provides direct motor-speed information and can improve regulation under rapidly changing loads. During commissioning, the feedback device must be correctly wired and configured. Feedback direction, scaling, signal quality, polarity, and the corresponding drive parameters should all be verified. An incorrect feedback direction or scaling value can cause inaccurate speed regulation, unstable operation, or unexpected changes in motor response.

5. What field excitation capability does the DCS800-S02-0820-05 provide?

The DCS800-S02-0820-05 includes a built-in three-phase field exciter with an internal field current rating of approximately 25 A for this D4 configuration. Field excitation is essential for separately excited DC motors because the motor field determines the magnetic flux available for torque production. The field current must therefore be configured according to the requirements of the connected motor. If the field current is too low, the motor may not produce sufficient torque and can behave abnormally at higher speeds. A field circuit interruption, incorrect field wiring, or unsuitable field parameters can also result in protective trips. During commissioning, the field supply, field current, field status, and motor field parameters should be verified before the motor is operated under full load.

6. How should an overcurrent fault on the DCS800-S02-0820-05 be diagnosed?

Because this is a high-current DC drive, an overcurrent fault should be investigated carefully before repeatedly resetting the controller. First check the driven machine for mechanical blockage, excessive load torque, abnormal friction, or a sudden increase in process load. Next inspect the armature circuit, including power cables, terminals, contactors, and motor windings, for incorrect connections, short circuits, loose connections, or insulation problems. The drive parameters should then be checked, particularly the motor rated current, current limits, acceleration and deceleration ramps, speed reference, and torque-related settings. If the fault occurs during acceleration, excessive motor demand may result from an acceleration ramp that is too short for the connected inertia. If it occurs during deceleration, regenerative current and braking conditions should be investigated. Persistent overcurrent faults with a normal mechanical load may require inspection of the current feedback circuit, motor condition, firing/control circuitry, and power semiconductors.

7. What should be checked if the motor speed fluctuates during operation?

Speed instability can be caused by feedback problems, incorrect controller tuning, an unstable reference signal, field-current variation, electrical interference, or mechanical load changes. If the motor uses a tachometer or encoder, check the complete feedback circuit, including connectors, cables, shielding, grounding, polarity, signal quality, and configured scaling. Intermittent feedback signals can cause the speed controller to continuously modify the armature output, producing visible speed oscillation. If the feedback system is stable, check whether the speed reference is changing unexpectedly and review the speed-controller parameters. The mechanical system should also be examined for changing load torque, backlash, coupling problems, gearbox issues, or cyclic process disturbances. Field excitation should be checked as well. For systematic troubleshooting, change only one control parameter at a time and observe the resulting motor behavior before making another adjustment.

8. What precautions should be followed when installing or replacing the DCS800-S02-0820-05?

The DCS800-S02-0820-05 operates at high power levels, so installation and replacement require strict electrical safety procedures. Before maintenance, the complete drive system must be stopped and electrically isolated. The AC supply must be disconnected, and sufficient time must be allowed for the DC circuit and other energy-storage components to discharge. The absence of hazardous voltage must be verified using an appropriate measurement procedure before accessing the equipment. Since the unit uses an IP00 open-chassis construction, it must be installed inside a suitable electrical cabinet or protected enclosure with appropriate ventilation, cooling, clearances, and environmental protection. During installation, carefully verify the three-phase input, armature connections, field circuit, feedback wiring, control terminals, communication connections, and protective grounding. Before initial startup, confirm the motor rated data, field parameters, current limits, feedback direction, speed limits, and acceleration/deceleration settings. Commissioning should begin under controlled conditions, with the motor gradually tested for startup, acceleration, steady-state operation, deceleration, reversing, and regenerative braking before the system is placed back into full-load industrial service.
