1. What is the primary function of the DSDP 160 module?

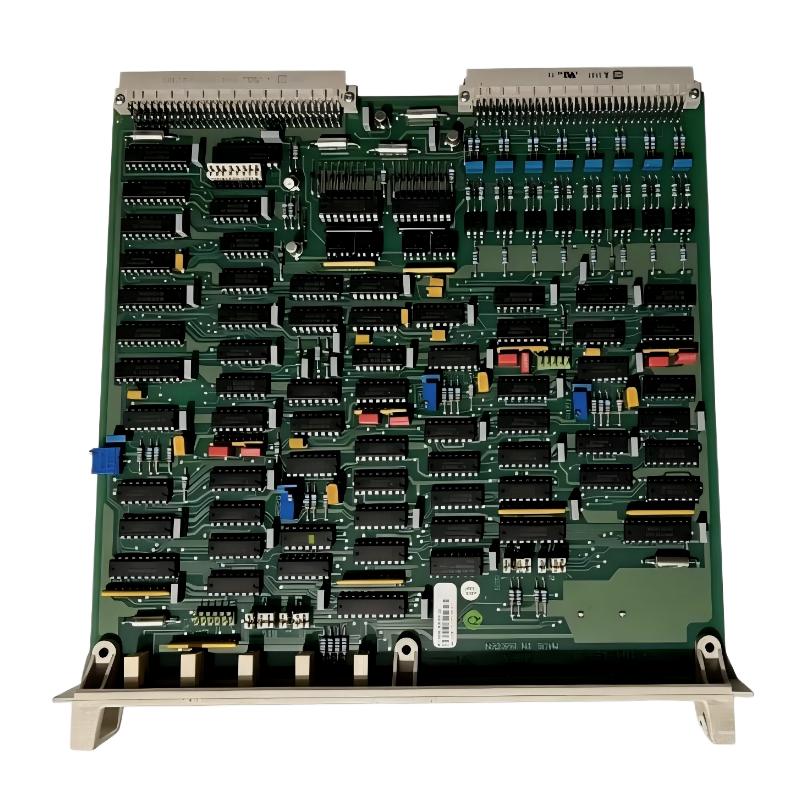

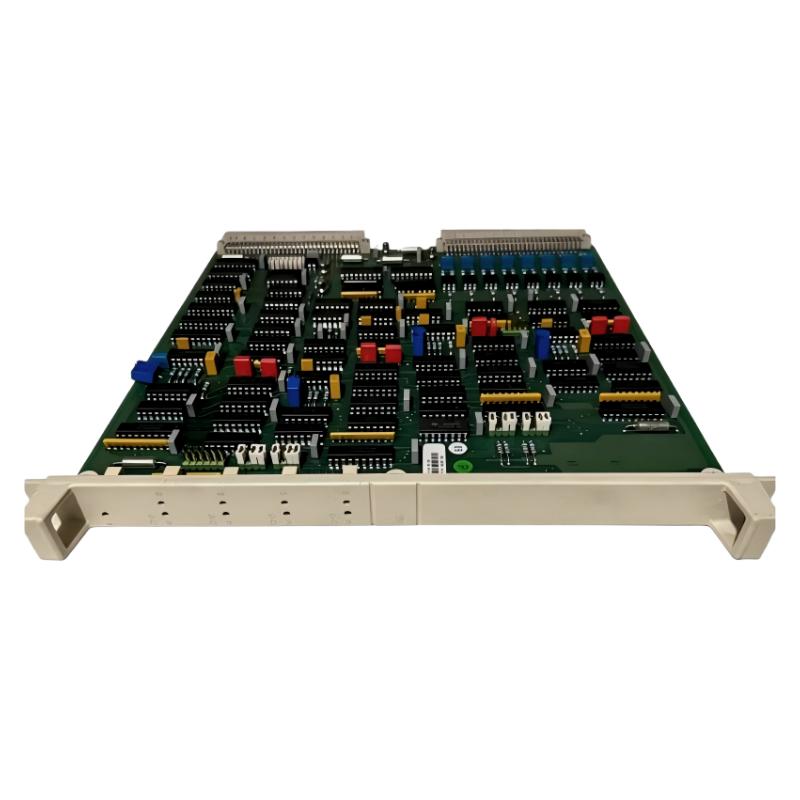

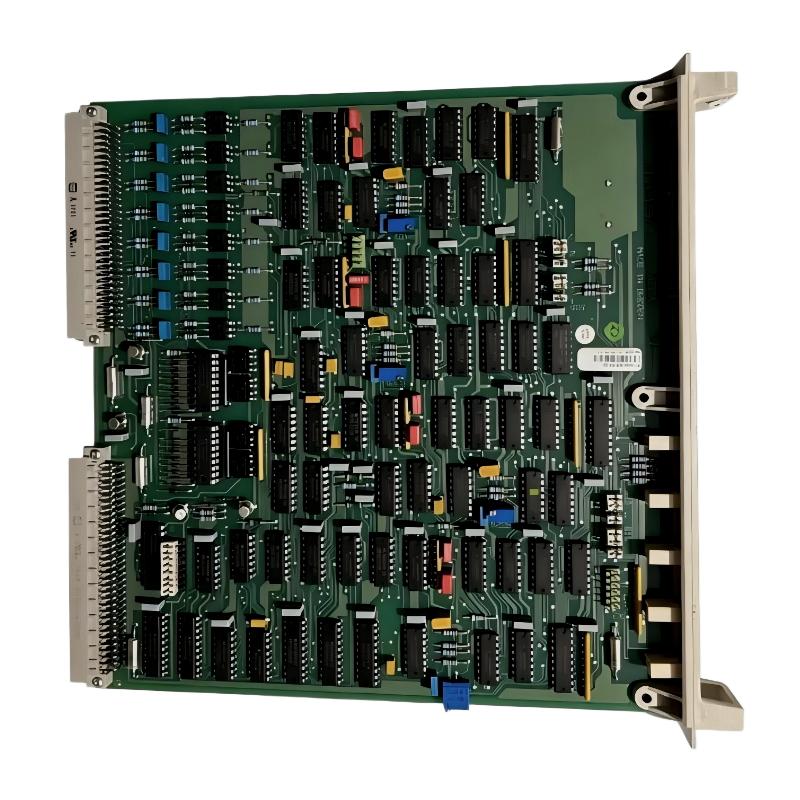

The DSDP 160 is a pulse counting board designed to acquire and process pulse signals from field devices. It is commonly used for measuring speed, flow, or position by counting pulses generated by devices such as encoders, flow meters, or proximity sensors.

2. What counting modes does the module support?
The module supports multiple counting modes, including up-counting, down-counting, and frequency measurement. This flexibility allows it to handle different industrial requirements such as direction detection, rotational speed monitoring, or signal frequency analysis.

3. How does the module handle high-speed pulse signals?
The DSDP 160 uses high-speed hardware-based pulse capture to ensure accurate signal detection. Its microsecond-level response capability minimizes the risk of missed pulses, making it suitable for demanding high-frequency applications.

4. What types of pulse sensors are compatible with this module?
The module is compatible with a wide range of industrial pulse-generating devices, including incremental encoders, proximity switches, photoelectric sensors, and flow transmitters with pulse outputs, as long as the electrical specifications match system requirements.

5. How can counting accuracy be improved in real applications?
Accuracy can be improved by using shielded cables, ensuring proper grounding, and maintaining signal integrity. Additionally, configuring appropriate filtering and debounce settings in the control system helps eliminate noise and mechanical bounce effects.

6. How does frequency measurement work in this module?
In frequency measurement mode, the module calculates the number of pulses received within a defined time interval. This value is then converted into frequency data, which can be used for applications such as speed monitoring or flow rate calculation.

7. Does the module support real-time data monitoring?
Yes, the DSDP 160 supports real-time data acquisition. Pulse counts and frequency values can be continuously transmitted to the control system, allowing operators to monitor process conditions and perform real-time analysis.

8. In which industries is this module commonly used?
The module is widely used in industries such as manufacturing, power generation, water treatment, oil and gas, and process automation. Typical applications include flow measurement, motor speed monitoring, position tracking, and production counting systems.
