FAQ

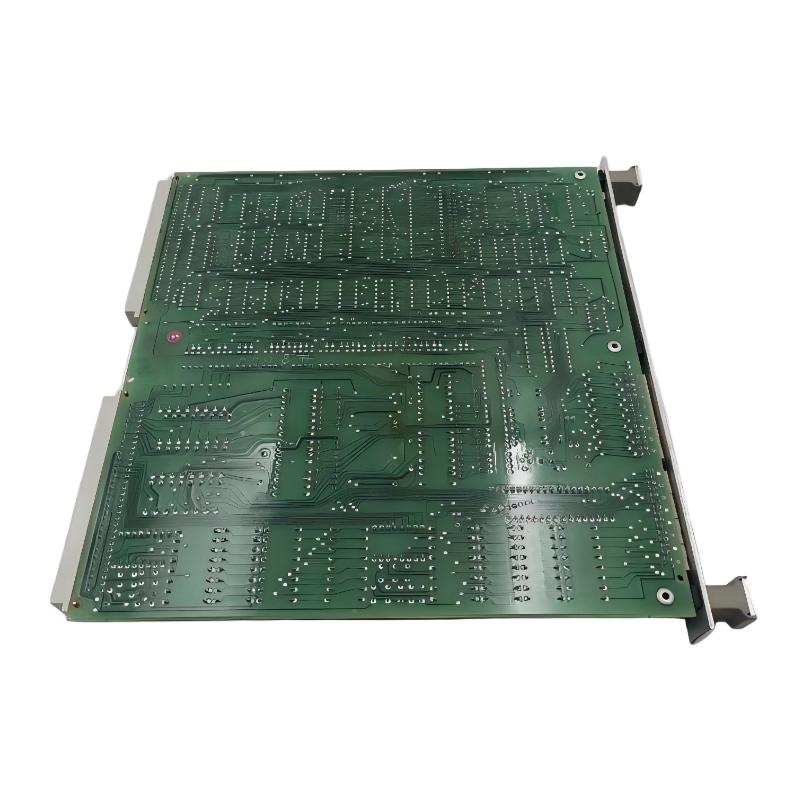

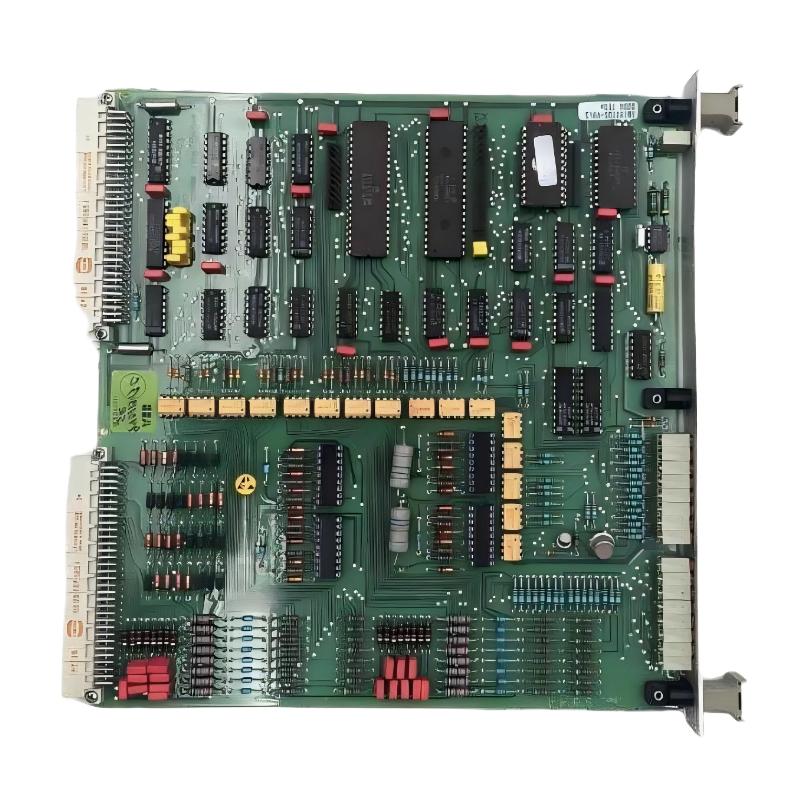

1. What is the main function of the DSDX 110 module?
The DSDX 110 is a combined digital input/output module designed for industrial automation systems. It enables both signal acquisition from field devices and control output to actuators, allowing integrated monitoring and control within a single module.

2. What types of field signals can be connected to this module?
The module supports standard industrial discrete signals, including dry contacts and wet contacts for inputs, and transistor-based switching outputs. It is commonly used with devices such as switches, relay contacts, sensors, and small actuators.

3. Can input and output channels be configured independently?
Yes, input and output channels can be independently assigned and configured through the system engineering software. This allows flexible system design based on application requirements, improving adaptability in different automation scenarios.

4. How is input signal stability ensured in industrial environments?
To ensure stable input detection, it is recommended to use shielded cables, proper grounding, and physical separation from power lines. Software-based debounce or filtering functions can also be enabled to reduce false triggering caused by noise or contact bounce.

5. What should be considered when driving loads from the output channels?
Each output channel uses a transistor switching design with limited current capability. It is suitable for small loads such as indicator lamps or relay coils. For inductive or higher-power loads, external relays or protection circuits should be used.

6. Does the module provide diagnostic or status monitoring features?
Yes, the module supports basic diagnostics including channel status indication and communication monitoring. These diagnostics can be accessed through the control system to help identify faults and ensure proper operation.

7. What are key integration requirements in a control system?
Proper system integration requires correct module addressing, configuration in engineering software, and stable backplane communication. Ensuring proper power supply and accurate I/O mapping is essential for reliable operation.

8. In which industrial applications is the DSDX 110 typically used?
The module is widely used in manufacturing automation, power systems, chemical processing, water treatment, and building automation. It is suitable for applications requiring both digital signal monitoring and control execution within a compact I/O architecture.
