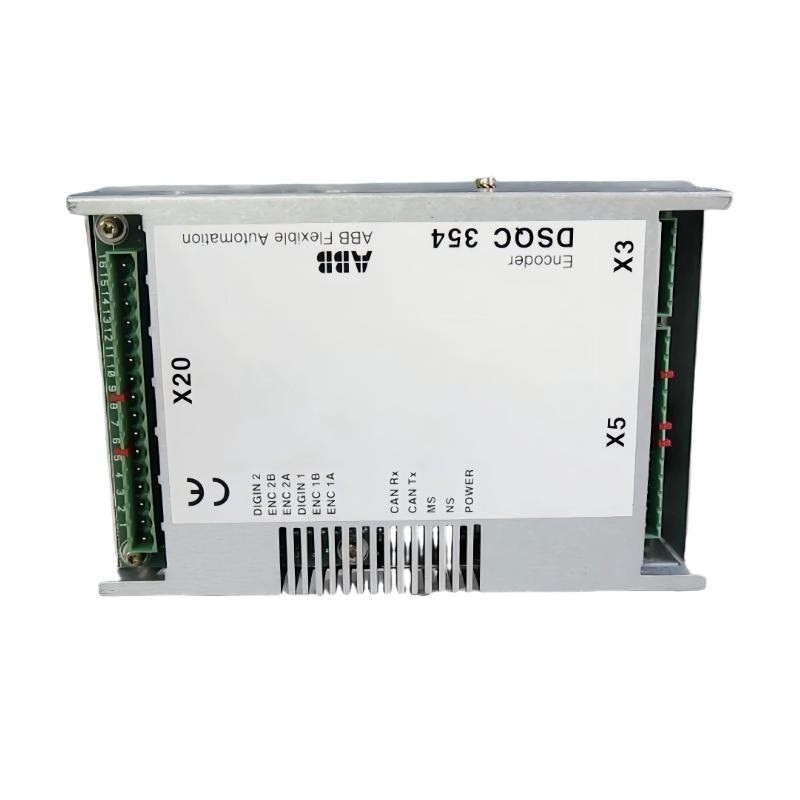

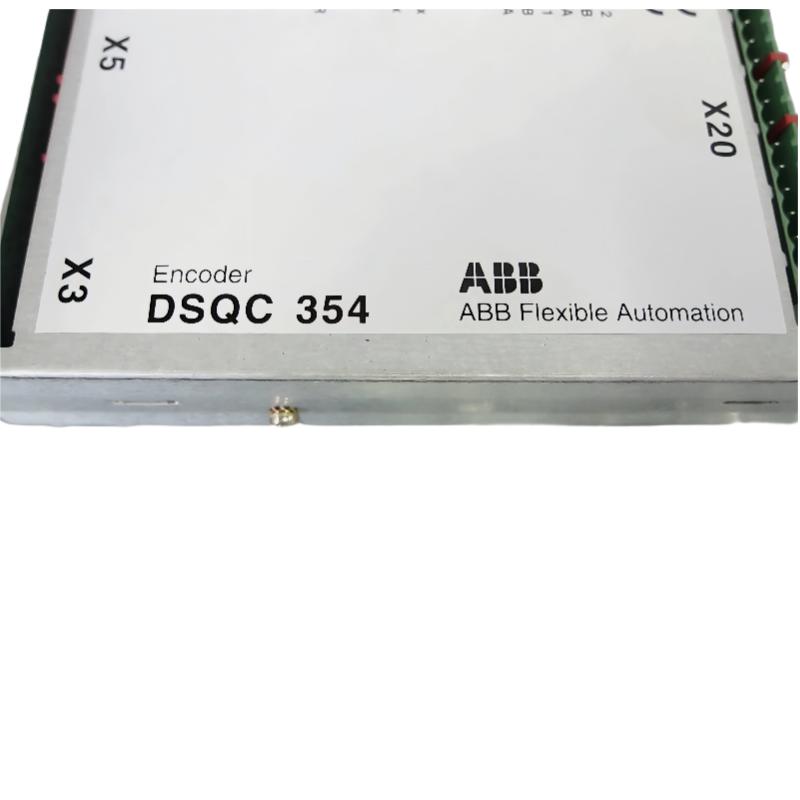

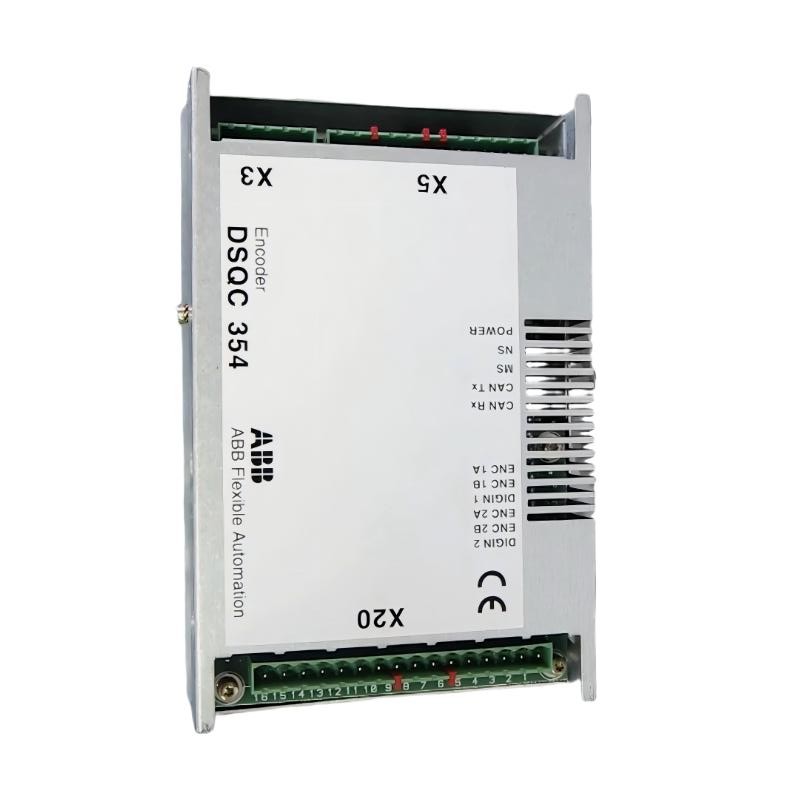

Q1: What is the primary function of the ABB DSQC 354 Encoder Interface Card?

A: The DSQC 354 is designed to process encoder feedback signals within ABB robot control systems. It receives position, speed, and direction data from motor-mounted encoders and transfers the information to the controller for real-time motion calculations. This enables precise positioning, smooth trajectory control, and accurate robot movement during automated operations.

Q2: Which encoder types are compatible with the DSQC 354?

A: The module supports a variety of industrial encoder technologies, including incremental encoders, absolute encoders, and certain servo feedback devices. Compatibility depends on the robot controller configuration and system software version. Before installation, it is recommended to verify encoder signal specifications and electrical requirements to ensure proper operation.

Q3: How can encoder-related faults on the DSQC 354 be diagnosed?

A: Troubleshooting should begin with inspecting encoder cables for loose connections, damaged shielding, or broken conductors. Technicians should also verify that the module receives stable power and that encoder output signals are present. Diagnostic functions within the robot controller can be used to monitor encoder counts and feedback status. Irregular count changes or missing feedback often indicate wiring issues, encoder failure, or interface card malfunction.

Q4: Can the DSQC 354 be used with newer ABB controller platforms?

A: The DSQC 354 was originally developed for ABB S4 and S4C controller systems. Although certain retrofit projects may allow limited compatibility with other configurations, it is generally not intended for direct use with modern platforms such as IRC5 or OmniCore. System compatibility should always be confirmed before replacement or upgrade work is performed.

Q5: What problems can occur if encoder feedback becomes unstable?

A: Unstable encoder signals can significantly affect robot performance. Common symptoms include position drift, reduced repeatability, vibration during movement, unexpected speed variations, and controller alarms. In severe cases, the controller may lose track of the actual axis position, triggering safety shutdowns or motion faults to prevent equipment damage.

Q6: Does the DSQC 354 support hot swapping while the controller is powered on?

A: No. The module is not designed for hot-swapping. Installation, removal, or maintenance should only be performed when the robot controller is fully powered down. Removing or inserting the card under power may damage electronic components, disrupt system communication, or generate controller faults that require additional recovery procedures.

Q7: How can technicians determine whether the DSQC 354 is defective?

A: Typical signs of failure include persistent encoder alarms, loss of position feedback, communication errors, and abnormal axis behavior. Advanced diagnostics may involve measuring encoder signal waveforms with an oscilloscope and inspecting onboard components for electrical damage. If encoder operation remains abnormal after known-good encoders and cables are installed, the interface card itself may require repair or replacement.

Q8: What maintenance practices are recommended for the DSQC 354?

A: Preventive maintenance should focus on keeping connectors clean, ensuring proper grounding, and maintaining cable shielding integrity. During service, technicians should follow electrostatic discharge (ESD) protection procedures and verify that controller slots and connectors remain free from corrosion or contamination. Periodic inspection of encoder wiring and cabinet ventilation can help improve long-term system reliability and reduce unexpected downtime.
