1. What is the main function of the ABB NAMC-04 Control Board?

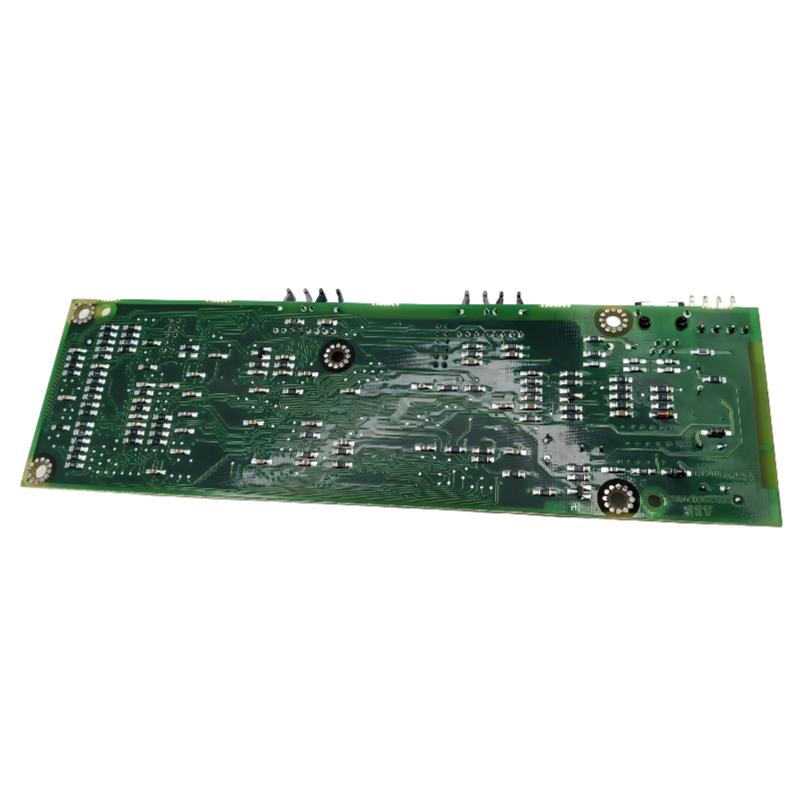

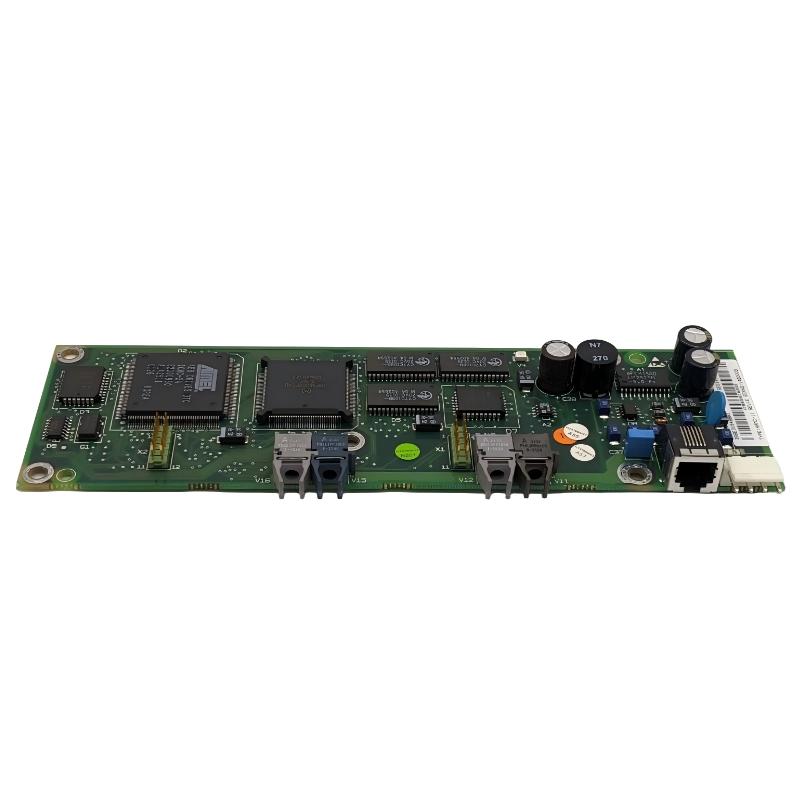

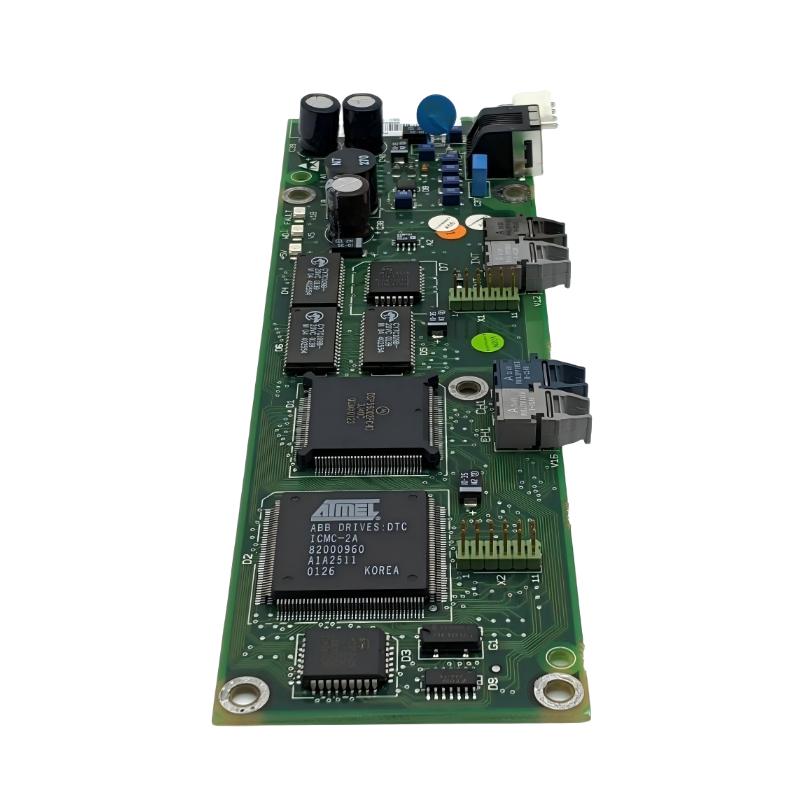

The ABB NAMC-04 is an application and motor control board used in compatible ABB drive systems. Its primary role is to execute the control functions required for drive operation, including motor control, application processing, drive management and communication. The board works together with other drive hardware to process control commands, operating parameters and feedback signals.

Unlike a simple I/O expansion board, the NAMC-04 is an important processing unit within the drive control architecture. Its software performs the control tasks required by the application and coordinates communication with associated drive modules. In an ACS 600-based installation, the NAMC-04 can therefore have a direct influence on motor operation, drive status and system communication. When servicing or replacing the board, the installed hardware and software configuration should be checked carefully to ensure compatibility.

2. Which ABB drives can use the NAMC-04?

The NAMC-04 is associated primarily with ABB ACS 600 series drive systems and related industrial drive configurations. Different generations and hardware versions of ABB drives can use different control-board versions, so compatibility should not be determined only by the physical appearance of the board.

Before replacing a NAMC-04, technicians should compare the existing board model, drive type, hardware revision and installed software. The associated I/O and communication boards should also be considered because the control board operates as part of the complete drive control architecture. If the drive is an older ACS 600 installation, verifying the compatibility of the replacement board with the existing application software is particularly important. Using an incompatible board or software version can result in communication problems, parameter errors or failure of the drive to operate correctly.

3. Does the NAMC-04 need parameter configuration after replacement?

Yes. Parameter configuration should be checked after replacing the NAMC-04. Because the control board participates in application and motor control, the replacement board needs to match the configuration of the drive system.

Before removing the original board, technicians should record important drive parameters whenever possible. These may include motor rated voltage, rated current, motor power, control mode, application settings and other drive-specific configuration values. After installing the replacement NAMC-04, the required parameters should be restored and verified.

Particular attention should be paid to motor identification and drive rating parameters. Incorrect settings can cause poor motor performance, unexpected protective trips or failure to start. After parameter restoration, the drive should be tested under controlled conditions before returning it to normal production service.

4. What is the relationship between the NAMC-04 and the NIOC board?

The NAMC-04 performs application and motor control functions, while the NIOC board provides associated input/output and interface functions in compatible ABB drive configurations. The two boards work together as part of the drive’s overall control architecture.

External control signals, status information and other interface signals can pass through the relevant I/O hardware, while the NAMC-04 processes the control logic and application functions. The exact arrangement depends on the drive model and hardware configuration.

When troubleshooting an external control or communication problem, it is therefore important not to inspect the NAMC-04 alone. The NIOC board, interconnecting cables, connectors and related interface circuits should also be checked. Loose connectors, damaged cables or incorrect wiring can produce symptoms that appear to be a control-board fault.

5. What should be checked when the NAMC-04 shows a fault condition?

Start by checking the control board’s power and status indicators. The condition of the power and fault LEDs can provide an initial indication of whether the board is receiving power and whether the drive has detected a control-related problem.

Next, check the drive fault code and diagnostic information through the available operator interface. The fault code is generally more useful for identifying the actual problem than the LED status alone.

The connections between the NAMC-04, NIOC board, communication hardware and other drive modules should then be inspected. If the board has recently been replaced, software compatibility and parameter configuration should receive particular attention. For intermittent problems, technicians should also check supply stability, connector contact, electrical noise, contamination and possible electrostatic damage. A systematic diagnostic process helps distinguish a genuine control-board failure from an external wiring or configuration problem.

6. Can the NAMC-04 communicate with the drive control panel?

Yes, the NAMC-04-based drive architecture can support communication with the associated control panel through the applicable interface hardware. The exact connection depends on the drive configuration and the control-panel interface used by the particular system.

When the control panel fails to communicate with the drive, the troubleshooting process should include the panel cable, connectors, interface board and NAMC-04 status. Communication problems can also result from incorrect software configuration or an incompatible hardware revision.

Technicians should verify that the control-panel interface is connected to the correct port and that the cable is correctly installed. If the panel is powered but cannot display drive information, the problem may be located in the communication path rather than the display itself. Checking the drive’s diagnostic information and interface status can help determine whether the fault is related to hardware, communication or software configuration.

7. What can cause communication problems with the NAMC-04?

Communication problems can originate from several areas, including damaged cables, loose connectors, faulty interface boards, incorrect configuration or incompatible software. The NAMC-04 participates in the drive’s internal control and communication architecture, so a communication failure can affect the exchange of information between different drive modules.

The first step should be to inspect all relevant physical connections. Connectors should be firmly seated and cables should be checked for visible damage. The status of associated communication and I/O boards should then be examined.

If the physical connections are normal, check the drive software version and configuration parameters. A replacement NAMC-04 with an incompatible software configuration can produce communication-related faults even when the hardware is installed correctly. It is also useful to determine whether the problem affects all communication functions or only one particular interface. This helps narrow the fault to the control board, interface hardware or external communication circuit.

8. What precautions should be taken when replacing an ABB NAMC-04?

Before replacing the NAMC-04, the drive must be shut down according to the applicable electrical safety procedures. Power should be completely isolated, and the DC bus should be confirmed to be safely discharged before the control board is removed.

Because the NAMC-04 is an electronic circuit board, appropriate ESD protection should be used during handling. Static discharge can damage sensitive components even when no visible damage occurs.

Before removal, record the existing board configuration, software information and important drive parameters whenever possible. After installing the replacement board, carefully reconnect all associated interfaces and verify that the board is correctly seated.

The required drive parameters should then be restored and checked. Verify the power and fault indicators before starting the drive. A controlled commissioning test should follow, including checks of motor control, communication, alarms and protection functions. The drive should only be returned to normal operation after the replacement NAMC-04 has successfully passed the required functional checks.
