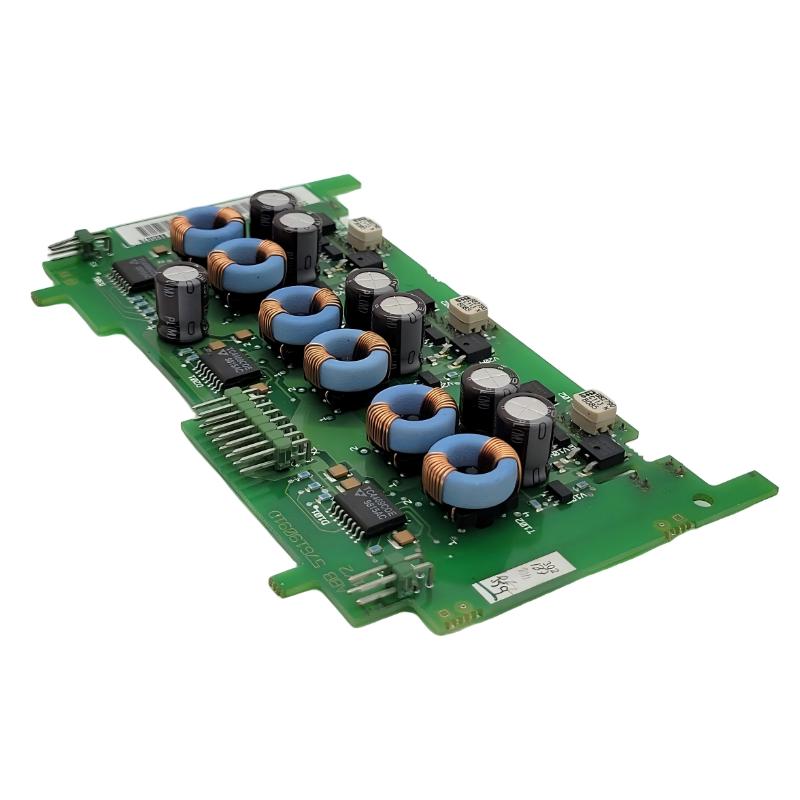

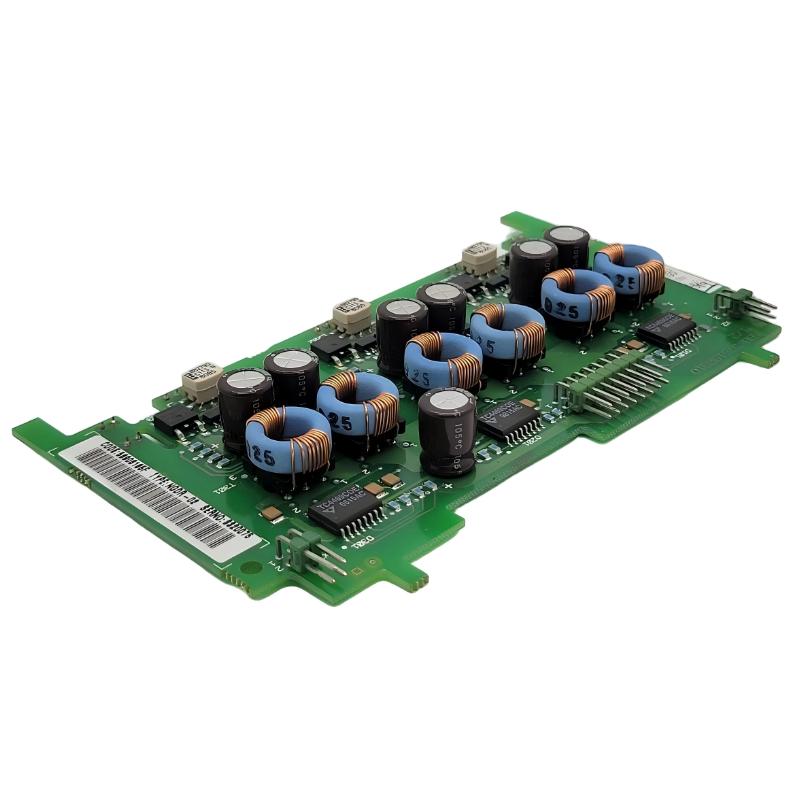

1. What is the main function of the ABB NGDR-02 Driver Board?

The ABB NGDR-02 is a gate driver board used in compatible ABB inverter and power converter systems. Its primary function is to amplify and distribute gate control pulses to the IGBT power semiconductors. The gate signals determine when the IGBTs switch on and off, making the NGDR-02 an important interface between the inverter control electronics and the power stage. In the ACS 600 Multidrive architecture, the NGDR boards are located in the inverter power section and work together with the main circuit interface and other control boards. Proper gate-drive operation is essential for accurate switching, stable motor control and reliable inverter operation. If the NGDR-02 develops a fault, symptoms can include inverter faults, abnormal switching behavior, loss of output power or failure of the associated power stage to operate correctly.

2. Which ABB drive systems are commonly associated with the NGDR-02?

The NGDR-02 is primarily associated with ABB ACS 600 Multidrive and compatible inverter power sections. In the relevant ABB drive architecture, NGDR boards are used in inverter frame sizes where gate-driver circuitry is required for the IGBT power stage. The board works as part of a larger control system rather than as an independent drive controller. Before installing an NGDR-02, the exact drive model, inverter frame size, existing board identification and hardware configuration should be verified. Different ABB drive generations may use visually similar circuit boards with different electrical or interface characteristics. Therefore, matching the model and order number is important when selecting a replacement. For this product, the specified model is NGDR-02 and the order number is 58908185F.

3. How does the NGDR-02 control IGBT switching?

The NGDR-02 receives control pulses generated by the drive control system and conditions or amplifies those signals for the IGBT power devices. The IGBTs are the primary switching components in the inverter power stage, and their switching sequence determines the electrical waveform supplied to the motor. The NGDR-02 therefore serves as an intermediate gate-drive stage between the low-level control electronics and the high-power semiconductor devices. Precise timing of the gate pulses is important because incorrect switching can produce excessive current, abnormal voltage conditions or inverter faults. In a properly functioning system, the gate driver provides the required switching signals while maintaining the electrical separation and protection required by the power-stage architecture. Any troubleshooting involving gate signals should be performed by qualified personnel because the associated inverter section can contain hazardous DC-link and high-voltage energy.

4. How many NGDR boards are used in an applicable power plate configuration?

In the ABB ACS 600 Multidrive architecture, two NGDR boards can control one power plate in applicable inverter configurations. The power plate contains the power semiconductor stage associated with the inverter output phases. The NGDR boards work with the drive’s control electronics to provide the gate signals required by the IGBTs. Depending on the overall inverter configuration and frame size, the number and arrangement of control boards can vary. For this reason, the exact quantity of NGDR boards should be determined from the specific drive hardware configuration rather than assumed from the model number alone. When servicing an inverter, technicians should identify all NGDR boards and their associated connectors before removing any board. Incorrect board placement or connector routing can result in gate-drive faults and potentially severe power-stage problems.

5. What symptoms can indicate a faulty NGDR-02?

A faulty NGDR-02 can produce several different symptoms depending on the failed circuit and the affected inverter phase. Possible indications include inverter startup failure, unexpected drive faults, abnormal motor operation, loss of one inverter phase, excessive current, switching errors or failure of the power stage to respond to control commands. However, these symptoms do not automatically mean that the NGDR-02 itself is defective. Similar symptoms can be caused by the IGBT power module, gate-driver power supply, main circuit interface board, wiring or control electronics. Troubleshooting should therefore begin with the drive fault history and diagnostic information. The associated power supply and connections should then be checked before replacing the board. If appropriate test equipment and procedures are available, the gate-drive signals and power-stage behavior can be examined to determine whether the fault originates from the driver board or another component.

6. What should be checked if the NGDR-02 is not receiving proper gate-drive signals?

If gate-drive signals appear to be missing or abnormal, the troubleshooting process should start with the upstream control circuitry. The connection between the main circuit interface and the NGDR-02 should be checked for loose connectors, damaged wiring or incorrect installation. The gate-driver power supply should also be verified because insufficient or missing driver power can prevent the board from producing the correct output signals. The associated control board and inverter fault status should then be examined. If the upstream control signals and driver supply are normal but the NGDR-02 output remains abnormal, the board itself may require further testing or replacement. Gate-drive measurements should only be performed using appropriate test equipment and procedures because the NGDR-02 is part of a high-power inverter assembly. Direct probing of energized power-stage circuitry without suitable safety measures can expose personnel and equipment to hazardous voltages and currents.

7. Can the NGDR-02 be replaced directly without checking the inverter configuration?

A direct replacement should only be performed after confirming that the replacement board matches the existing inverter configuration. The NGDR-02 is not a universal driver board for every ABB inverter. The drive model, power section, board model, order number and associated hardware should all be checked before installation. The replacement board should be installed in the same functional position as the original unit, and all connectors should be returned to their correct locations. Before removing the original board, it is useful to document connector positions and inspect the board for visible signs of overheating, damaged components or contamination. After installation, the inverter should be checked for correct control-board communication, gate-driver status and fault conditions before the motor is returned to normal operation. If a driver board fails repeatedly after replacement, the underlying IGBT power stage or gate-driver power supply should also be investigated.

8. What precautions should be taken when replacing an ABB NGDR-02?

The NGDR-02 is installed within an inverter power section, so replacement requires strict electrical safety procedures. The drive must be completely isolated from the power source, and the DC-link voltage must be confirmed to have fallen to a safe level before the inverter is opened. Appropriate lockout/tagout procedures and ESD protection should be used when handling the circuit board. Before removal, the board model, order number and connector positions should be recorded. The replacement should match the specified NGDR-02, order number 58908185F, and the applicable inverter configuration. After installation, all connectors should be checked carefully for correct seating and routing. The power section should then be inspected for additional faults before energizing the drive. Initial commissioning should be performed under controlled conditions, with attention to drive fault codes, phase output behavior, motor current and overall inverter operation.
