1. What is the main function of the ABB NINT-42 58907987H?

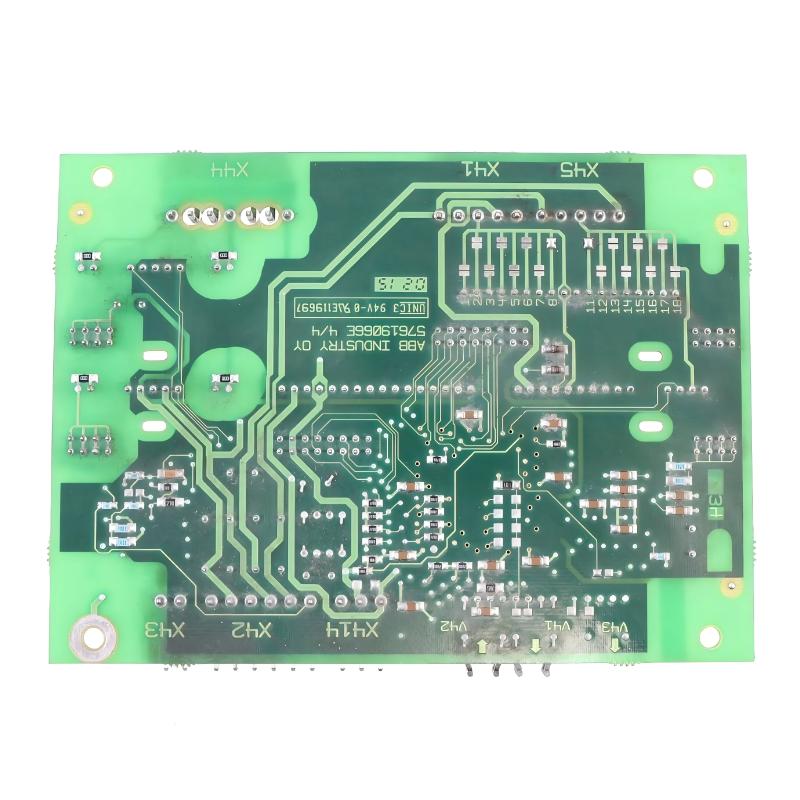

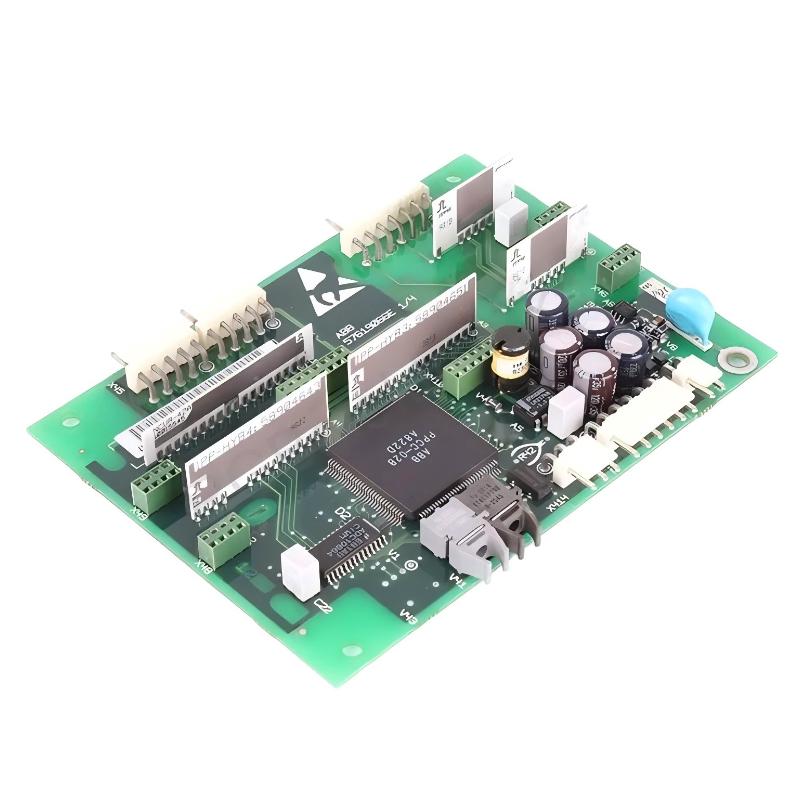

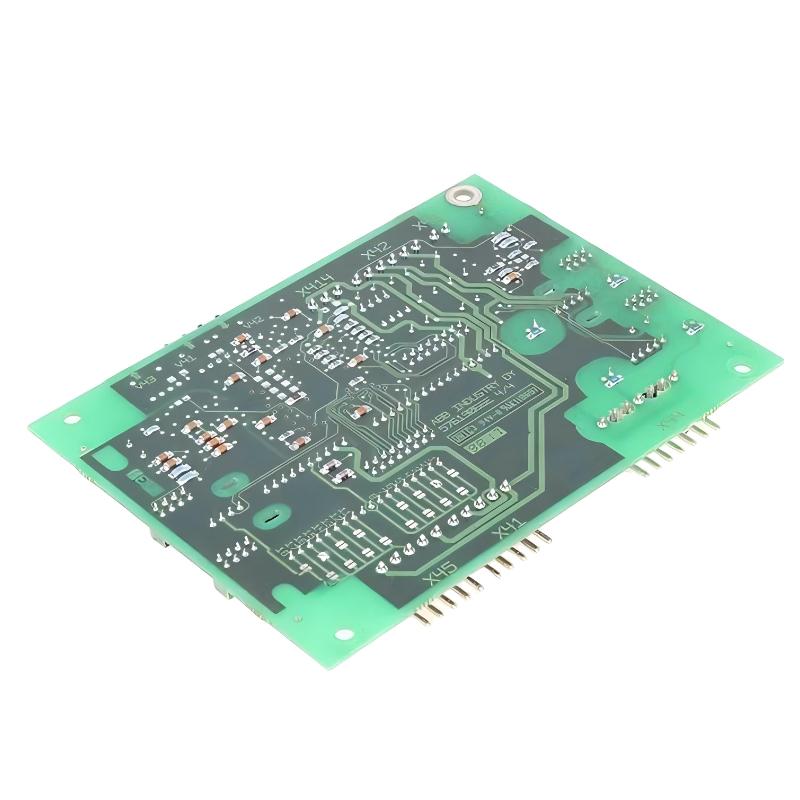

The ABB NINT-42 58907987H is a Main Circuit Interface Board used within compatible ABB industrial drive systems. Its primary purpose is to provide an electrical interface between the drive control electronics and the main inverter power circuit. The board transfers control-related signals toward the power section while returning measurement and status information to the control system. This interface is important for maintaining communication between the control electronics and power-stage circuitry during normal drive operation. The NINT-42 should therefore be considered an integral part of the drive architecture rather than an independent controller.

2. What type of drive system can use the NINT-42?

The NINT-42 is intended for ABB industrial AC drive architectures that use a dedicated main circuit interface between the control section and inverter power section. Its actual application depends on the specific drive model, hardware configuration, and board revision. When selecting a replacement, both the model designation NINT-42 and ordering number 58907987H should be checked against the existing hardware. This is particularly important for legacy ABB drive systems because boards with similar names may have different electrical interfaces or system compatibility requirements.

3. What signals are handled by the NINT-42 Main Circuit Interface Board?

The NINT-42 provides a signal path between the drive control electronics and the main power circuit. It can be involved in transmitting control commands toward the inverter power stage and returning measurement or status information to the control system. These signals allow the drive controller to monitor power-stage conditions and perform appropriate control and protection functions. Because the board is positioned between the control and power sections, problems with its connectors, signal paths, or associated circuitry can affect the drive’s ability to control the inverter or correctly interpret feedback signals.

4. What symptoms may indicate a faulty NINT-42 board?

Possible symptoms include drive startup failure, abnormal power-stage feedback, repeated hardware-related alarms, unstable operation, or faults associated with internal communication and power-stage monitoring. Some problems may appear intermittently, particularly when a connector has poor contact or when the board has a temperature-related fault. However, these symptoms do not automatically confirm that the NINT-42 is defective. The associated control board, power supply, connectors, gate-driver circuits, power modules, and external wiring should also be checked. A board replacement should normally be considered only after other likely causes have been eliminated.

5. How should an NINT-42-related drive fault be troubleshot?

Begin by recording the complete drive fault code and the operating conditions under which it occurred. Check the drive’s internal control power supplies and inspect the NINT-42 connectors for loose connections, contamination, oxidation, damaged pins, or overheating. If the fault involves communication or feedback signals, inspect the relevant signal path and associated control hardware. If the drive reports overcurrent, earth-fault, or short-circuit conditions, the power-stage components should also be examined because a power-device failure can generate symptoms that appear to originate from the interface board. A systematic check of the power supply, control electronics, NINT-42, connectors, gate-driver circuitry, power modules, and external wiring can help identify the actual source of the fault.

6. Can a loose connector cause an NINT-42 communication or interface fault?

Yes. The NINT-42 depends on reliable electrical connections to exchange control and measurement signals with other sections of the drive. A loose, contaminated, oxidized, or damaged connector can interrupt these signals and produce intermittent faults or abnormal drive behavior. Such faults may occur only during vibration, temperature changes, or high-load operation, making them difficult to reproduce. During inspection, check connector seating, locking mechanisms, contact pins, cable condition, and signs of heat damage. If the fault changes after a connector is reseated, the connector and associated wiring should be investigated carefully before replacing the PCB.

7. What precautions should be taken when replacing the ABB NINT-42 58907987H?

Before replacement, verify the complete board identification, including the NINT-42 model and ordering number 58907987H, and confirm that the replacement is compatible with the existing drive configuration. The drive must be fully isolated from its electrical supply according to the applicable safety procedures, and stored DC-link energy must be allowed to discharge safely. All connectors should be clearly identified before removal to prevent incorrect reconnection. The replacement PCB should be handled with appropriate ESD protection because static electricity can damage electronic components. Before applying power, check that the board is correctly installed and that every connector and cable is properly seated.

8. What should be checked after installing a replacement NINT-42?

After installation, verify that all connectors are correctly positioned, fully inserted, and securely locked. Inspect the surrounding control and power electronics for loose cables, damaged components, or abnormal wiring. After controlled power-up, check the drive diagnostic information and confirm that no interface, communication, overcurrent, earth-fault, or short-circuit-related alarms are present. The control system should be checked to ensure that commands are correctly transferred to the power section and that measurement and status feedback are being received normally. A controlled low-load test should be performed before returning the drive to normal operation. For critical industrial equipment, the final test should also verify the relevant protection and monitoring functions.
