1. What is the main function of the ABB NINT-62 58908011E?

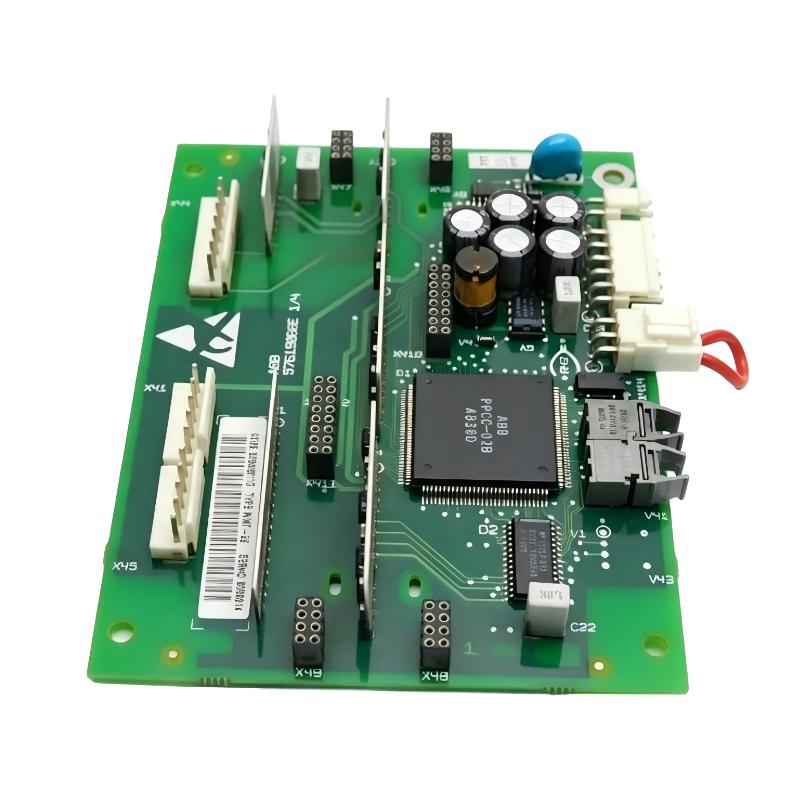

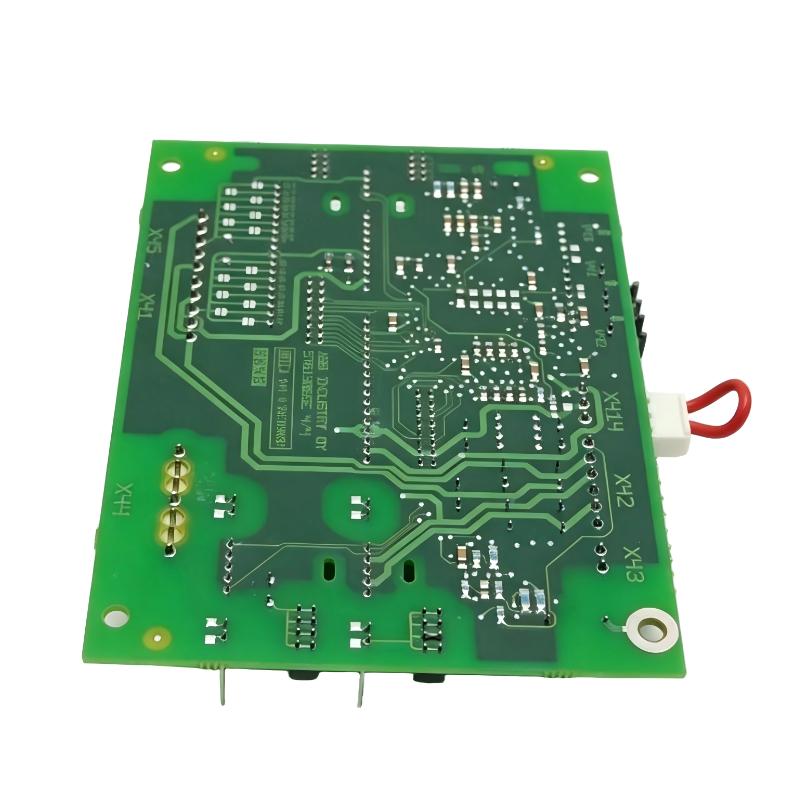

The ABB NINT-62 58908011E is a Main Circuit Interface Board used to provide signal communication between the control section and power section of compatible ABB industrial drives and inverter systems. It transfers control commands toward the power electronics and returns measurement and status information to the control system. This allows the drive controller to monitor the operating condition of the inverter power stage and perform the required control and protection functions. The NINT-62 is an interface component within the drive architecture rather than an independent controller.

2. Which ABB drive systems can use the NINT-62?

The NINT-62 is associated with ABB ACS600-series industrial drive architectures that use a dedicated interface between the control electronics and inverter power section. The exact application depends on the drive model, power configuration, hardware revision, and system architecture. In some configurations, the NINT interface works together with control and gate-driver electronics to form the complete inverter control path. When replacing the board, both the NINT-62 model and 58908011E ordering number should be verified against the original hardware to ensure compatibility.

3. What types of signals does the NINT-62 handle?

The NINT-62 provides the signal interface between the drive control electronics and the main inverter power circuit. It can transmit control commands toward the power stage and transfer measurement and status signals back to the control system. These signal paths allow the control electronics to monitor power-stage conditions and perform appropriate control, regulation, and protection functions. A problem with the NINT-62 or its associated connections can therefore result in lost control signals, incorrect feedback, or hardware-related drive alarms.

4. What symptoms may indicate an NINT-62-related problem?

Possible symptoms include failure to start, hardware-related alarms, abnormal power-stage feedback, internal communication problems, or unexpected protection trips. Some conditions may also be associated with PPCC link errors, overcurrent, earth-fault, or power-stage short-circuit indications. However, these symptoms do not necessarily mean that the NINT-62 itself has failed. Power modules, gate-driver circuits, control boards, connectors, auxiliary power supplies, and external wiring can produce similar symptoms. The specific fault code and actual electrical measurements should therefore be considered before replacing the board.

5. How should an NINT-62-related drive fault be troubleshot?

Start by recording the complete drive fault code and the operating conditions when the fault occurred. Check the control power supply and inspect all NINT-62 connections for loose contacts, oxidation, contamination, damaged pins, or overheating. If the fault involves PPCC or internal communication, inspect the associated signal paths and control hardware. If overcurrent, earth-fault, or short-circuit conditions are reported, the power modules and gate-driver circuits should also be checked. A systematic troubleshooting sequence covering the control supply, control board, NINT-62, connectors, gate-driver circuitry, power modules, and external wiring can help identify the actual cause instead of replacing the PCB based only on the alarm code.

6. Can poor connector contact cause an NINT-62-related fault?

Yes. The NINT-62 relies on reliable electrical connections to transmit control and measurement signals between different sections of the drive. A loose, contaminated, oxidized, or damaged connector can interrupt these signals and cause intermittent or persistent faults. Intermittent problems may appear only during vibration, temperature changes, or variations in operating load. During inspection, verify that connectors are fully inserted and securely locked, and check for bent pins, oxidation, contamination, or signs of overheating. If the fault changes after a connector is reseated, the connector and associated wiring should be investigated carefully.

7. What precautions should be taken when replacing the ABB NINT-62 58908011E?

Before replacement, verify the complete identification of the original board, including model NINT-62 and ordering number 58908011E. Confirm that the replacement board is suitable for the specific ABB drive configuration. The drive must be fully isolated from its electrical supply according to the applicable safety procedures, and stored DC-link energy must be safely discharged before internal maintenance. All cables and connectors should be clearly identified before removal to prevent incorrect reconnection. Proper ESD protection should also be used when handling the PCB. Before powering the system, carefully inspect the board installation and verify every connector and cable.

8. What should be checked after installing a replacement NINT-62?

After installation, verify that all connectors and cables are correctly positioned, fully inserted, and securely locked. Inspect the surrounding control boards, power modules, and gate-driver circuitry for abnormal conditions and make sure no cables remain loose or incorrectly connected. After controlled power-up, check the drive diagnostic information and confirm that there are no NINT, PPCC, overcurrent, earth-fault, or short-circuit-related alarms. Verify that control commands are transmitted correctly and that measurement and status feedback are being received normally. A controlled low-load test should be performed first, followed by a gradual return to normal operating conditions after the control, feedback, and protection functions have been confirmed.
