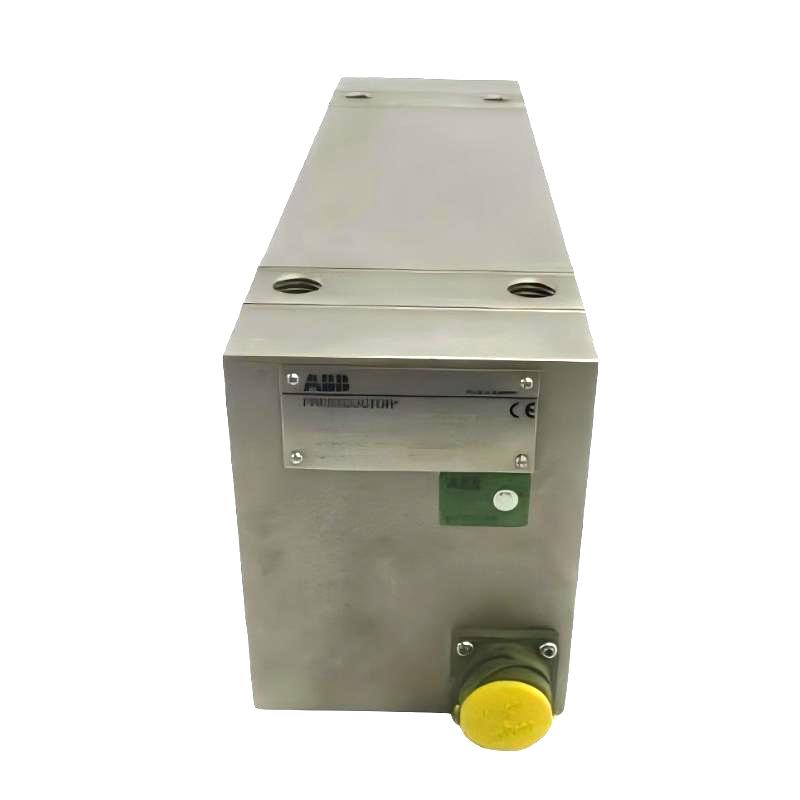

ABB PFCL 101B 3BSE004191R1 Load Cell
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Model Number | PFCL 101B |
| Ordering Number | 3BSE004191R1 |
| Product Name | Pillow Block Load Cell |
| Product Type | Industrial Force and Tension Sensor |
| Product Series | Pressductor PFTL 101 |
| Rated Load | 5.0 kN |
| Measuring Direction | Horizontal force measurement |
| Operating Principle | Pressductor magnetoelastic technology |
| Accuracy Class | ±0.5% full scale |
| Overload Capacity | Depends on the specified loading direction and installation conditions |
| Output Signal | AC measurement signal; compatible signal-conditioning equipment required |
| Mounting Type | Pillow-block bearing housing installation |
| Typical Applications | Rolling mills, web-tension control, winding and unwinding systems, and continuous material processing |
| System Integration | Compatible ABB measurement and tension-control equipment |
| Dimensions | 450 × 110 × 124.6 mm |
| Weight | 21 kg |
FAQ
1. What is the main function of the ABB PFCL 101B Load Cell?
The ABB PFCL 101B is designed to measure horizontal forces in industrial machinery. In suitable installations, its measurement signal can be used to monitor material tension and provide feedback to a tension-control system.
2. What does the rated load of 5.0 kN mean?
The 5.0 kN rating represents the nominal force capacity associated with this ordering number. The sensor should be operated within the manufacturer’s specified limits, with the correct loading direction and mounting arrangement.
3. How does Pressductor technology measure force?
Pressductor technology uses the magnetoelastic effect. When mechanical force acts on the sensing element, its magnetic properties change, producing an electrical signal related to the applied force. The signal is then processed by compatible measurement electronics.
4. Which industrial applications are suitable for the PFCL 101B?
Typical applications include rolling mills, strip-processing lines, web-tension monitoring, and winding or unwinding equipment. Suitability depends on the required force range, mechanical installation, and compatibility with the associated control system.
5. What should be checked before installing the load cell?
Verify the model and ordering number, rated load, mounting surfaces, force direction, bearing arrangement, and cable connections. Ensure the sensor is correctly aligned and that the intended force passes through the measurement path without unwanted mechanical loading.
6. What can cause unstable or inaccurate force readings?
Common causes include loose mounting hardware, mechanical misalignment, excessive vibration, damaged cables, electrical interference, or faults in the signal-conditioning equipment. Check the mechanical and electrical systems before replacing the sensor.
7. Does the PFCL 101B require separate signal-conditioning equipment?
The load cell produces a measurement signal that must be handled by compatible measurement electronics. Confirm the required signal-conditioning unit, excitation arrangements, and electrical interface for the installed ABB system before commissioning.
8. What should be verified when replacing an existing PFCL 101B?
Confirm the complete ordering number, 5.0 kN rated load, measuring direction, mounting configuration, cable interface, and compatibility with the existing measurement electronics. Use the same specified version where possible, because similar-looking load cells may have different ratings or electrical characteristics.
ABB PFCL 101B 3BSE004191R1 Load Cell is in stock. Please contact us for a quick quote and competitive pricing.
