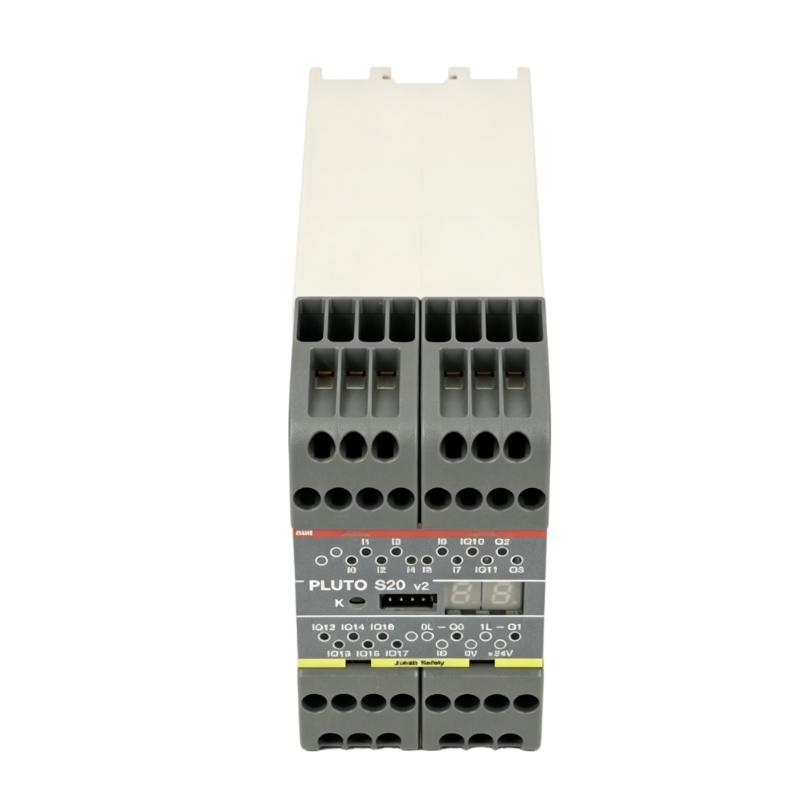

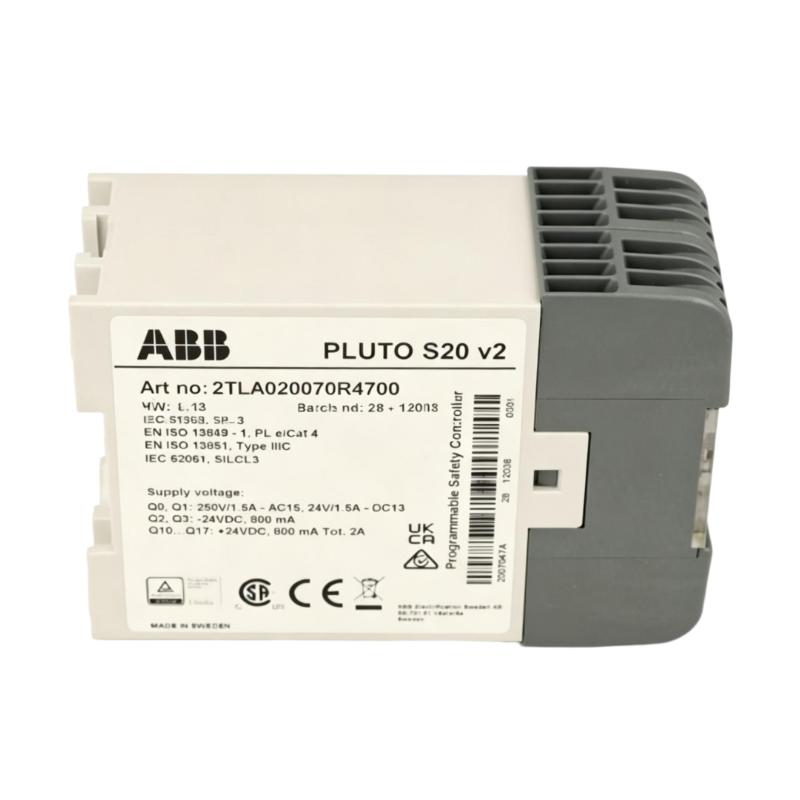

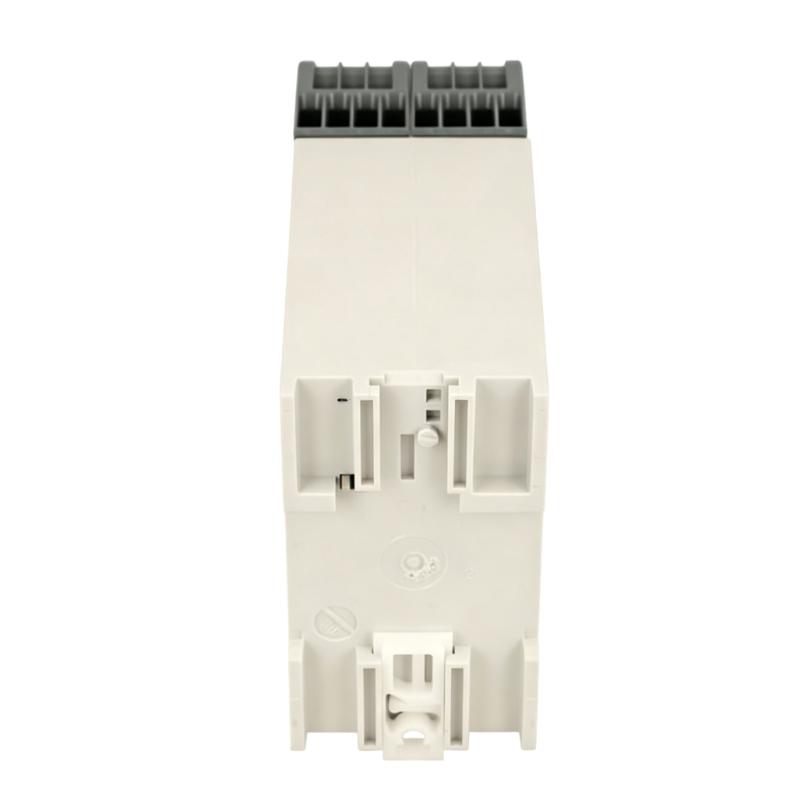

ABB Pluto S20 v2 2TLA020070R4700 Programmable Safety Controller
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Model | Pluto S20 v2 |
| Ordering Number | 2TLA020070R4700 |
| Product Type | Programmable Safety Controller / Safety PLC |
| Product Family | ABB Pluto |
| Hardware / Processor Version | Version 2 |
| Supply Voltage | 24 V DC |
| Total I/O | 20 |
| Failsafe Inputs | 8 |
| Configurable Channels | 8 non-failsafe outputs / failsafe inputs |
| Failsafe Relay Outputs | 2 individually failsafe relay outputs |
| Failsafe Transistor Outputs | 2 individually failsafe transistor outputs |
| Pluto Safety Bus | No |
| Safety Function | Safety monitoring and control for machine safety applications |
| Performance Level | Up to PL e |
| Diagnostic Coverage | High |
| Programming Software | Pluto Manager |
| Protocol Type | MODBUS ASCII, StatusBus |
| Connection Type | Screw connection |
| Maximum Conductor Cross-Section | 4.00 mm² |
| Minimum Conductor Cross-Section | 0.34 mm² |
| Operating Voltage | 24 V DC |
| Protection Rating | IP20 at terminals / IP40 enclosure |
| Mounting | Control cabinet / DIN rail |
| Typical Applications | Emergency-stop circuits, safety switches, protective devices, machine interlocking and safety control |
| Dimensions | 120 × 45 × 84 mm |
| Weight | 0.39 kg |
FAQ
1. What is the ABB Pluto S20 v2 2TLA020070R4700 used for?
The ABB Pluto S20 v2 is a programmable safety controller designed for machine safety applications. It processes signals from safety devices such as emergency-stop buttons, safety switches and protective devices, and executes configured safety logic to control safety-related outputs. The controller is suitable for applications requiring programmable monitoring and control of multiple safety functions.
2. How many I/O channels does the Pluto S20 v2 provide?
The Pluto S20 v2 provides a total of 20 I/O channels. The configuration includes 8 failsafe inputs, 8 channels that can be configured as non-failsafe outputs or failsafe inputs, 2 individually failsafe relay outputs and 2 individually failsafe transistor outputs. This arrangement allows the controller to interface with multiple safety devices and different types of safety-related output circuits.
3. Does the ABB Pluto S20 v2 support the Pluto Safety Bus?
No. The 2TLA020070R4700 Pluto S20 v2 is specified without the Pluto Safety Bus. It is intended for safety control applications that do not require the dedicated Pluto Safety Bus connection between multiple Pluto controllers. For a distributed Pluto safety architecture, a model with the required Safety Bus capability should be selected.
4. What is the difference between the failsafe inputs and configurable channels on this controller?
The 8 dedicated failsafe inputs are intended for monitoring safety-related input devices and safety signals. The additional 8 configurable channels can be assigned as non-failsafe outputs or failsafe inputs according to the application configuration. This flexibility allows the Pluto S20 v2 to adapt its I/O arrangement to different machine safety requirements.
5. Which software is used to program the Pluto S20 v2?
The Pluto S20 v2 is programmed using Pluto Manager software. The software is used to configure safety inputs and outputs, create the required safety logic and manage the controller application. After programming, the complete safety function should be verified under the actual machine operating conditions before the equipment is returned to normal operation.
6. What should be checked if a safety input on the Pluto S20 v2 does not change state correctly?
Start by checking the 24 V DC supply and measuring the signal at the relevant input terminal. Then inspect the connected safety device, wiring, terminal connections and configured input function in Pluto Manager. If the external device and wiring are correct, review the controller diagnostics and safety logic to determine whether the unexpected state is caused by configuration or by another condition in the safety circuit.
7. What should be considered when replacing a Pluto S20 v2 2TLA020070R4700?
The replacement unit should have the same model and ordering number, and the application configuration should be checked for compatibility with the replacement controller. Before energizing the unit, verify the wiring of all failsafe inputs, configurable channels, relay outputs and transistor outputs. Following replacement, each safety function should be tested individually, including emergency-stop circuits, guard monitoring and output shutdown functions.
8. What can cause repeated safety faults on an ABB Pluto S20 v2 system?
Repeated safety faults can be caused by unstable 24 V DC power, loose or incorrect wiring, defective safety switches, inconsistent input signals, incorrect I/O configuration or problems in the programmed safety logic. External contactors and feedback circuits should also be checked because contact welding or an incorrect feedback signal can prevent the controller from completing a safety sequence. A systematic check of the power supply, field devices, wiring, I/O diagnostics and Pluto Manager configuration can help isolate the actual fault source.
ABB Pluto S20 v2 2TLA020070R4700 Programmable Safety Controller is in stock. Please contact us for a quick quote and competitive pricing.
