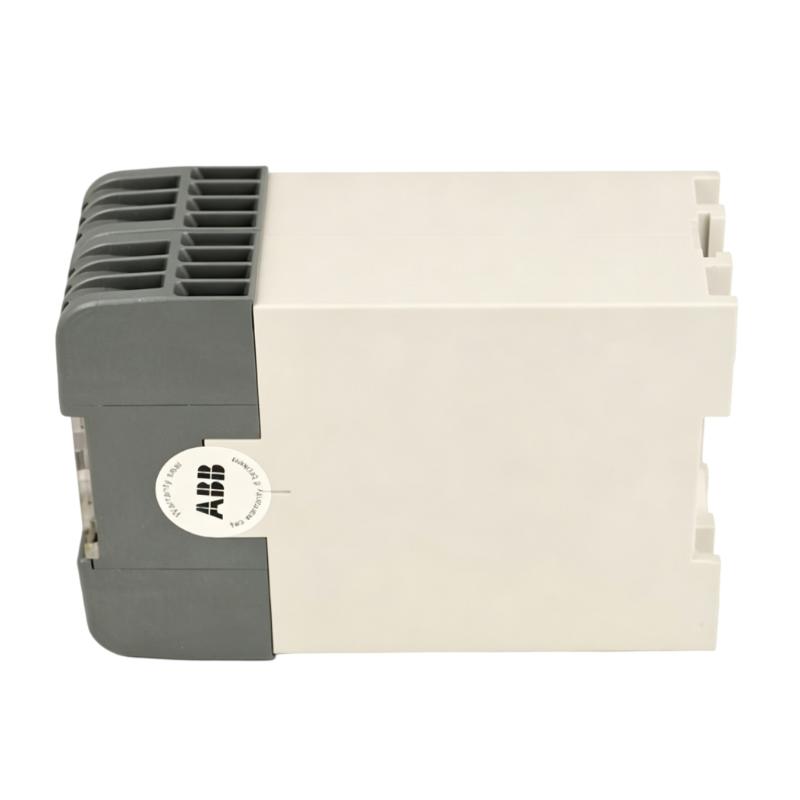

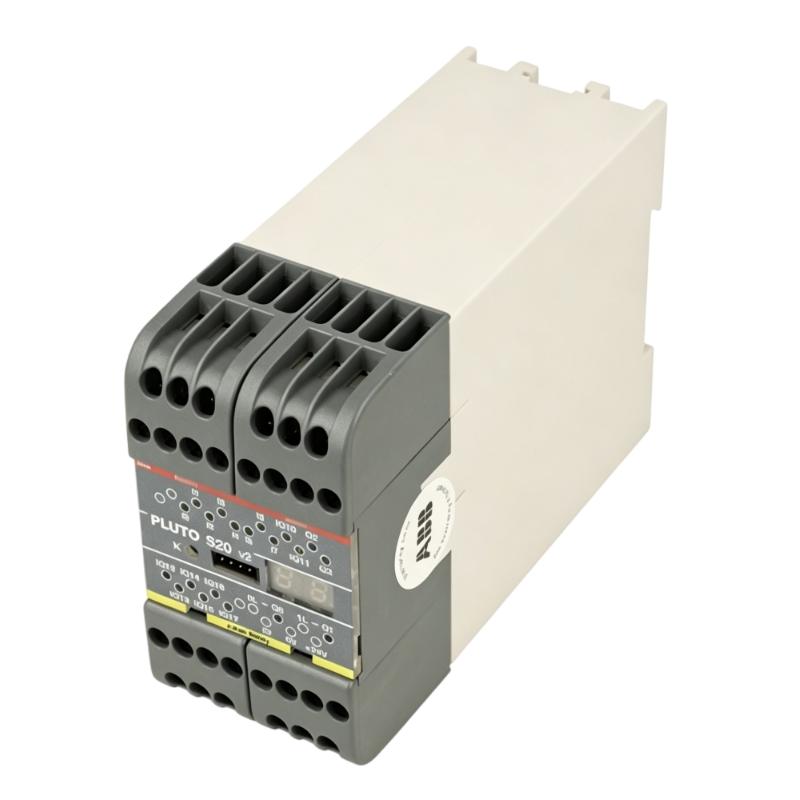

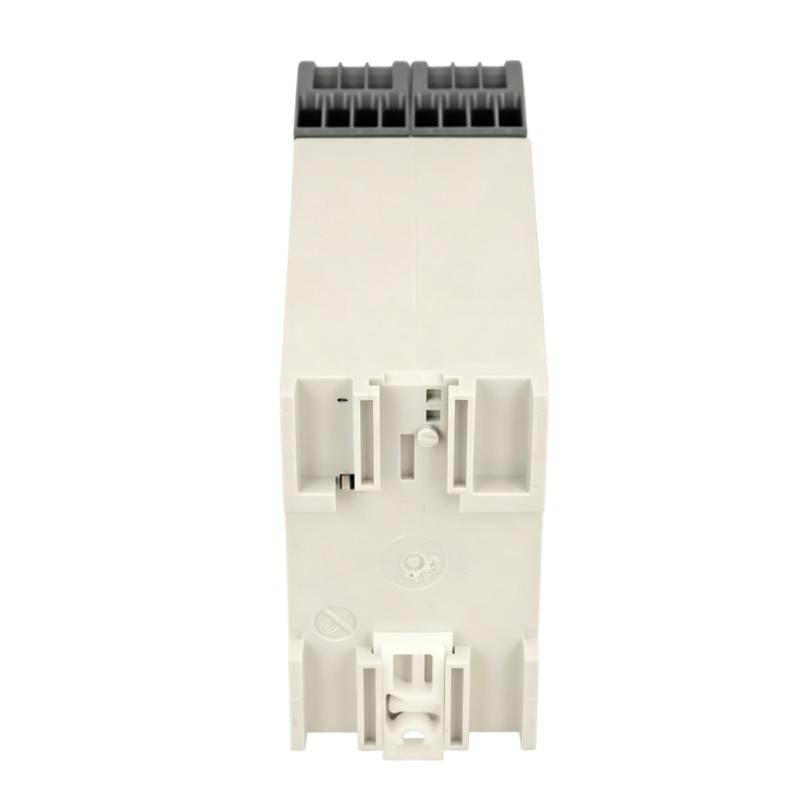

ABB Vital 3 2TLA020070R4400 Safety Controller
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Model | Vital 3 |
| Ordering Number | 2TLA020070R4400 |
| Product Type | Safety Controller |
| Product Family | ABB Vital |
| Safety Level | PL e / Category 4 |
| Safety Integrity Level | SIL 3 |
| Power Supply | 24 V DC ±15% |
| External Fuse | 6 A |
| Total Current Consumption | 300 mA |
| Input Function 1 | Two-channel normally closed circuit |
| Input Function 2 | Dynamic safety circuit |
| Dynamic Safety System | DYNlink |
| Maximum Eden / Tina Units | 10 per dynamic safety input function |
| Maximum Cable Length | 500 m, depending on number of Eden / Tina units |
| Relay Outputs | 2 NO |
| Relay Output Switching Capacity | Up to 6 A / 250 V AC for resistive load |
| Safe Transistor Outputs | 2 |
| Transistor Output Voltage | -24 V DC nominal |
| Reset Input | X1 / X11 |
| Reset Voltage | +24 V DC |
| Reset Current | 30 mA, 300 mA peak during contact closure |
| Minimum Reset Contact Time | 80 ms |
| Response Time – Relay Output | 15–24 ms |
| Response Time – Safe Transistor Output | 11–20 ms |
| Typical Safety Devices | Eden, Tina and compatible DYNlink safety devices |
| Typical Applications | Emergency-stop monitoring, safety door monitoring, protective devices and machine safety circuits |
| Mounting | Control cabinet / DIN rail |
| Colour | Grey |
| Dimensions | 120 × 45 × 84 mm |
| Weight | 0.39 kg |
FAQ
1. What is the ABB Vital 3 2TLA020070R4400 used for?
ABB Vital 3 is a safety controller designed to monitor and control safety functions on industrial machines. It can process signals from compatible safety devices and control safety-related outputs without requiring a conventional programmable safety PLC. Typical applications include emergency-stop circuits, safety door monitoring, protective devices and machine safety interlocking.
2. What safety level can the ABB Vital 3 achieve?
The Vital 3 is designed for safety applications up to PL e / Category 4 according to EN ISO 13849-1 and SIL 3 according to EN 62061 and IEC/EN 61508. The achieved safety level depends on the complete safety system, including connected devices, wiring, architecture and correct installation.
3. What type of safety devices can be connected to Vital 3?
Vital 3 can be used with compatible Eden and Tina safety devices and DYNlink-based safety equipment. Its dynamic safety circuit allows multiple compatible safety devices to be connected in series while maintaining the required safety monitoring architecture. Tina adapters can also be used when integrating suitable conventional safety devices into the dynamic safety system.
4. How many safety devices can be connected to the dynamic input of Vital 3?
The technical data specifies up to 10 Eden or Tina units for the relevant dynamic safety input function, with the total permissible cable length depending on the number of connected units and installation conditions. When designing the circuit, the actual device count, cable size and total cable length should be checked together rather than considering the maximum unit count independently.
5. What is the difference between the two input functions of Vital 3?
Vital 3 provides two different safety input functions. Input function 1 is a two-channel normally closed circuit that uses a dynamic signal together with a static +24 V signal, while input function 2 is a dynamic safety circuit using the DYNlink signal path. This arrangement allows Vital 3 to monitor different types of safety circuits within the same controller.
6. What should be checked if the Vital 3 safety output does not activate?
First verify the 24 V DC supply and the external 6 A fuse, then check the status of the connected safety devices and the DYNlink safety circuit. The wiring of the input channels, reset circuit and feedback contacts should also be inspected for open circuits or incorrect connections. If the safety loop is not in its permitted state, the Vital 3 will keep the corresponding safety output de-energized until the fault or safety condition has been resolved.
7. How does the reset function work on the ABB Vital 3?
The reset inputs are X1 and X11, with +24 V DC used for the reset signal. The specified reset current is 30 mA, with a peak of approximately 300 mA during contact closure, and the minimum contact closure time is 80 ms. When manual reset is used, the reset circuit should be designed and monitored according to the machine’s safety architecture so that an unintended restart cannot occur.
8. What are the main causes of repeated faults in a Vital 3 safety circuit?
Repeated faults can be caused by incorrect wiring, unstable 24 V DC supply, damaged safety devices, interrupted DYNlink signals, incorrect reset conditions or problems in the external safety circuit. Cable length and the number of connected Eden or Tina units should also be checked because the permissible configuration depends on the installation. A systematic inspection of the power supply, safety devices, DYNlink loop, reset circuit and output status can help identify the actual source of the fault.
ABB Vital 3 2TLA020070R4400 Safety Controller is in stock. Please contact us for a quick quote and competitive pricing.
