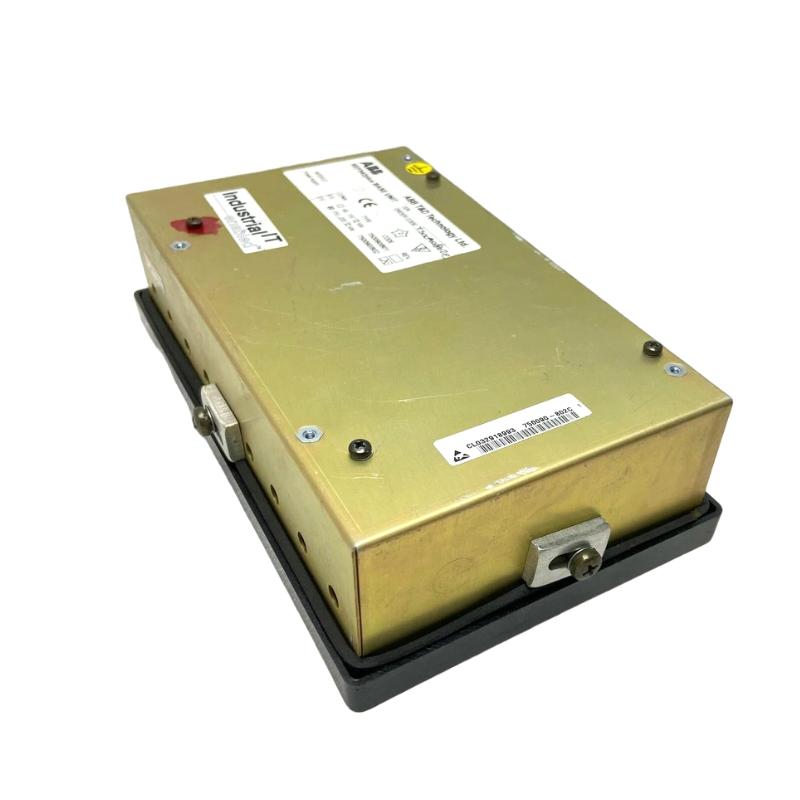

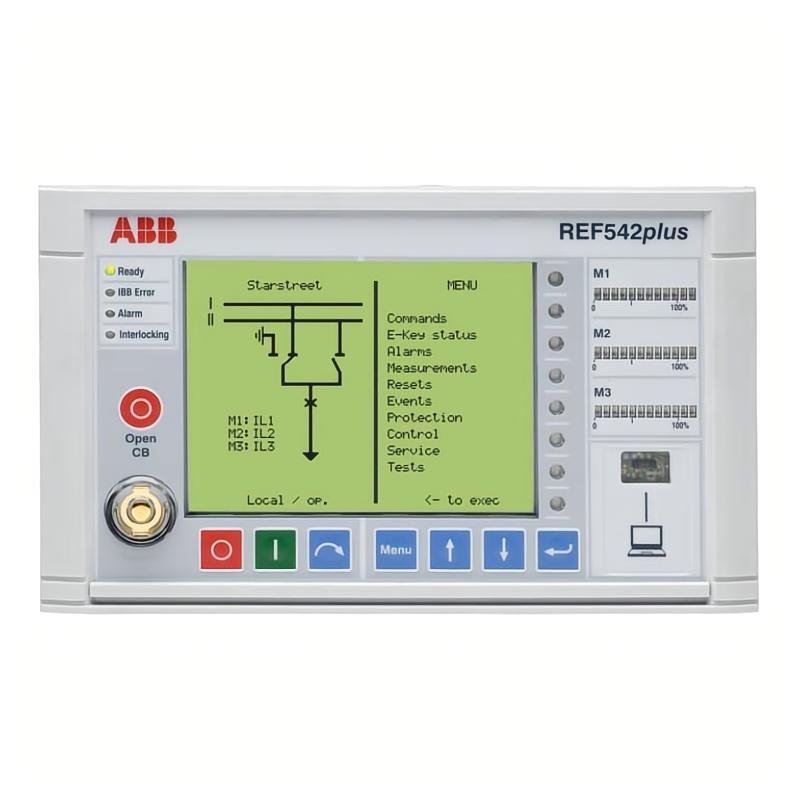

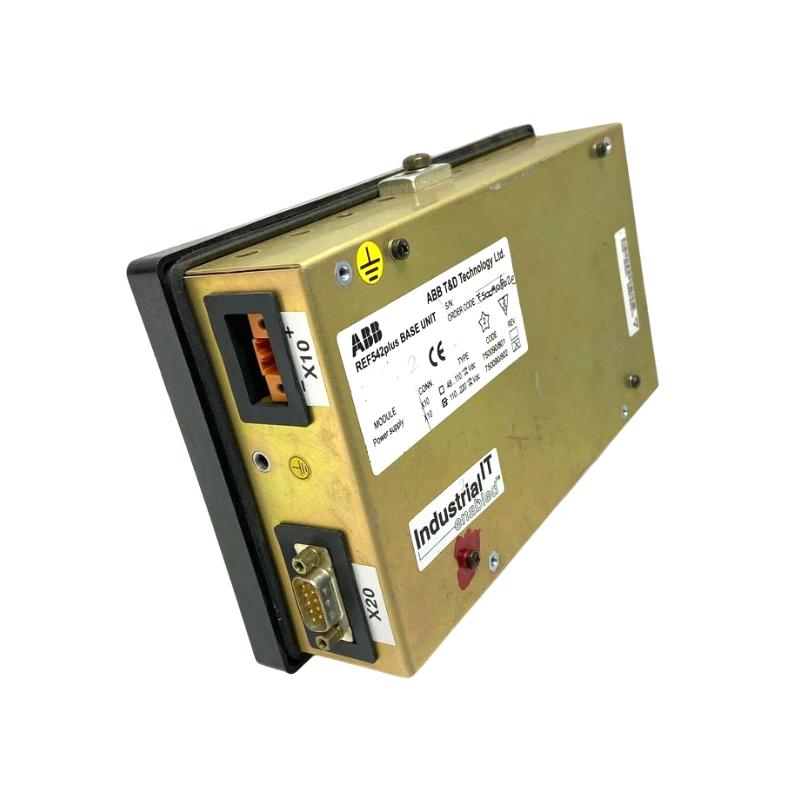

Q1: What is the primary purpose of the REF542PLUS Feeder Terminal?

A: The REF542PLUS is a multifunctional feeder protection and control device designed for medium- and high-voltage power distribution systems. It combines protection, control, measurement, monitoring, and automation functions into a single platform. The device continuously supervises feeder conditions and responds quickly to abnormal operating situations, helping utilities and industrial facilities maintain safe and reliable power distribution.

Q2: What protection functions are available in the REF542PLUS?

A: The REF542PLUS supports a wide range of feeder protection functions, including overcurrent protection, earth fault protection, phase fault detection, breaker failure supervision, and other advanced protection schemes depending on system requirements. These functions help identify electrical faults quickly and isolate affected sections of the network before equipment damage or widespread outages can occur.

Q3: How does the REF542PLUS improve feeder reliability?

A: The device continuously monitors electrical parameters and operating conditions while providing fast fault detection and selective tripping capabilities. By isolating only the faulted feeder section, it minimizes the impact on the rest of the power system. This selective operation improves service continuity, reduces downtime, and enhances overall network reliability.

Q4: Can the REF542PLUS be integrated into modern substation automation systems?

A: Yes. The REF542PLUS is designed to operate within modern digital substations and supports communication with SCADA systems, control centers, and other intelligent electronic devices. This integration enables remote monitoring, remote control, event analysis, and centralized asset management, improving operational efficiency and system visibility.

Q5: What monitoring and diagnostic capabilities does the REF542PLUS provide?

A: The terminal offers comprehensive monitoring features, including real-time measurements, event logging, fault recording, alarm management, and self-diagnostics. These capabilities allow operators and maintenance personnel to evaluate system performance, identify abnormal conditions, and perform detailed fault investigations using historical operating data.

Q6: How does the REF542PLUS assist during fault conditions?

A: During a fault event, the terminal rapidly analyzes electrical conditions and determines whether protective action is required. It can initiate breaker tripping, record fault data, generate alarms, and store disturbance information for later analysis. This combination of protection and diagnostics helps reduce restoration time and supports effective troubleshooting.

Q7: What maintenance practices are recommended for the REF542PLUS?

A: Regular maintenance should include verification of protection settings, inspection of communication channels, testing of input and output circuits, review of event logs, and confirmation of breaker control functions. Periodic functional testing ensures that the device remains capable of providing accurate protection and reliable control under all operating conditions.

Q8: In which applications is the REF542PLUS commonly used?

A: The REF542PLUS is widely deployed in utility substations, industrial power distribution networks, renewable energy facilities, manufacturing plants, mining operations, and infrastructure projects. It is particularly suitable for applications that require an integrated solution for feeder protection, control, monitoring, and automation within a single device.
