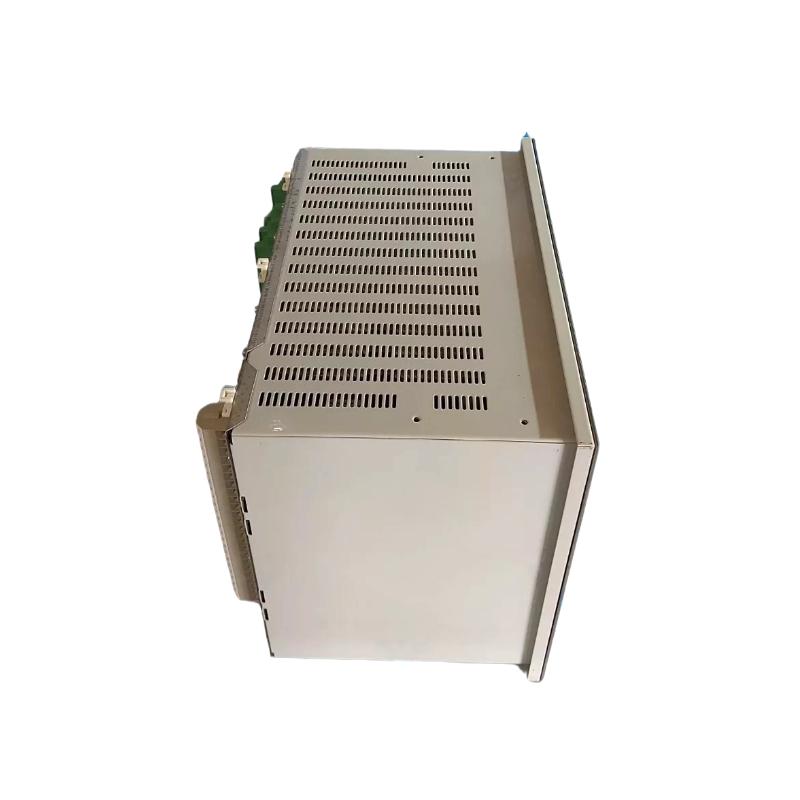

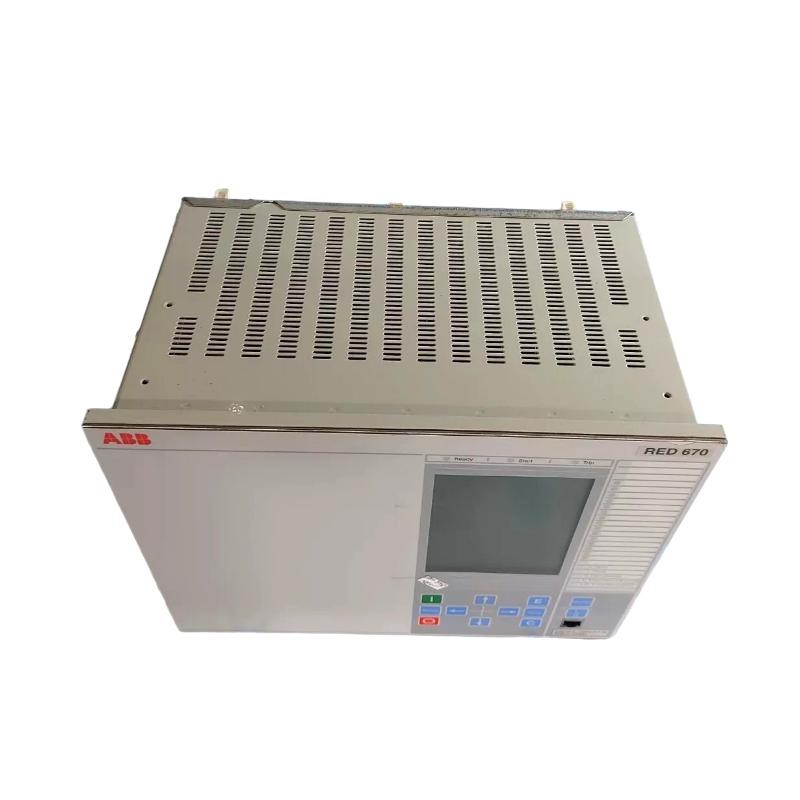

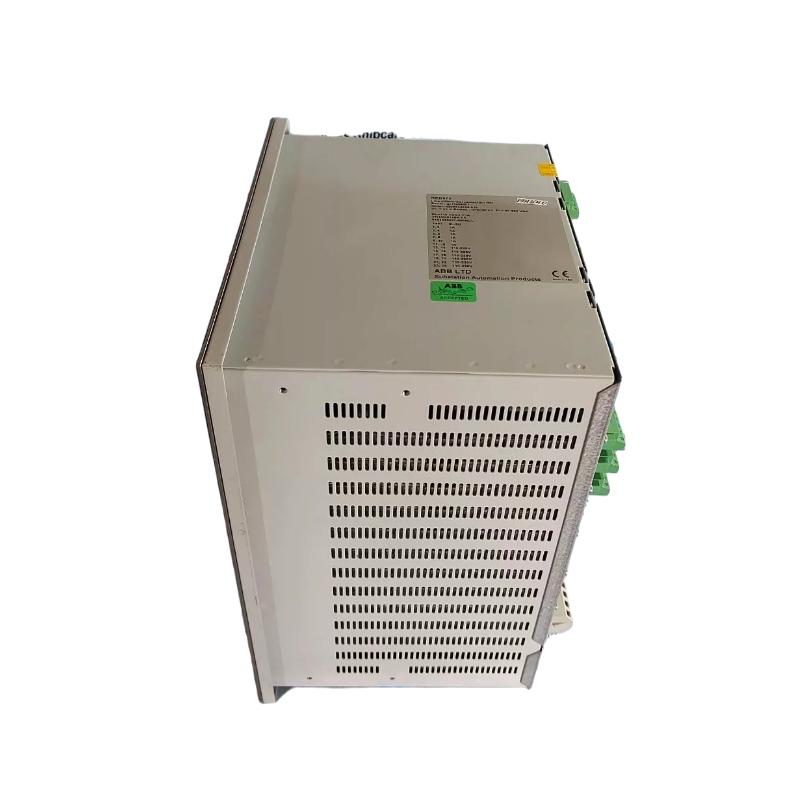

Q1: What is the primary purpose of the RED670 Line Differential Protector?

A: The RED670 is designed to provide fast and highly selective protection for overhead transmission lines and underground power cables. It continuously compares current measurements from both ends of a protected line and determines whether a fault is located within the protected zone. When an internal fault is detected, the relay immediately issues a trip command to isolate the affected section. This rapid fault-clearing capability helps minimize equipment damage, reduce outage durations, and maintain overall power system stability. The RED670 is commonly deployed in critical transmission networks where reliable protection performance is essential for maintaining uninterrupted power delivery.

Q2: How does differential protection work in the RED670?

A: Differential protection operates by comparing the magnitude and phase relationship of currents measured at both ends of a transmission line. Under normal operating conditions, as well as during external faults, the current entering and leaving the protected zone remains balanced. If an internal fault occurs, the current balance is disrupted, creating a differential current that exceeds predefined protection thresholds. The RED670 analyzes this condition using advanced algorithms and rapidly identifies the fault as internal to the protected line. This method provides exceptional sensitivity and selectivity, enabling accurate fault detection while minimizing the risk of unnecessary tripping.

Q3: What types of power system applications are suitable for the RED670?

A: The RED670 is widely used in high-voltage and extra-high-voltage transmission networks, utility substations, industrial power systems, renewable energy installations, and interconnection lines between power plants and substations. It is particularly suitable for applications where fault-clearing speed and protection reliability are critical. The relay can protect long-distance transmission lines, underground cable circuits, and mixed overhead-cable configurations, making it a versatile solution for modern electrical infrastructure projects.

Q4: How does the RED670 ensure high selectivity during fault conditions?

A: The relay uses advanced differential protection algorithms combined with high-speed communication channels to accurately distinguish internal faults from external disturbances. By analyzing current measurements from both ends of the protected line, the RED670 can determine the exact location of a fault relative to the protection zone. This allows the relay to operate only when necessary and avoid unnecessary trips caused by external faults, load fluctuations, switching operations, or transient system conditions. High selectivity is essential for maintaining system continuity and preventing widespread service interruptions.

Q5: What monitoring and diagnostic capabilities are available in the RED670?

A: The RED670 includes extensive monitoring and self-diagnostic features that support both operational reliability and maintenance efficiency. The relay continuously supervises internal hardware, communication channels, current measurement circuits, and protection functions. It also records fault events, disturbance data, sequence-of-events information, and operational statistics. These records provide valuable insight into system performance and enable engineers to perform detailed fault investigations, identify root causes, and optimize protection settings based on actual operating conditions.

Q6: What advantages does the RED670 offer in terms of communication performance?

A: Communication plays a critical role in line differential protection, and the RED670 is designed to support fast and reliable data exchange between line terminals. High-speed communication ensures that current measurements from both ends of the line are synchronized and processed without significant delay. This enables extremely fast fault detection and tripping decisions. In addition, the relay can be integrated into modern substation automation systems, allowing operators to access protection data, diagnostics, and event records remotely through centralized control platforms.

Q7: What maintenance practices are recommended to ensure long-term reliability of the RED670?

A: Regular preventive maintenance is recommended to ensure optimal performance throughout the relay’s service life. Maintenance activities should include verification of protection settings, inspection of communication links, testing of input and output circuits, review of event logs, and confirmation of correct operation of protection functions. Periodic functional testing and communication performance checks can help identify potential issues before they affect system operation. Maintaining a stable power supply and proper environmental conditions also contributes significantly to long-term reliability.

Q8: How should operators respond when the RED670 generates alarms or abnormal indications?

A: When an alarm or abnormal condition is reported, operators should first review the relay’s event logs, disturbance records, and diagnostic messages to determine the nature of the issue. The next step is to verify communication status, current transformer circuits, auxiliary power supplies, and protection configuration settings. In many cases, diagnostic information stored within the relay provides sufficient detail to identify the root cause quickly. Prompt investigation and corrective action can prevent protection malfunctions, reduce operational risks, and ensure that the transmission network remains fully protected against future fault conditions.
