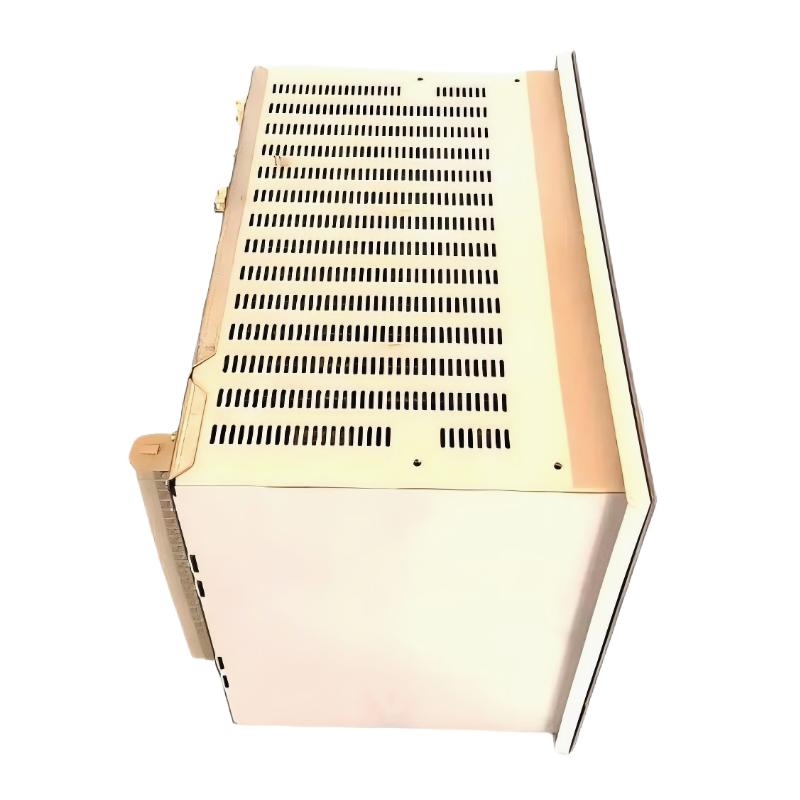

Q1: What is the primary application of the RET670 1MRK002816-AC?
A1: The RET670 1MRK002816-AC is designed for comprehensive protection, control, and monitoring of power transformers in utility and industrial power systems. It is suitable for protecting two-winding transformers, three-winding transformers, autotransformers, and generator step-up transformers, ensuring reliable operation and minimizing the risk of equipment damage caused by electrical faults.

Q2: How does the differential protection function in the RET670 work?
A2: The relay continuously compares the currents entering and leaving the transformer protection zone. Under normal operating conditions, these currents remain balanced. If an internal transformer fault occurs, such as a winding short circuit or insulation failure, a differential current is detected. The RET670 rapidly identifies the abnormal condition and issues a trip command to isolate the faulted transformer.

Q3: How does the RET670 prevent false tripping during transformer energization?
A3: When a transformer is energized, a high magnetizing inrush current can occur. The RET670 uses advanced harmonic restraint and waveform analysis techniques to distinguish inrush current from genuine fault current. This ensures secure operation during transformer energization while maintaining high sensitivity to internal faults.

Q4: Can the RET670 protect multi-winding transformers?
A4: Yes. The RET670 supports protection schemes for two-winding, three-winding, and autotransformer applications. Its flexible configuration allows it to accommodate different transformer vector groups, grounding methods, and network requirements, making it suitable for a wide range of transformer protection projects.

Q5: What monitoring capabilities are available in the RET670?
A5: The relay provides extensive monitoring functions, including measurements of current, voltage, frequency, active power, reactive power, and transformer loading conditions. These capabilities help operators assess transformer performance, detect abnormal operating conditions, and make informed maintenance decisions.

Q6: Does the RET670 support digital substation integration?
A6: Yes. The RET670 fully supports IEC 61850 communication and can be integrated into modern digital substations. It supports high-speed GOOSE messaging, remote monitoring, and seamless communication with other intelligent electronic devices (IEDs), improving overall substation automation and operational efficiency.

Q7: What benefits does the disturbance recording feature provide?
A7: The built-in disturbance recorder captures critical electrical data before, during, and after fault events. Combined with event logs and sequence-of-events records, this information enables engineers to perform detailed fault analysis, verify protection performance, identify root causes, and improve future system reliability.

Q8: Why is the RET670 widely used in critical power infrastructure?
A8: The RET670 combines advanced transformer protection algorithms, fast fault-clearing performance, comprehensive monitoring functions, and industry-standard communication capabilities in a single platform. Its high reliability and flexibility make it an ideal solution for transmission substations, power generation facilities, industrial plants, and other critical applications where transformer availability and system stability are essential.
