1. What is the ABB RETA-02 68840830 used for?
The ABB RETA-02 is an Ethernet adapter module designed to connect compatible ABB drives to an industrial Ethernet network. It allows a drive to exchange control commands, reference values, status information, actual values and parameter data with a PLC, control system or other Ethernet-based automation equipment. The module supports both PROFINET IO and Modbus/TCP, making it suitable for integrating ABB drives into different industrial control architectures.

2. Which ABB drives are compatible with the RETA-02?
The RETA-02 is primarily associated with ABB drive families such as ACS550, ACH550 and ACS800, with compatibility depending on the specific drive hardware and software configuration. Before installation, the drive’s option-slot compatibility and firmware requirements should be checked. The adapter is installed directly into the appropriate option slot on the drive control board rather than operating as a standalone Ethernet gateway.

3. Which communication protocols does RETA-02 support?
RETA-02 supports PROFINET IO and Modbus/TCP. In PROFINET applications, the module can operate with the ABB Drive Profile or PROFIdrive profile. For Modbus/TCP applications, it functions as an Ethernet-based communication interface for exchanging drive parameters, control data and status information. The selected protocol and associated communication parameters must match the PLC or automation controller configuration.

4. What Ethernet communication speed does the RETA-02 support?
The RETA-02 supports 10 Mbps and 100 Mbps Ethernet communication and can automatically negotiate the appropriate network speed. It supports both half-duplex and full-duplex communication for compatible Ethernet connections. PROFINET IO uses 100 Mbps full-duplex operation. The module uses an RJ-45 connector and can be connected using suitable CAT 5 Ethernet cabling, with a maximum network segment length of approximately 100 meters under the specified conditions.

5. How is the RETA-02 connected to the ABB drive?

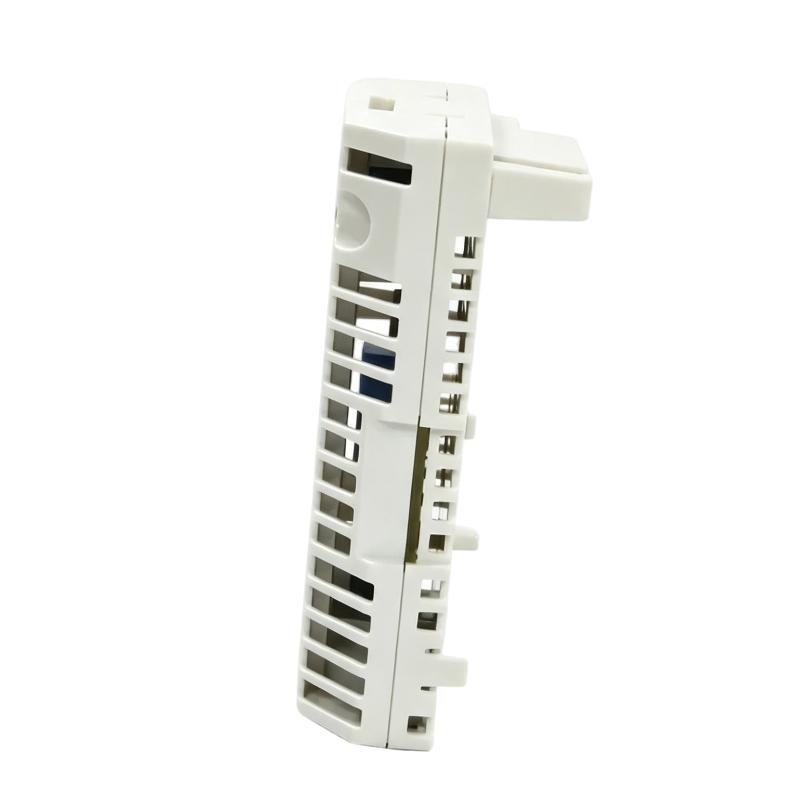

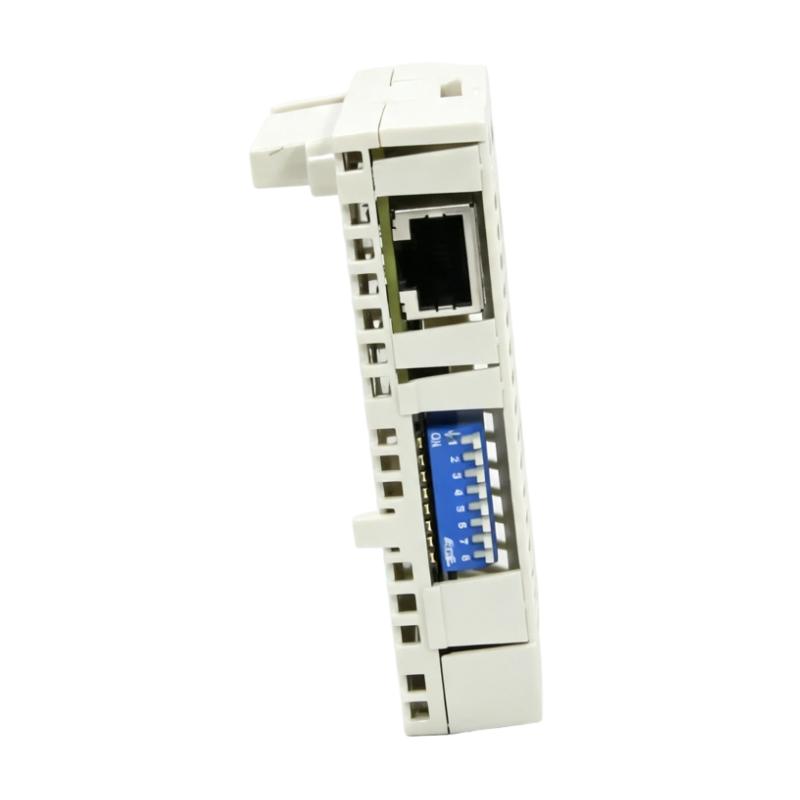

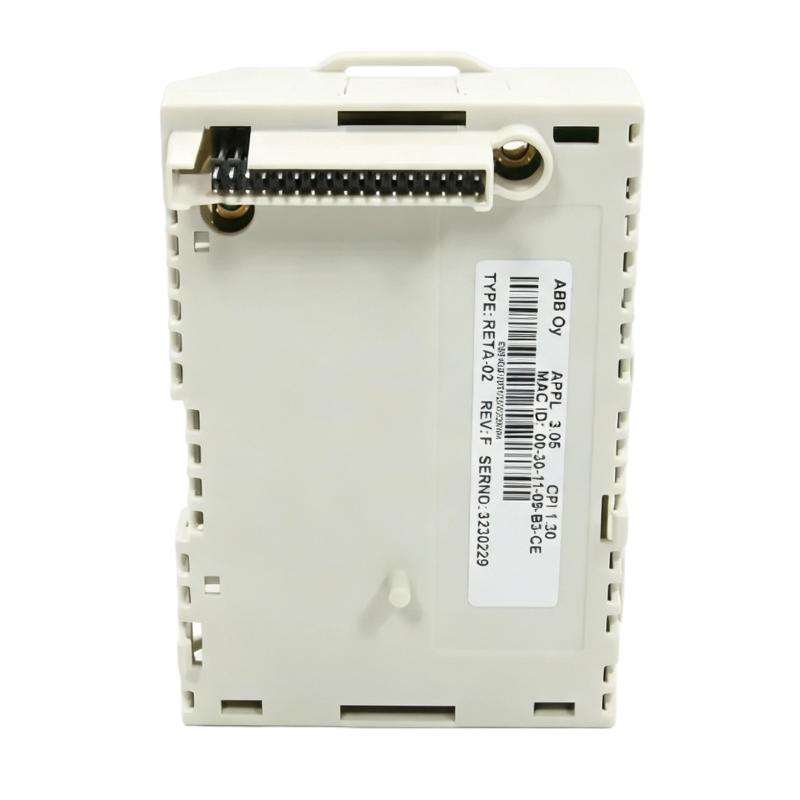

The RETA-02 is installed into the designated option slot on the drive’s control board. A 34-pin parallel bus connector provides the internal connection between the communication adapter and the drive control electronics, while the RJ-45 connector provides the external Ethernet network connection. The module receives its operating power from the drive control board, so it does not normally require a separate external power supply.

6. What control and monitoring functions can be performed through RETA-02?
Through the Ethernet connection, the RETA-02 can transfer drive start and stop commands, run-enable commands, speed or torque references and other control information. It can also provide drive status information, actual values and diagnostic information to the PLC or supervisory system. Drive parameters can be accessed through the communication network, and drive faults can also be reset remotely when supported by the drive configuration. This allows many routine control functions to be handled directly from the automation system.

7. How should the RETA-02 IP address and network parameters be configured?
The RETA-02 provides configurable network parameters including IP address, subnet mask and gateway address. DHCP can be enabled when automatic IP configuration is required, while manual network configuration can be used when fixed industrial Ethernet addressing is preferred. Depending on the operating mode and installation, configuration can be performed through drive parameters, the module’s DIP switch settings or the relevant PROFINET engineering tools. The IP address and device name must be consistent with the PLC or network controller configuration.

8. What should be checked if the RETA-02 cannot communicate with the PLC?
Start by checking the RJ-45 Ethernet connection, network cable, link/activity indication and the module status LEDs. Confirm that the selected protocol is correct and that the PLC configuration matches the RETA-02 operating mode. For PROFINET, check the device name, IP address, GSD/GSDML configuration and assigned network parameters. For Modbus/TCP, verify the IP address, TCP communication settings and register configuration. If the module itself is not recognized by the drive, check the 34-pin connection, option-slot installation, drive compatibility and module status before replacing the adapter.
