Q1: What is the primary function of the ABB SDCS-PIN-205B-COAT Power Interface Board?

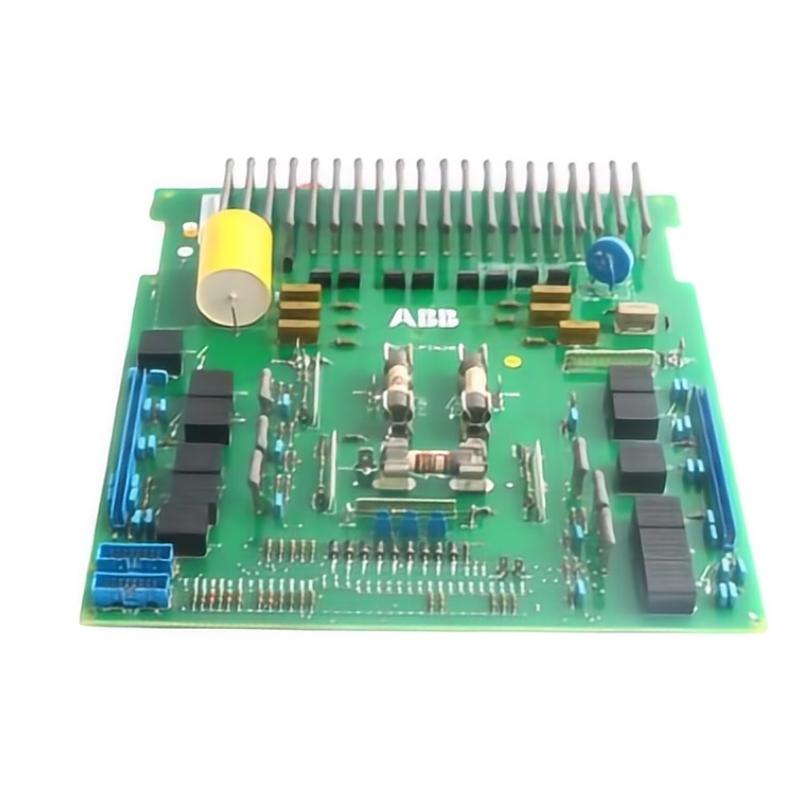

A: The ABB SDCS-PIN-205B-COAT Power Interface Board is a specialized interface module used in ABB SDCS DC drive systems, designed to provide reliable communication and electrical interfacing between the control unit and the power section. Its main function is to transmit control signals, manage interface-level power distribution, and deliver real-time system status feedback to the controller. The “COAT” version indicates that the PCB has a conformal coating applied, which enhances its resistance to environmental stress such as humidity, dust, and mild chemical exposure. This makes it particularly suitable for more demanding industrial environments where standard boards may be more vulnerable to contamination or corrosion.

Q2: What advantages does the coated version (COAT) provide compared to the standard board?

A: The conformal coating applied to the SDCS-PIN-205B-COAT significantly improves the board’s resistance to environmental factors. This protective layer helps prevent moisture ingress, reduces the risk of corrosion on metallic components, and minimizes the impact of conductive dust or airborne contaminants. In industrial environments where humidity levels fluctuate or where airborne particles are present, this coating provides an additional layer of protection that improves long-term reliability. It also enhances the board’s ability to operate in environments where condensation or mild chemical exposure may occur, thereby extending service life and reducing the likelihood of unexpected failures compared to non-coated versions.

Q3: What symptoms may indicate a malfunction of the SDCS-PIN-205B-COAT?

A: When the SDCS-PIN-205B-COAT develops a fault, the system may show symptoms such as drive startup failure, intermittent communication loss between control and power sections, unstable motor speed, repeated fault alarms, missing feedback signals, or sudden shutdowns triggered by protective functions. In some cases, the controller may fail to recognize the power module entirely, resulting in a complete loss of drive operation. However, similar symptoms can also be caused by external wiring issues, unstable power supply, controller malfunctions, or connector degradation. Therefore, a full diagnostic process is required before concluding that the interface board itself is defective.

Q4: What precautions should be followed when replacing the SDCS-PIN-205B-COAT?

A: Before replacing the SDCS-PIN-205B-COAT, the entire drive system must be powered down completely, and sufficient time should be allowed for internal capacitors to discharge fully. Proper electrostatic discharge protection must be used during handling to avoid damaging sensitive electronic components. It is essential to verify that the replacement board matches the exact model and ordering number (3ADT220090R0035) to ensure full compatibility. During installation, all connectors should be carefully aligned and inserted without excessive force to avoid pin damage. After installation, a full system check should be performed, including communication verification, signal integrity testing, alarm monitoring, and operational validation under load conditions before returning the system to service.

Q5: Does the SDCS-PIN-205B-COAT require maintenance?

A: Although the SDCS-PIN-205B-COAT is designed for high reliability and reduced maintenance requirements, periodic inspection is still recommended as part of preventive maintenance practices. Maintenance typically includes checking for dust accumulation, verifying connector tightness, ensuring no signs of corrosion or oxidation are present, and confirming that the PCB coating remains intact without visible damage. Additionally, the control cabinet environment should be checked to ensure proper ventilation and stable temperature conditions. Even with the protective coating, maintaining a clean and stable operating environment is essential for maximizing long-term performance and minimizing unexpected failures.

Q6: Can the coated version be replaced with a non-coated SDCS board?

A: Technically, even if the coated and non-coated versions may share similar functional design within the SDCS family, they are not recommended as direct substitutes. The coated version is specifically designed for environments where moisture, dust, or mild corrosive exposure may be present. Replacing it with a non-coated board in such environments could reduce system reliability and increase the risk of premature failure. In addition, system compatibility should always be confirmed based on the exact ordering number. To ensure long-term operational stability, it is best practice to use the same coated version when the original system is designed for such environmental conditions.

Q7: What environmental conditions most affect the SDCS-PIN-205B-COAT?

A: Even with conformal coating protection, the SDCS-PIN-205B-COAT can still be affected by extreme environmental conditions. High temperatures may accelerate component aging, while excessive humidity or condensation can challenge long-term reliability if exposure is persistent. Highly corrosive gases, strong chemical vapors, or continuous mechanical vibration can also impact performance over time. Electrical factors such as voltage spikes, unstable power supply, poor grounding, and strong electromagnetic interference may further influence system stability. Although the coating provides improved protection, maintaining a controlled industrial environment remains essential for ensuring maximum service life.

Q8: In which industrial applications is the SDCS-PIN-205B-COAT commonly used?

A: The SDCS-PIN-205B-COAT is widely used in industrial environments where ABB SDCS DC drive systems operate under more challenging environmental conditions. Typical applications include steel mills, paper production lines, mining operations, cement plants, marine systems, chemical processing facilities, and power generation stations where humidity, dust, or airborne contaminants may be present. The conformal coating makes it particularly suitable for installations where standard electronic boards might be exposed to less controlled conditions. By ensuring stable communication between control and power sections even in harsh environments, the SDCS-PIN-205B-COAT contributes to reliable motor control, reduced downtime, and improved long-term system performance.
