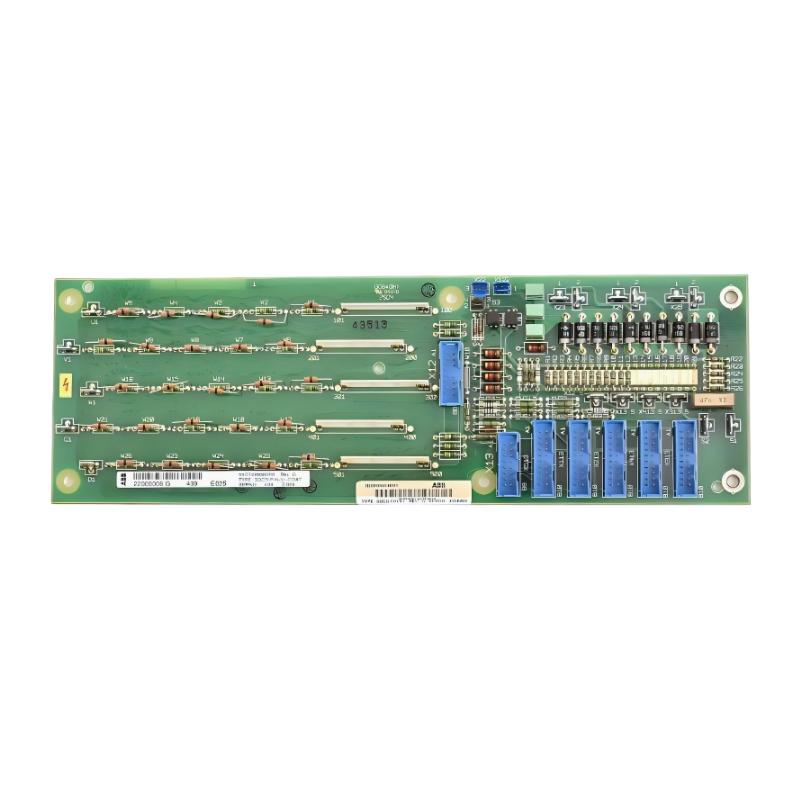

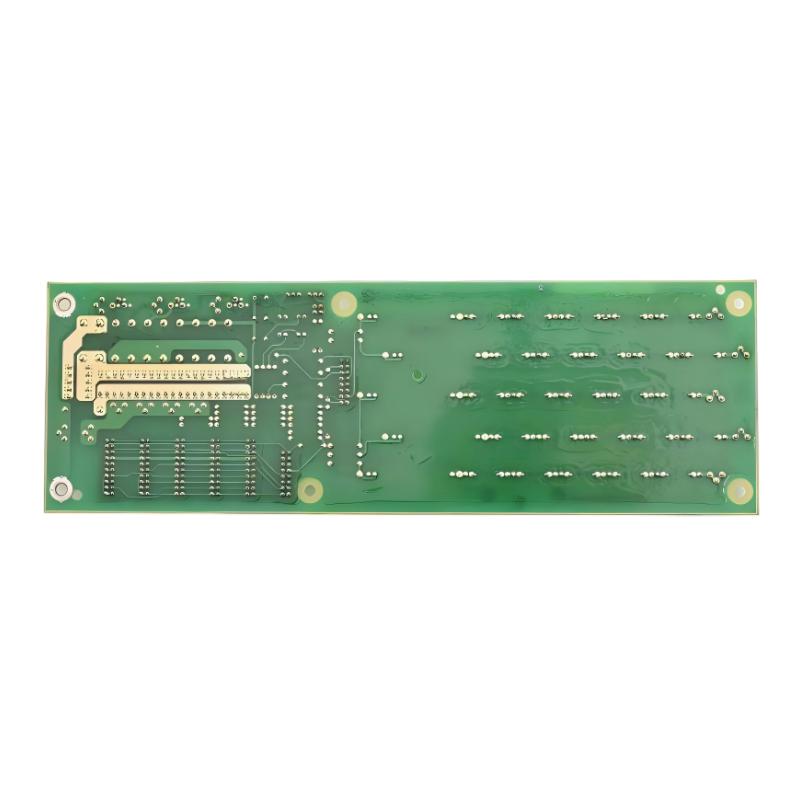

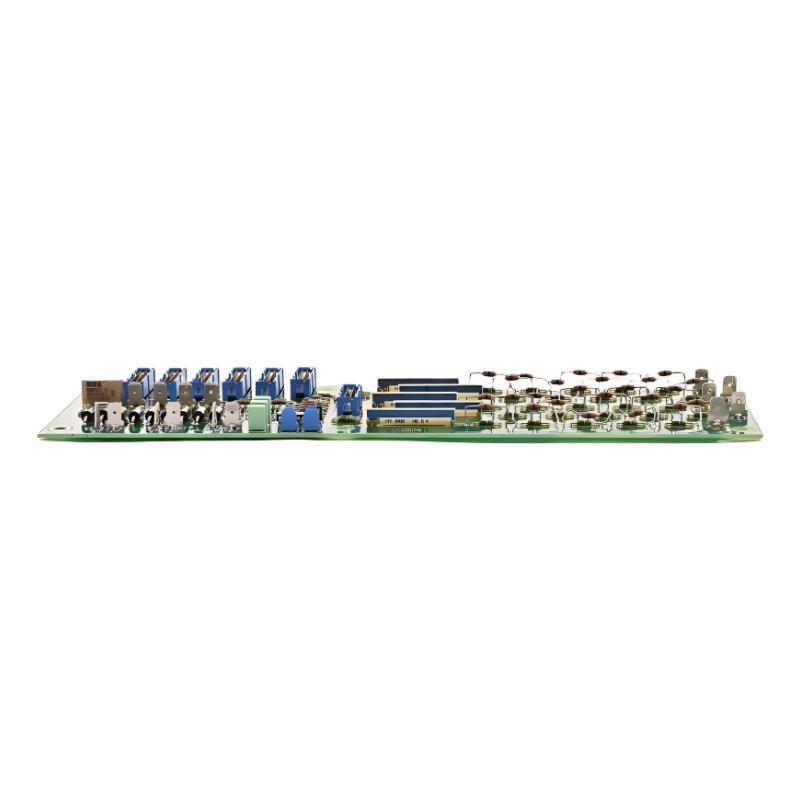

Q1: What is the main function of the ABB SDCS-PIN-206B Power Interface Board?

A: The SDCS-PIN-206B is an interface module used in ABB SDCS DC drive systems to connect the control unit with the power section. Its main role is to ensure stable transmission of control signals, interface-level power distribution, and real-time system status feedback. In practical operation, it acts as a communication bridge that allows the controller to coordinate accurately with the power stage. This ensures that motor commands are executed correctly and that operating conditions are continuously monitored. In industrial environments, this function is critical because even small interruptions in signal integrity can affect drive stability, torque control, and overall system performance.

Q2: What symptoms may indicate a failure of the SDCS-PIN-206B?

A: A failing SDCS-PIN-206B may cause a range of operational issues. Common symptoms include failure of the drive to start, inconsistent motor behavior, unexpected tripping, loss of communication between control and power modules, and missing or incorrect feedback signals. In some cases, the system may enter a protective shutdown mode due to inability to establish stable internal communication. However, these symptoms are not exclusive to the interface board. Similar issues may also result from power supply instability, wiring faults, controller errors, or poor connector contact. Therefore, a complete diagnostic check is always necessary before concluding that the board is defective.

Q3: What should be checked before replacing the SDCS-PIN-206B?

A: Before replacement, the entire drive system must be fully powered down and secured to prevent accidental energization. It is important to ensure that all stored energy in the DC bus has been discharged completely. Technicians should also confirm that electrostatic discharge protection measures are in place, such as grounded wrist straps. The replacement board must match both the model and ordering number exactly to ensure compatibility with the system configuration. During installation, connectors must be aligned carefully and inserted without force. After replacement, a full functional test should be performed, including communication verification, alarm status review, and controlled operational testing under load conditions to confirm stable operation.

Q4: Does the SDCS-PIN-206B require preventive maintenance?

A: Although the SDCS-PIN-206B is designed for long-term industrial use with minimal maintenance requirements, periodic preventive inspection is still recommended. Maintenance typically includes checking for dust accumulation, verifying connector tightness, inspecting for signs of overheating or discoloration, and ensuring that the control cabinet ventilation system is functioning properly. It is also important to verify stable power supply conditions and proper grounding. These preventive actions help reduce the risk of unexpected failures and ensure consistent long-term performance in demanding industrial environments.

Q5: Can the SDCS-PIN-206B be replaced with another similar SDCS board?

A: No, substitution with similar-looking SDCS boards is not recommended. Even if multiple boards in the SDCS family appear physically similar, they may differ in circuit design, signal mapping, communication behavior, and system compatibility. Installing an incorrect board can result in communication failure, unstable drive operation, or even damage to connected components. ABB systems rely on precise configuration matching, so the exact model and ordering number must always be used. This ensures proper integration with the existing drive architecture and avoids operational risks.

Q6: What environmental factors affect the reliability of the SDCS-PIN-206B?

A: The reliability of the SDCS-PIN-206B is influenced by several environmental conditions. High temperature can accelerate component aging, while excessive humidity may increase the risk of condensation and corrosion. Dust and airborne particles can affect connector quality and heat dissipation over time. Electrical disturbances such as voltage fluctuations, poor grounding, and electromagnetic interference can also impact signal stability. Additionally, mechanical vibration may gradually affect solder joints and connector integrity. Maintaining a stable, clean, and well-ventilated cabinet environment is essential for long-term reliability.

Q7: How can a technician confirm whether the SDCS-PIN-206B is faulty?

A: Fault confirmation requires a structured diagnostic process. First, verify that all power supply rails are within specification. Next, check communication signals between the control unit and power section using system diagnostics. Visual inspection should be performed to identify any signs of physical damage such as burnt components, cracked solder joints, or connector deformation. If no external issues are found and the system continues to report interface communication faults, a controlled substitution test using a known-good SDCS-PIN-206B is often the most reliable method. If normal operation is restored after replacement, the original board can be considered faulty.

Q8: Where is the SDCS-PIN-206B typically used in industry?

A: The SDCS-PIN-206B is widely used in industrial applications that rely on ABB DC drive systems for precise motor control. Typical installations include steel rolling mills, paper production lines, mining conveyors, cement manufacturing systems, crane and hoisting equipment, chemical processing plants, marine drive systems, and power generation facilities. These environments require continuous operation, stable torque control, and high system reliability. The interface board plays a key role in ensuring stable communication between control and power sections, which directly supports efficient production and reduces unplanned downtime in critical industrial processes.
