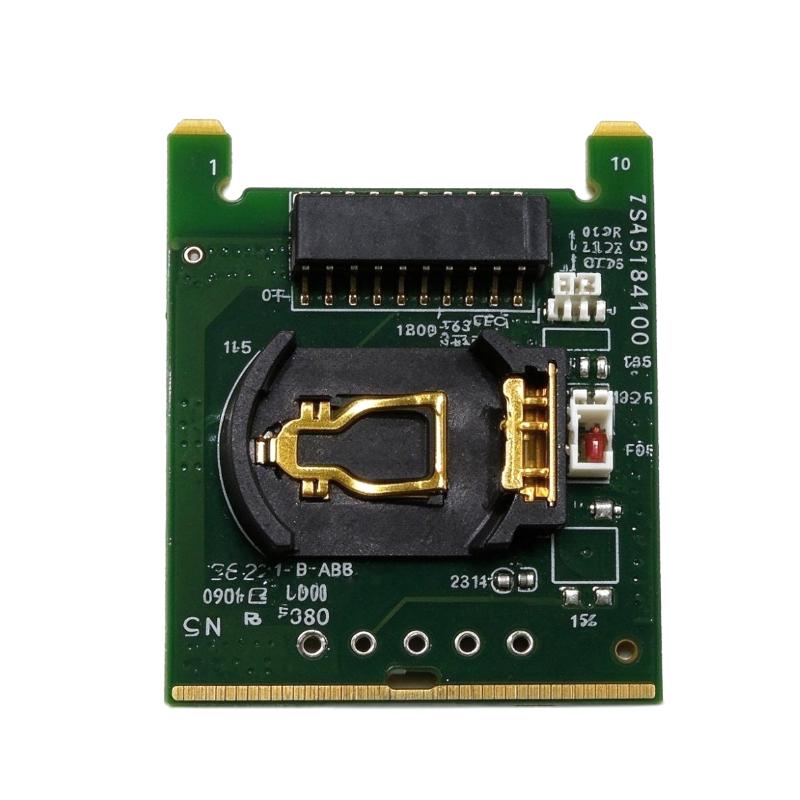

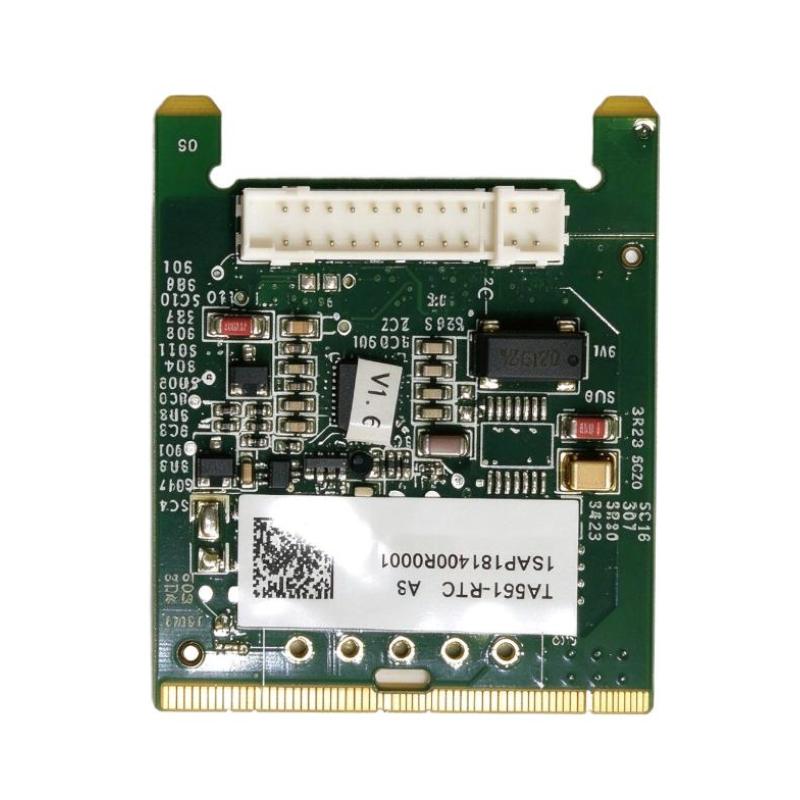

ABB TA561-RTC 1SAP181400R0001 Real-Time Clock Option Board
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Manufacturer | ABB |
| Model Number | TA561-RTC |
| Ordering Number | 1SAP181400R0001 |
| Product Name | Real-Time Clock Option Board |
| Product Type | Real-Time Clock (RTC) Option Board |
| Product Series | ABB AC500-eCo |
| Main Function | Provides real-time clock functionality for supported PLC CPU configurations |
| Timekeeping | Maintains date and time information for control applications |
| Battery Type | CR2032 lithium coin-cell battery |
| Battery Included | No; CR2032 battery must be purchased separately |
| Installation Type | Compatible option-board slot on supported PLC CPU |
| Typical Applications | Time-based control, event timestamping, scheduled operations, and time-dependent automation logic |
| Compatibility | Confirm CPU model and hardware requirements before installation |
| Dimensions | 170 × 10 × 100 mm |
| Weight | 0.007 kg |
FAQ
Q1: What is the main function of the ABB TA561-RTC option board?
A1: The TA561-RTC provides real-time clock functionality for compatible PLC configurations. It allows the controller to maintain date and time information for time-dependent logic, scheduled tasks, and event-related applications.
Q2: Which PLC systems are compatible with the TA561-RTC?
A2: The TA561-RTC is an accessory for supported ABB AC500-eCo PLC configurations. Compatibility depends on the CPU model and hardware version. Check the CPU documentation before ordering or installing the board.
Q3: Does the TA561-RTC include a battery?
A3: No. The standard configuration does not include a CR2032 battery. The correct battery must be obtained separately and installed according to the product documentation.
Q4: What happens if the backup battery is missing or depleted?
A4: If the battery is missing or depleted, the real-time clock may lose its retained date and time when the controller’s power supply is removed. After power-up, the clock may return to a default date and require time setting.
Q5: Can the TA561-RTC be used for event timestamping?
A5: Yes, when supported by the CPU and application software. The clock can provide date and time information for events, alarms, operating records, and time-dependent program logic. The PLC program must be configured to use this information appropriately.
Q6: Does installing the TA561-RTC automatically synchronize the PLC clock with network time?
A6: No. The TA561-RTC provides clock functionality but does not by itself guarantee synchronization with an external time server. Network time synchronization depends on the capabilities of the PLC CPU, its firmware, and the application configuration.
Q7: What should be checked if the PLC displays an incorrect date or time?
A7: Check whether the CR2032 battery is installed correctly and has sufficient charge. Verify the PLC’s time settings, startup behavior, and power interruption history. If the problem persists, confirm that the CPU supports the option board and inspect the board installation.
Q8: What precautions should be taken when installing or replacing the TA561-RTC?
A8: Follow the PLC manufacturer’s installation instructions and isolate power where required before handling the option board. Confirm the model and ordering number, use the specified battery, and avoid electrostatic discharge. After installation, verify that the PLC recognizes the clock function and retains the correct time during a power interruption.
ABB TA561-RTC 1SAP181400R0001 Real-Time Clock Option Board is in stock. Please contact us for a quick quote and competitive pricing.
