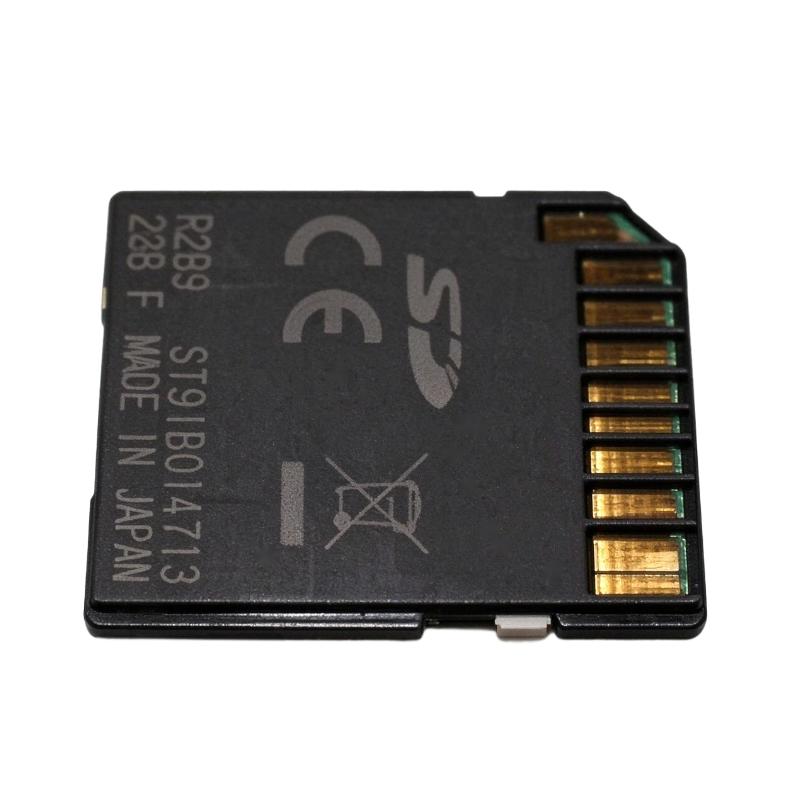

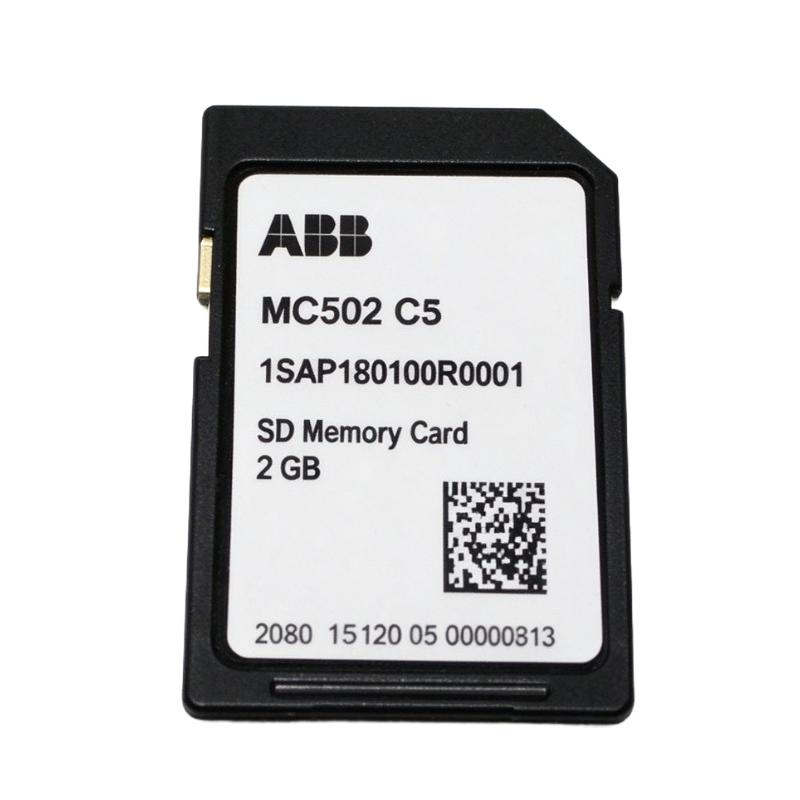

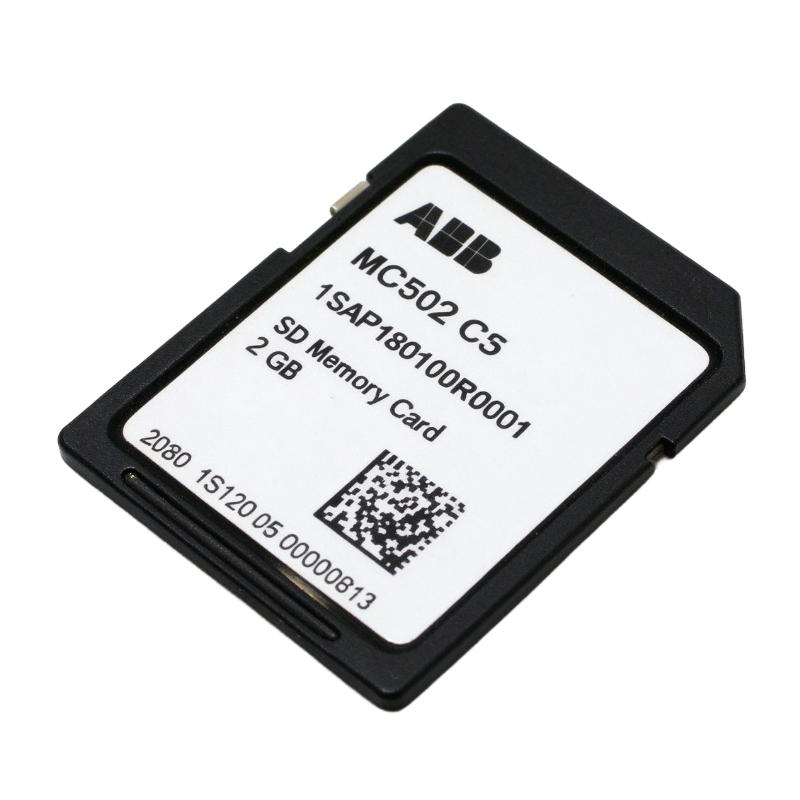

ABB MC502 1SAP180100R0001 SD Memory Card
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model Number | MC502 |
| Ordering Number | 1SAP180100R0001 |
| Product Name | SD Memory Card |
| Product Series | ABB AC500 |
| Memory Capacity | 2,000,000 kB (approximately 2 GB) |
| Memory Type | Flash EPROM |
| Main Function | Storage and backup of user programs and data; supported CPU firmware updates |
| Compatible System | Compatible ABB AC500 PLC CPUs; verify CPU-specific requirements |
| Protection Rating | IP20 |
| Operating Temperature | 0 to +60 °C |
| Storage Temperature | -40 to +70 °C |
| Write Protection | Write-protect switch provided |
| Write/Erase Endurance | More than 100,000 write cycles (per published technical data) |
| Read Cycles | No specified read-cycle limitation in the referenced technical data |
| Dimensions | 170 × 5 × 100 mm |
| Weight | 0.007 kg |
FAQ
Q1: What is the main function of the ABB MC502 SD memory card?
A1: The MC502 provides removable storage for compatible ABB AC500 PLC systems. It can be used to back up user data, store application programs, and support internal CPU firmware updates where the controller supports these functions.
Q2: What is the storage capacity of the MC502?
A2: ABB product data lists the memory size as 2,000,000 kB, approximately 2 GB. The available space for user files may be lower because of file-system and system requirements.
Q3: Which PLC controllers are compatible with the MC502?
A3: The MC502 is designed for compatible ABB AC500 controllers. Memory-card requirements vary by CPU generation and hardware version, so check the controller documentation before installation. Do not assume that every ABB PLC accepts this card.
Q4: Can the MC502 be used to back up a PLC program?
A4: Yes. On supported controllers, it can store user programs and backup data. Follow the CPU’s backup and restore procedures, and verify that the saved files are complete before relying on the card for recovery.
Q5: Can the MC502 be used to update PLC firmware?
A5: It can support internal CPU firmware updates on compatible AC500 configurations. Use the firmware package and update procedure specified for the exact CPU model. An incorrect firmware file or interrupted update may prevent the controller from starting normally.
Q6: What is the purpose of the write-protect switch?
A6: The write-protect switch helps prevent unintended changes to stored data. When set to the LOCK position, the card is intended for read-only access. Check the switch position if the PLC or card reader cannot write files.
Q7: What should I check if the PLC does not recognize the MC502?
A7: Confirm that the CPU supports the MC502, inspect the card and slot for damage or contamination, and check the write-protect switch if the problem involves writing data. Follow the manufacturer’s instructions for inserting the card and review any diagnostic messages. Avoid formatting the card before confirming whether its existing data is needed.
Q8: What precautions should be taken when replacing or maintaining the MC502?
A8: Back up important programs and data before replacing the card. Follow the controller’s instructions for safe insertion and removal, and avoid removing the card while a write operation or firmware update is in progress. Store the card within its specified temperature limits and protect it from electrostatic discharge, moisture, and physical damage.
ABB MC502 1SAP180100R0001 SD Memory Card is in stock. Please contact us for a quick quote and competitive pricing.
