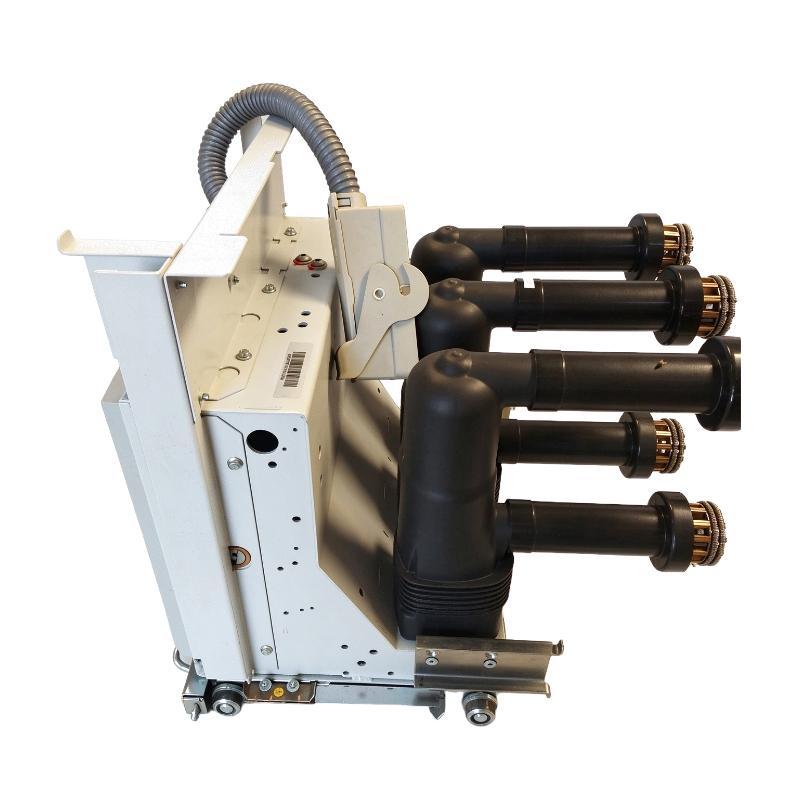

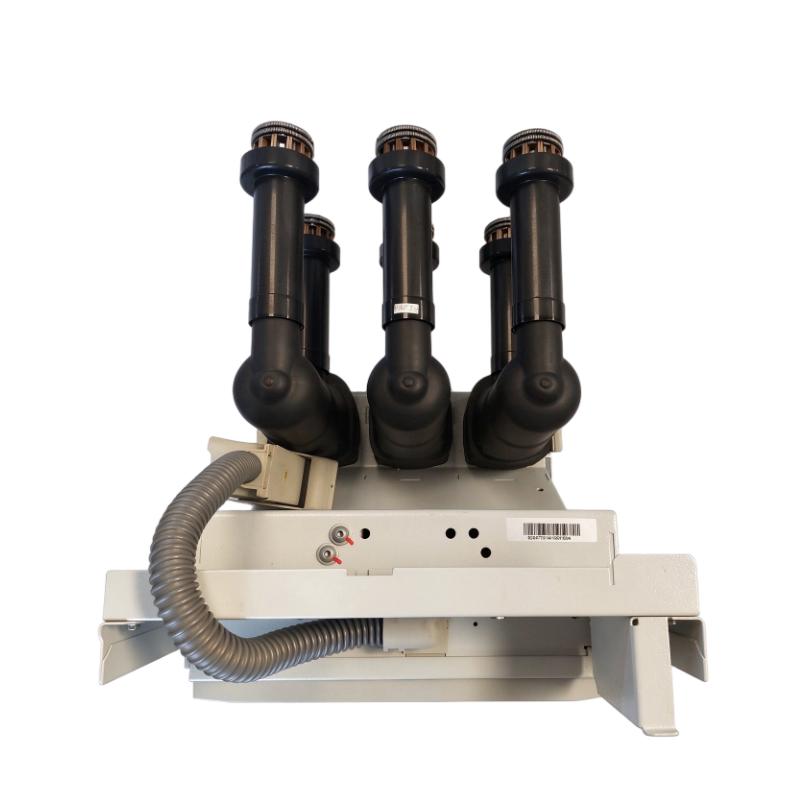

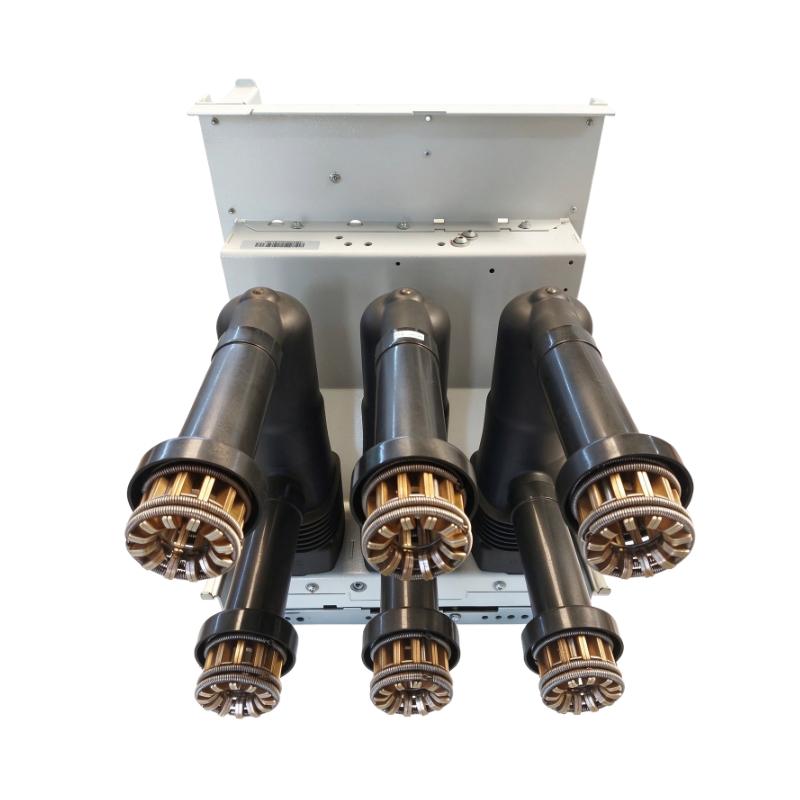

ABB VD4/P 12.16.25 Medium-Voltage Vacuum Circuit Breaker
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model Number | VD4/P 12.16.25 |
| Product Name | Medium-Voltage Vacuum Circuit Breaker |
| Product Series | ABB VD4 |
| Circuit Breaker Type | Withdrawable vacuum circuit breaker |
| Rated Voltage | 12 kV |
| Rated Frequency | 50/60 Hz |
| Rated Current | 1600 A |
| Rated Short-Circuit Breaking Current | 25 kA |
| Rated Short-Time Withstand Current | 25 kA, 3 s |
| Rated Making Capacity | 63 kA peak |
| Rated Power-Frequency Withstand Voltage | 28 kV, 1 min |
| Rated Lightning Impulse Withstand Voltage | 75 kV |
| Operating Mechanism | Spring-operated mechanical mechanism |
| Arc-Extinguishing Medium | Vacuum |
| Operating Sequence | O–0.3 s–CO–15 s–CO |
| Opening Time | 33–60 ms |
| Arcing Time | 10–15 ms |
| Total Breaking Time | 43–75 ms |
| Closing Time | 60–80 ms |
| Applicable Standard | IEC 62271-100 |
| Typical Application | Medium-voltage switchgear, power distribution, transformer substations, and industrial power systems |
| Dimensions | 662 × 503 × 628 mm |
| Weight | 116 kg |
FAQ
Q1: What is the main function of the ABB VD4/P 12.16.25 vacuum circuit breaker?
A1: The VD4/P 12.16.25 is designed to switch and protect medium-voltage electrical circuits. It interrupts normal load current and fault current, helping protect transformers, cables, motors, and other electrical equipment in distribution systems.
Q2: What do the numbers in the VD4/P 12.16.25 model indicate?
A2: The model designation identifies the VD4 withdrawable vacuum circuit breaker configuration. The “12” indicates a 12 kV voltage class, “16” denotes a 1600 A rated current, and “25” indicates a 25 kA rated short-circuit breaking capacity.
Q3: How does the vacuum arc-extinguishing system work?
A3: When the breaker contacts separate, an electrical arc forms inside the vacuum interrupter. The vacuum environment helps extinguish the arc as the current passes through zero, allowing the circuit to be interrupted with limited contact erosion under specified operating conditions.
Q4: Which switchgear systems can accommodate the VD4/P 12.16.25?
A4: This model is intended for compatible medium-voltage switchgear, including suitable withdrawable arrangements such as ABB UniGear ZS1 configurations. Compatibility depends on the switchgear design, rated current, pole spacing, primary contacts, interlocks, and control circuit configuration. The exact installation arrangement must be verified before replacement.
Q5: What does the 25 kA short-circuit breaking capacity mean?
A5: It means the circuit breaker is rated to interrupt a short-circuit current of up to 25 kA under its specified operating and test conditions. The complete protection design must also consider fault duration, system voltage, transient recovery voltage, and the coordination of upstream and downstream protective devices.
Q6: What auxiliary power supply is required for the operating mechanism?
A6: The required auxiliary voltage depends on the installed closing coil, opening coil, spring-charging motor, and other fitted accessories. Confirm the voltage and AC/DC requirements from the circuit breaker nameplate and wiring diagram before connecting the control supply.
Q7: What should be checked if the circuit breaker fails to close or open?
A7: Check the control supply, closing and opening coils, spring-charging status, protection relay commands, auxiliary contacts, and mechanical or electrical interlocks. Also inspect the position indication and control wiring. Any troubleshooting should be carried out by qualified personnel following the applicable medium-voltage safety procedures.
Q8: What maintenance is required for the VD4/P 12.16.25?
A8: Maintenance should include inspecting the operating mechanism, checking the vacuum interrupter and contact-wear indicators according to the manufacturer’s procedure, verifying auxiliary circuits and interlocks, and testing opening and closing operations. Maintenance intervals should reflect the manufacturer’s instructions, operating frequency, fault interruptions, and site conditions. Always isolate, discharge, and earth the equipment as required before maintenance.
ABB VD4/P 12.16.25 Medium-Voltage Vacuum Circuit Breaker is in stock. Please contact us for a quick quote and competitive pricing.
