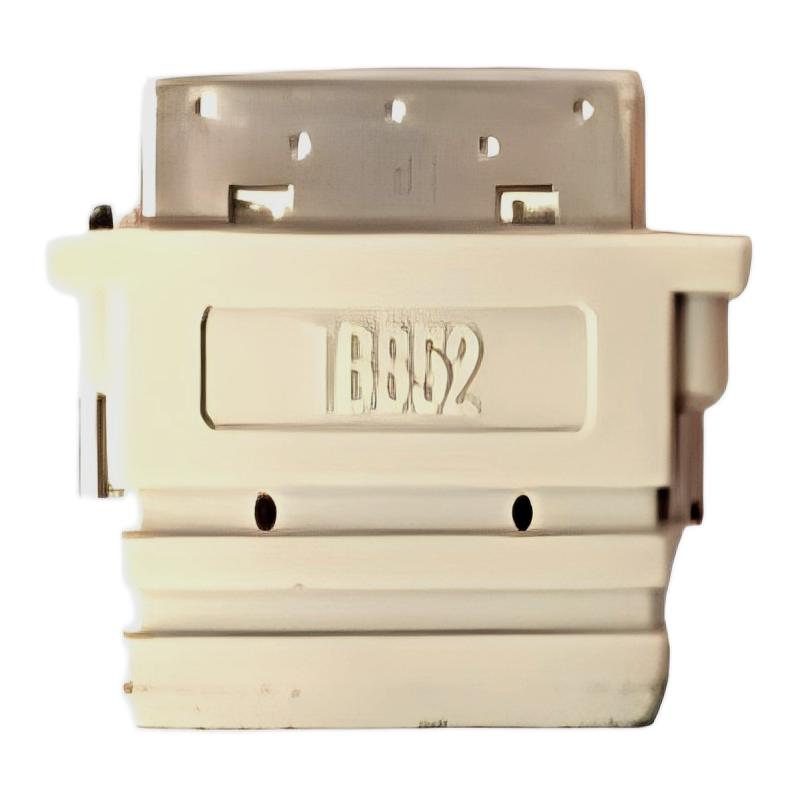

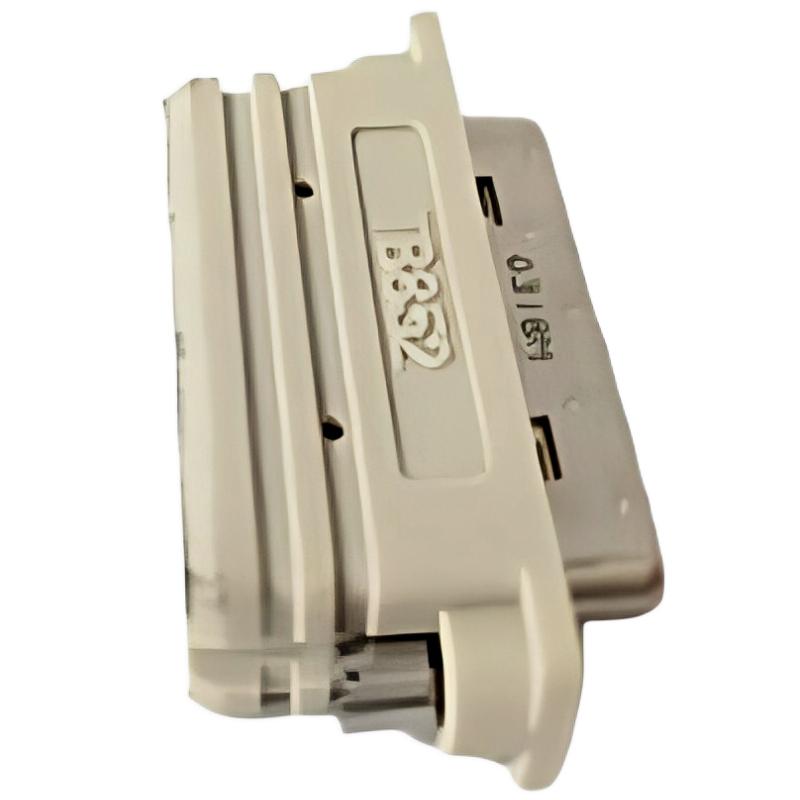

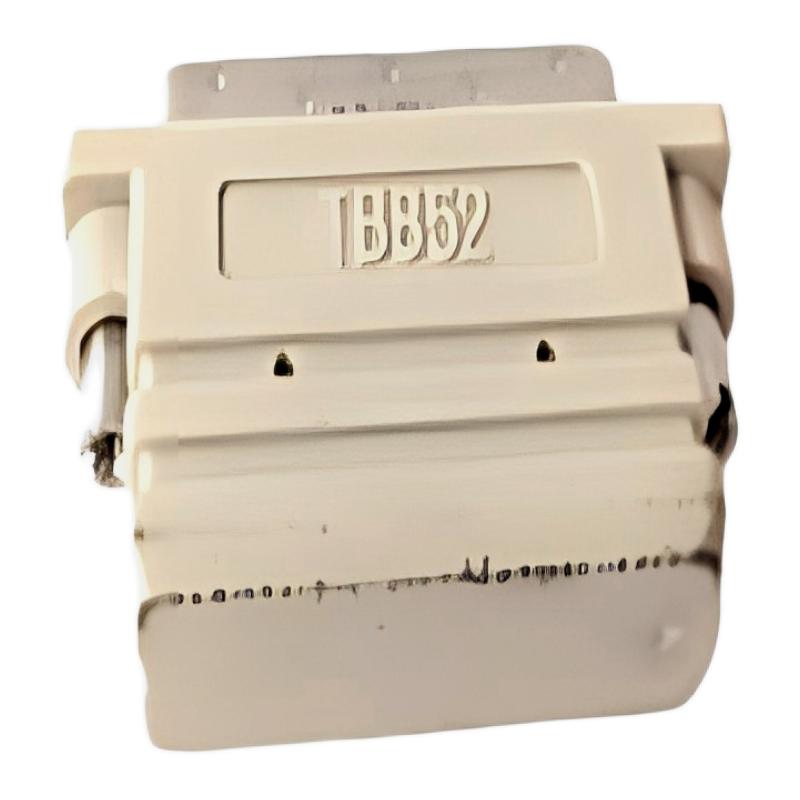

ABB TB852 3BSC950263R1 RCU Link Terminator
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | TB852 |
| Order Number | 3BSC950263R1 |
| Product Name | RCU Link Terminator |
| Main Function | Signal termination for RCU Link communication |
| Compatible Systems | ABB AC 800M and Advant Controller systems |
| Interface Type | RCU Link interface |
| Communication Protocol | RCU Link |
| Mounting | DIN rail |
| Power Supply | Via system backplane |
| Housing Material | Industrial-grade plastic |
| Protection Class | IP20 |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Dimensions | 57 x 20 x 23 mm |
| Weight | 0.02 kg |
FAQ
1. What is the main purpose of the TB852 module?
The TB852 is designed to provide proper termination at the end of an RCU Link communication line. Its primary role is to ensure impedance matching, which prevents signal reflections that can degrade communication quality. In industrial control systems, stable and accurate data transmission is critical, and this module helps maintain reliable communication across the entire network.
2. Which systems is the TB852 compatible with?
The TB852 is specifically designed for use with ABB AC 800M controllers and compatible Advant Controller systems that utilize RCU Link communication. It is typically deployed in distributed control systems where remote communication between units is required for process automation and monitoring.
3. Why is termination necessary in RCU Link networks?
In a bus-based communication system like RCU Link, signals travel along the cable and can reflect back if the line is not properly terminated. These reflections can interfere with the original signal, causing data corruption, communication errors, or instability. The TB852 eliminates these issues by providing correct line termination, ensuring smooth and reliable data transmission.
4. Where should the TB852 be installed?
The module must be installed at the physical end of the RCU Link communication line. Proper placement is essential for it to function correctly. Installing it anywhere other than the end of the line will not provide the required termination effect and may lead to communication issues within the system.
5. Does the TB852 require an external power supply?
No, the TB852 does not require an external power source. It is powered through the system backplane, which simplifies installation and reduces wiring complexity. This also contributes to improved system reliability by minimizing additional power-related failure points.
6. Can the TB852 be used in redundant communication systems?
Yes, the TB852 can be used in redundant RCU Link configurations. In such setups, each communication path must be properly terminated. This means a TB852 module should be installed at the end of each redundant link to ensure both channels maintain optimal signal integrity and system reliability.
7. What issues can occur if the TB852 is not installed?
If the terminator is not installed, signal reflections may occur at the end of the communication line. This can result in intermittent communication failures, data transmission errors, and reduced overall system performance. In critical systems, this may even lead to unexpected downtime or operational instability.
8. Is the TB852 suitable for industrial environments?
Yes, the TB852 is designed with industrial applications in mind. It uses durable materials and is built to operate reliably within standard industrial temperature ranges. Its compact design and DIN rail mounting make it easy to integrate into control cabinets, and its passive operation enhances long-term reliability with minimal maintenance requirements.
ABB TB852 3BSC950263R1 RCU Link Terminator is in stock. Please contact us for a quick quote and competitive pricing.
