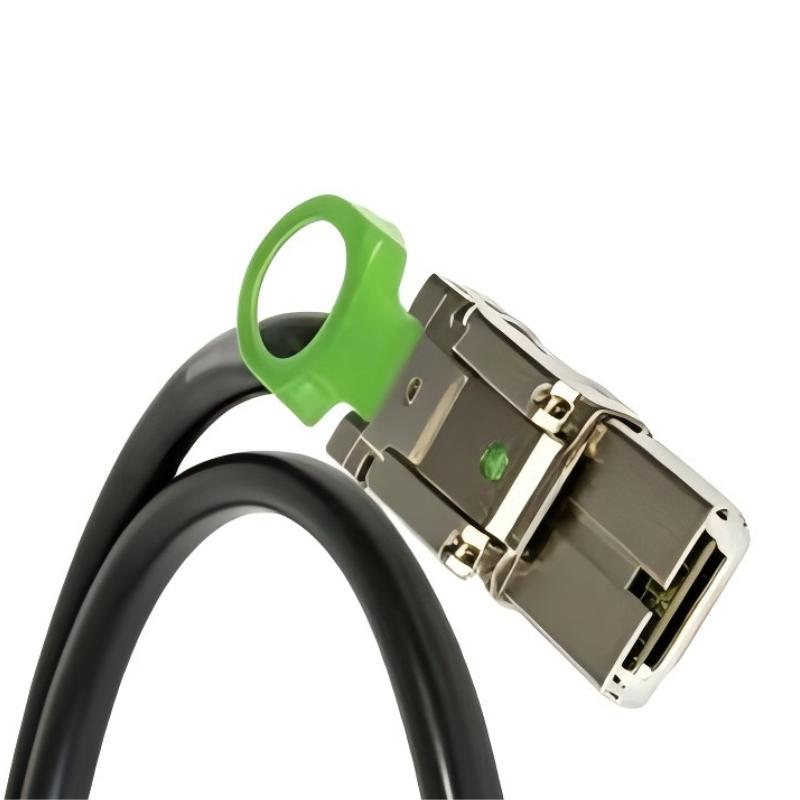

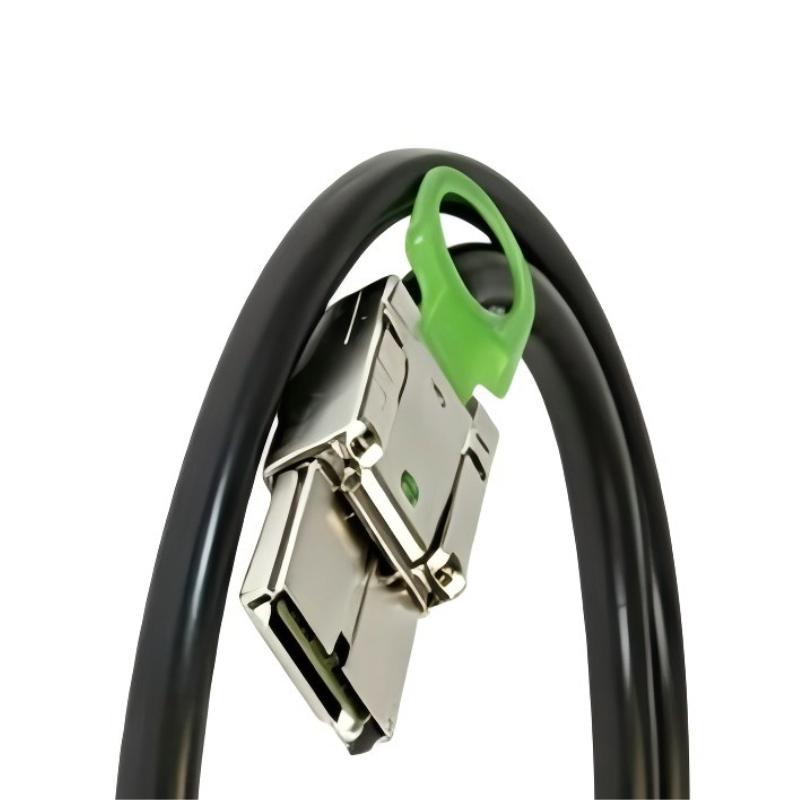

1. What is the primary purpose of the ABB TK855 3BSC950356R1 Data Link Cable?

The ABB TK855 3BSC950356R1 Data Link Cable is specifically designed to establish reliable communication between ABB controllers, communication modules, I/O units, and other automation devices. It enables high-speed and stable data transmission throughout industrial control systems, ensuring that control commands, monitoring data, and diagnostic information are exchanged accurately. The cable is commonly used in ABB PLC, DCS, and distributed automation systems where uninterrupted communication is essential for maintaining efficient production processes and minimizing system downtime.

2. How should communication problems be diagnosed if the TK855 cable appears to be faulty?

If communication errors occur, begin by inspecting both cable connectors to ensure they are securely connected and free from contamination, corrosion, or physical damage. Next, examine the cable for excessive bending, cuts, crushed sections, or other signs of mechanical stress that could affect signal integrity. Verify the communication settings within the controller and connected devices, including network addresses and communication parameters. Using ABB diagnostic software or replacing the cable with a known working unit can help determine whether the cable is responsible for the communication failure. This systematic approach minimizes troubleshooting time and prevents unnecessary replacement of other system components.

3. Does the TK855 Data Link Cable provide protection against electromagnetic interference (EMI)?

Yes. The TK855 features an industrial-grade shielded cable design that effectively minimizes electromagnetic interference generated by variable frequency drives, large electric motors, switching equipment, and other high-power industrial devices. This shielding helps maintain stable communication signals even in electrically noisy environments. For optimal performance, the cable should be installed separately from high-voltage power cables, grounded according to ABB installation recommendations, and routed to avoid strong electromagnetic fields whenever possible.

4. Is the TK855 cable suitable for continuous 24/7 industrial operation?

Yes. The TK855 is designed for demanding industrial applications that require continuous operation around the clock. Its durable construction, high-quality conductors, and industrial-grade insulation allow it to maintain stable communication performance during extended operating periods. When installed correctly and protected from excessive mechanical stress, vibration, and environmental hazards, the cable can provide long-term reliability with minimal maintenance. Periodic inspections of the cable and connectors are recommended to ensure consistent communication performance throughout its service life.

5. How can communication stability be maintained when using the TK855 Data Link Cable?

To achieve reliable communication, ensure that all connectors are fully inserted and securely fastened before powering the system. Avoid routing the cable alongside high-voltage power lines or variable frequency drive output cables, as these may introduce unwanted electrical noise. The cable should not be subjected to excessive pulling forces, repeated twisting, or tight bending radii that could damage the internal conductors. Regular inspection of connectors, proper cable management, and verification of controller communication settings also contribute significantly to maintaining stable, error-free data transmission within the automation network.

6. Can the TK855 cable be connected or disconnected while the control system is operating?

Although certain ABB automation components may support hot-swapping, it is generally not recommended to connect or disconnect the TK855 Data Link Cable while the system is actively communicating. Disconnecting the cable during operation may interrupt data transmission, trigger communication alarms, cause temporary controller faults, or lead to synchronization issues between connected devices. For maximum system safety and reliability, maintenance personnel should perform cable installation or replacement only after communication has been stopped or the affected equipment has been safely powered down according to standard maintenance procedures.

7. What installation practices should be followed to maximize the service life of the TK855 cable?

Proper installation plays an important role in ensuring long-term cable reliability. The cable should be routed with an appropriate bending radius and protected from excessive tension, vibration, abrasion, and mechanical impact. Connectors should remain clean and dry during installation to prevent poor electrical contact. Secure cable routing using suitable clamps or cable trays helps prevent movement caused by equipment vibration. In addition, following ABB grounding and shielding recommendations can significantly reduce electromagnetic interference, improve communication quality, and extend the operational life of both the cable and the connected automation equipment.

8. How can users determine when the TK855 Data Link Cable should be replaced?

Replacement should be considered whenever persistent communication faults continue after controller configuration, module diagnostics, and network parameter verification have confirmed that other system components are functioning correctly. Visible damage such as worn insulation, cracked connectors, bent or oxidized contact pins, or evidence of severe mechanical stress are strong indicators that the cable may no longer provide reliable communication. If intermittent communication failures disappear after replacing the cable with a verified working unit, the original cable has likely reached the end of its service life. Replacing damaged communication cables promptly helps maintain stable system performance, reduces unexpected downtime, and protects the overall reliability of the industrial automation network.
