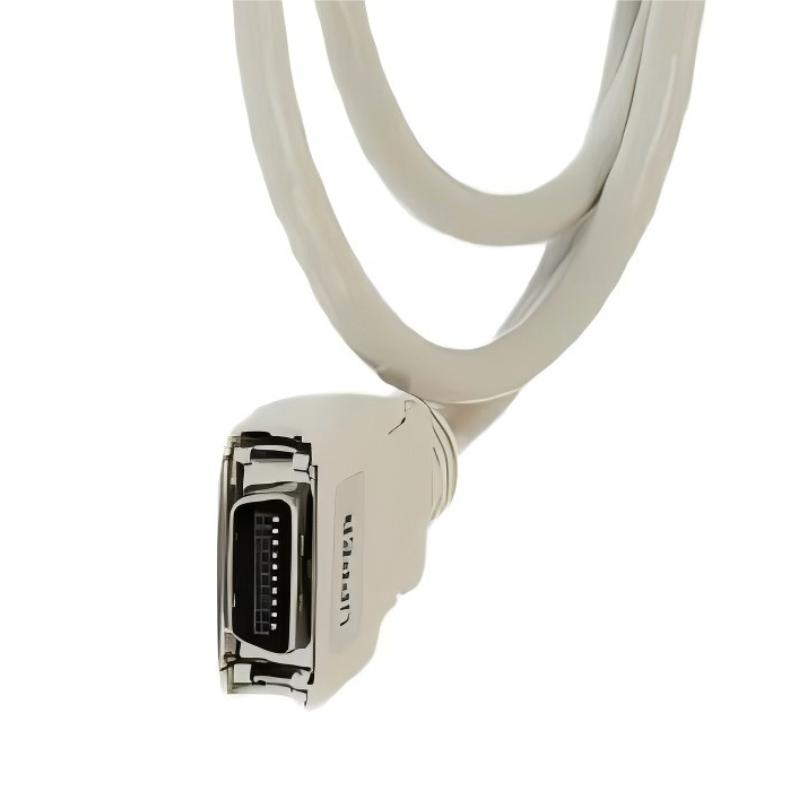

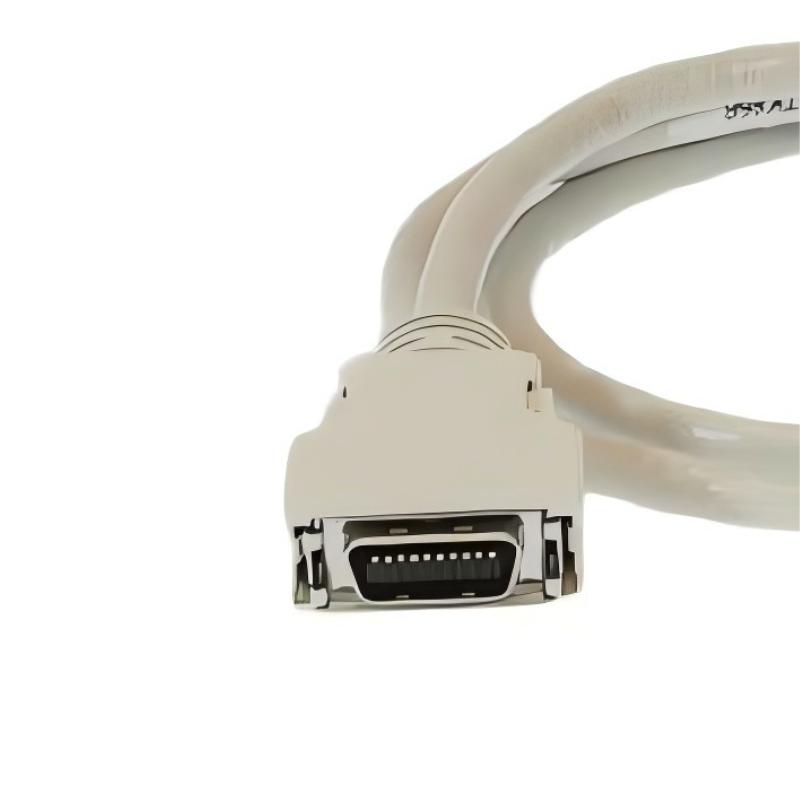

1. What is the primary function of the ABB TK856 3BSE057021R1 Control Link Cable?

The ABB TK856 3BSE057021R1 Control Link Cable is designed to provide a stable communication link between ABB controllers, communication interfaces, and distributed I/O modules within industrial automation systems. It transfers both control commands and operational data with high reliability, ensuring synchronized communication between connected devices. The cable is widely used in process automation, manufacturing systems, and distributed control environments where uninterrupted communication is essential for maintaining production efficiency and overall system stability.

2. How should communication failures involving the TK856 cable be diagnosed?

When communication problems occur, the first step is to inspect both cable connectors to ensure they are securely connected and free from dirt, corrosion, or physical damage. The cable should then be checked for cuts, excessive bending, crushing, or other mechanical damage that could affect signal transmission. System communication parameters, controller configuration, and network settings should also be verified. If available, ABB diagnostic software can be used to monitor communication status and identify network errors. Replacing the cable with a verified working unit is often an effective method for determining whether the cable itself is responsible for the communication issue.

3. Does the TK856 Control Link Cable provide effective electromagnetic interference protection?

Yes. The TK856 incorporates industrial-grade shielding that significantly reduces the effects of electromagnetic interference generated by equipment such as variable frequency drives, large motors, transformers, and switching devices. This shielding helps maintain signal integrity even in electrically noisy industrial environments. For maximum performance, the cable should be routed separately from high-voltage power cables, properly grounded according to ABB installation recommendations, and installed in a manner that minimizes exposure to strong electromagnetic fields.

4. Can the TK856 cable be used for continuous industrial operation without affecting communication reliability?

Absolutely. The TK856 is engineered for continuous operation in demanding industrial environments where communication stability is critical. Its high-quality conductors, durable insulation, and robust shielding allow it to maintain consistent signal quality during long periods of operation. When installed correctly and protected from excessive mechanical stress, the cable delivers dependable performance for 24-hour production systems. Routine inspections of connectors and cable routing are recommended to ensure optimal long-term reliability.

5. What installation practices help ensure stable communication when using the TK856 cable?

To achieve the best communication performance, installers should ensure that all connectors are fully inserted and securely locked before energizing the control system. The cable should be routed away from high-voltage wiring, inverter output cables, and other potential sources of electrical interference. Excessive pulling force, repeated twisting, and sharp bending should be avoided because they may damage the internal conductors or shielding. Proper cable management, secure fastening, and compliance with ABB grounding guidelines will help maintain stable data transmission and reduce the likelihood of unexpected communication faults.

6. Is it recommended to connect or disconnect the TK856 cable while the automation system is running?

Although certain ABB components support online maintenance, disconnecting the TK856 cable during active communication is generally not recommended. Removing the cable while the system is operating may interrupt communication between controllers and field devices, generate system alarms, or temporarily affect process control. To minimize operational risks and prevent unexpected communication interruptions, cable installation or replacement should be carried out only after communication has been stopped or the affected equipment has been safely powered down following standard maintenance procedures.

7. What maintenance procedures should be followed to maximize the service life of the TK856 Control Link Cable?

Routine maintenance should include periodic visual inspection of the cable jacket, connectors, and locking mechanisms for signs of wear or damage. Dust, moisture, oil, and corrosion should be removed from connector surfaces to maintain reliable electrical contact. The cable should remain properly secured to prevent excessive movement caused by machine vibration. During scheduled maintenance, communication performance can also be verified using ABB diagnostic tools to identify any early signs of degradation before communication problems develop into unplanned system downtime.

8. When should the ABB TK856 3BSE057021R1 Control Link Cable be replaced?

Replacement is recommended whenever persistent communication problems continue after controller settings, communication modules, network configuration, and connected equipment have been verified as operating correctly. Visible damage such as cracked insulation, damaged connectors, bent contact pins, or excessive wear may indicate that the cable can no longer guarantee reliable communication. Intermittent network faults that disappear after installing a replacement cable are also a strong indication that the original cable has reached the end of its service life. Timely replacement helps maintain communication integrity, reduces maintenance costs, and improves the long-term reliability of the entire automation system.
