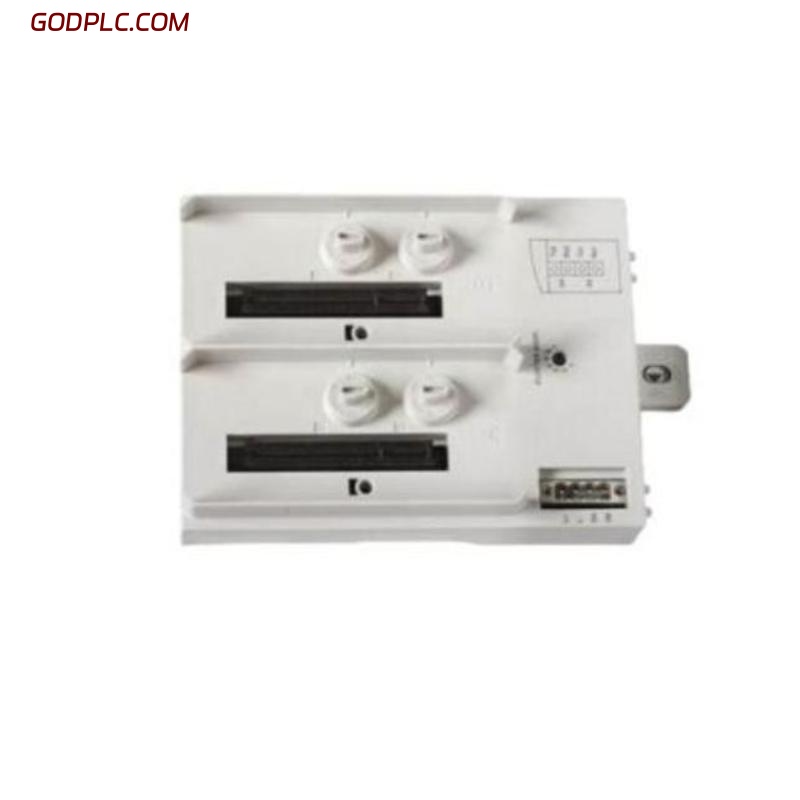

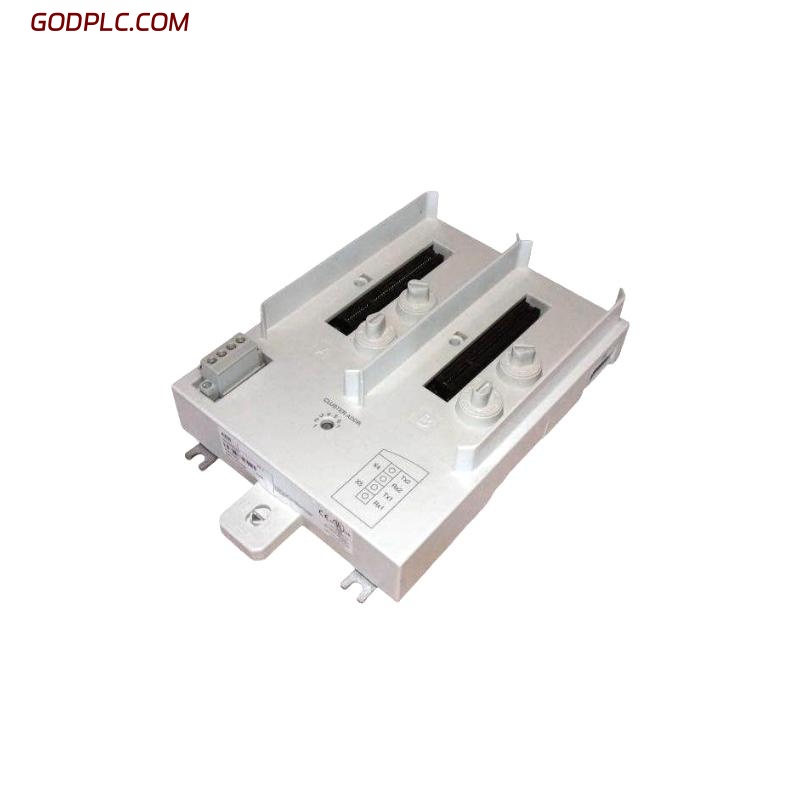

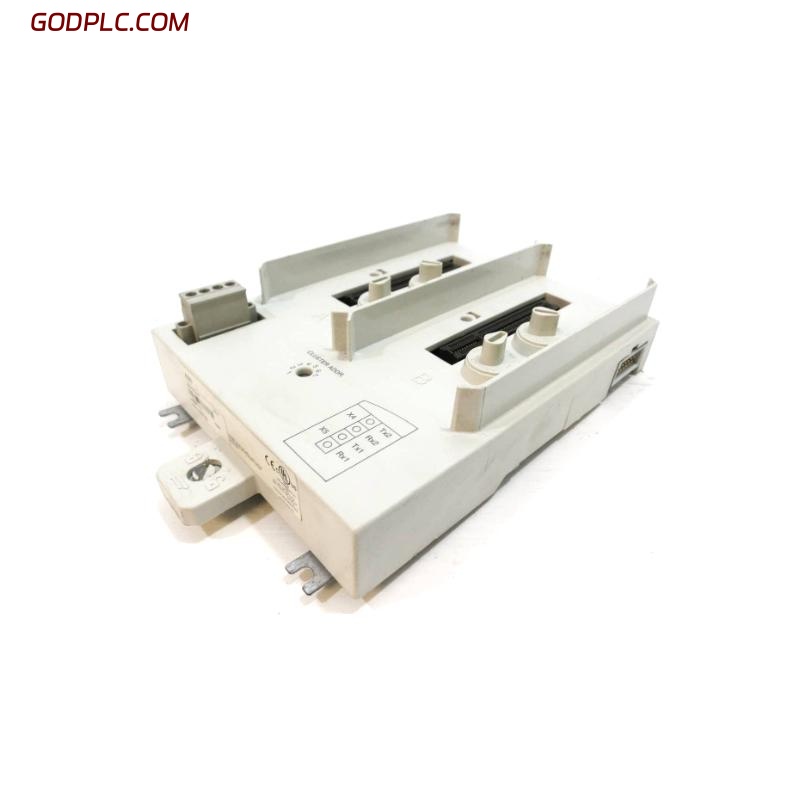

ABB TU841 3BSE020848R11 Module Termination Unit
Product Overview
The ABB TU841 3BSE020848R11 is a redundant Module Termination Unit (MTU) designed to provide a reliable interface between field wiring and I/O modules in ABB’s AC 800M automation system. This MTU is part of the S800 I/O system and supports redundancy at both the module and power levels, making it ideal for mission-critical applications that require high system availability.
The TU841 features a compact DIN-rail mountable form factor and is designed for seamless integration with ABB I/O modules. It facilitates fast installation, easy maintenance, and secure electrical connections while maintaining robust performance in industrial environments.
Key Features
-
Redundant I/O Support – Supports dual connection for redundant I/O modules to ensure high availability
-
Integrated Power Distribution – Distributes power to connected I/O modules via internal bus
-
Dual Module Sockets – Allows mounting of two I/O modules for hot standby or redundant configuration
-
Field Wiring Terminals – Provides up to 36 screw terminals for field signal connections
-
DIN Rail Mounting – Compact footprint with quick-install capability for space-efficient panels
-
System Diagnostic LEDs – Visual indicators for status monitoring and fault detection
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 47 x 186 x 124 mm |
| Weight | 0.45 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Supply Voltage | 24 VDC via system backplane or terminal |
| Power Distribution | Internal bus connection to I/O modules |
| Field Signal Terminals | 36 screw terminals for signal wiring |
| Redundancy Support | Dual I/O module slots for redundant operation |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | 5%–95% RH (non-condensing) |
| Enclosure Rating | IP20 |
System Compatibility
| Item | Specification |
|---|---|
| System Integration | Compatible with ABB S800 I/O and AC 800M systems |
| Supported Modules | Redundant S800 I/O modules (e.g., AI, AO, DI, DO) |
| Engineering Tools | Supported by ABB Control Builder and 800xA suite |
Industry Applications
-
Power Generation – Provides redundancy for turbine and substation control systems
-
Oil & Gas – Ensures continuous operation in upstream and downstream automation
-
Chemical and Petrochemical – Redundant I/O interface for safety-critical process control
-
Water and Wastewater – Enhances reliability in pump stations and treatment facilities
-
Pharmaceuticals – Supports validated, fail-safe control in cleanroom and batch environments
The ABB TU841 3BSE020848R11 Module Termination Unit offers a high-availability termination solution for ABB’s automation platforms. Its redundant design, robust wiring interface, and seamless integration with S800 I/O modules make it essential for applications requiring maximum system uptime and reliability.
ABB TU841 3BSE020848R11 Module Termination Unit is in stock. Please contact us for a quick quote and competitive pricing.
