1. What is the main function of the ABB UNS 0863A-P, V1 HIEE305082R0001?

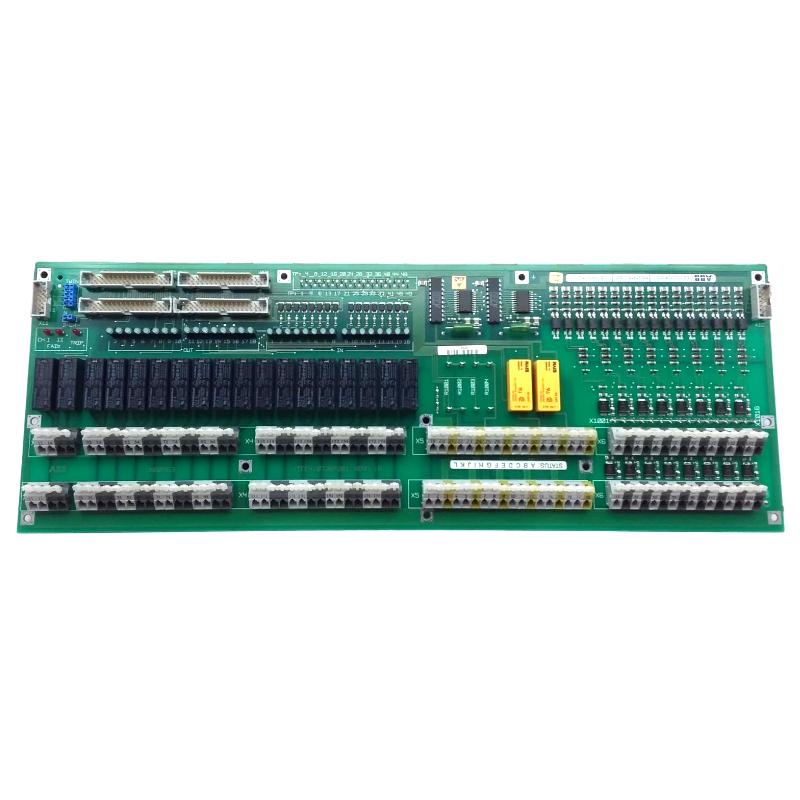

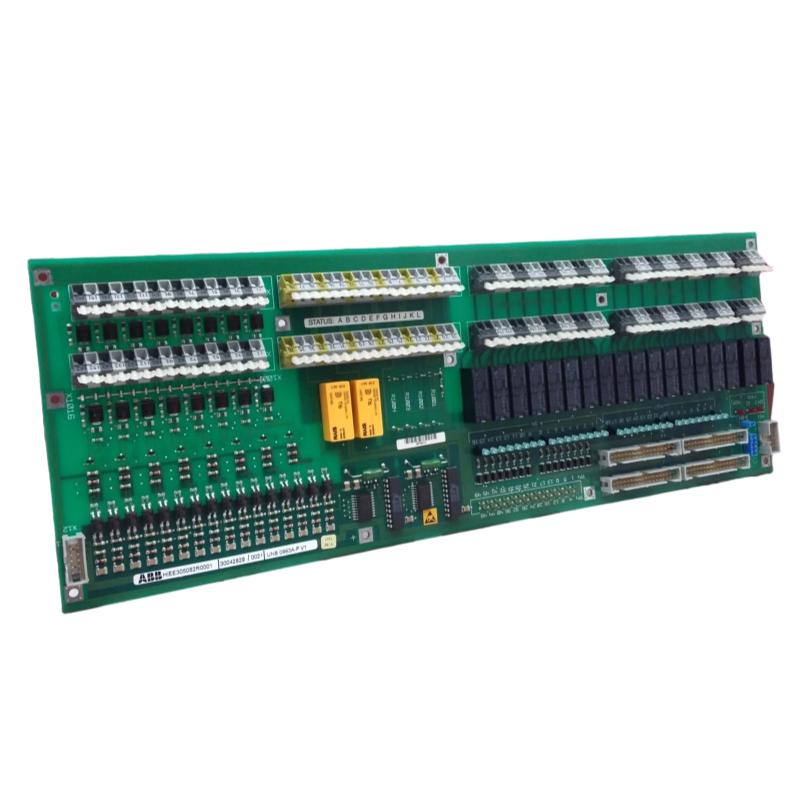

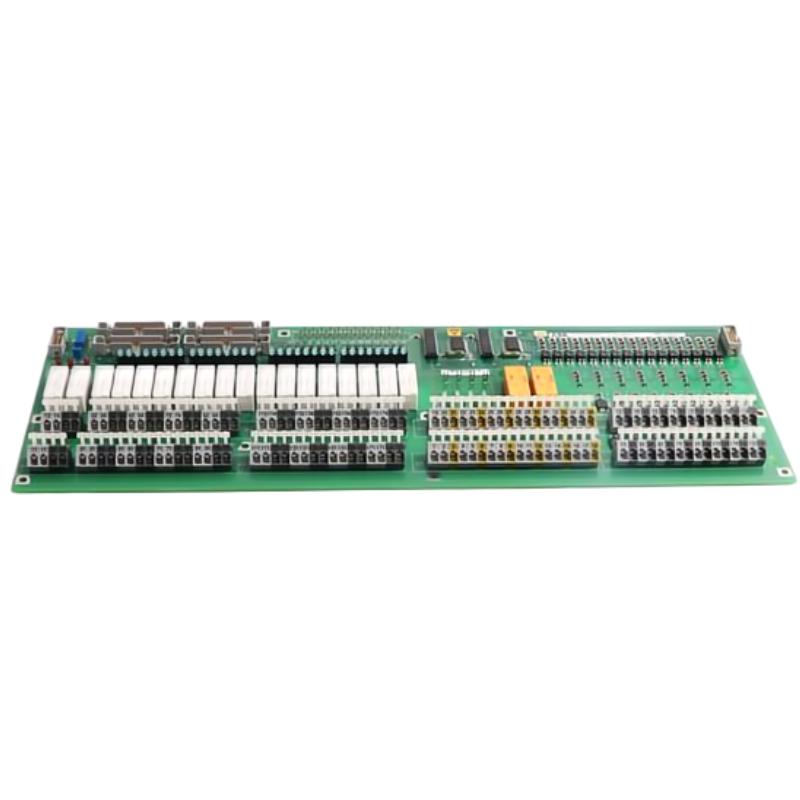

The ABB UNS 0863A-P, V1 HIEE305082R0001 is a Digital I/O Card designed to handle digital signal exchange within compatible industrial automation and control systems. It provides an interface between the control system and field devices, allowing digital status information to be received and control commands to be transmitted. Depending on the system configuration, the card can be used for equipment status monitoring, switching signal acquisition, and digital control of field devices. It normally operates together with the system controller and other automation modules, forming part of the overall I/O structure of an industrial control installation.

2. What types of industrial applications can use the HIEE305082R0001 Digital I/O Card?

The HIEE305082R0001 can be used in compatible ABB industrial automation, process control, and electrical control applications where digital input and output signals are required. Typical applications include industrial control cabinets, process equipment, automation machinery, and control systems with multiple field devices. Digital signals can be used to monitor equipment status, switching conditions, alarm contacts, interlocks, and other discrete operating states. The exact application should be determined from the complete system design, including the controller, I/O configuration, field wiring, and signal requirements.

3. How should I troubleshoot a digital input that is not detected by the ABB UNS 0863A-P, V1?

Begin by checking whether the field device is generating the expected digital signal. Inspect the associated field wiring, terminals, connectors, and common connections for loose contacts, broken conductors, or incorrect wiring. Measure the signal at the relevant input circuit to determine whether the expected signal is reaching the I/O card. If the field signal is present but the control system does not recognize it, check the input channel status, module diagnostics, and system configuration. Incorrect channel assignment or configuration can produce symptoms similar to a hardware fault. If only one input is affected, concentrate on the individual channel and its field circuit. If several inputs fail at the same time, investigate the module power supply, common connections, and system-level conditions.

4. What should I check if a digital output from the HIEE305082R0001 does not operate the connected device?

First verify that the control logic is generating the correct output command and that the corresponding output channel changes to the expected state. Then inspect the output wiring, terminals, connectors, and connected field equipment. If the control system indicates that the output is active but the field device does not respond, measure the actual output signal and check the load circuit. The connected relay, actuator, contactor, or other device should also be checked for independent faults. If multiple output channels are affected simultaneously, check the module power supply, common wiring, and overall system status before assuming that individual output channels have failed.

5. How can I determine whether the ABB UNS 0863A-P, V1 Digital I/O Card is functioning correctly?

A functional check should include the module status, power condition, digital input signals, digital output signals, and available system diagnostics. For input channels, a known and stable field signal can be used to verify that the control system correctly detects the corresponding ON/OFF state. For output channels, a controlled test can be performed to confirm that the output command reaches the connected field equipment. The actual field condition should match the status displayed by the control system. If the I/O channels respond consistently and there are no persistent diagnostic alarms, the basic functions of the card can generally be considered operational. Intermittent faults should be monitored over an appropriate operating period because they may not appear during a short functional test.

6. What should be checked before installing the HIEE305082R0001?

Before installation, confirm that the HIEE305082R0001 is compatible with the intended ABB control-system architecture and I/O configuration. Check the field signal types, channel assignments, wiring diagrams, power requirements, and associated control-system configuration. Before connecting or removing the card, the relevant equipment should be placed in a safe condition in accordance with applicable electrical safety procedures. All input and output circuits should be clearly identified to prevent wiring errors or incorrect common-terminal connections. After installation, carefully inspect every connection before energizing the system. A controlled I/O commissioning test should then be performed to verify that each field signal corresponds to the correct control-system channel and that output commands operate the intended devices.

7. What can cause unstable or intermittent I/O signals on the ABB UNS 0863A-P, V1?

Intermittent I/O behavior can be caused by loose wiring, poor terminal contact, damaged cables, unstable field devices, electrical interference, or power-related problems. Digital input signals may repeatedly change state if a field contact is unstable or if the associated wiring has poor contact. Strong electromagnetic interference can also affect signal reliability in industrial environments, particularly when signal wiring is routed close to high-power equipment. For digital outputs, an unstable load, relay, actuator, or external control circuit can create symptoms that appear to originate from the I/O card. If several channels become unstable at the same time, the power supply and common system connections should be checked first. Comparing field measurements, I/O status information, and system event records can help identify the source of an intermittent fault.

8. What maintenance is recommended for the ABB UNS 0863A-P, V1 HIEE305082R0001?

Regular maintenance should include inspection of the module status, I/O signals, wiring, connectors, and system diagnostic information. Terminals and connectors should be checked for looseness, corrosion, contamination, or other signs of poor contact. The system should also be monitored for recurring I/O alarms, missing signals, unexpected state changes, or output commands that do not produce the expected field response. For critical automation systems, maintaining records of important I/O behavior can help identify gradual or intermittent problems. When troubleshooting a fault, it is recommended to follow the signal path from the field device through the wiring and I/O channel to the controller and system configuration. The card should not be replaced immediately unless the surrounding circuits have been checked. Appropriate ESD precautions should be used when handling the electronic board, and input/output functional tests should be completed after maintenance before returning the system to normal operation.
