1. What is the main function of the ABB UNS 0863A-P, V1 HIEE305082R1?

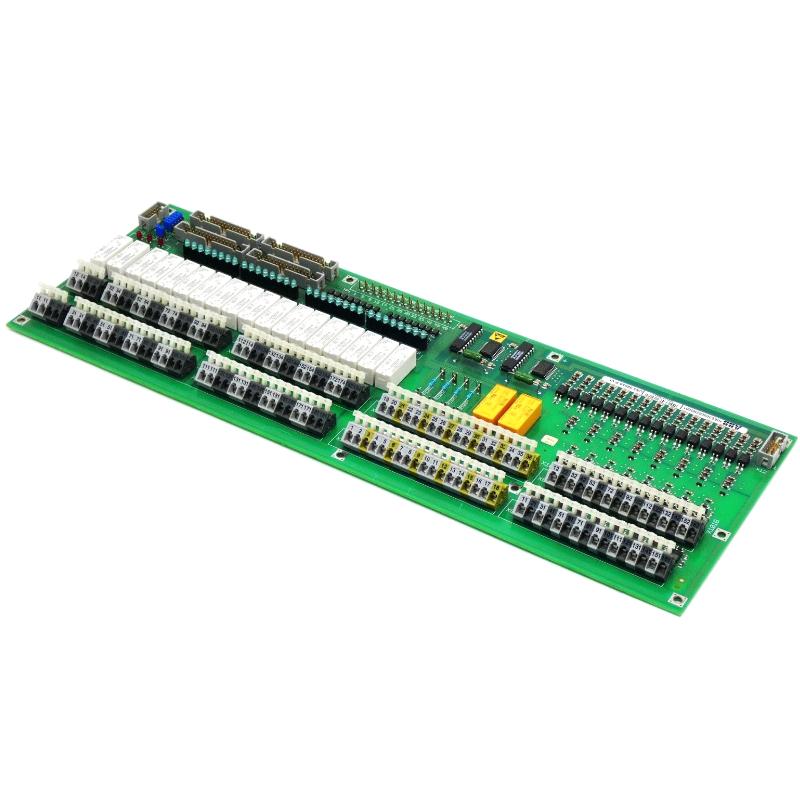

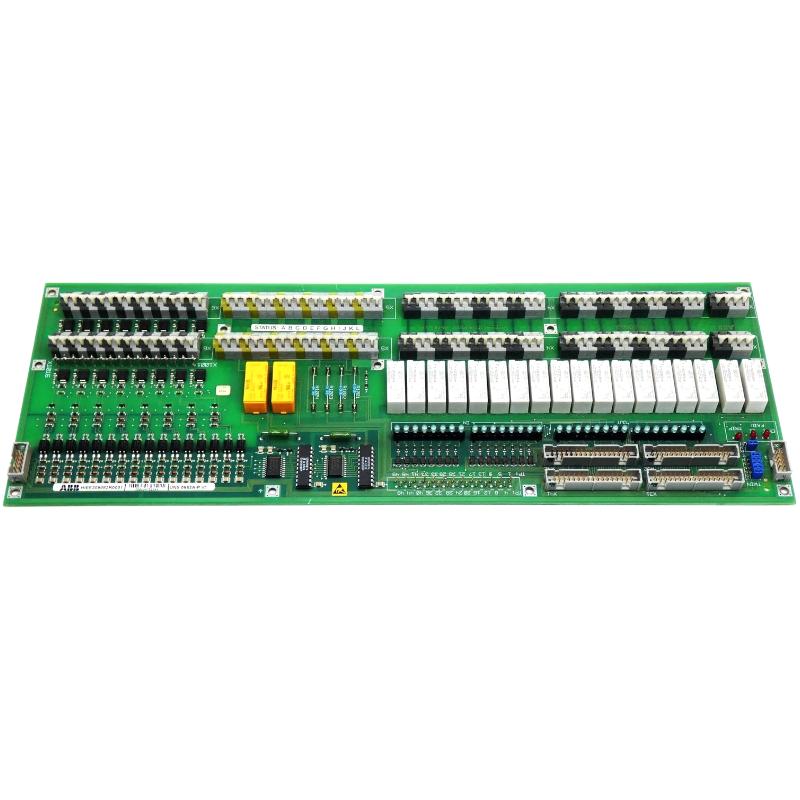

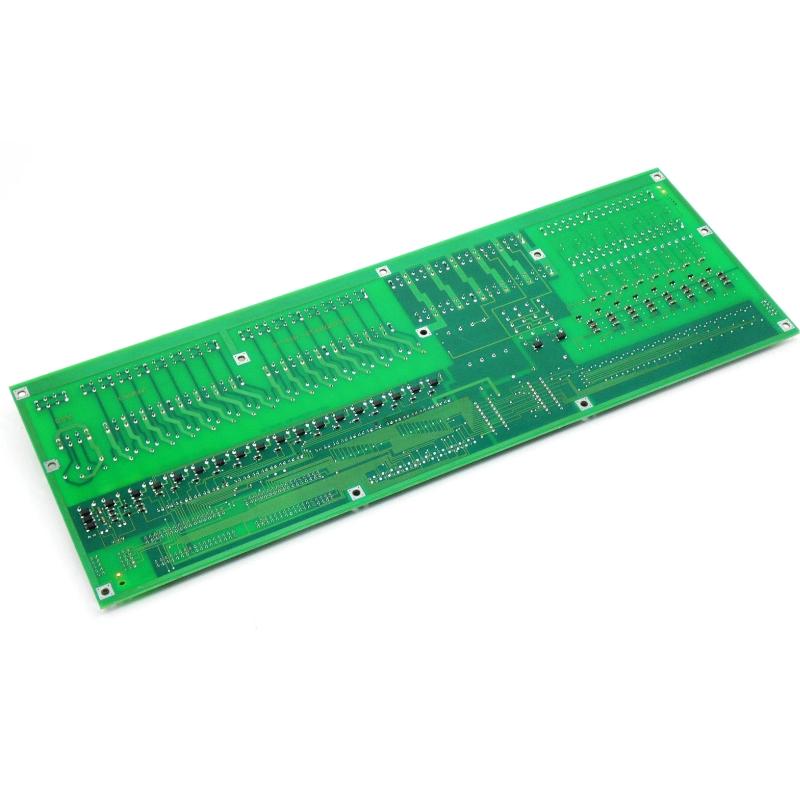

The ABB UNS 0863A-P, V1 HIEE305082R1 is a Digital I/O Card designed for digital signal acquisition and output control in industrial automation and control systems. It provides an interface between the control system and field devices, allowing digital status signals to be received by the controller while also transmitting digital control commands to external equipment. Depending on the system configuration, the card can be used to monitor equipment states, process switching signals, and control digital field devices. It normally operates together with the system controller and other control modules as part of the overall industrial I/O architecture.

2. What industrial applications is the HIEE305082R1 suitable for?

The HIEE305082R1 is suitable for compatible ABB industrial automation, process control, and electrical control systems. Typical applications include industrial control cabinets, production equipment, process control systems, and automation installations that require digital signal input and output. The card can interface with field devices that provide switching or digital status signals, including contacts, relays, switching equipment, and other digital devices. The exact application depends on the I/O architecture, field signal requirements, and control logic of the complete system.

3. How should I troubleshoot abnormal digital input signals on the ABB UNS 0863A-P, V1?

Start by verifying that the field device is actually generating the expected digital signal. Then inspect the field wiring, terminals, and connectors to make sure they are secure and free from damage or poor contact. The signal at the corresponding input channel can be measured to determine whether it is reaching the I/O card correctly. If the field signal is normal but the control system does not recognize the input, check the I/O channel status, module condition, and system configuration. Wiring breaks, short circuits, loose connections, abnormal signal levels, and incorrect channel configuration should all be considered. If only one channel is affected, focus on that channel and its associated field circuit. If multiple channels fail simultaneously, investigate the module power supply, common connections, and system-level configuration first.

4. What should I check if a digital output on the HIEE305082R1 does not activate the field device?

Troubleshooting should cover both the control logic and the field circuit. First confirm that the control system is generating the correct output command and that the corresponding output channel indicates the expected state. Then inspect the output wiring, terminals, connectors, and field device. If the control system shows that the output is active but the field device does not respond, measure the actual output signal and check the load circuit. The connected actuator, relay, or other field equipment should also be tested independently when possible. If several output channels fail at the same time, check the module power supply, common wiring, and overall control-system status rather than immediately assuming that multiple individual output channels have failed.

5. How can I determine whether the ABB UNS 0863A-P, V1 is operating correctly?

The Digital I/O Card can be evaluated by checking its power condition, input signals, output signals, and system diagnostic status. For digital inputs, a known-good field signal can be applied or monitored to verify that the control system correctly recognizes the corresponding state. For digital outputs, a controlled test can be performed to confirm that an output command is correctly transmitted to the field device. The I/O status shown by the control system should also correspond with the actual field equipment condition. If the input and output channels respond correctly according to the configured control logic and there are no persistent diagnostic alarms, the basic I/O functions can generally be considered operational. Intermittent faults should be evaluated over a longer operating period rather than through a single test.

6. What should be considered before installing the HIEE305082R1?

Before installation, verify that the HIEE305082R1 is compatible with the target ABB control-system hardware architecture and I/O configuration. The field signal types, wiring arrangement, channel assignments, and control-system configuration should all be checked before connecting the card. The equipment should be placed in a safe condition according to the applicable electrical safety procedures before installation or wiring work begins. Input and output circuits should be carefully identified to prevent incorrect connections, wiring mistakes, or incorrect common-terminal connections. After installation, inspect all connections before energizing the system. A controlled I/O test should then be performed to verify that field signals correspond correctly with the configured control channels.

7. What can cause unstable I/O signals on the ABB UNS 0863A-P, V1?

Unstable I/O signals can result from field wiring problems, poor connections, electrical interference, unstable power conditions, or faults in connected field equipment. For digital inputs, repeated switching between ON and OFF states may be caused by contact bounce, loose wiring, poor terminal contact, or an unstable field device. Industrial electromagnetic interference can also affect signal reliability if the wiring and installation are not properly arranged. For digital outputs, the load device, output wiring, relay, or actuator should be inspected for abnormal behavior. If several I/O channels become unstable simultaneously, the module power supply and common system wiring should be checked first. Comparing actual field measurements with control-system status information can help determine whether the problem originates from the field circuit, the I/O card, or the control system.

8. What maintenance is recommended for the ABB UNS 0863A-P, V1 HIEE305082R1?

Routine maintenance should include inspection of the module status, digital input and output signals, electrical connections, and system diagnostic information. Terminals, connectors, and field I/O wiring should be checked periodically for looseness, corrosion, damaged conductors, or poor contact. Attention should also be given to I/O alarms, missing signals, unexpected status changes, and output commands that fail to operate the corresponding field equipment. For continuously operating industrial automation systems, recording the status of important I/O points can help identify intermittent problems before they develop into complete failures. When troubleshooting, it is generally more effective to work systematically from the field device through the wiring and I/O channel to the control-system configuration rather than immediately replacing the card. Appropriate ESD protection should be used when handling the electronic module, and functional testing of the input and output channels should be completed after maintenance before the system is returned to continuous operation.
