1. What is the main function of the ABB V18345-1010221001 Valve Positioner?

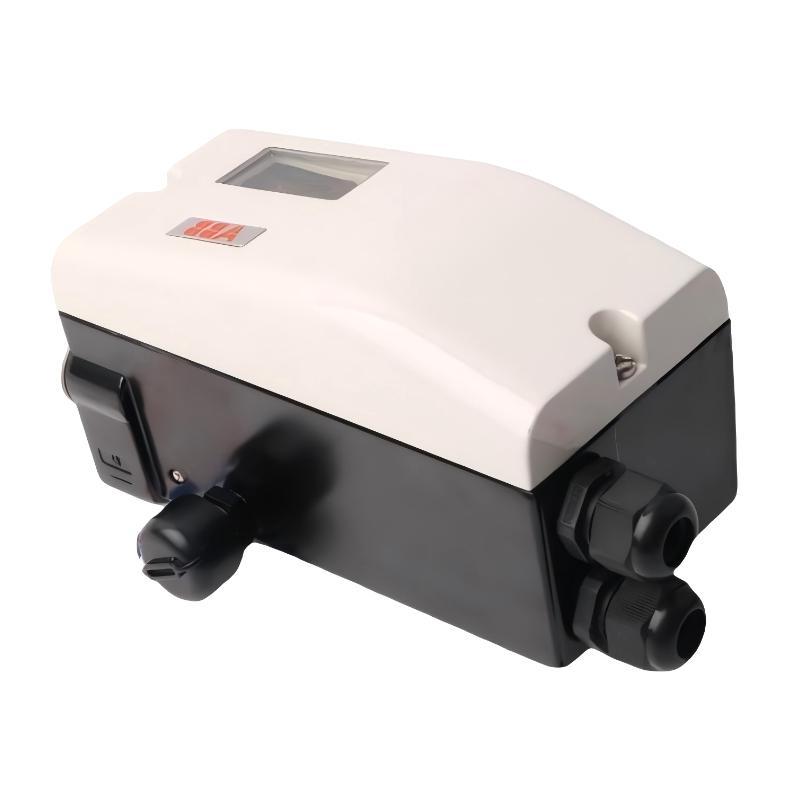

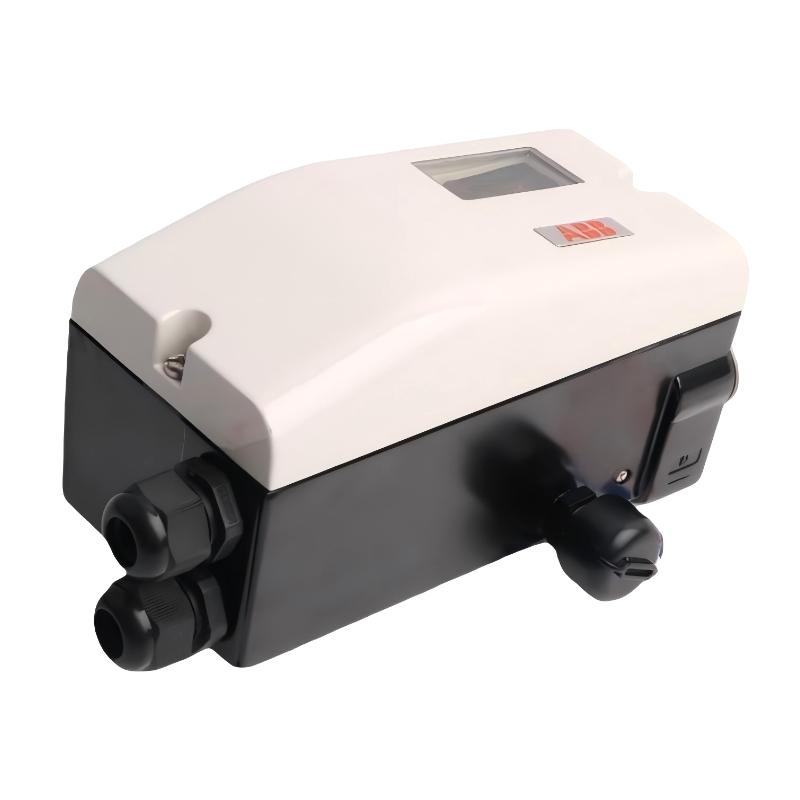

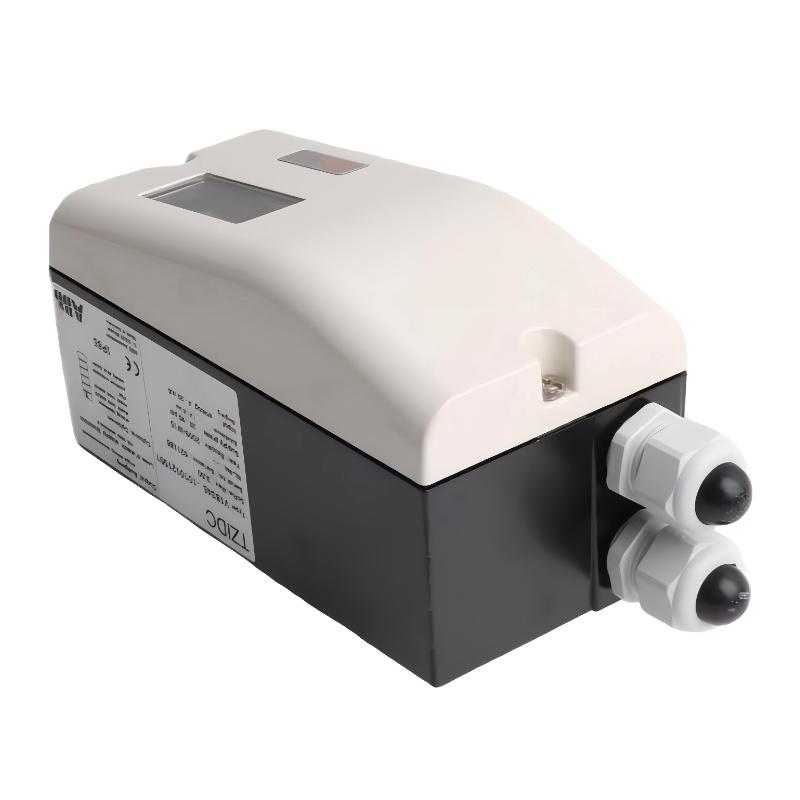

The ABB V18345-1010221001 is an intelligent electro-pneumatic valve positioner designed to accurately control pneumatic control valves in industrial automation and process-control applications. It receives a control command from a PLC, DCS, or other process controller and regulates the pneumatic output supplied to the actuator. The positioner continuously monitors the actual valve position and compares it with the requested position. When a deviation occurs, it adjusts the pneumatic output to move the valve toward the required position. This closed-loop positioning method helps improve valve accuracy, response, and stability, which is particularly useful in applications where accurate regulation of flow, pressure, temperature, or other process variables is required.

2. What input signal does the V18345-1010221001 use?
The V18345-1010221001 is designed for a 4–20 mA, 2-wire control signal. This standard analog signal is commonly supplied by industrial PLC and DCS systems to represent the desired valve position. The positioner interprets the current level and generates a corresponding pneumatic control output for the connected actuator. During installation, the control-loop wiring, polarity, signal range, and controller configuration should be checked carefully. If the positioner receives an incorrect or unstable input signal, the valve may not move to the expected position even when the pneumatic and mechanical sections of the system are operating correctly.

3. What type of actuator can be connected to the ABB V18345-1010221001?
The V18345-1010221001 is intended for pneumatic valve-positioning applications and can be configured for compatible linear or rotary pneumatic actuators. The exact mechanical arrangement depends on the actuator and valve assembly. Proper feedback linkage and mounting hardware are essential because the positioner must accurately detect the actual movement of the actuator or valve. Before installation, technicians should verify the actuator type, direction of movement, valve travel or rotation, mounting arrangement, and feedback mechanism. Using an unsuitable mounting arrangement or incorrectly adjusted feedback linkage can result in inaccurate positioning, unstable control, or failure to reach the requested valve position.

4. What are the common symptoms of a faulty V18345-1010221001?
Common symptoms can include incorrect valve positioning, slow response to control commands, unstable valve movement, excessive oscillation, failure to reach the requested position, or little or no valve movement when the input signal changes. Process variables may also fluctuate if the valve is unable to maintain the required position. However, these symptoms do not necessarily indicate that the positioner itself has failed. Insufficient instrument air, pneumatic leakage, blocked tubing, incorrect feedback adjustment, actuator problems, mechanical friction, or an abnormal control signal can all produce similar symptoms. A proper diagnosis should therefore examine the complete valve-control loop before a decision is made to replace the positioner.

5. How should the V18345-1010221001 be diagnosed when the valve position is incorrect?
Troubleshooting should start by verifying the 4–20 mA signal at the positioner’s input terminals. The technician should confirm that the control system is producing the expected command and that the signal remains stable as the valve position is changed. The instrument-air supply should then be checked to ensure adequate pressure and stable operation. Pneumatic tubing, fittings, and actuator connections should be inspected for leaks, restrictions, contamination, or incorrect connections. The mechanical valve and actuator assembly should also be checked for sticking, excessive friction, or damaged linkage. If these areas are confirmed to be normal, attention should be directed toward the position feedback, calibration, and internal pneumatic functions of the positioner. Following this sequence helps distinguish a genuine positioner fault from an external system problem.

6. What can cause abnormal pneumatic output from the ABB V18345-1010221001?
Abnormal pneumatic output may be caused by insufficient or unstable instrument air, contaminated air, blocked pneumatic passages, leakage, incorrect tubing connections, or an internal pneumatic problem. An incorrect 4–20 mA command can also cause the output to appear abnormal even when the positioner is functioning properly. In addition, a damaged or incorrectly adjusted actuator can prevent the valve from responding correctly to normal positioner output. Mechanical resistance in the valve, such as stem friction or sticking, can also cause the positioner to continuously correct the valve position. For this reason, troubleshooting should compare the electrical input, air supply, pneumatic output, actuator response, and actual valve position instead of focusing on a single component.

7. What precautions should be taken when installing the ABB V18345-1010221001?
Before installation, the complete model and configuration should be checked against the existing valve, actuator, control system, and feedback arrangement. The technician should verify the 4–20 mA control loop, pneumatic connections, actuator compatibility, and mechanical mounting requirements. Instrument air should be clean, dry, and stable to reduce the possibility of contamination or pneumatic malfunction. The mechanical feedback mechanism must be installed and aligned correctly because incorrect feedback can cause the positioner to interpret the valve position incorrectly. After installation, the valve should be operated through its required range during commissioning, and the relationship between the control signal and actual valve position should be verified. Any applicable site-specific electrical, maintenance, or hazardous-area requirements should also be followed before the equipment is returned to service.

8. What tests should be performed after replacing the V18345-1010221001?
After replacement, all electrical connections, pneumatic tubing, mounting hardware, and position-feedback connections should be checked carefully. The instrument-air supply should be verified before applying control commands. During commissioning, the 4–20 mA input should be changed gradually across the operating range while the actual valve position is monitored. The valve should respond smoothly and reach the required positions without excessive oscillation, sticking, unexpected delays, or unstable movement. The position feedback should also correspond correctly to the actual valve position where feedback is available. The complete valve loop should then be tested through the PLC or DCS to confirm that the controller command, positioner, actuator, and valve operate together correctly. For critical process applications, the fail-safe behavior and relevant alarm or diagnostic functions should also be verified under controlled maintenance conditions before returning the valve to normal continuous operation.
