1. What is the ABB V18345-1010251001 used for?

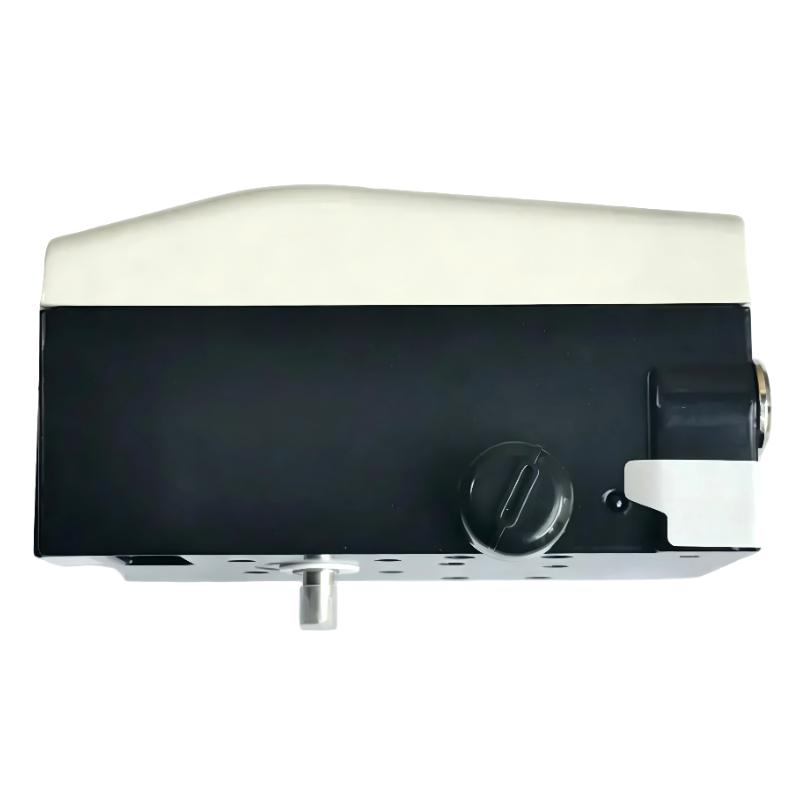

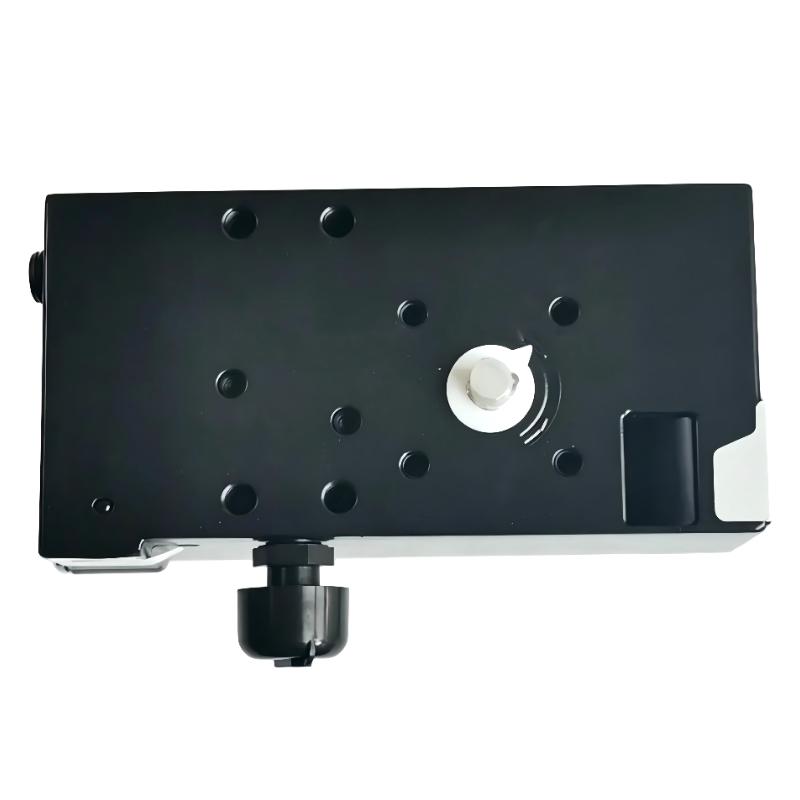

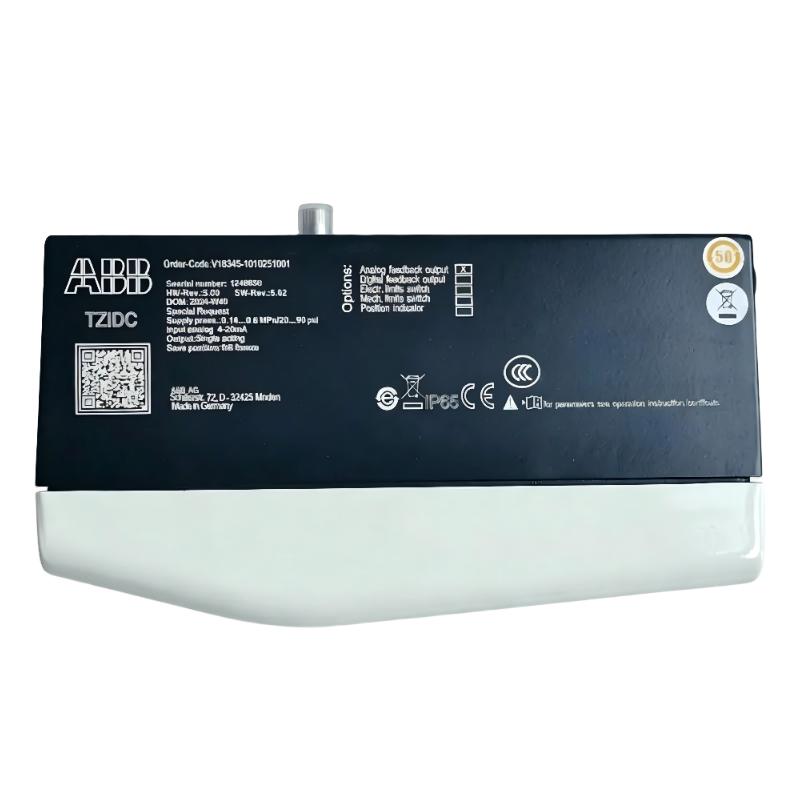

The ABB V18345-1010251001 is a TZIDC-120 intelligent electro-pneumatic valve positioner designed to control and accurately position valve actuators. It receives a 4–20 mA control signal from the process control system and converts the command into a corresponding pneumatic output for the actuator. The positioner can be used with both linear and rotary actuators when the appropriate mechanical mounting arrangement is provided. It also supports analog 4–20 mA position feedback, allowing the control system to monitor the actual valve position. The combination of electronic control, pneumatic actuation and feedback makes it suitable for industrial process-control applications where stable and accurate valve positioning is required.

2. What input signal does the V18345-1010251001 use?
This configuration uses a two-wire 4–20 mA input signal. The input current represents the desired valve position according to the configured control action. In direct action, a lower input signal corresponds to the lower end of the configured travel range and the higher signal corresponds to the upper end. Reverse action can also be configured when the application requires the opposite relationship between input signal and valve travel. During commissioning, the input wiring should be checked carefully and the control-system signal should be verified before performing automatic calibration. A stable and correctly scaled 4–20 mA signal is important for achieving accurate positioning.

3. What does the fail-freeze function mean on this positioner?
The V18345-1010251001 uses a single-acting output with a fail-freeze function. In the event of an electrical failure, the pneumatic output is designed to maintain the actuator at its existing position rather than intentionally driving it immediately toward a predefined open or closed position. This behavior can be useful in applications where maintaining the current valve position is preferred during a temporary electrical interruption. The actual process safety requirement should always be considered when selecting a fail-safe arrangement. Before commissioning, the fail behavior should be verified under controlled conditions to ensure that the actuator and process respond as intended.

4. Can the V18345-1010251001 be used with both linear and rotary valves?
Yes. The TZIDC-120 platform is designed for use with both linear and rotary actuators when the correct mechanical mounting arrangement is used. Linear actuator installation can follow DIN/IEC 534 and NAMUR-related mounting requirements, while rotary actuator applications can use the VDI/VDE 3845 mounting arrangement. Correct mechanical coupling is essential because the positioner must accurately detect the actuator movement. After installation, the mechanical linkage should be checked for free movement and correct travel before automatic calibration. Incorrect linkage geometry or mechanical looseness can cause positioning errors even when the electronic and pneumatic sections of the positioner are functioning normally.

5. How should the pneumatic supply for the V18345-1010251001 be configured?
The recommended supply pressure range for this configuration is 1.4–6 bar, equivalent to approximately 20–90 psi. The supplied instrument air should be clean and dry because moisture, oil and particulate contamination can affect pneumatic components and long-term positioning stability. The air connection uses a 1/4-18 NPT thread. The supply pressure should also remain within the allowable pressure range of the connected actuator. Excessive pressure should not be used simply to obtain faster actuator movement. During commissioning, check the pneumatic tubing and fittings for leakage and confirm that the actuator responds smoothly across the complete operating range.

6. How can the V18345-1010251001 be configured for different valve characteristics?
The positioner supports several control characteristics, including linear and equal-percentage curves. It can also be configured with a freely adjustable characteristic using up to 20 reference points. This allows the relationship between the 4–20 mA command and actual valve travel to be adapted to the requirements of the process and actuator. When configuring the characteristic, the technician should consider the actual valve behavior and process requirements rather than selecting a curve arbitrarily. After changing the characteristic, the complete valve travel should be checked to confirm that the command signal, actuator movement and feedback signal remain correctly coordinated.

7. What should be checked if the valve position is unstable or inaccurate?
Troubleshooting should begin with the complete control loop. First verify that the 4–20 mA input signal is stable and correctly scaled. Next inspect the pneumatic supply for pressure fluctuations, leakage, contamination or restricted airflow. The mechanical connection between the positioner and actuator should also be checked for looseness, excessive friction or incorrect adjustment. The valve stem or rotary mechanism should move freely throughout the required travel. If the mechanical and pneumatic systems are normal, check the position feedback and positioner configuration, including the selected control characteristic, dead band and tolerance band. Performing an appropriate automatic calibration or commissioning procedure may be necessary after mechanical work or replacement.

8. How should the ABB V18345-1010251001 be commissioned after installation?
After mechanical installation, confirm that the positioner is securely mounted and correctly coupled to the actuator. Connect the 4–20 mA input and analog feedback wiring according to the control-system design, then connect a clean and dry pneumatic supply within the specified pressure range. Before applying operating commands, inspect all pneumatic connections for leakage and verify that the actuator can move freely. Configure the required direct or reverse action and valve characteristic, then perform the applicable automatic calibration or manual adjustment procedure. Check the full actuator travel and compare the commanded position with the actual position feedback. Finally, verify the 4–20 mA feedback signal throughout the operating range and confirm that the valve responds smoothly and repeatably to changes in the control signal.
