1. What is the ABB V18345-1010261001 mainly used for?

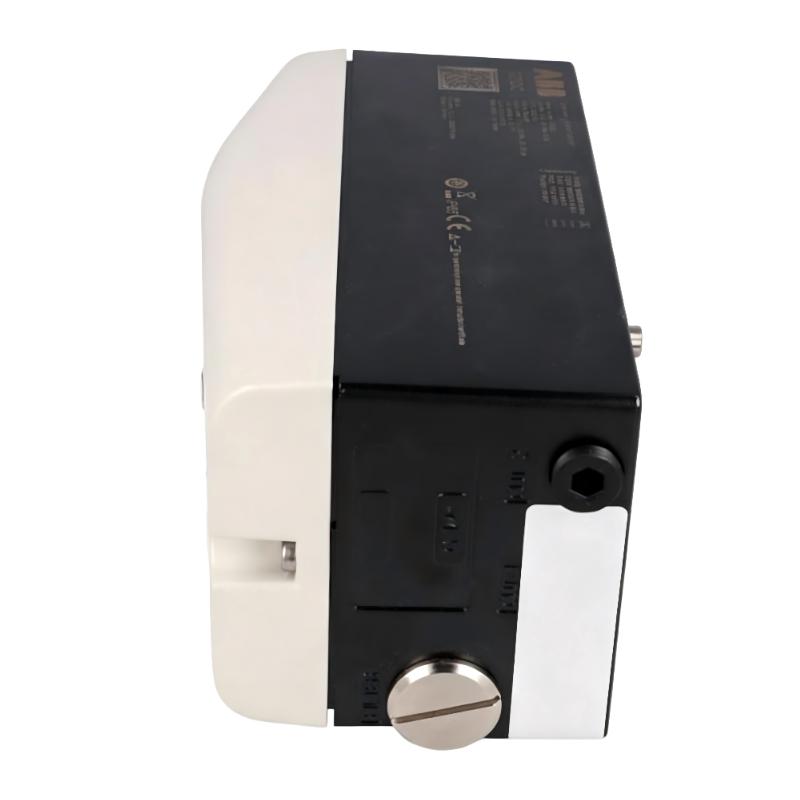

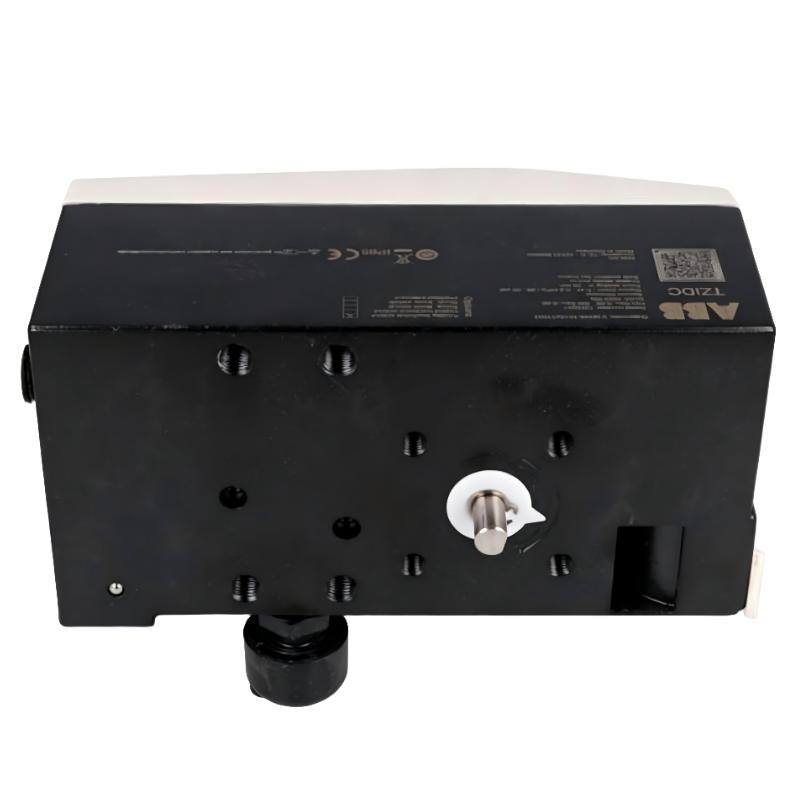

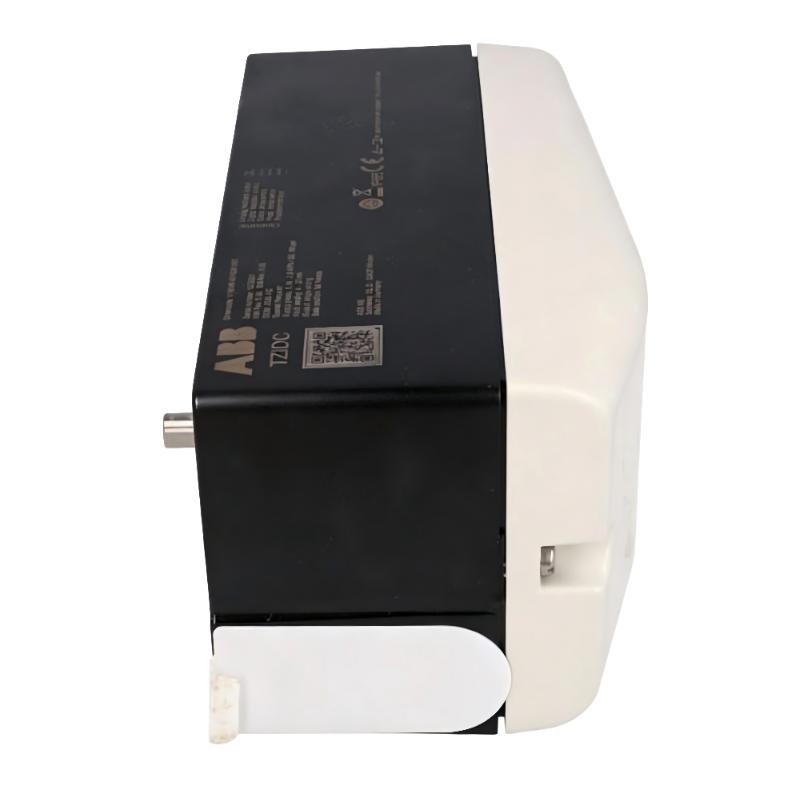

The ABB V18345-1010261001 is an intelligent electro-pneumatic valve positioner from the TZIDC series. It is primarily used to accurately control the position of a valve actuator according to a control signal from the process control system. The positioner receives a 4–20 mA command signal and continuously adjusts the pneumatic output according to the difference between the required position and the actual actuator position. This model is configured for single-acting actuators and provides 4–20 mA analog position feedback. The feedback signal can be transmitted to the control system for closed-loop control, operating-status monitoring and troubleshooting.

2. What control input signal does the V18345-1010261001 use?
The V18345-1010261001 uses a two-wire 4–20 mA input signal. The control system changes the loop current to communicate the required valve position, while the positioner interprets the signal and adjusts the pneumatic output to move the actuator to the corresponding position. During commissioning, the 4–20 mA signal should be checked first to ensure that it is stable and correctly scaled. Signal polarity, loop power and the control-system range should also be verified. An unstable or incorrectly configured input signal can cause position deviation, repeated adjustment or failure during automatic calibration, even when the positioner itself is functioning correctly.

3. What is the purpose of the fail-freeze function on the V18345-1010261001?
The V18345-1010261001 is configured with a single-acting fail-freeze function. If an electrical failure or control-signal interruption occurs, the positioner is designed to maintain the actuator near its existing position rather than immediately forcing the valve fully open or fully closed. This behavior can be useful in processes where maintaining the current valve position during a temporary control interruption is preferred. However, the appropriate failure response must always be determined according to the process safety requirements. After installation, the fail response should be tested under controlled maintenance conditions to confirm that the valve behaves as required when the control signal is interrupted.

4. Does the V18345-1010261001 provide valve position feedback?
Yes. This configuration provides a 4–20 mA analog position feedback signal. The actual actuator position is converted into a corresponding current signal and transmitted to the control system. The control system can then compare the actual valve position with the commanded position for closed-loop control and condition monitoring. If the feedback value does not correspond to the actual valve position, the mechanical linkage, feedback mechanism, positioner configuration and feedback wiring should be inspected. After replacing or reinstalling the positioner, the zero point, full-scale position and feedback response throughout the complete travel range should also be verified.

5. What supply air pressure should be used with the V18345-1010261001?
The recommended supply air pressure range is 1.4–6 bar, equivalent to approximately 20–90 psi. The instrument air should be clean, dry and stable to prevent moisture, oil and particulate contamination from entering the positioner and affecting pneumatic performance. Insufficient air pressure can prevent the actuator from reaching the required position or significantly reduce its response speed, while unstable supply pressure can cause position fluctuations. The G 1/4 air connection and the complete pneumatic circuit should be checked for leakage during installation. The actual supply pressure must also remain within the permissible operating range of the connected actuator.

6. Can the V18345-1010261001 be used with both linear and rotary actuators?
Yes. The positioner can be used with both linear and rotary actuators when the appropriate mechanical mounting kit is installed. Linear actuator applications can use mounting arrangements based on DIN/IEC 534 and NAMUR requirements, while rotary actuator installations can use the VDI/VDE 3845 mounting arrangement. Correct mechanical coupling between the positioner and actuator is essential for accurate position measurement. Mechanical backlash, loose connections or incorrect mounting alignment can cause the detected travel to differ from the actual valve position. The mechanical system should therefore be checked carefully before automatic calibration is performed.

7. What should be checked if the valve position fluctuates with the V18345-1010261001?
Valve-position fluctuations can be caused by the input signal, pneumatic supply, mechanical components or positioner settings. The first step is to verify that the 4–20 mA command signal is stable. Next, check the supply air for pressure fluctuations and inspect pneumatic tubing and fittings for leakage. The actuator and valve linkage should then be examined for looseness, excessive friction, sticking or abnormal mechanical resistance. If the external electrical, pneumatic and mechanical systems are operating normally, check the position feedback, control characteristics, dead-band settings and other relevant parameters. If the positioner has recently been replaced or reinstalled, the correct automatic calibration procedure should also be performed. A systematic electrical, pneumatic, mechanical and configuration check is generally the most effective way to locate the source of unstable positioning.

8. How should the V18345-1010261001 be commissioned after installation?
After installation, first verify that the mechanical connection between the positioner and actuator is correct and secure and that the actuator can move freely throughout its complete operating range. Connect the 4–20 mA input circuit, 4–20 mA position-feedback circuit and pneumatic tubing, then confirm that the supply pressure is within the specified range. After powering the positioner, check the local display and operating status for abnormal indications or alarms. Configure the required control direction and valve parameters according to the application, then perform the appropriate automatic travel detection or calibration procedure. After calibration, apply different 4–20 mA command values and confirm that the valve reaches the corresponding positions smoothly. At the same time, verify that the feedback current accurately follows the actual valve position. Several complete opening and closing cycles should be performed to confirm that there is no excessive overshoot, oscillation, sticking or positioning error before the valve is returned to normal process control.
