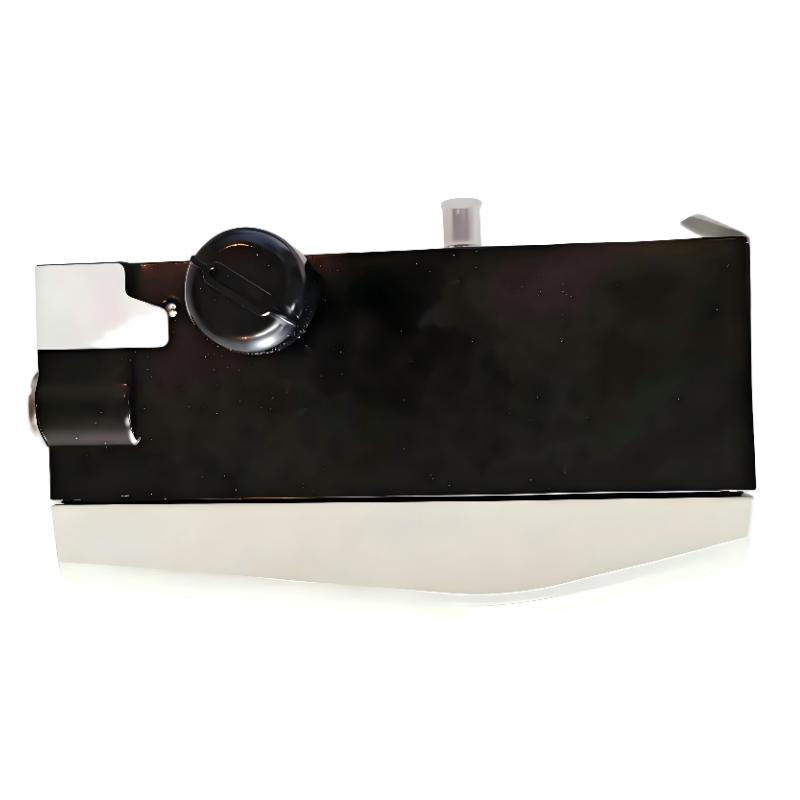

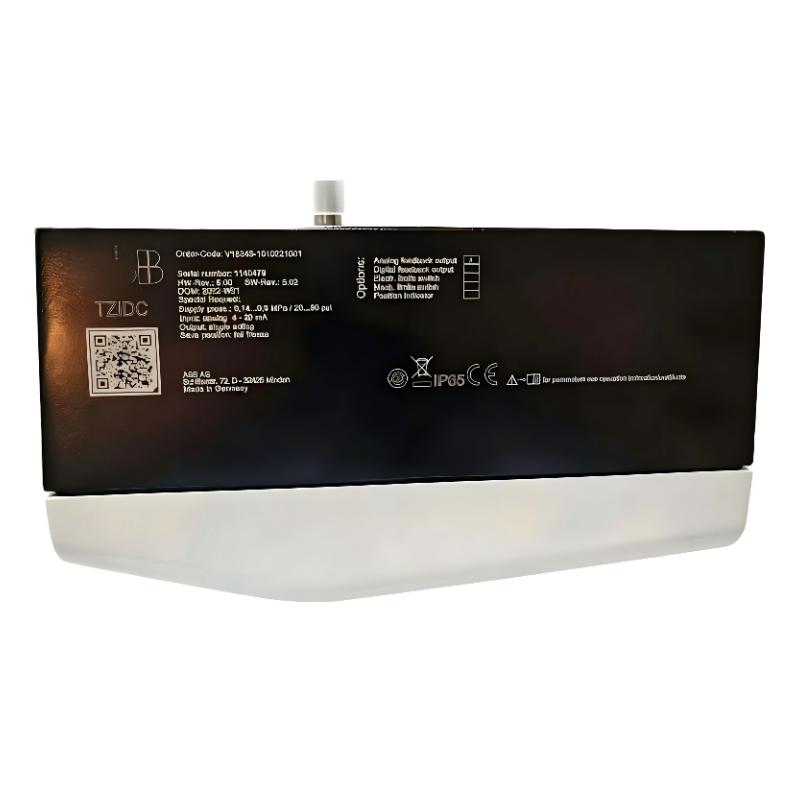

1. What is the ABB V18345-1010520001 used for?
The ABB V18345-1010520001 is a TZIDC intelligent electro-pneumatic valve positioner designed for precise control of double-acting pneumatic actuators. It receives a 4–20 mA control signal and adjusts the pneumatic output according to the required valve position. This model is configured with a fail-freeze or fail-locked function and does not include an analog 4–20 mA position feedback module. It is suitable for industrial process-control applications where reliable valve positioning is required and maintaining the existing valve position during loss of power, signal or air is an important operating requirement.

2. What is the fail-freeze function of the V18345-1010520001?
The V18345-1010520001 uses a fail-freeze configuration designed to maintain the valve position when defined failure conditions occur. The three-way protection concept can retain the actuator position in situations such as loss of electrical power, loss of the control signal or loss of instrument air. This can be particularly useful for processes where an uncontrolled valve movement could disturb operating conditions. The actual behavior should always be verified together with the connected actuator and valve because the complete pneumatic and mechanical arrangement determines the final response. A controlled failure test should be performed during commissioning when required by the process safety procedure.

3. What input signal does the V18345-1010520001 use?
The positioner uses a 4–20 mA control signal in a two-wire configuration. The input current represents the required valve position, and the internal electronic control system compares this command with the detected actuator position before adjusting the pneumatic output. During commissioning, the current loop should be checked for correct polarity, stable signal transmission and correct scaling. If the input signal fluctuates or does not correspond to the expected valve command, the actuator may repeatedly adjust or fail to reach the required position. Therefore, checking the control-system output should be one of the first steps when troubleshooting positioning problems.

4. Does this model have a 4–20 mA analog position feedback output?
No. The V18345-1010520001 configuration is specified without an analog position feedback module. The positioner can still perform internal position control using its actuator-position sensing system, but an external 4–20 mA feedback signal for directly transmitting valve position to a PLC or DCS is not included in this configuration. If continuous analog position monitoring is required by the control system, the selected positioner configuration should be checked carefully before installation. Using a configuration with the appropriate feedback module may be necessary for applications requiring direct analog valve-position feedback.

5. What supply air pressure is required for the V18345-1010520001?
The recommended supply pressure range is 1.4–6 bar, equivalent to approximately 20–90 psi. The instrument air should be clean, dry and free from excessive moisture, oil and particulate contamination. Stable air pressure is particularly important for a double-acting actuator because both actuator directions depend on reliable pneumatic control. Before commissioning, inspect the pneumatic tubing and fittings for leakage and confirm that the pressure remains stable while the actuator moves. The actual pressure should also remain within the permissible operating range of the connected actuator. Insufficient or unstable supply pressure can result in slow movement, incomplete travel or unstable positioning.

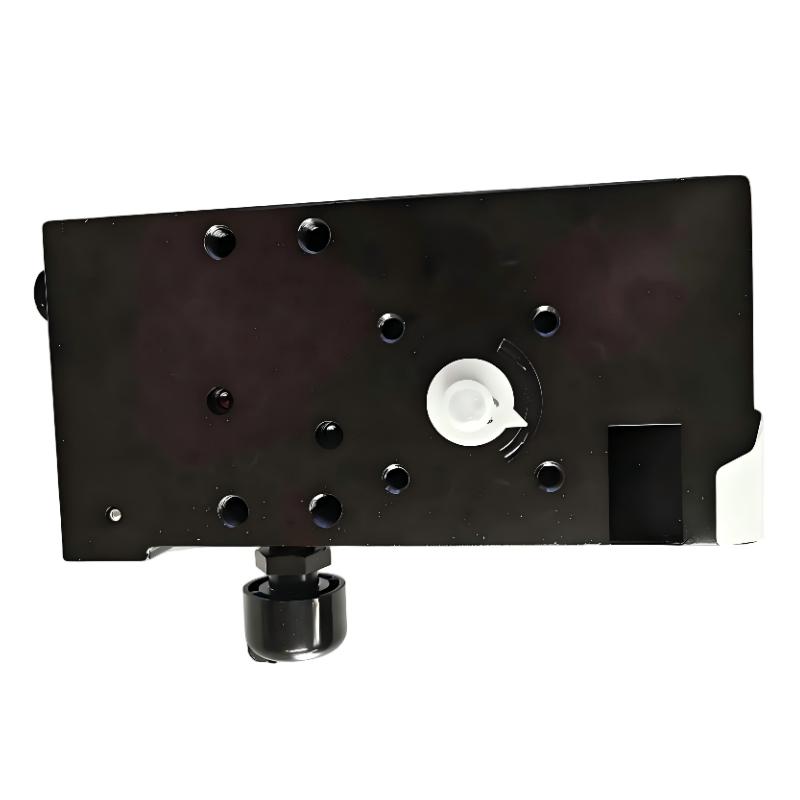

6. Can the V18345-1010520001 be installed on both linear and rotary actuators?
Yes. The TZIDC platform is designed for use with suitable pneumatic linear and rotary actuators. Linear actuator installations can use mounting arrangements based on DIN/IEC 534, while rotary actuator applications can use VDI/VDE 3845 mounting arrangements. The feedback linkage between the positioner and actuator must be installed correctly so that the positioner can accurately detect the complete actuator movement. Excessive mechanical backlash, loose connections or incorrect alignment can produce positioning errors. Before automatic commissioning, the actuator should be moved through its complete range to confirm that the mechanical linkage operates smoothly and without abnormal resistance.

7. What should be checked if the V18345-1010520001 cannot reach the commanded valve position?
Start by checking the 4–20 mA input signal and confirming that the control system is sending the expected command. Next, verify the pneumatic supply pressure and inspect the air circuit for leakage, restrictions or contamination. Because this model uses a double-acting actuator configuration, both pneumatic directions should be checked to ensure that the actuator can move correctly in both directions. The mechanical linkage should also be inspected for looseness, incorrect adjustment or excessive friction. If the electrical, pneumatic and mechanical systems are normal, check the positioner configuration and repeat the appropriate automatic commissioning procedure. Valve friction or process forces can also prevent the actuator from reaching the target position and should not be overlooked during troubleshooting.

8. How should the V18345-1010520001 be commissioned after installation?
After installation, verify that the positioner is securely mounted and that the mechanical connection to the double-acting actuator is correctly aligned. Connect the 4–20 mA control loop and the required pneumatic supply, then check the air pressure and inspect all pneumatic connections for leakage. Power up the positioner and use the local operating controls to check the operating status. Configure the required control direction and valve characteristics, then perform the appropriate automatic commissioning procedure. The positioner can automatically determine relevant zero-point, span and control parameters during commissioning. After calibration, apply several different input-current values and observe the actuator response in both directions. Confirm that the actuator reaches the corresponding positions smoothly and repeatedly. Finally, test the specified fail-freeze behavior under controlled conditions to verify that the valve remains in the required position during the relevant failure conditions.
