1. What is the ABB V18345-1010521001 used for?

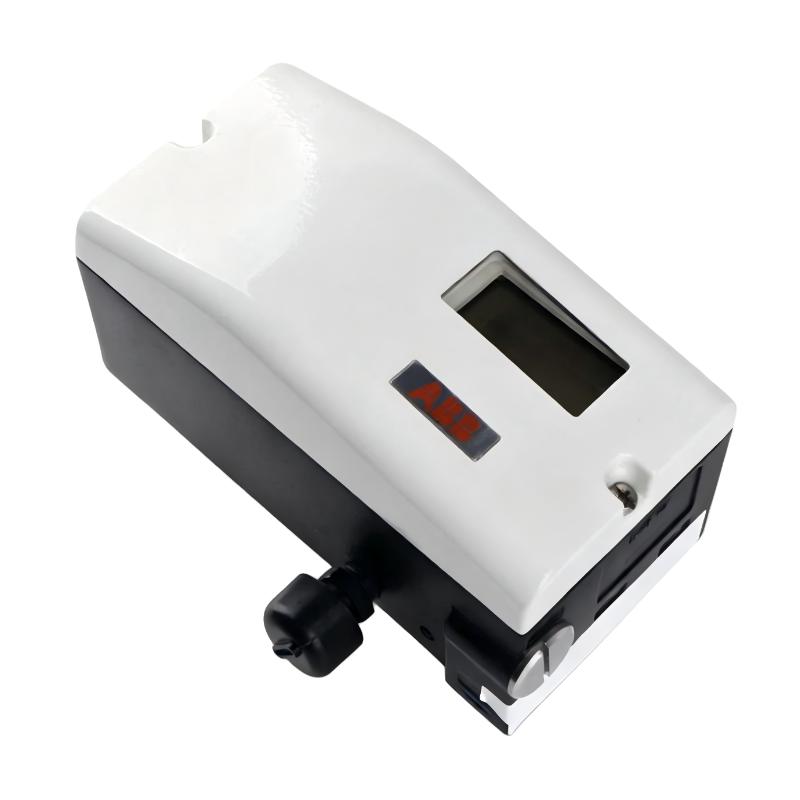

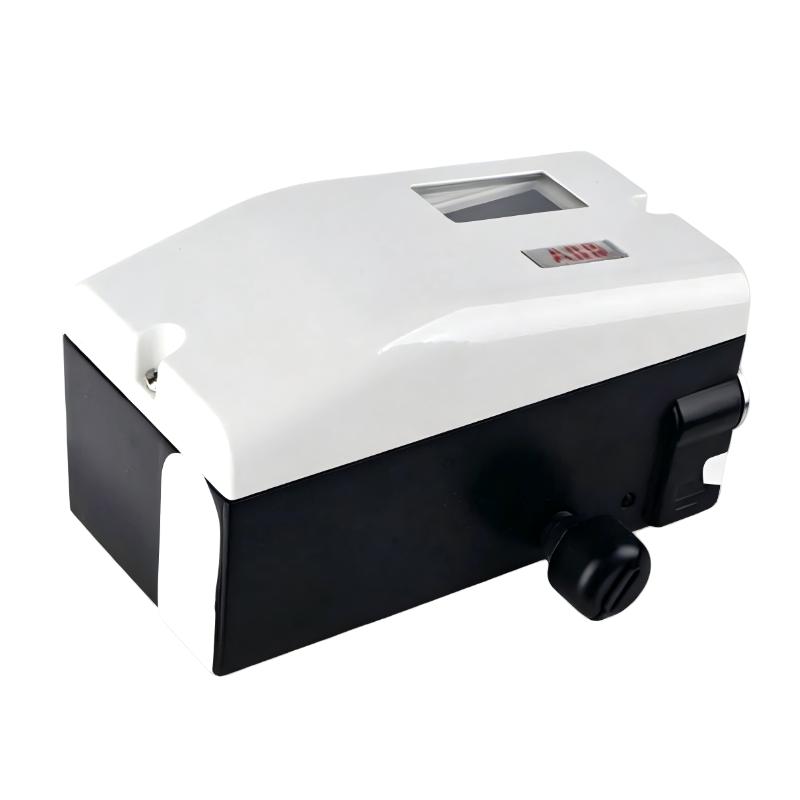

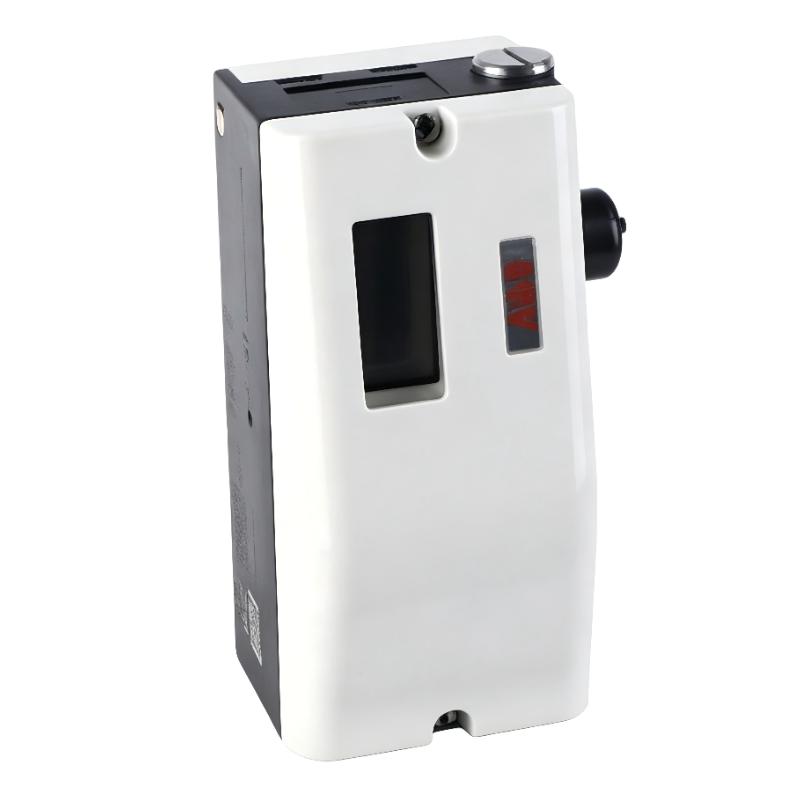

The ABB V18345-1010521001 is an intelligent TZIDC electro-pneumatic valve positioner designed for precise control of pneumatic valve actuators. It receives a 4–20 mA command from a PLC, DCS or other process control system and regulates the pneumatic output to position the actuator accurately. This configuration is designed for double-acting actuators and includes a fail-freeze function. It also supports 4–20 mA analog position feedback for transmitting the actual valve position to a control or monitoring system.

2. What type of input signal does the V18345-1010521001 require?
The positioner uses a two-wire 4–20 mA input signal. The input current represents the required valve position, while the internal control system compares the target position with the detected actuator position and adjusts the pneumatic output accordingly. During commissioning, the 4–20 mA loop should be checked for correct polarity, stable current and proper scaling. An unstable or incorrectly configured input signal can cause repeated actuator movement or inaccurate positioning, so the control-system output should be verified before troubleshooting the positioner itself.

3. What is the purpose of the fail-freeze function?
The V18345-1010521001 uses a double-acting fail-freeze configuration. Under defined failure conditions, the pneumatic control circuit is designed to keep the actuator as close as possible to its existing position rather than immediately driving the valve fully open or fully closed. This function can be useful in processes where sudden valve movement could negatively affect operation. The actual failure response depends on the connected actuator, valve and pneumatic circuit, so a controlled fail-condition test should be performed during commissioning when required by the application.

4. Does the V18345-1010521001 support analog valve-position feedback?
Yes. This configuration includes a plug-in analog position feedback module providing a 4–20 mA two-wire signal. The feedback can be connected to a PLC, DCS or other monitoring system to indicate the actual valve position. Comparing the command signal with the feedback signal can help identify incomplete travel, mechanical resistance, incorrect calibration or other positioning problems. After installation or replacement, the feedback should be checked at several different valve positions to confirm correct operation throughout the working range.

5. What supply air pressure is required?
The specified supply-air pressure range is 1.4–6 bar, approximately 20–90 psi. Instrument air should be clean, dry and free from excessive moisture, oil and particulate contamination. The model uses a 1/4-18 NPT pneumatic connection. During installation, inspect the pneumatic circuit for leaks, restrictions and pressure fluctuations. Because this is a double-acting configuration, both actuator directions should be tested to ensure that the pneumatic supply is sufficient for the complete operating cycle.

6. Can the V18345-1010521001 be installed on linear and rotary actuators?
Yes. The TZIDC series can be installed on suitable pneumatic linear and rotary actuators. Linear applications can use mounting arrangements based on DIN/IEC 534 and NAMUR requirements, while rotary applications can use VDI/VDE 3845 mounting arrangements. Correct mechanical alignment is essential because the positioner must accurately detect actuator movement. Loose linkages, excessive mechanical backlash or incorrect mounting can cause positioning errors even when the electrical and pneumatic sections are operating normally. The actuator should therefore be checked through its complete travel before automatic commissioning.

7. What should be checked if the valve cannot reach the commanded position?
First check the 4–20 mA input signal and confirm that the control system is sending the correct command. Then verify the supply-air pressure and inspect pneumatic tubing and fittings for leaks, restrictions or insufficient pressure. Since the model uses a double-acting output, both actuator directions should be checked separately. Next, inspect the mechanical feedback linkage for looseness, excessive friction or incorrect adjustment. If the electrical, pneumatic and mechanical systems are normal, check the position feedback signal and positioner parameters and consider repeating the automatic commissioning procedure. Valve friction and process forces should also be considered because they can prevent the actuator from reaching the required position.

8. How should the V18345-1010521001 be commissioned after installation?
First make sure the positioner is securely mounted and correctly connected to the double-acting actuator. Connect the 4–20 mA control loop, analog position feedback circuit and pneumatic supply according to the application requirements. Check the supply pressure and confirm that all pneumatic connections are leak-free. After powering the unit, use the local operating panel to verify the operating status and configure the required control characteristics. Run the automatic commissioning procedure to determine the zero point, span and appropriate control parameters. After calibration, apply several different 4–20 mA commands and verify that the actuator reaches the corresponding positions smoothly in both directions. Check that the 4–20 mA feedback signal corresponds to the actual valve position. Finally, perform several complete travel cycles and conduct a controlled fail-freeze test when required by the application.
