1. What is the ABB V18345-1020521001 used for?

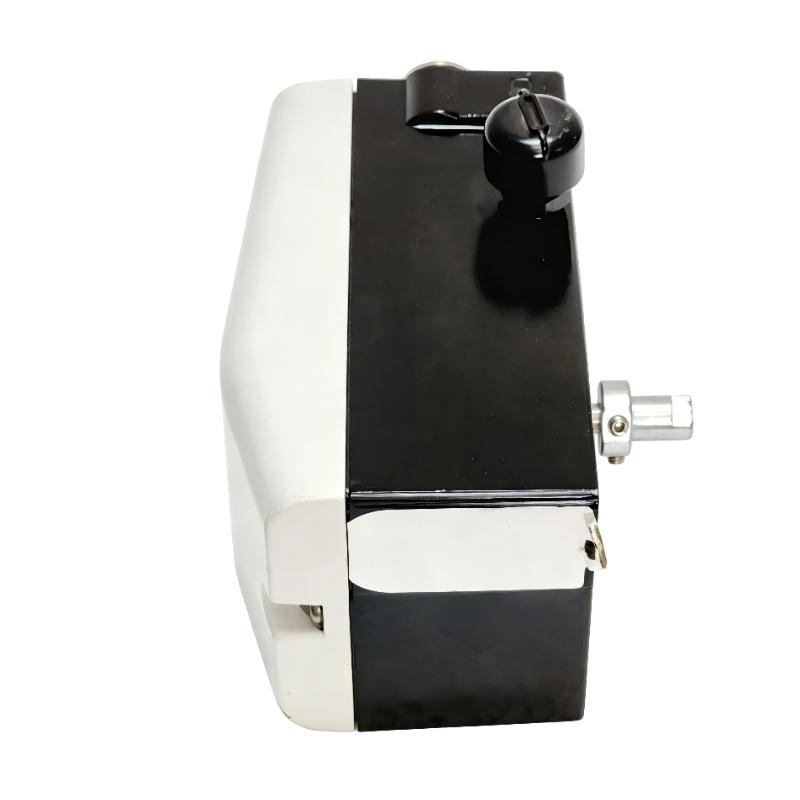

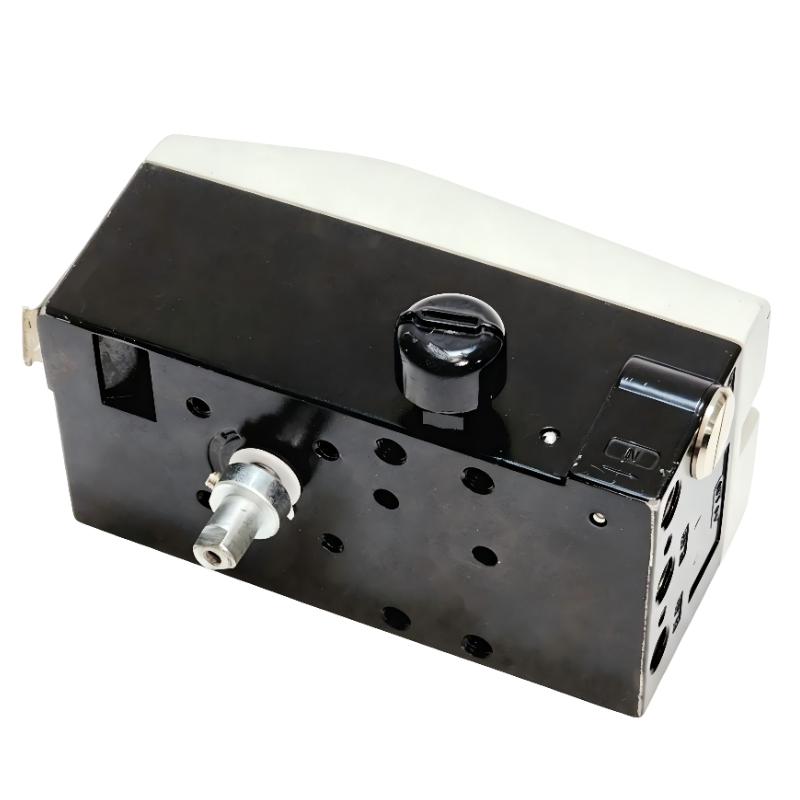

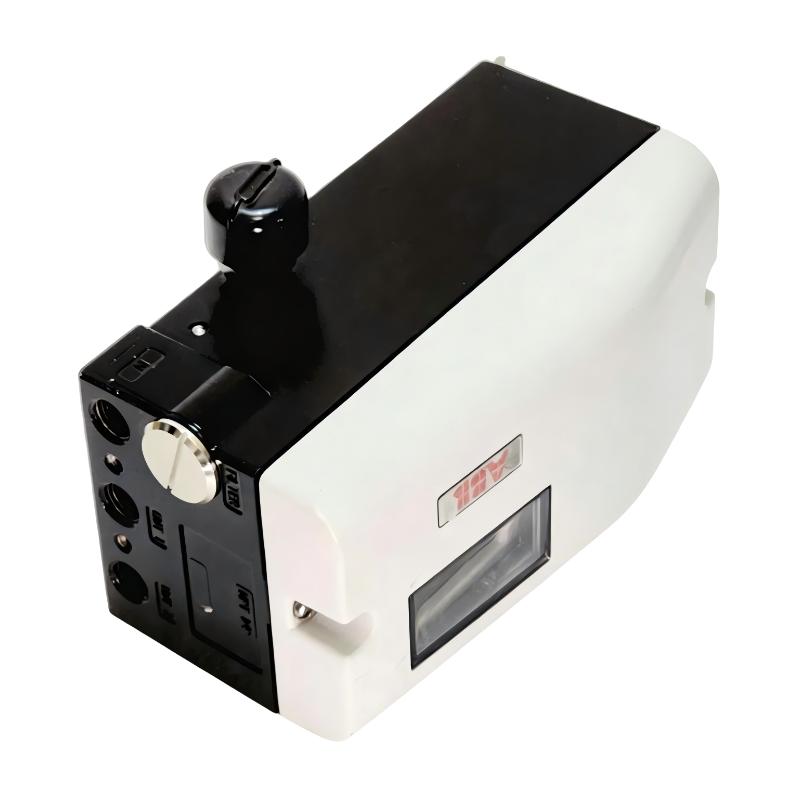

The ABB V18345-1020521001 is an intelligent electro-pneumatic valve positioner designed for pneumatic control valves in industrial process automation systems. It receives a 4–20 mA command from a control system and compares the requested valve position with the actual position obtained through the feedback mechanism. When a position deviation is detected, the positioner adjusts its pneumatic output to move the actuator toward the required position. This closed-loop operation helps maintain stable valve positioning and supports accurate regulation of process variables such as flow, pressure, temperature, and level.

2. How does the V18345-1020521001 perform closed-loop valve positioning?

The positioner continuously compares the commanded valve position with the actual actuator position. The control system provides the target value through the electrical input, while the feedback mechanism supplies the actual position. If there is a difference between the two values, the internal controller modifies the pneumatic output to move the actuator in the appropriate direction. As the valve approaches the target position, the output is adjusted to reduce the remaining deviation. This continuous correction allows the positioner to compensate for changes in actuator load, valve friction, and normal process disturbances.

3. Does the V18345-1020521001 support HART communication?

Yes. The V18345-1020521001 supports HART digital communication in addition to its 4–20 mA two-wire control loop. HART communication can be used during commissioning, maintenance, and troubleshooting to access supported configuration parameters, operating information, and diagnostic data. A compatible HART communicator can help technicians verify device settings and operating conditions without relying exclusively on local measurements. This is particularly useful when the valve assembly is installed in a location where direct access is difficult.

4. What types of pneumatic actuators are compatible with this positioner?

The V18345-1020521001 is designed for compatible pneumatic linear and rotary actuators. The appropriate mechanical mounting and feedback arrangement depends on the actuator design. For linear actuators, the feedback system must accurately follow the actuator’s linear travel. For rotary actuators, the feedback mechanism must correctly transmit angular movement. During installation, the feedback linkage should be aligned carefully and secured properly. Excessive backlash, loose connections, incorrect adjustment, or mechanical interference can result in inaccurate position feedback and poor valve positioning.

5. What should be checked if the valve does not reach the commanded position?

The troubleshooting process should begin with the 4–20 mA input signal. Verify that the positioner is receiving a stable signal corresponding to the command from the PLC, DCS, or other control system. Next, inspect the instrument-air supply and confirm that sufficient pressure is available for the actuator. Check pneumatic tubing and fittings for leaks or restrictions. The mechanical feedback linkage should also be inspected for looseness, incorrect adjustment, excessive backlash, or obstruction. If these areas are normal, review the positioner’s configuration and commissioning parameters. Persistent problems may also be caused by excessive valve friction, insufficient actuator force, actuator deterioration, or mechanical problems inside the valve.

6. How should the V18345-1020521001 be commissioned after installation?

After installation, verify that the positioner is securely mounted and that the feedback mechanism accurately follows the actuator movement. Connect the instrument-air supply and check the pneumatic circuit for leakage and stable pressure. Verify the 4–20 mA electrical connection and confirm that the control signal is within the expected operating range. Configure the positioner according to the installed actuator and valve arrangement, then perform the applicable automatic commissioning procedure. The valve should subsequently be operated across its complete working range. Check the movement direction, position feedback, response behavior, positioning stability, and diagnostic status before returning the equipment to normal process operation.

7. What can cause unstable positioning or valve oscillation?

Valve oscillation can result from several different conditions. Incorrect control parameters may cause the positioner to over-correct small deviations around the target position. Mechanical backlash or loose feedback connections can cause inconsistent position measurements. Pneumatic problems such as unstable air pressure, leakage, contaminated instrument air, or restricted tubing can produce irregular actuator movement. Excessive valve friction may also cause the actuator to move intermittently rather than smoothly. A systematic troubleshooting process should therefore inspect the electrical input signal, pneumatic system, mechanical feedback mechanism, actuator, and valve before modifying the positioner’s control parameters.

8. What should be checked when replacing the V18345-1020521001?

Before replacement, confirm the complete model number and verify compatibility with the existing valve, pneumatic actuator, control signal, feedback arrangement, and mounting system. Follow the applicable site safety procedures and isolate the electrical and pneumatic supplies before removing the existing unit. Record the original wiring, pneumatic connections, mechanical mounting, feedback linkage, and important configuration settings. After installing the replacement, verify the 4–20 mA loop, pneumatic supply, mechanical feedback, and HART communication where applicable. Complete the required configuration and commissioning procedure, then perform a full valve-travel test. Final verification should confirm correct position feedback, stable control response, proper diagnostic status, and reliable operation throughout the normal process operating range.
