1. What is the ABB V18345-1020551001 used for?

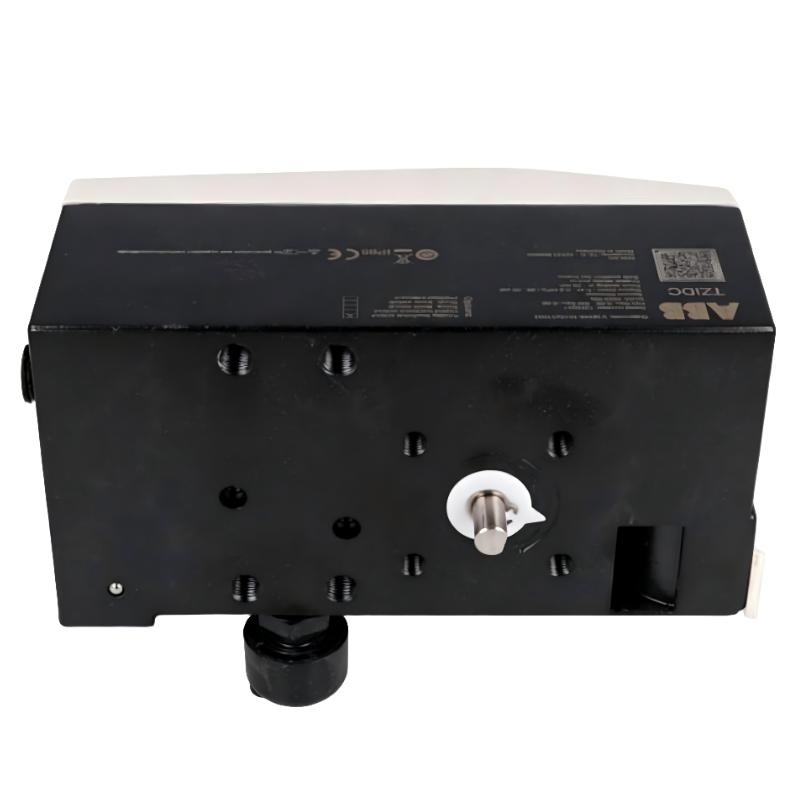

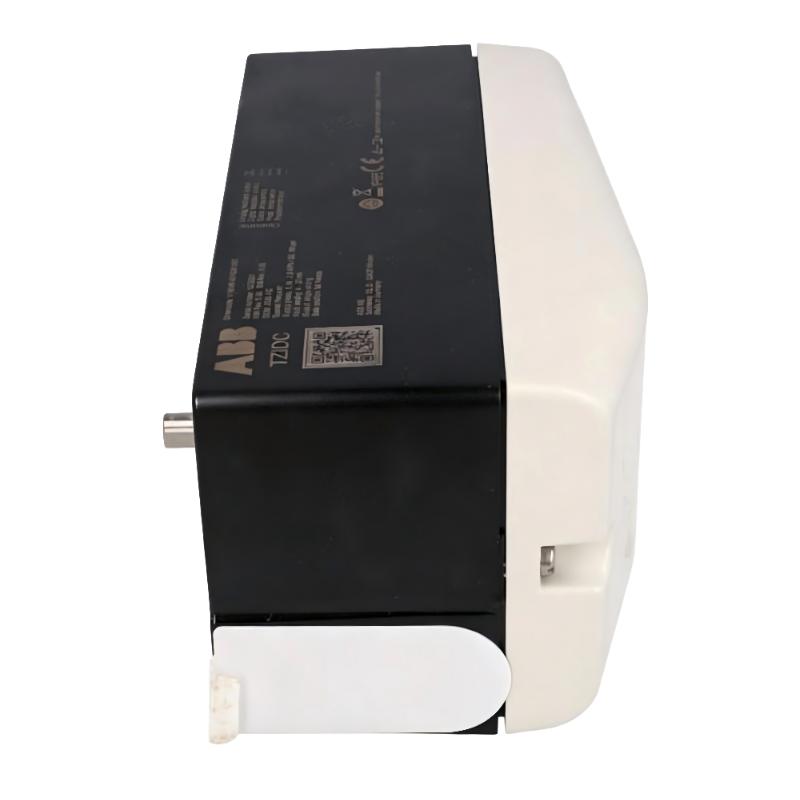

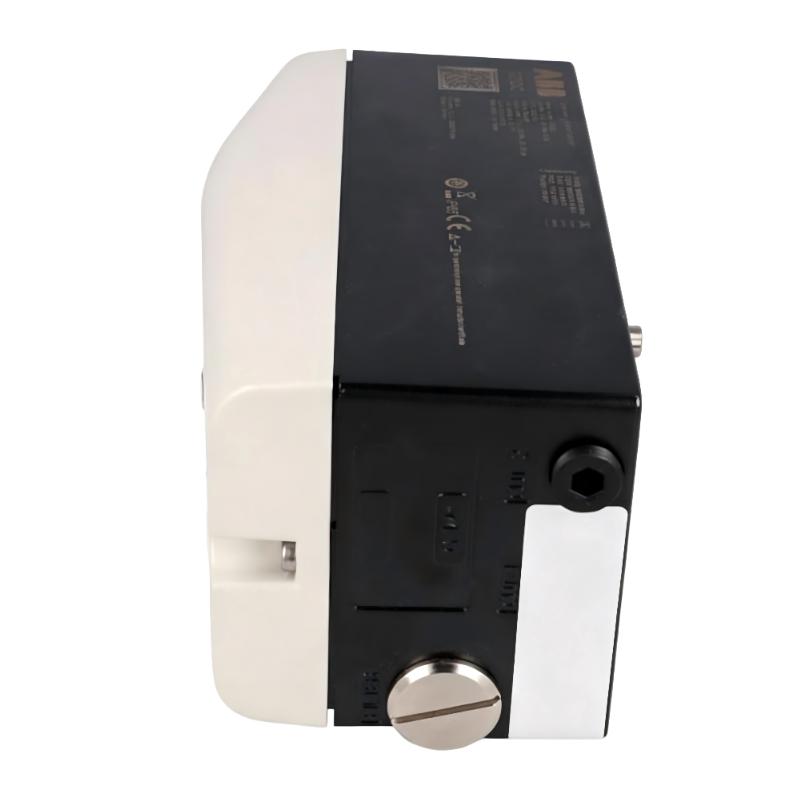

The ABB V18345-1020551001 is a TZIDC digital electro-pneumatic valve positioner designed for controlling pneumatic control valves. It receives a 4–20 mA command from the process control system and continuously compares the requested valve position with the actual actuator position. When a deviation occurs, the positioner adjusts its pneumatic output to move the actuator toward the required position. This makes it suitable for demanding industrial applications where stable and accurate valve positioning is required, including flow, pressure, temperature, and steam control systems.

2. Is the V18345-1020551001 suitable for double-acting actuators?

Yes. The V18345-1020551001 configuration is used with double-acting pneumatic actuators. The positioner controls the pneumatic pressure on the actuator to move the valve in either direction according to the control command. Correct pneumatic connections are important because incorrect tubing or actuator configuration can cause the valve to move in the wrong direction or fail to respond correctly. During commissioning, the actuator travel direction should be checked carefully and the feedback mechanism should be adjusted so that the actual valve position corresponds accurately with the positioner’s displayed value.

3. What input signal does the V18345-1020551001 use?

The positioner uses a 4–20 mA analog input signal in a two-wire configuration. The signal represents the desired valve position from a PLC, DCS, or other process control system. Before commissioning, technicians should verify that the current loop is correctly wired and that the signal remains stable throughout the operating range. A fluctuating or incorrect input signal can cause unstable valve movement or prevent the actuator from reaching the required position. Loop polarity and electrical connections should therefore be checked before investigating mechanical or pneumatic problems.

4. Does the V18345-1020551001 support HART communication?

Yes. HART digital communication is available for configuration, commissioning, monitoring, and troubleshooting. A compatible HART communication device can be used to access supported operating parameters and diagnostic information while the conventional 4–20 mA signal remains available for valve control. This allows technicians to obtain additional information from the positioner without requiring a separate communication network. HART communication can be especially useful when diagnosing positioning problems or checking configuration parameters during maintenance.

5. What supply pressure is required for this valve positioner?

The specified pneumatic supply range for this configuration is 1.4–6 bar, corresponding to approximately 20–90 psi. A clean and stable instrument-air supply is important for reliable actuator movement. If the supply pressure is insufficient, the actuator may not generate enough force to move the valve correctly. Excessive pressure or unstable air supply can also affect positioning behavior. During troubleshooting, pressure should be checked at the positioner’s pneumatic supply connection, while the complete air circuit should also be inspected for leaks, restrictions, contaminated air, or pressure losses.

6. How should the V18345-1020551001 be commissioned after installation?

After installation, verify the electrical wiring, pneumatic connections, actuator configuration, and mechanical feedback linkage. Confirm that the 4–20 mA input signal is available and that the pneumatic supply is within the required operating range. The actuator should be moved through its travel range while checking that the feedback mechanism correctly follows the valve movement. The local operating interface can then be used for configuration and automatic adjustment. After commissioning, perform several complete valve movements and verify the direction of travel, actual position feedback, response behavior, and stability. If the positioner is connected to a DCS or PLC, the control system should also be checked to confirm correct command and feedback signals.

7. What are the common causes of valve positioning problems?

Positioning problems can originate from the electrical loop, pneumatic system, mechanical linkage, actuator, or valve itself. A fluctuating 4–20 mA signal can cause inconsistent commands, while insufficient air pressure or leakage can prevent the actuator from generating the required movement. Mechanical backlash, incorrect feedback adjustment, or a loose linkage can result in inaccurate position information. Valve stem friction, actuator wear, internal valve obstruction, and excessive process forces can also cause the actual position to differ from the requested position. Troubleshooting should therefore proceed systematically rather than immediately replacing the positioner.

8. What should be checked when replacing the V18345-1020551001?

Before replacement, verify the complete part number and confirm that the replacement positioner has the correct configuration for the existing valve and double-acting actuator. Record the original electrical wiring, pneumatic connections, actuator travel direction, feedback linkage, and important configuration settings before removing the existing unit. After installation, check the 4–20 mA loop and pneumatic supply, then verify the mechanical feedback connection. Complete the required configuration and automatic adjustment procedure before returning the valve to service. A final functional test should cover the complete actuator travel, position feedback, control response, HART communication where applicable, and stable operation under normal process conditions.
