1. What is the ABB V18345-1021120001 mainly used for?

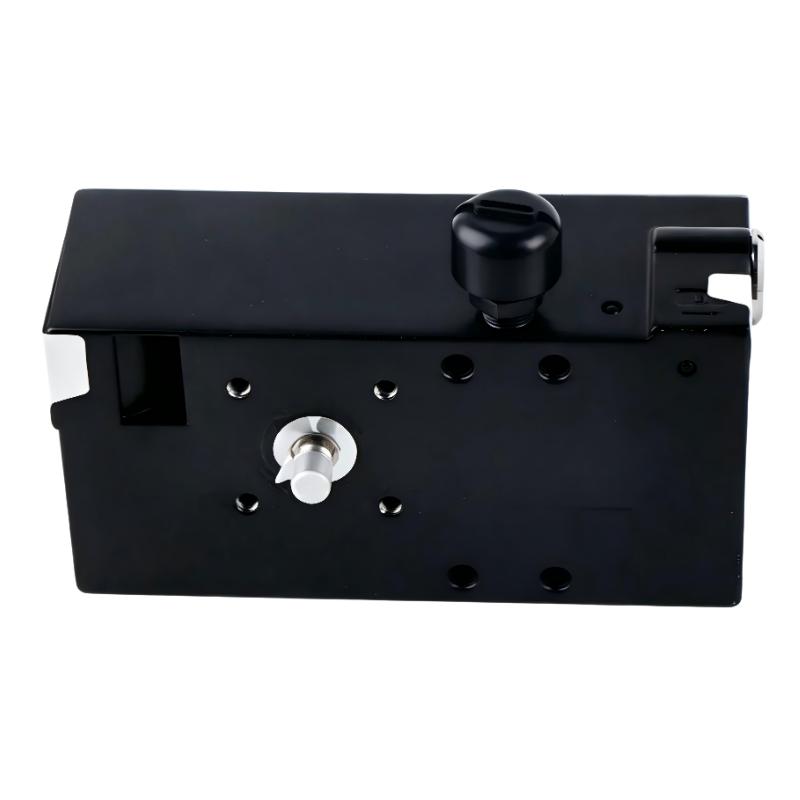

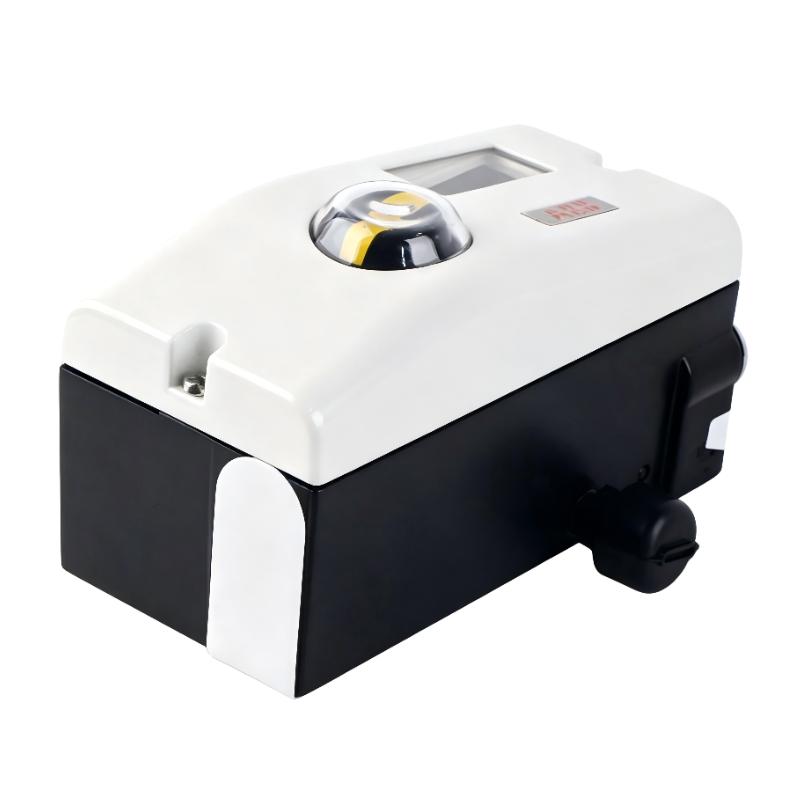

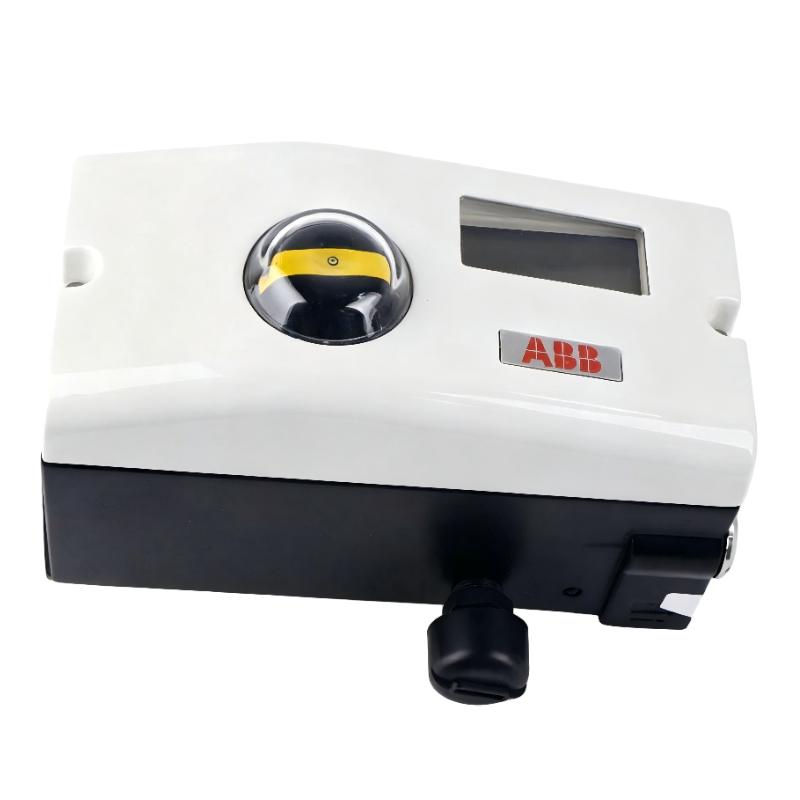

The ABB V18345-1021120001 is a TZIDC-series intelligent electro-pneumatic valve positioner designed for pneumatic control valves used in industrial process control systems. It receives a 4–20 mA command from a PLC, DCS, or other control system and continuously monitors the actual actuator position through its feedback mechanism. When a difference exists between the commanded and actual positions, the positioner automatically adjusts its pneumatic output to move the actuator toward the required position. This provides stable closed-loop valve positioning for demanding process applications.

2. How does the V18345-1021120001 achieve closed-loop valve positioning?

The positioner first receives the target valve position from the control system and then obtains the actual actuator position through its feedback mechanism. Its internal control system continuously compares these two values. If a position error is detected, the positioner changes the pneumatic output so that the actuator moves toward the required position. As the valve approaches the target, the output is adjusted accordingly to reduce the remaining deviation. This closed-loop process helps compensate for normal changes in actuator load, valve friction, and process operating conditions.

3. Does the V18345-1021120001 support HART communication?

Yes. The V18345-1021120001 uses a 4–20 mA control loop and supports HART digital communication. HART can be used for device configuration, commissioning, operating-status checks, and troubleshooting. Maintenance personnel can use a compatible HART communication device to access supported parameters and diagnostic information without replacing the conventional 4–20 mA control method. This makes it easier for technicians to verify operating conditions and identify configuration or positioning problems during field maintenance.

4. What types of pneumatic actuators can be used with the V18345-1021120001?

The positioner is intended for compatible pneumatic linear and rotary actuators. The appropriate mounting arrangement and feedback mechanism depend on the actuator’s mechanical design. For linear actuators, the feedback mechanism must accurately follow linear movement, while rotary actuator applications require correct transmission of angular movement. After installation, the actuator direction and feedback direction should be checked carefully. Loose feedback connections, excessive mechanical backlash, or incorrect mounting can produce inaccurate position feedback and result in poor valve positioning.

5. What should be checked if the V18345-1021120001 cannot move the valve to the commanded position?

Start by checking the 4–20 mA input signal and confirming that the control system is sending the correct and stable command. Next, inspect the instrument-air supply and make sure the actuator receives sufficient and stable pneumatic pressure. Check pneumatic tubing and fittings for leakage, blockage, or restrictions. The mechanical feedback linkage should also be inspected for looseness, binding, or excessive backlash. If these areas are normal, review the positioner’s configuration and commissioning parameters. Persistent positioning errors may also be caused by excessive valve friction, insufficient actuator force, or mechanical problems within the valve itself.

6. How should the V18345-1021120001 be commissioned after installation?

After installation, first inspect the mechanical connection between the positioner and actuator and confirm that the feedback mechanism accurately follows actuator movement. Check the 4–20 mA electrical loop and instrument-air supply to ensure both are operating correctly. Configure the positioner according to the installed valve and actuator, then perform the applicable automatic commissioning procedure. After commissioning, operate the valve through several complete movements and check the direction of travel, position feedback, response speed, and positioning stability. When connected to a PLC or DCS, also verify that the control system can correctly send the target position and receive the actual valve-position feedback.

7. What can cause the V18345-1021120001 to produce unstable valve movement or oscillation?

Valve oscillation can be related to control parameters, pneumatic conditions, mechanical feedback, or the valve itself. Incorrect control settings may cause the positioner to repeatedly correct small deviations around the target position. Mechanical backlash or loose feedback connections can also cause continuously changing position information. Fluctuating instrument-air pressure, pneumatic leakage, and excessive actuator friction can further affect positioning stability. Troubleshooting should begin by confirming that the 4–20 mA signal is stable, followed by inspection of the air supply, pneumatic tubing, feedback mechanism, actuator, and valve before changing control parameters.

8. What should be considered when replacing the V18345-1021120001?

Before replacement, verify the complete model number and confirm that the replacement positioner is compatible with the existing valve, pneumatic actuator, electrical control loop, and feedback mechanism. Follow site safety procedures and isolate the electrical and pneumatic supplies before removing the existing unit. Record the original electrical wiring, pneumatic connections, actuator direction, feedback arrangement, and important configuration parameters. After installing the replacement, check the 4–20 mA loop, pneumatic supply, and mechanical feedback connection, then complete the required configuration and automatic commissioning. A complete valve-travel test should be performed afterward to confirm accurate position tracking, stable control response, and normal diagnostic status.
