1. What is the main function of the ABB V18345-2010160001 valve positioner?

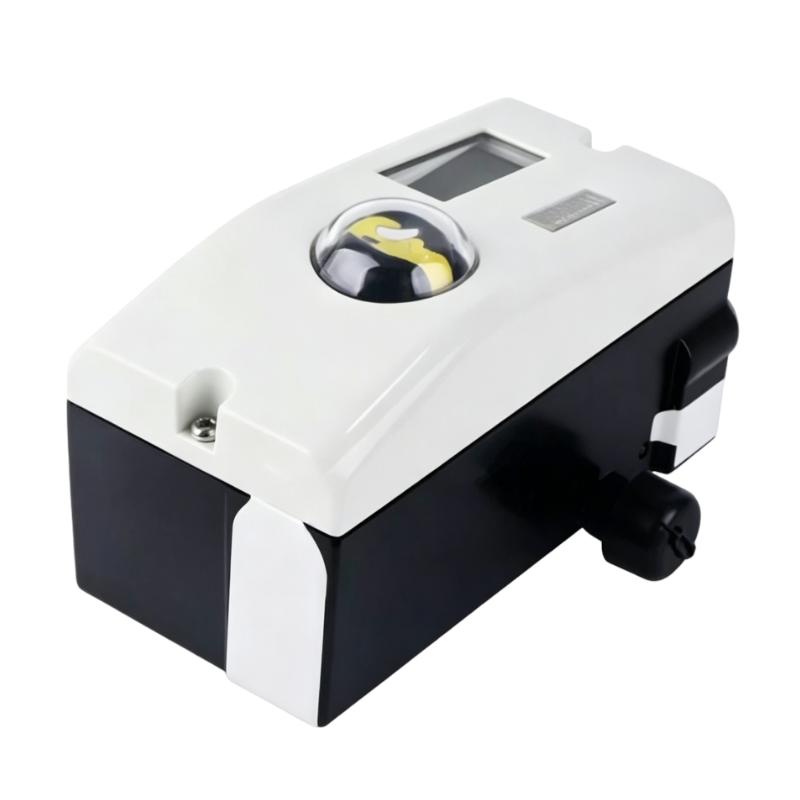

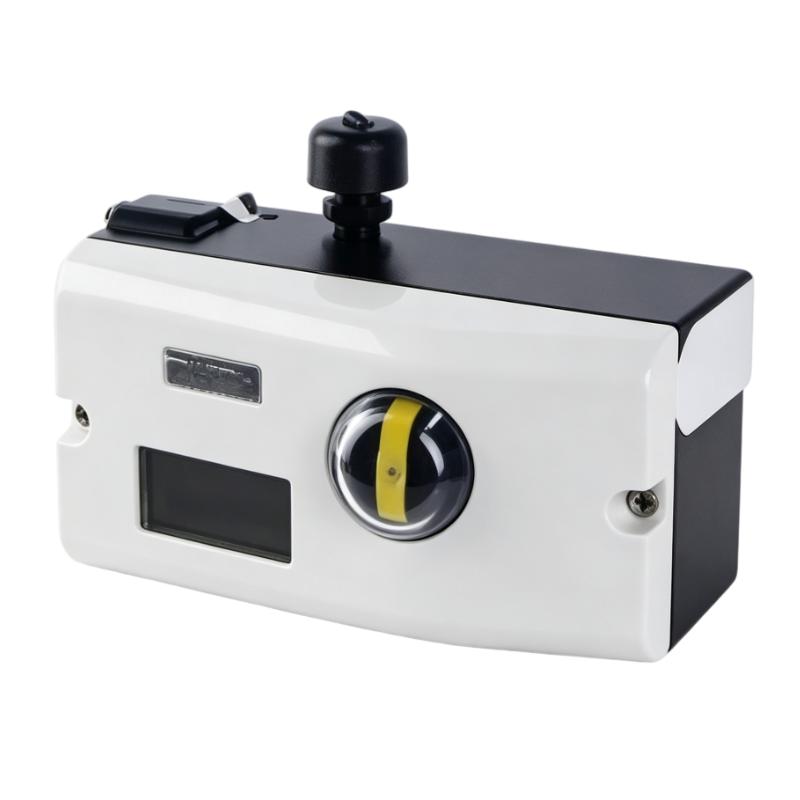

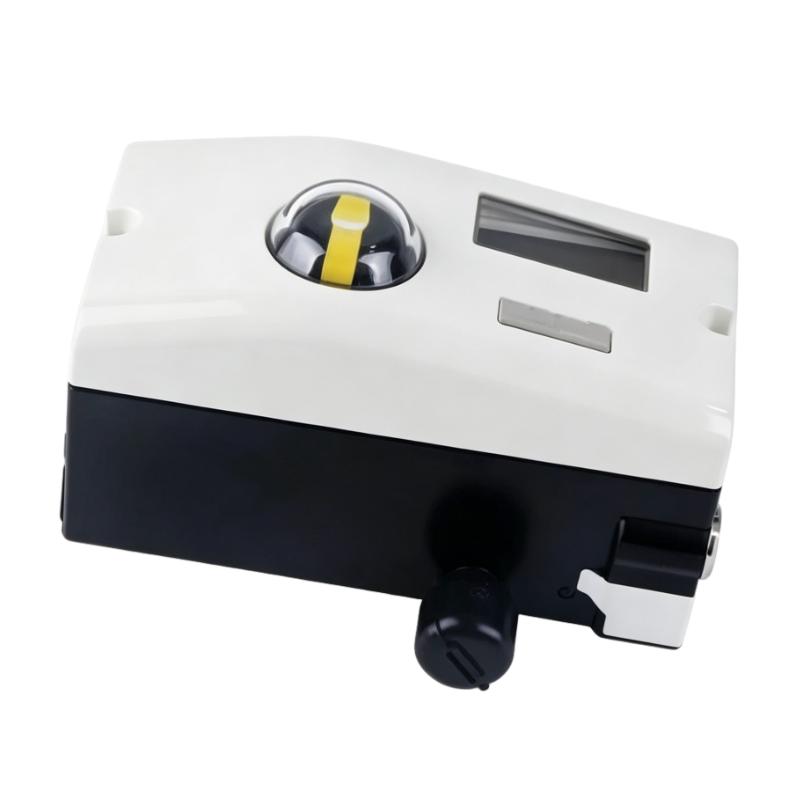

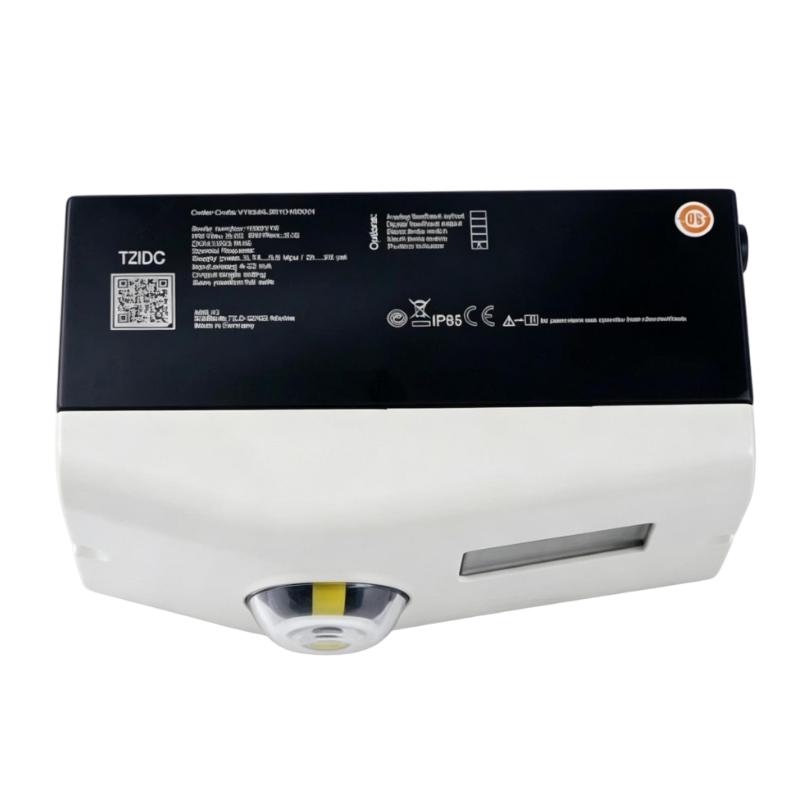

The ABB V18345-2010160001 is an electro-pneumatic valve positioner from the TZIDC series. It is designed to control the position of pneumatic control valves according to a 4–20 mA command signal from a process control system. The positioner compares the requested valve position with the actual valve position and adjusts the pneumatic output to minimize the difference. This closed-loop control allows the valve to maintain accurate positioning even when process conditions or actuator loads change. The model is configured for single-acting pneumatic actuator applications and includes a local position indicator for convenient operation and monitoring.

2. What input signal does the V18345-2010160001 use?

The V18345-2010160001 uses a 4–20 mA two-wire input signal. The process control system sends the required valve position through the current loop, and the positioner converts this command into the corresponding pneumatic actuator movement. This type of input is widely used with PLC, DCS and other industrial control systems. During commissioning, the input signal should be checked at several operating points to confirm that the current corresponds correctly to the intended valve position. Incorrect signal scaling, unstable loop current or wiring problems can cause inaccurate positioning, so the complete signal loop should be verified before changing the positioner’s control parameters.

3. Does the ABB V18345-2010160001 support HART communication?

Yes. The V18345-2010160001 supports HART communication, allowing digital access to configuration and diagnostic information while the conventional 4–20 mA signal remains available for valve control. HART can be used to review operating parameters, check device status and assist with troubleshooting during commissioning and maintenance. It is especially useful when the valve does not respond as expected because technicians can obtain additional information without relying only on the local indicator. When using a HART communicator, the electrical loop should be checked first to ensure that the wiring and communication conditions are suitable.

4. What type of actuator is suitable for the V18345-2010160001?

This configuration is intended for single-acting pneumatic actuators. It can be applied to suitable linear or rotary valve actuators when the mechanical mounting and feedback arrangement are compatible. Linear actuator installation can use applicable DIN / IEC 534 or NAMUR mounting arrangements, while rotary actuator installation can use the applicable VDI / VDE 3845 interface. Before installation, the actuator type, mechanical connection, valve travel and movement direction should be verified. The feedback mechanism must also be correctly coupled to the actuator so that the positioner can accurately determine the actual valve position throughout the operating range.

5. What should be checked if the valve cannot reach the commanded position?

The first step is to verify the 4–20 mA input signal and confirm that the control system is producing the expected command. Next, check the instrument-air supply and confirm that the pressure is sufficient and stable for the actuator. Pneumatic tubing should be inspected for leakage, blockage or incorrect connections. The valve and actuator should also be checked for mechanical resistance, sticking or restricted travel. If the electrical, pneumatic and mechanical systems are functioning correctly, the positioner’s configuration and calibration should be reviewed. HART communication can be used to examine operating information and diagnostic parameters. This systematic approach helps determine whether the problem originates from the control signal, air supply, actuator, valve mechanism or positioner.

6. How should the V18345-2010160001 be commissioned and calibrated?

Commissioning should begin by confirming that the positioner is correctly mounted on the actuator and that all electrical, pneumatic and feedback connections are secure. The 4–20 mA input loop should then be checked to verify the correct signal range. The instrument-air supply should be stabilized before testing actuator movement. The valve should be able to travel smoothly throughout its required operating range without mechanical obstruction. Positioner parameters can then be configured using the local operating interface or HART communication. The actuator type, movement direction, travel settings and other relevant parameters should match the actual installation. After configuration, the valve should be tested at several command values to confirm that actual position follows the requested position accurately and without excessive oscillation.

7. What are common causes of unstable valve positioning?

Unstable valve positioning can be caused by problems in the electrical signal, pneumatic supply, actuator, valve mechanism or positioner configuration. A fluctuating 4–20 mA signal will cause the positioner to continuously adjust the actuator. Unstable or insufficient instrument-air pressure can produce inconsistent actuator movement. Mechanical problems such as valve-stem friction, sticking, actuator wear or incorrect feedback linkage can also result in repeated position corrections. If these conditions are normal, the positioner’s calibration and control parameters should be checked. It is preferable to verify the input signal, air supply and mechanical movement first rather than immediately changing the control parameters. This helps prevent configuration changes from masking an underlying mechanical or pneumatic problem.

8. What checks are required after replacing the V18345-2010160001?

After replacement, the complete valve-positioning loop should be inspected before returning the equipment to automatic operation. First verify the positioner’s model and configuration, then check the mechanical mounting and feedback connection. The 4–20 mA wiring, HART communication connection and pneumatic connections should be inspected for correct installation. The actuator should respond in the correct direction when the input signal changes. The positioner’s configured input range, actuator settings and travel parameters should then be checked and the required calibration completed. The valve should be tested at multiple command points across its operating range to confirm accurate and repeatable positioning. Finally, technicians should review the local status indication, diagnostic information and control-system feedback for abnormal conditions. For critical process applications, extended observation under normal operating conditions is recommended before the equipment is considered fully commissioned.
